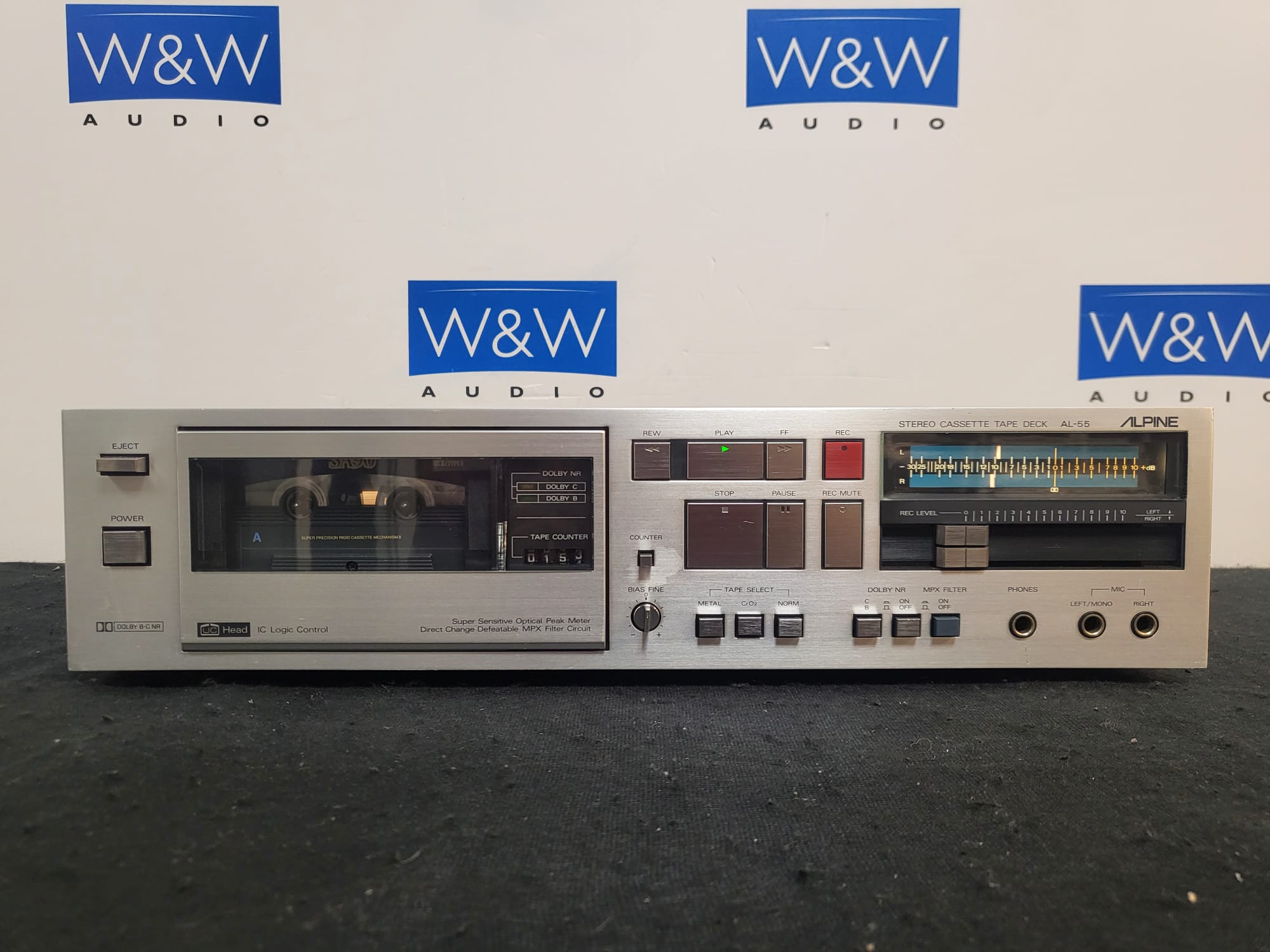

Alpine AL-55

Stereo Cassette Deck (1982)

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Track System: 4-track, 2-channel stereo
Tape Speed: 4.76 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 30Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 65dB (dolby C)
Wow and Flutter: 0.07%
Input: 100mV (line), 0.3mV (mic)
Output: 0.55V (line)
Semiconductors: 55 x transistors, 4 x IC, 23 x diodes, 6 x zener diodes
Dimensions: 435 x 106 x 260mm
Weight: 4.3kg
