Marten Parker Quintet
Beschrijving / Description
CABINETS
Distortion free; pure and powerful.

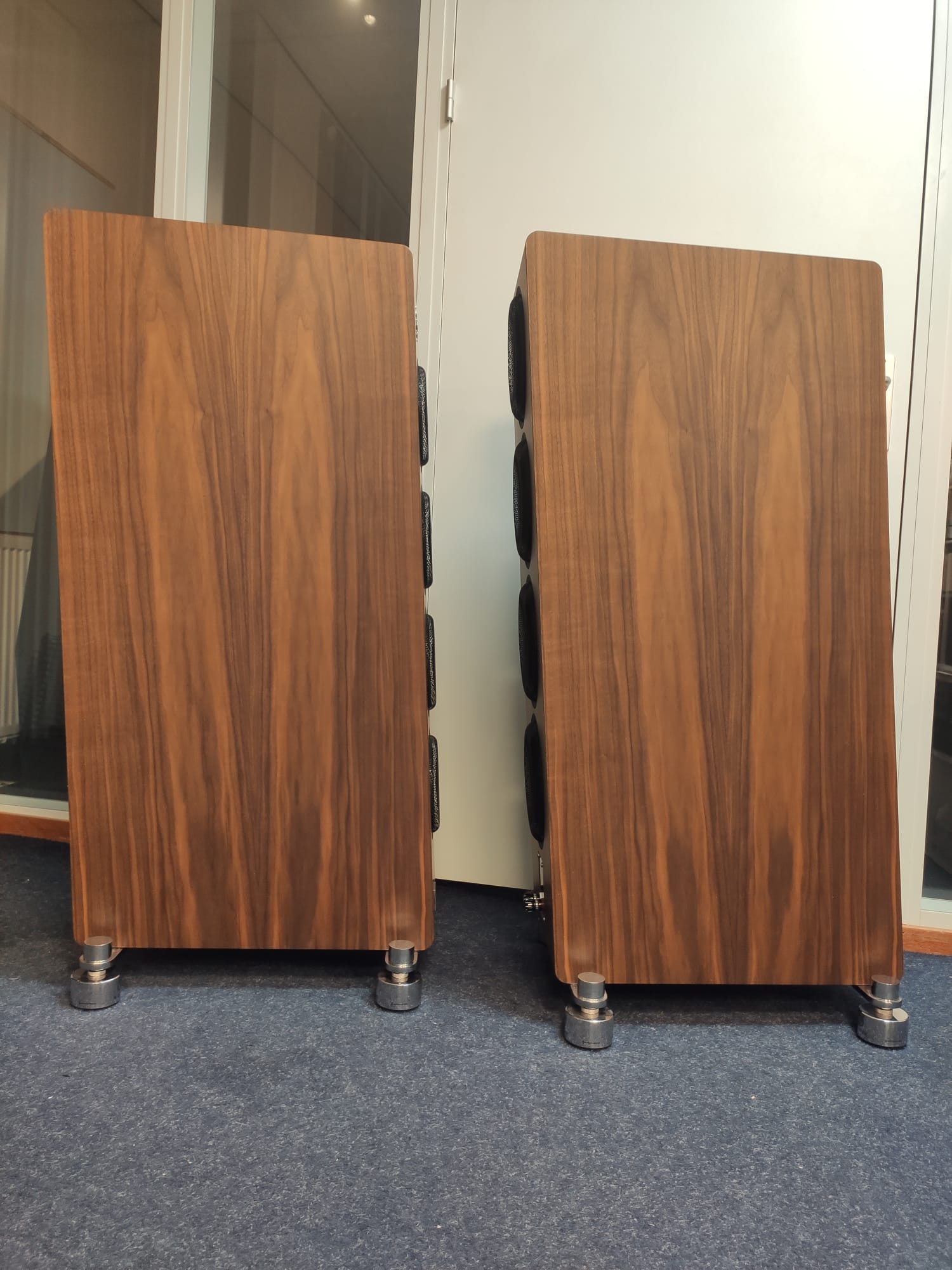

The cabinet features sleek, tapering sides created from M-board, a multi-layered material offering extreme resonance reduction. Parker Quintet is so resonance-free, it completely disappears within the soundstage. The newly designed cabinet balances visual appeal with low-impact on sound.
CERAMIC DRIVERS
Smaller scale design for bigger results.
Ceramic drivers are custom designed by Leif Olofsson to meet the needs of a loudspeaker in this class. Each unit has a very long linear excursion and utilises the powerful Neodynium magnet system for control. Custom designed components allows a more holistic way of building a system, making Parker Quintet a super-refined Marten speaker.
BASS AND MIDRANGE
Full. Controlled. Dynamic.
Designed for the system, four 7.5 inch bass/midrange ceramic drivers offer a large surface area resulting in an open, precise soundstage and great dynamics, while four passive radiators give better control of the lower frequencies. A speaker of this class demands the ultimate in bass response.
CROSSOVER
A harder working crossover.
A multi-diverse crossover technique was developed through hours of listening and testing, plus rigorous simulation, calculation and measurement. We've really put the work in with this crossover, using the best components and precisely tuning it to work with the system.
INTERNAL WIRING
Premium cables for purer sound.
We use Jorma Design internal wiring, for its exemplary quality and performance. Handmade in Sweden, the cables use separate + and for enhanced shielding and the highest quality Copper. This offers natural, transparent sound; the perfect choice for our speakers.
Cables are integral components, so they must work harmoniously with our precision design and build. Jorma Design delivers exactly what a Marten speaker demands.

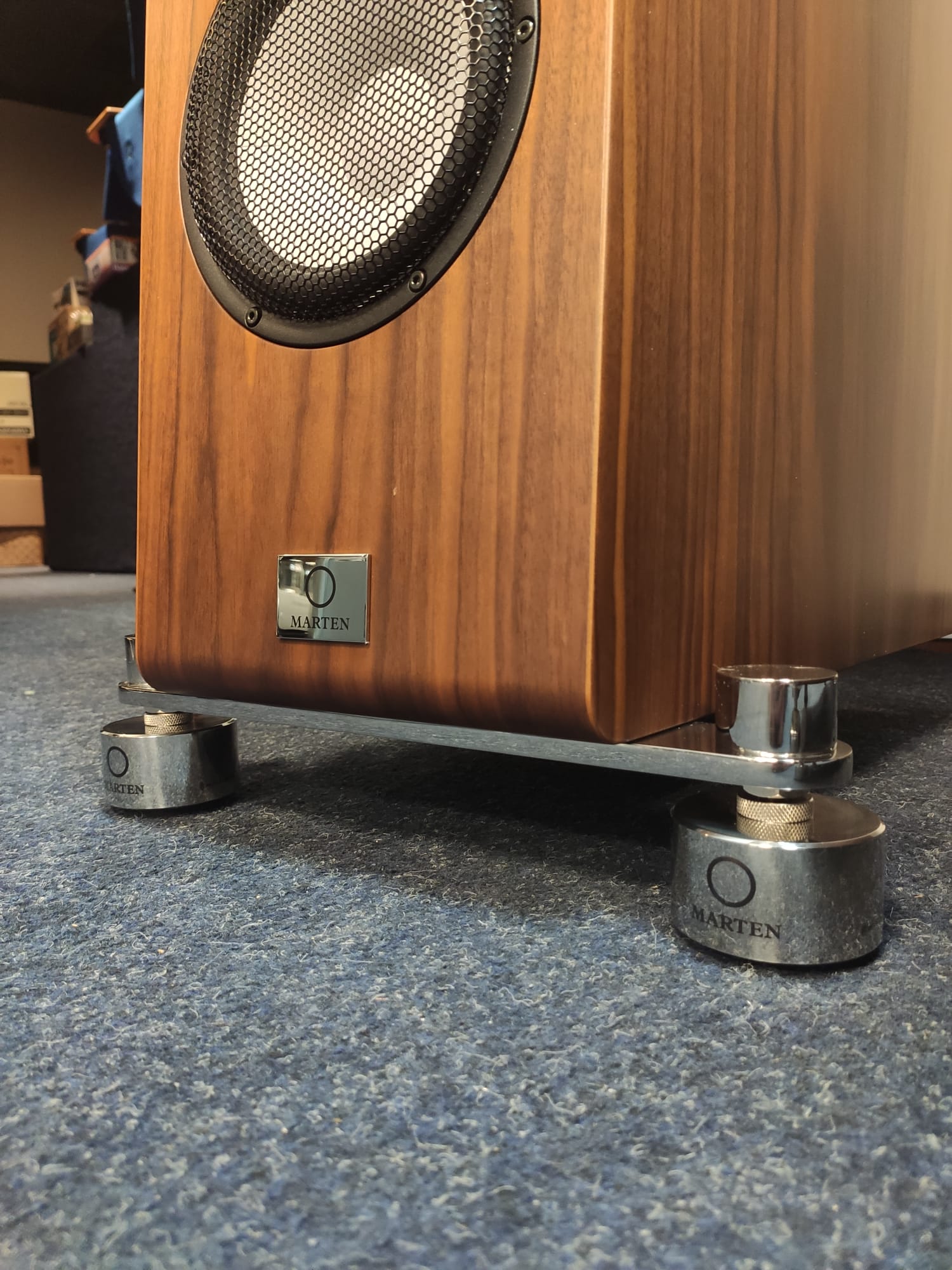

FEET
A new level of isolation.
The reduction of resonance is important to the design of our speakers it can mean the difference between a good speaker and a great speaker. With IsoAcoustics we created Marten Isolators. This precision product allows the cabinet to be completely isolated from the floor, reducing resonance and distortion leaving the soundstage free.
Dynamic bass with increased power and control
Natural openness and clarity
Optimised for cabinet weight
Resists lateral movement and oscillations
Reduces internal reflections
Suitable for carpet
Specificaties / Specifications

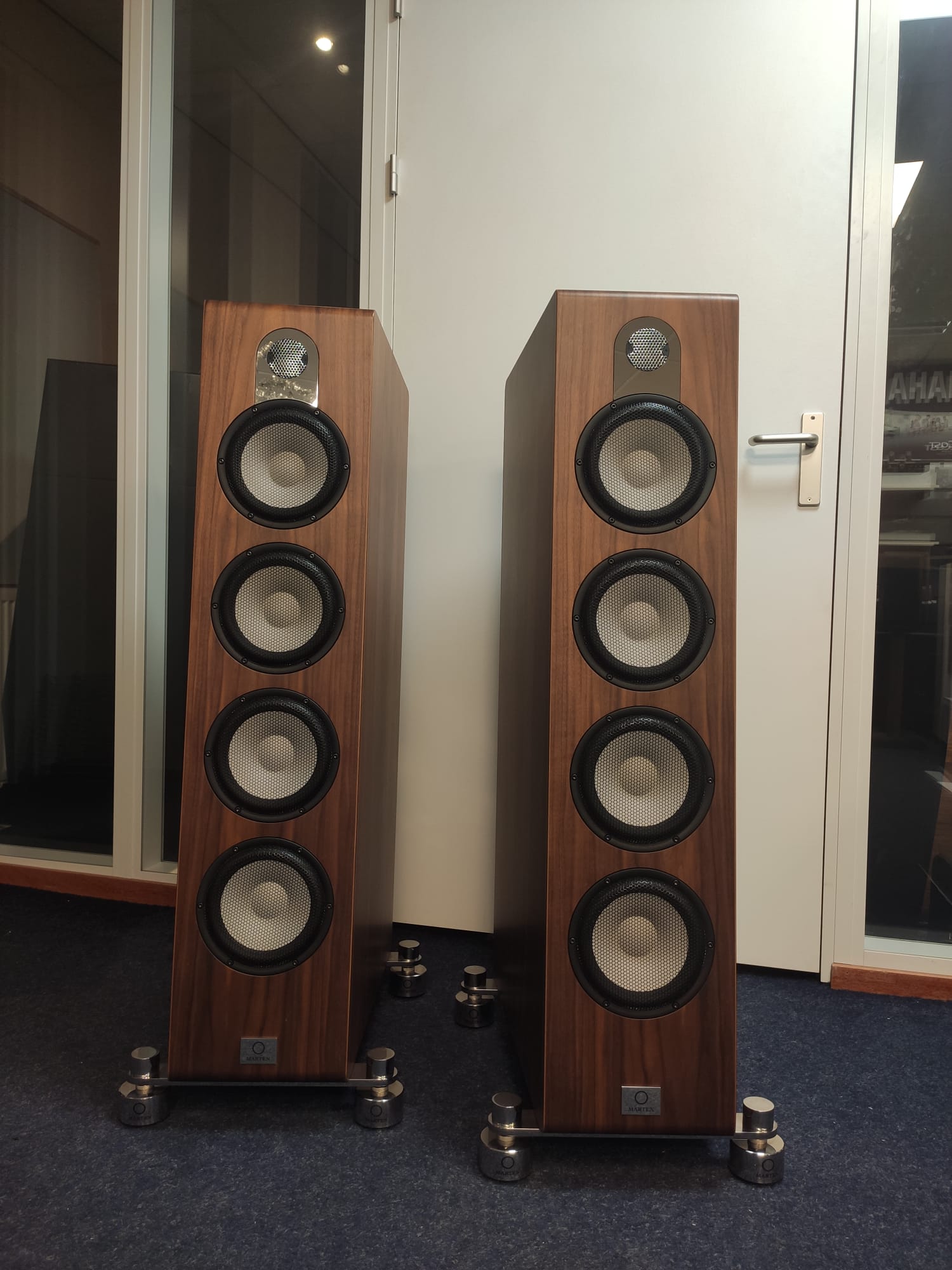

Speaker (front)

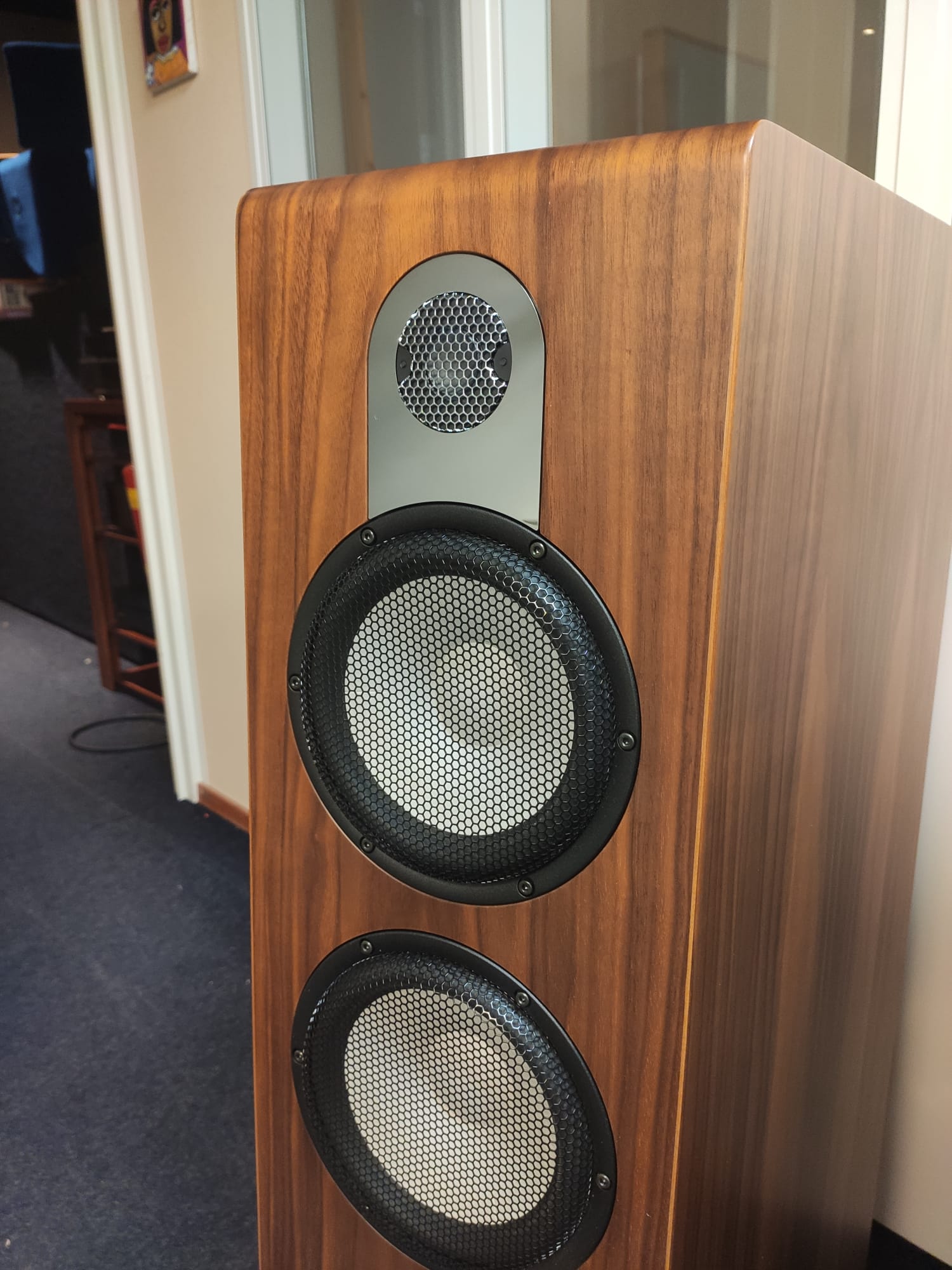

1 inch pure ceramic tweeter (upgradable to Diamond)
4 x 7.5 inch ceramic bass/midrange

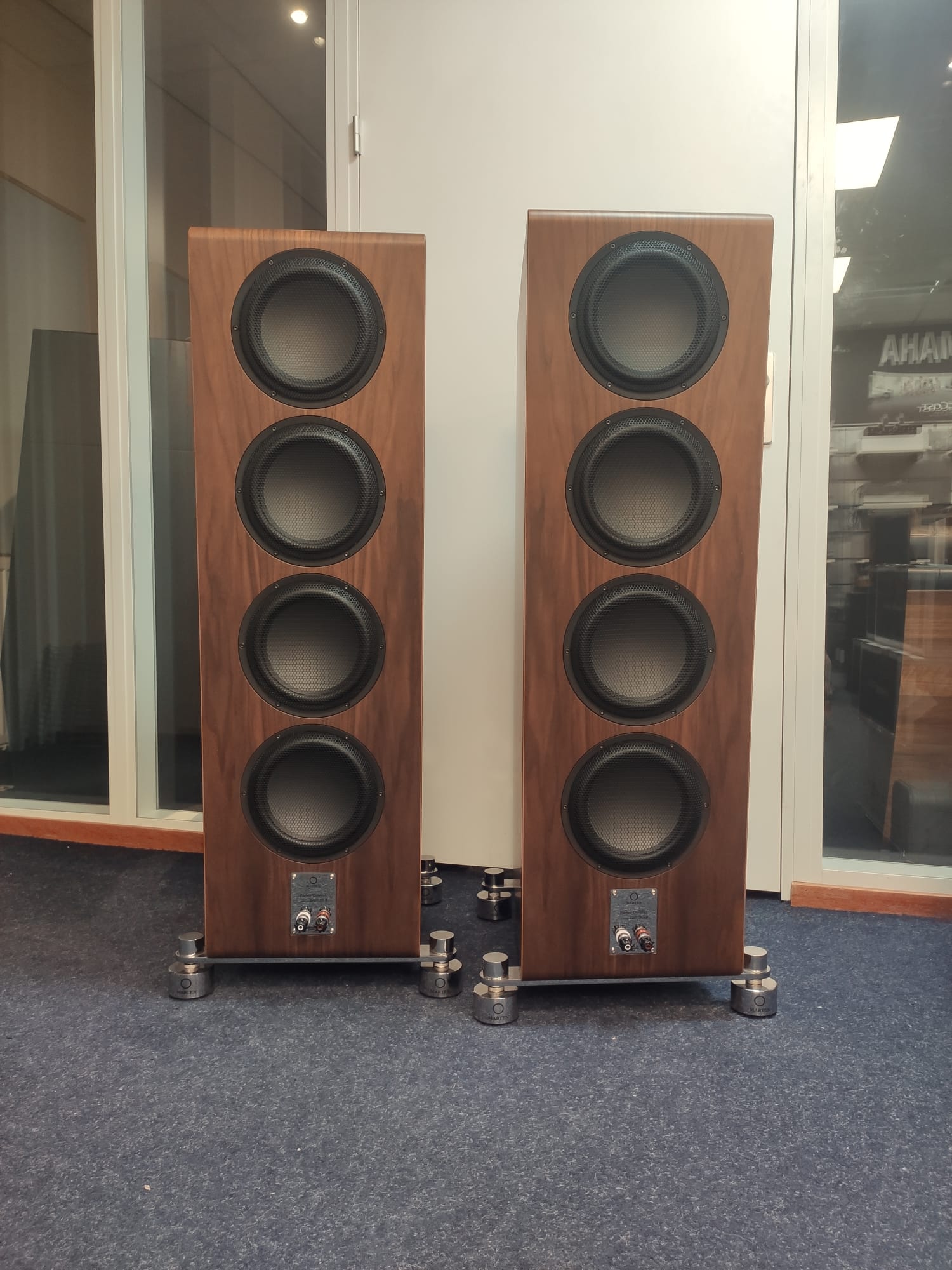

Speaker (back)
4 x 9 inch Aluminium passive radiator
Frequency range 24-40000 Hz +-2dB
Power rating 350 W
Sensitivity 93 dB/2.83 V
Impedance 4 ohms (2.7 Ohms min)
Type 2.5-way
Crossover frequency Multi diverse order, 2200 Hz

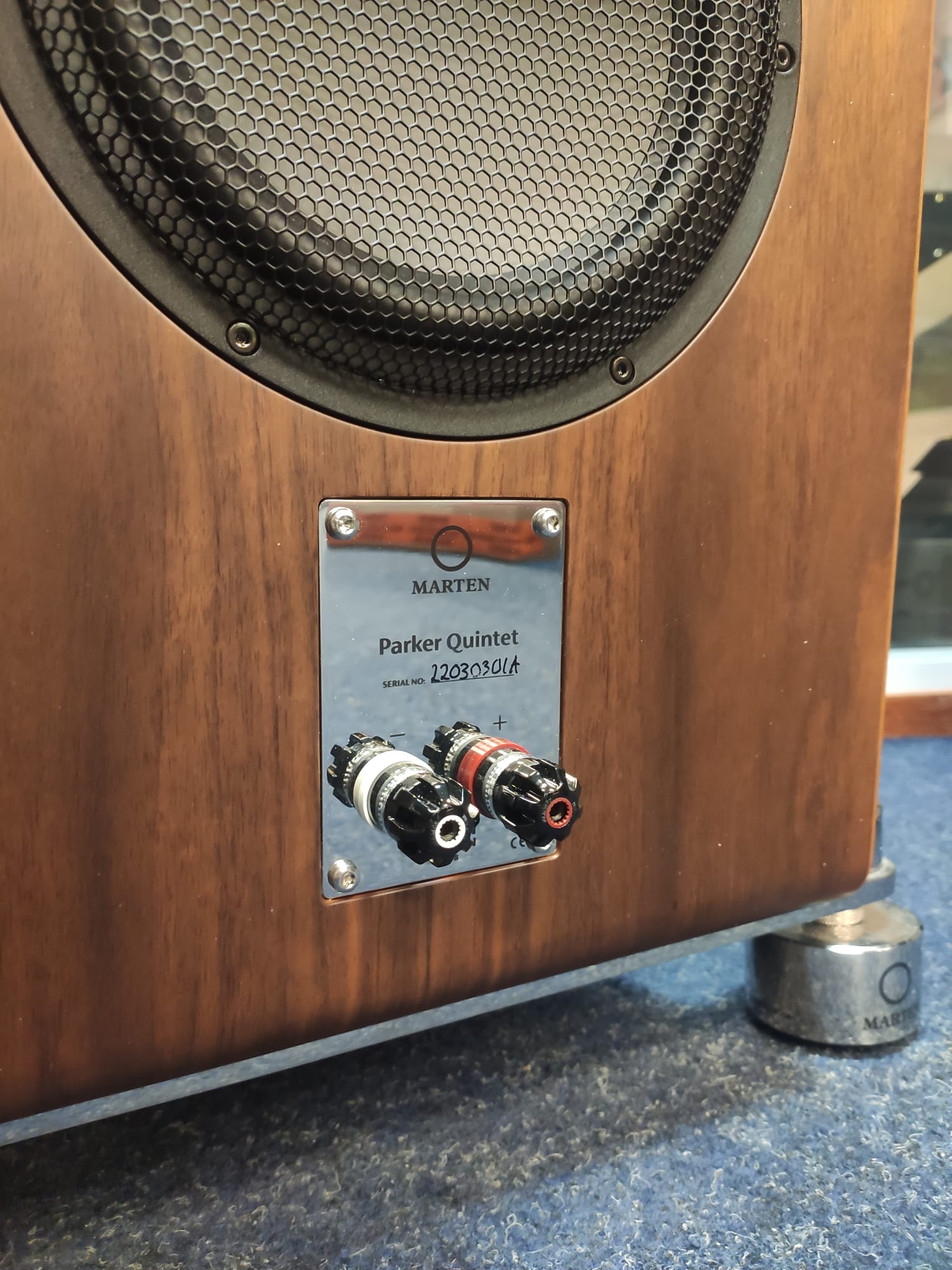

Terminals Single-wiring WBT Nextge
Internal wiring Jorma Design
Cabinet 35 mm M-board Piano Walnut, Matte Walnut or Piano Black
Stands and feet
Mirror polished stainless steel with
Marten Isolators
Dimensions W x H x D 24-33 x 117 x 54 cm (9.4-13 x 46 x 21.3")
Net weight 60 kg (133 lbs)
Only 2 years old!
