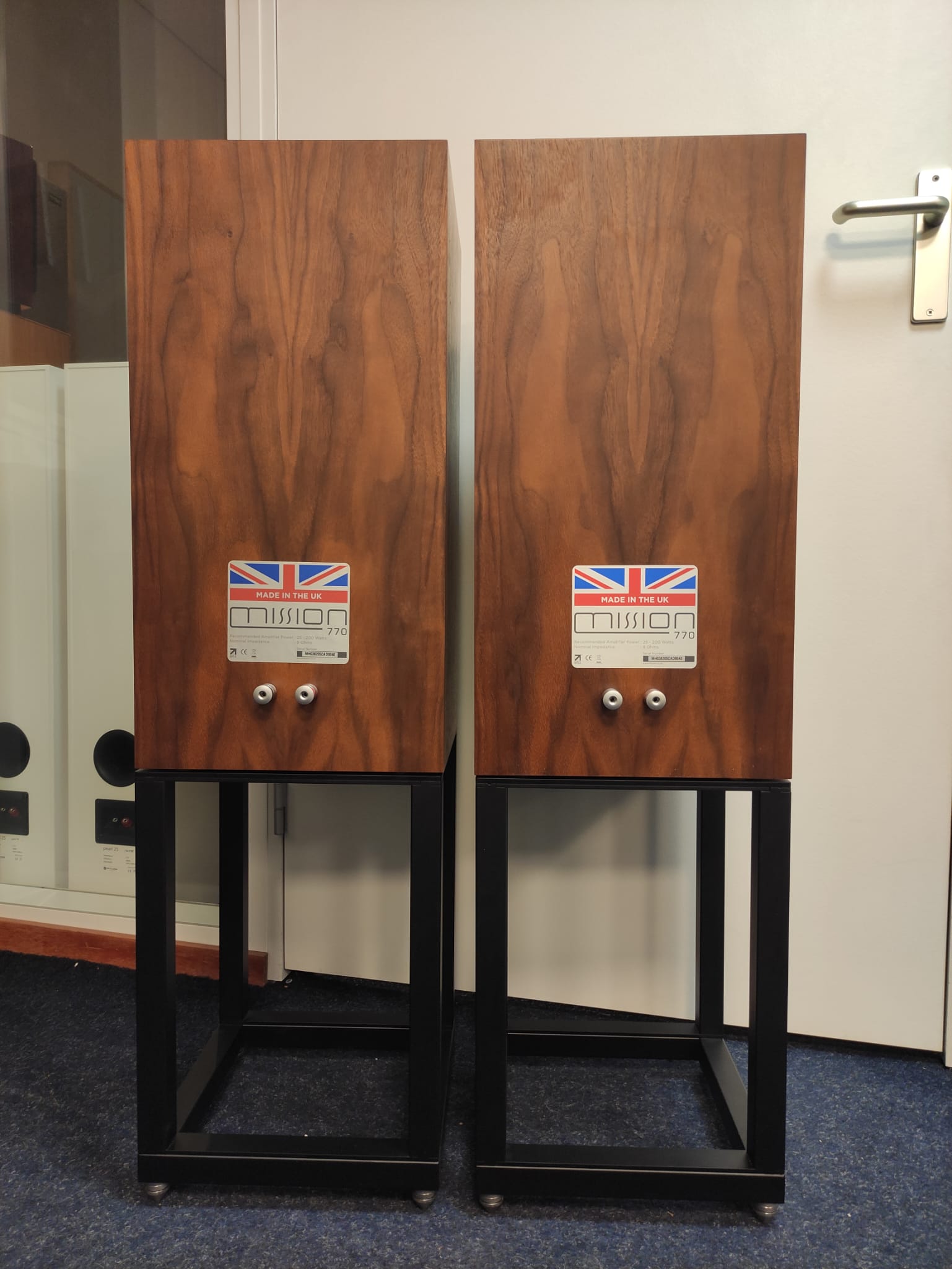

Mission 770
Beschrijving / Description
The new 770 heralds the return of UK-based manufacturing for the Mission brand, where a 25,000 square foot production facility has been purpose-built in Huntingdon, Cambridgeshire the home of British Hi-Fi.
The Mission 770 has always been manufactured according to the Mission principles of quality and value for money. New Mission 770 further exemplies these two edicts; balancing ne craftsmanship, natural sound quality, and affordability inside a beautifully proportioned loudspeaker that has been bought in its millions right across the globe through its various incarnations.
The original 770 was well known for its warm, rich and natural sounding character and the new Mission 770 retains that standing but imbues it with an open, detailed performance that will entice you to explore your whole music collection, once more.
The emphasis for the design of the new Mission 770 is, indeed, that combination of polypropylene cone and resonance controlled cabinet. Accordingly, Mission has developed a new polypropylene driver, mimicking the extended response and low colouration of the original, while upgrading the motor system to take account of modern power handling and dynamic requirements. Naturally, like the original, the driver is built onto an 8-inch die-cast chassis with larger rear windows to reduce early reflections back through the cone. Special care has been taken to marry a low-density nitrile surround to the cone to match its impedance and reduce reflections from the cone edge.
See link.
Specificaties / Specifications
Two-way, reflex-loaded, standmounted loudspeaker.
Drive units: 8" (200mm) mineral-loaded polypropylene-cone woofer, 1.1" (28mm) microfiber-dome tweeter.
Crossover frequency: 2.9kHz.
Frequency response: 42Hz-20kHz +/-3dB.
Low-frequency extension: 30Hz, -6dB.
Nominal impedance: 8 ohms.
Sensitivity: 88dB/2.83V/m.
Recommended power: 25-200W.
Dimensions: 23.2" (590mm) H x 11.8" (300mm) W x 12.67" (322mm) D (incl. terminals).
Cabinet volume: 38.5l.
Weight: 42.24lb (19.2kg) each.
Stand dimensions: 17.5" (445mm) H x 11.8" (300mm) W x 11.8" (300mm) D.
Stand weight: 39.4lb (17.9kg) each.

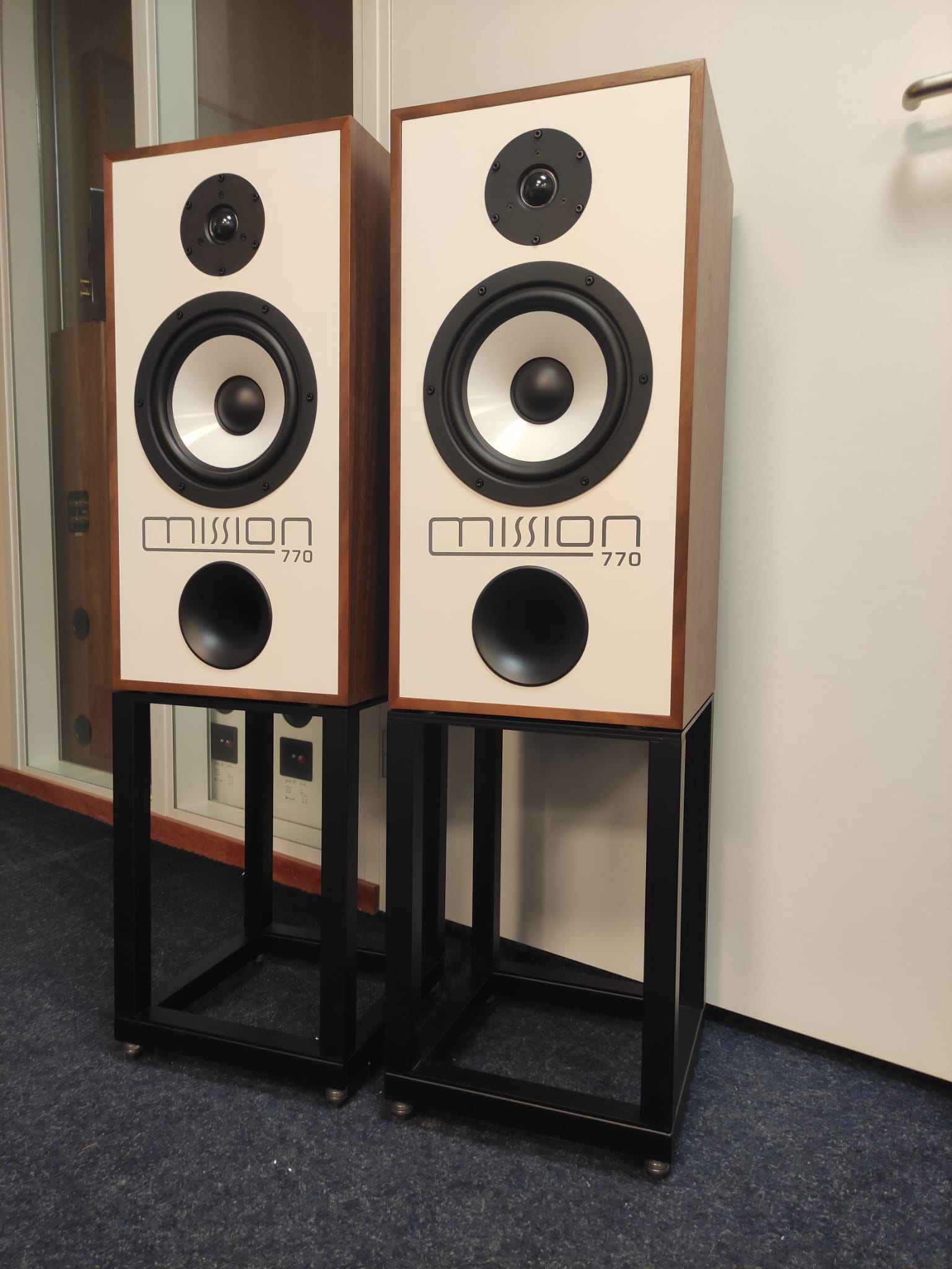

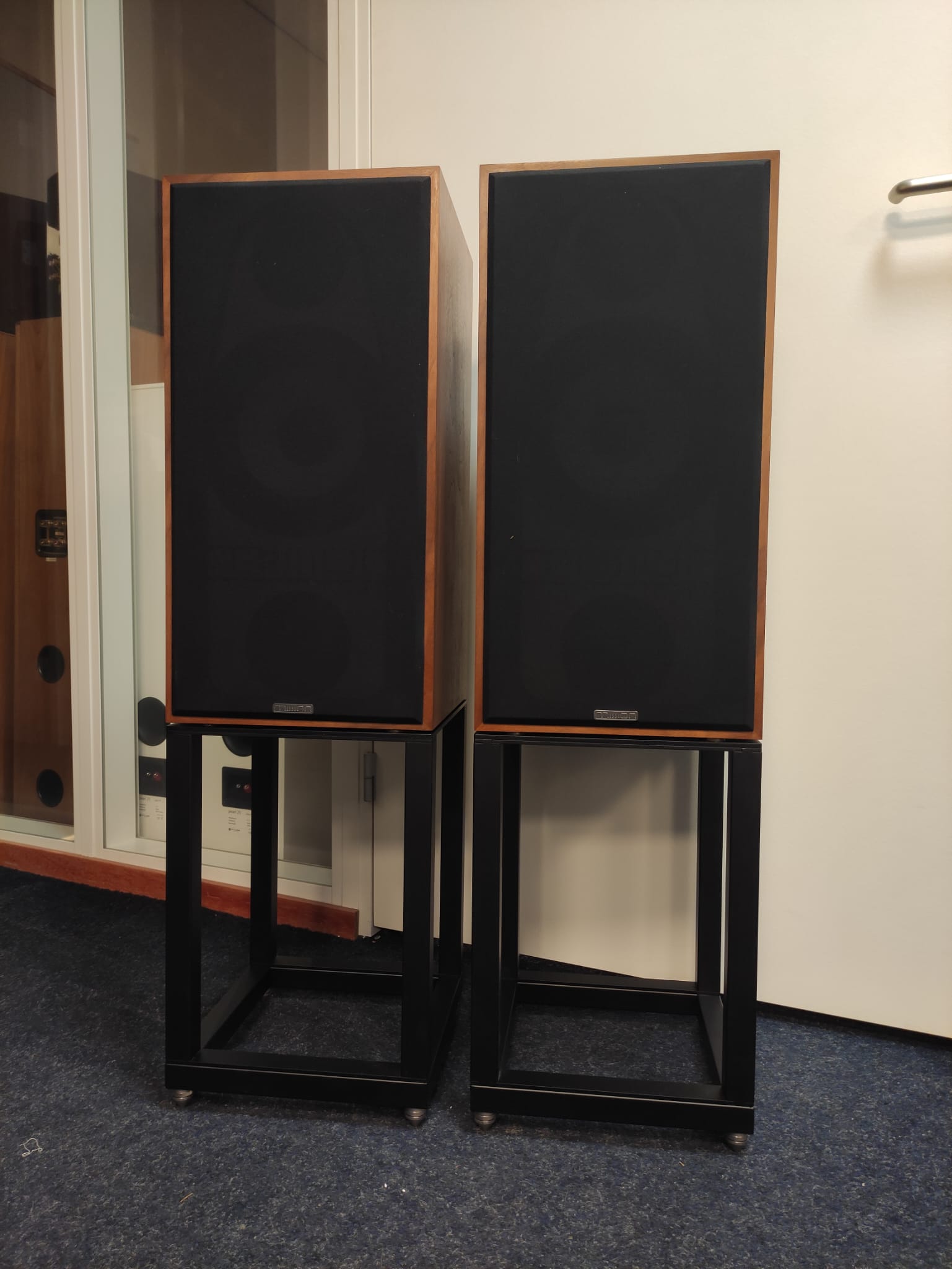

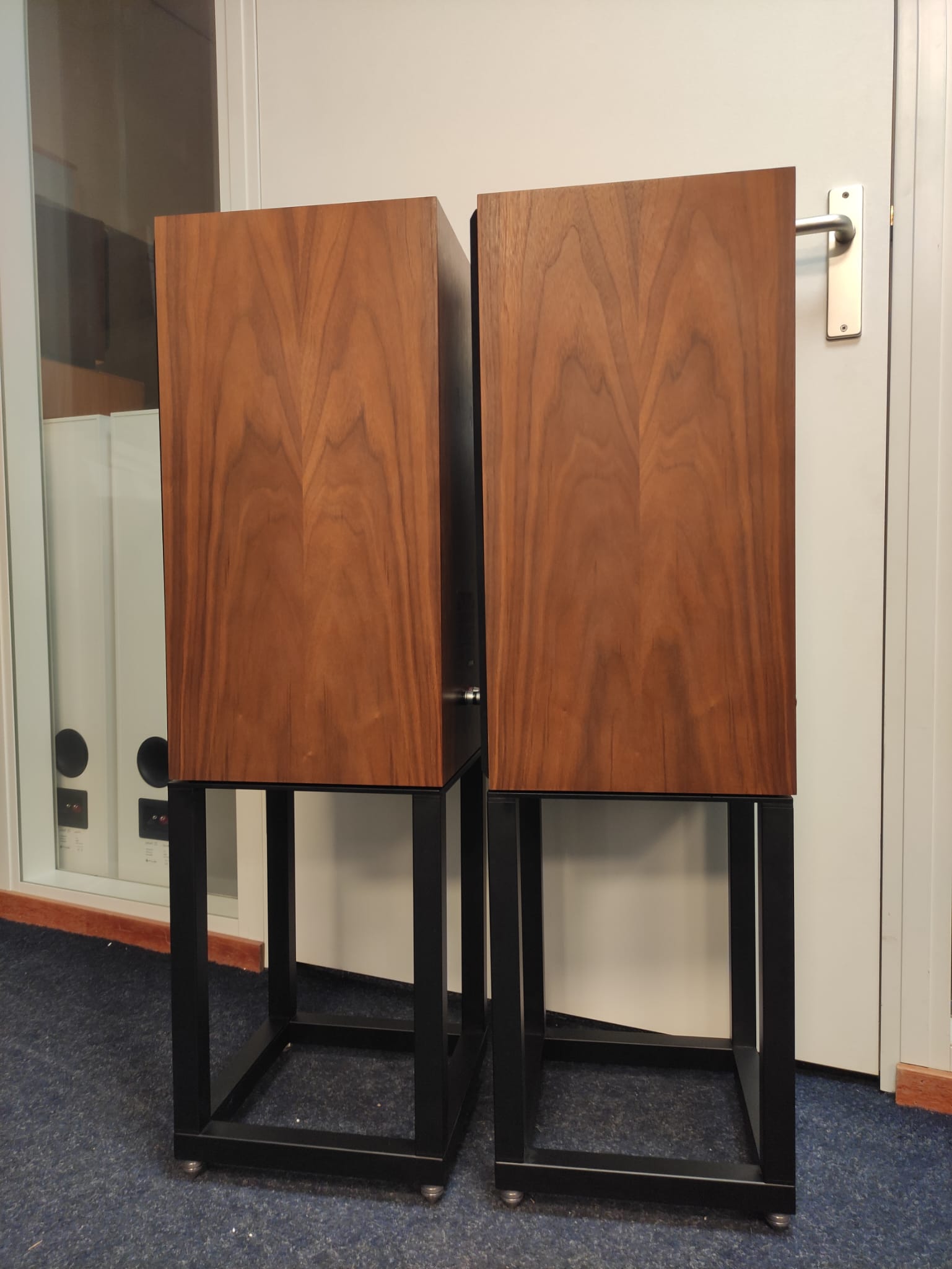

1 Year old with stands!
