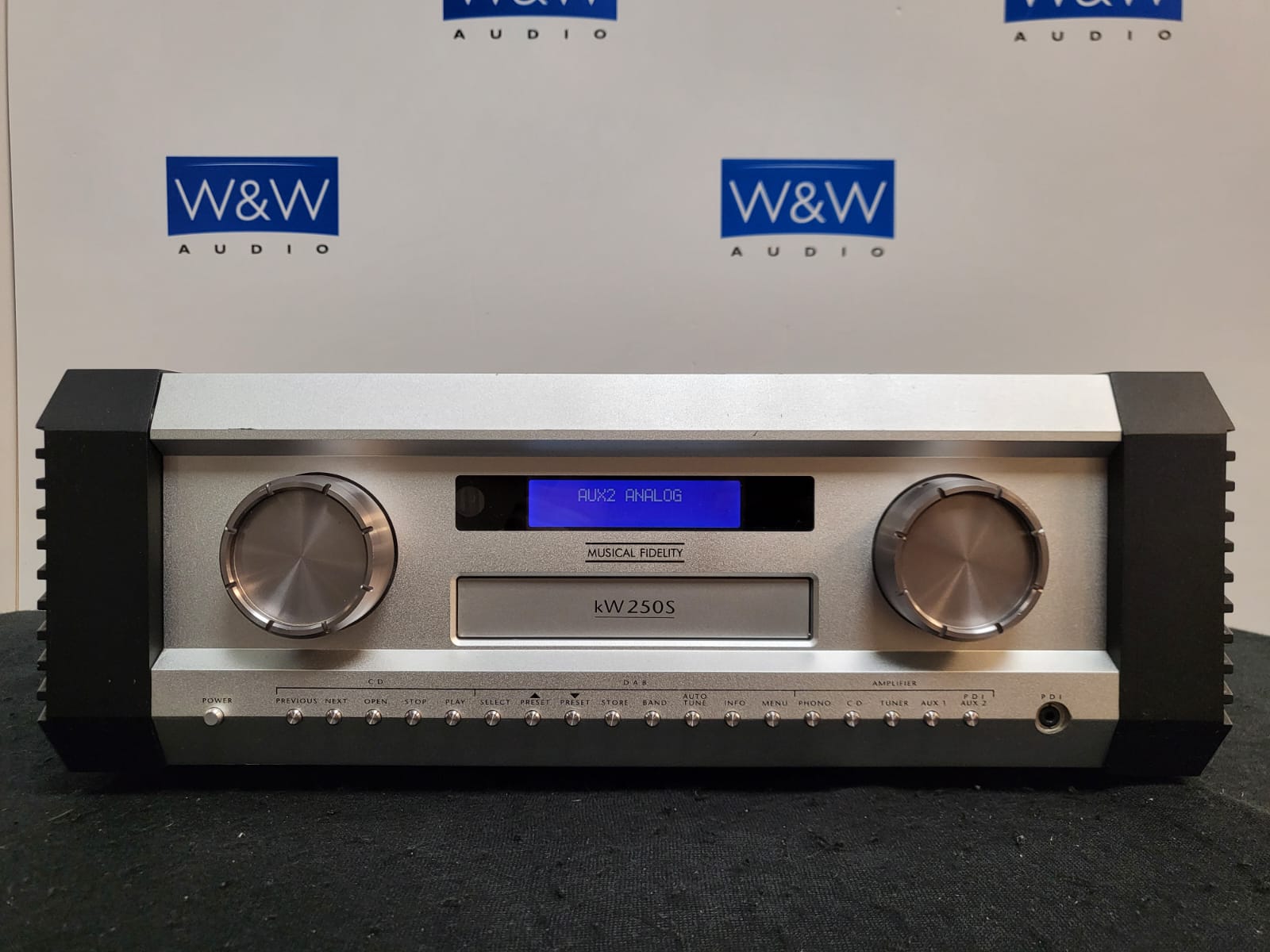

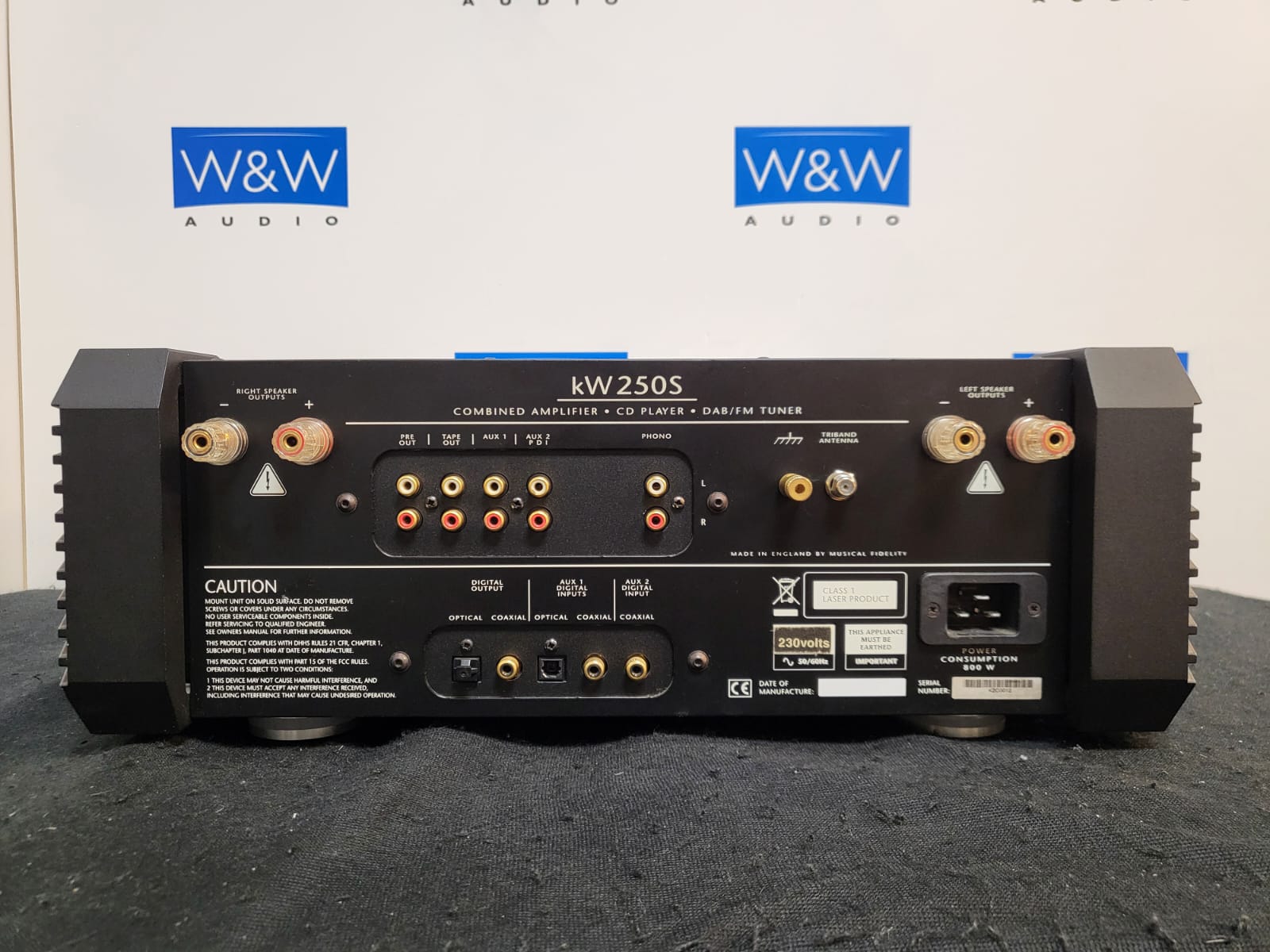

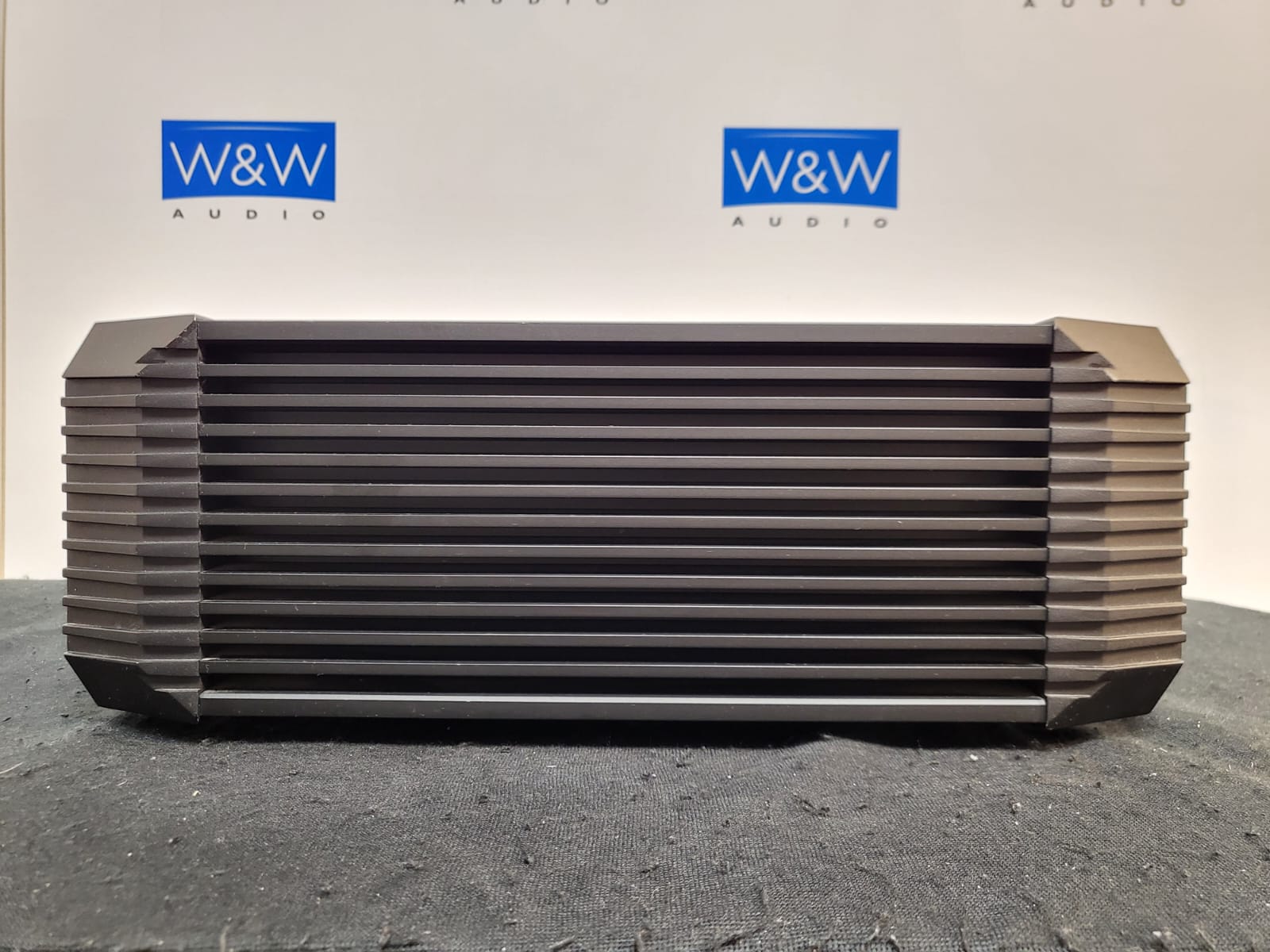

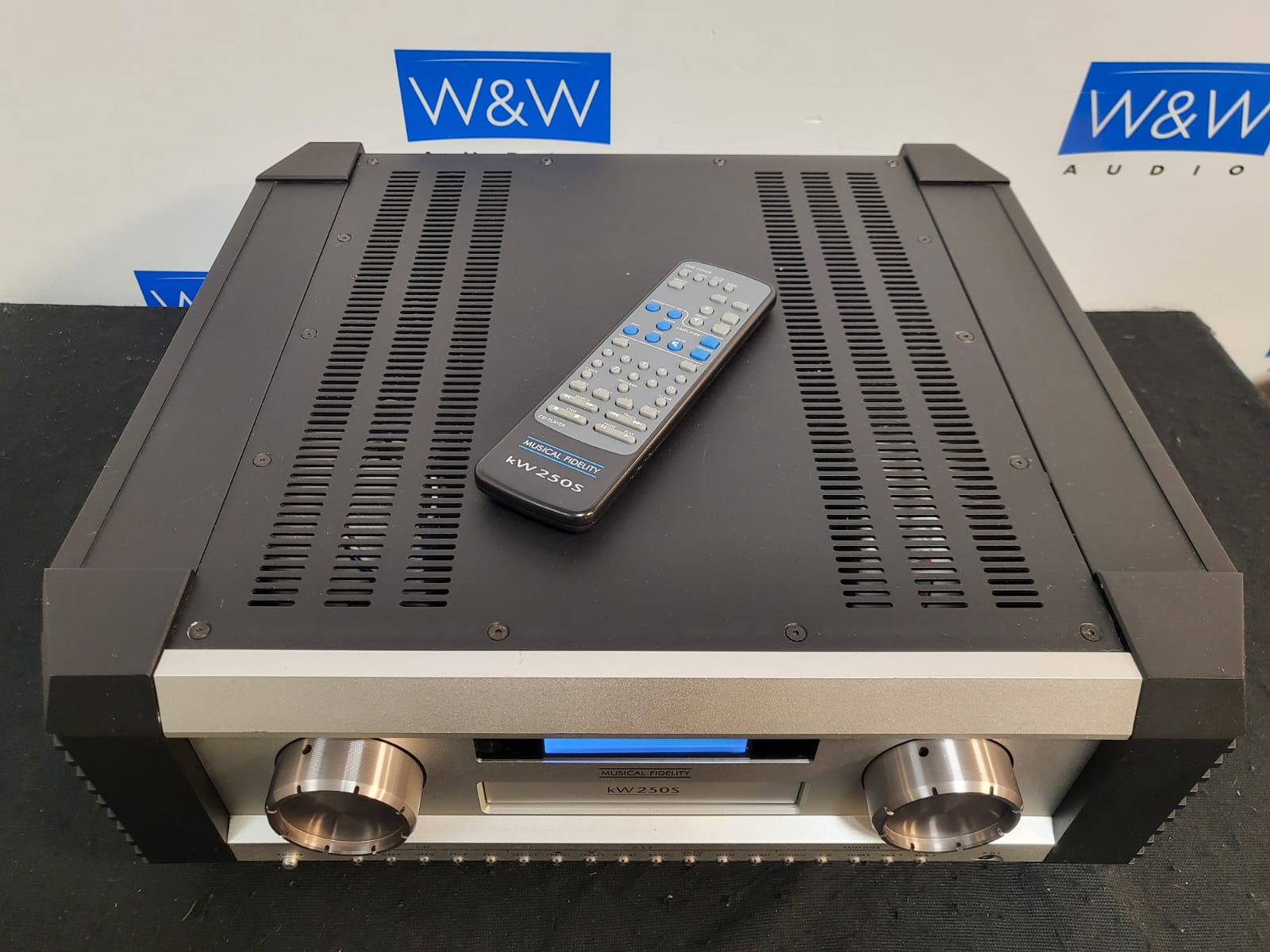

Musical Fidelity KW250S

Upsampling cd, dual mono amplifier, DAB and FM radio, first class MM and MC phono stage.

See also link.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Output: power 250 watts per channel into 8 ohms (24dBW),
400 watts per channel into 4 Ohms;
Voltage, RMS: 45 volts 20Hz to 20 kHz;
Voltage, peak-to-peak: 127.3 volts;
Current peak-to-peak: 75 Amps;
Damping factor: 140;
Output devices per channel: 4;
Pre-out impedance: 50 Ohms.
DAC: DAC circuits: 24 bit Delta-Sigma ( Bit stream) dual differential 8x over sampling;
Up sampling: 192 kHz;
Total correlated jitter: <135 pS; Linearity: <0.1 dB down to -96dB;
Output digital 0dB level: 2.15VRMS at 1 kHz nominal;
Analogue output impedance: 47 Ohms;
Frequency response: 10Hz to 20 kHz -0.2dB max;
Channel separation: >105dB 20Hz to 20 kHz;
Signal/noise ratio: >113dB Aweighted;
Total harmonic distortion: <0.003% 10Hz to 20kHz.
Weight: 29.5 kg, 65 lbs. unit only, unboxed; 37.0 kg, 81.5 lbs. in shipping carton. Dimensions: 485 mm, 19.1 inches wide; 170 mm, 6.7 inches high including feet; 470 mm, 18.5 inches deep including terminals.
