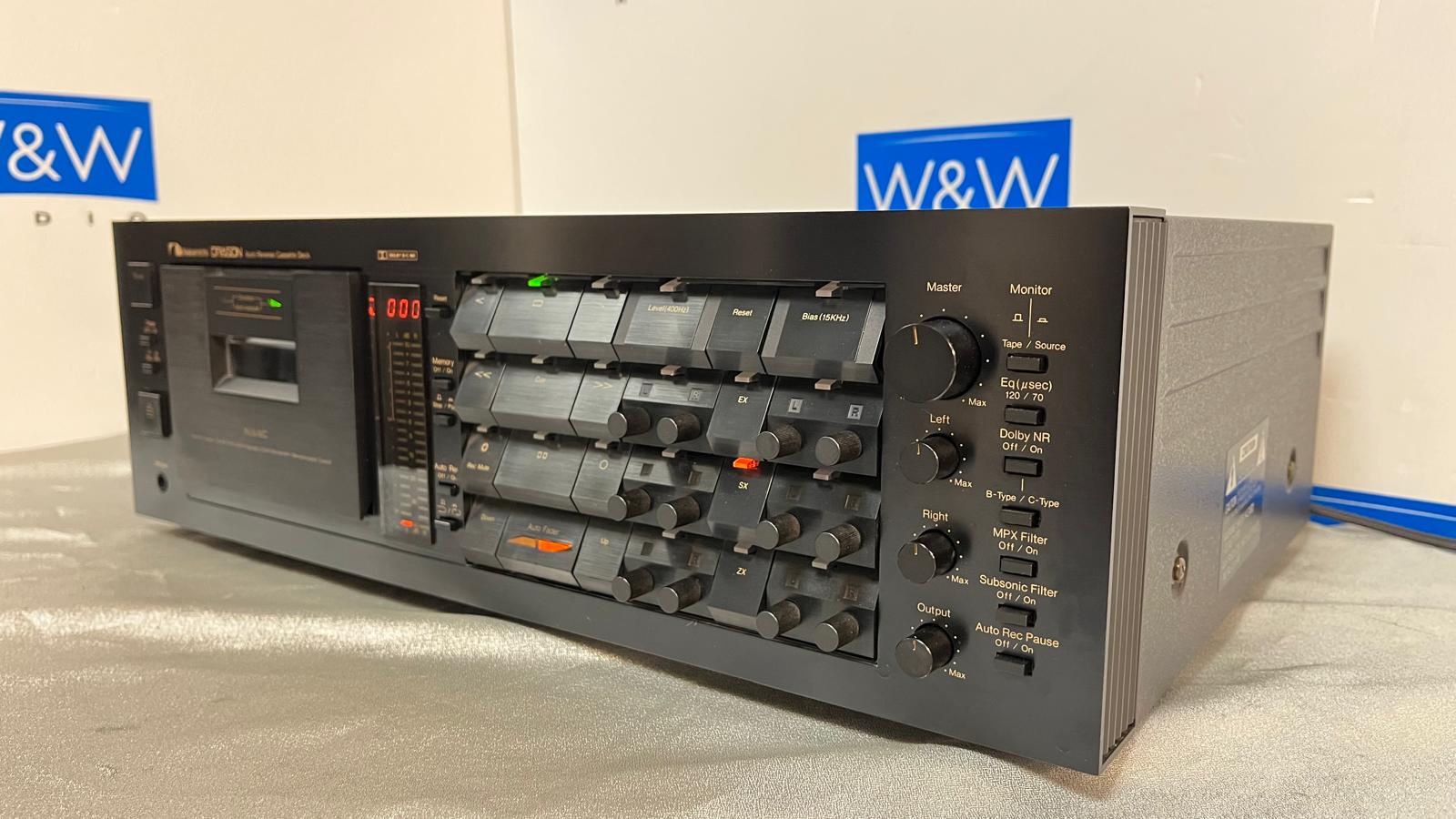

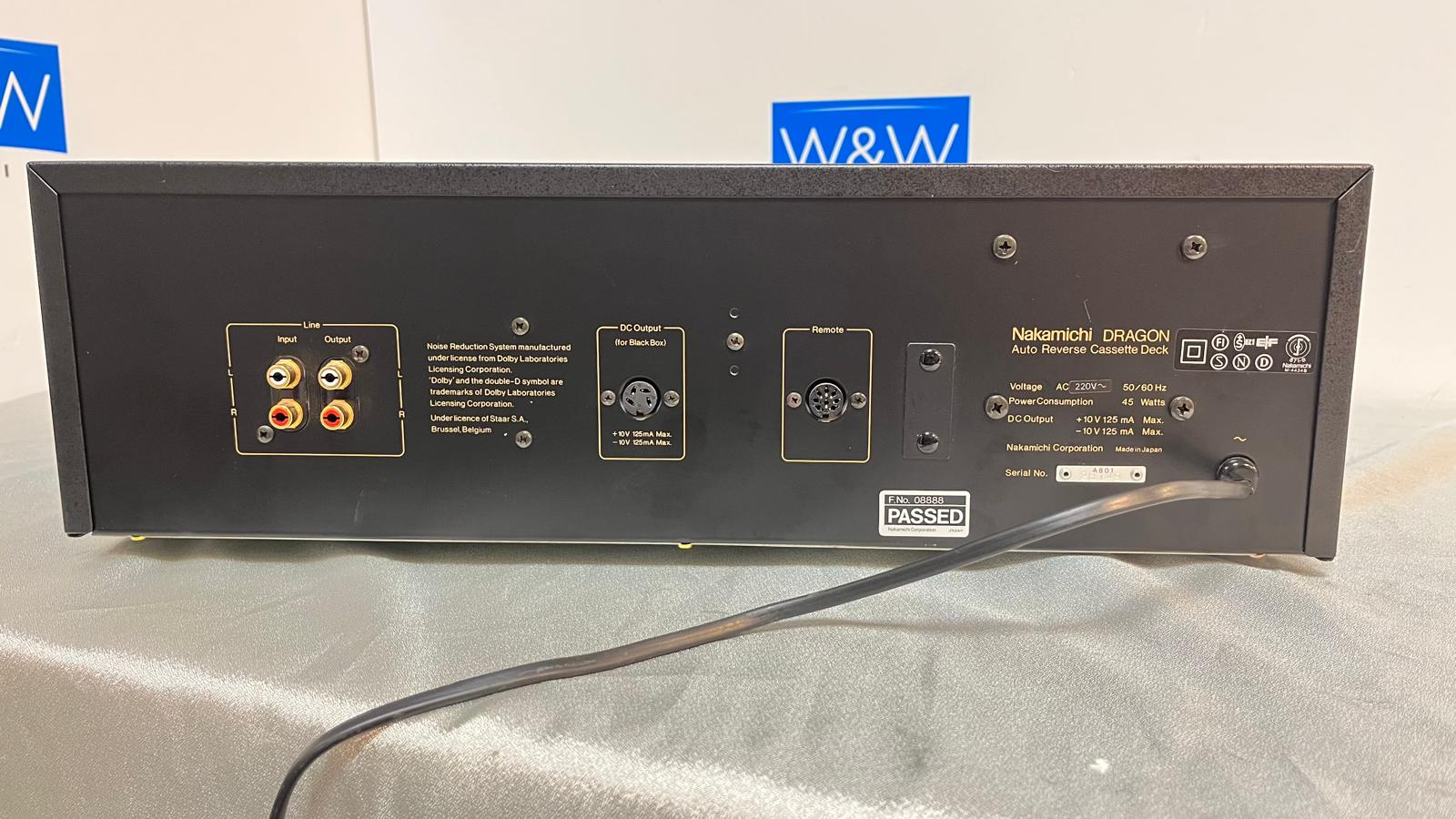

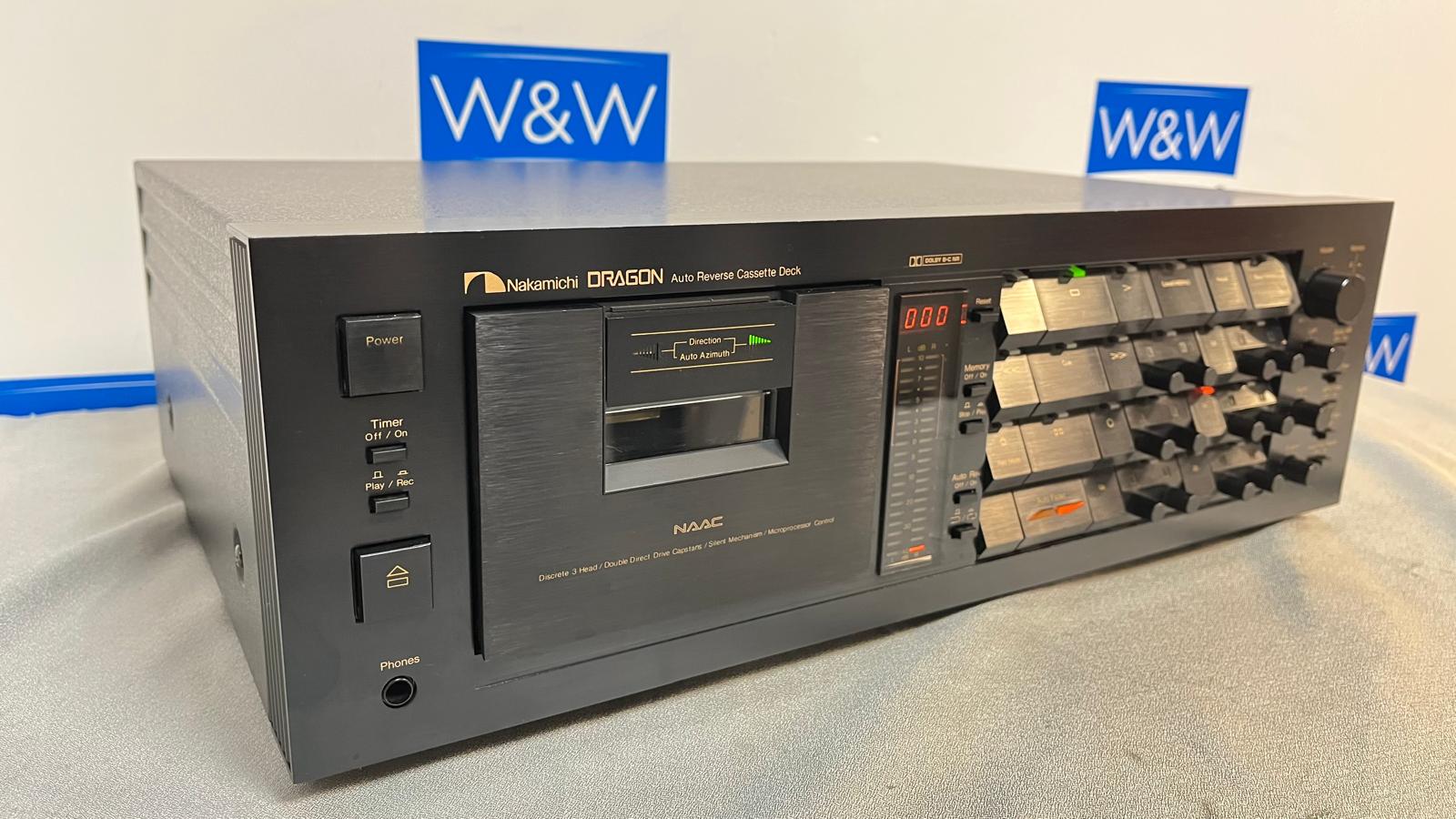

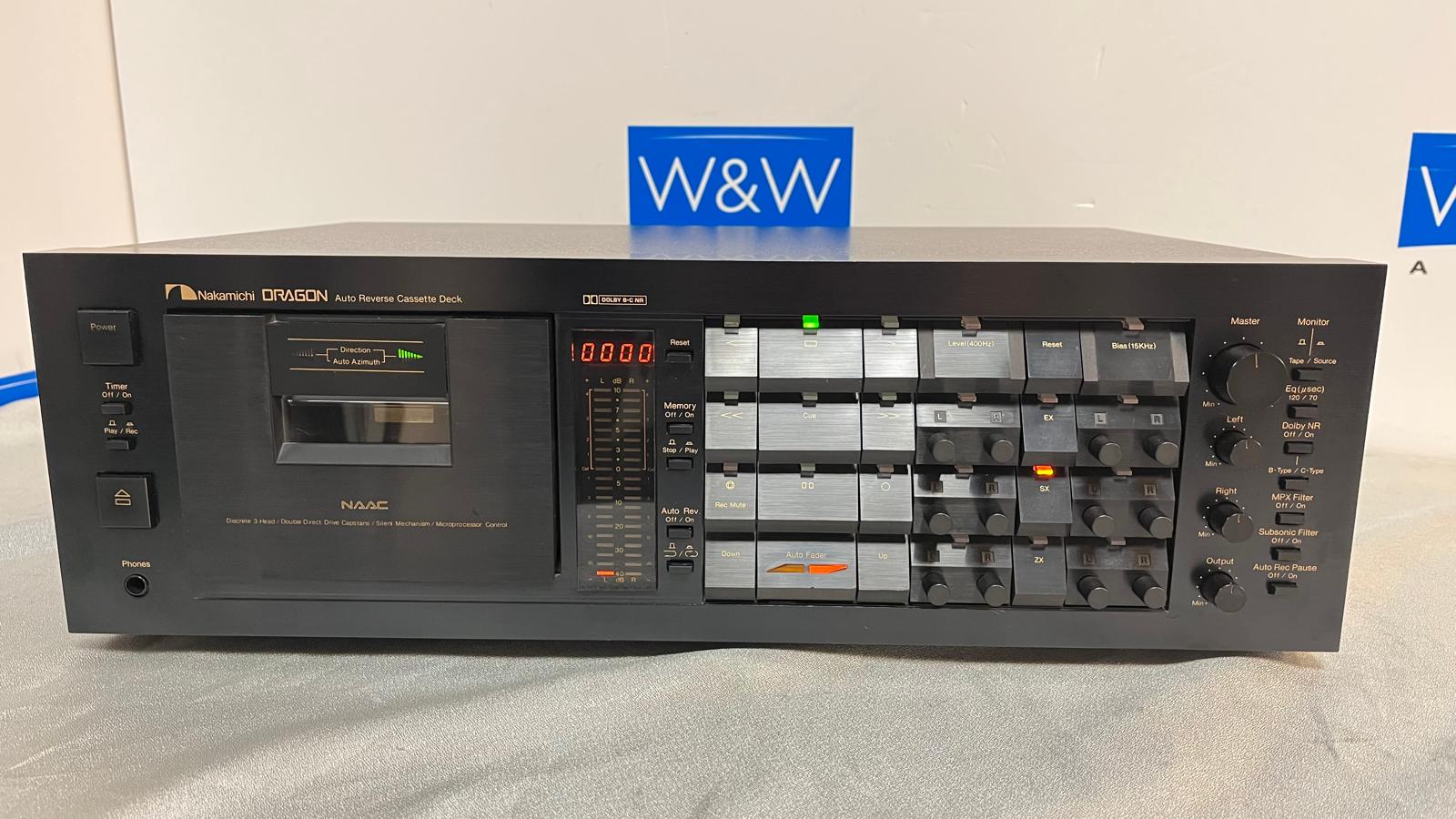

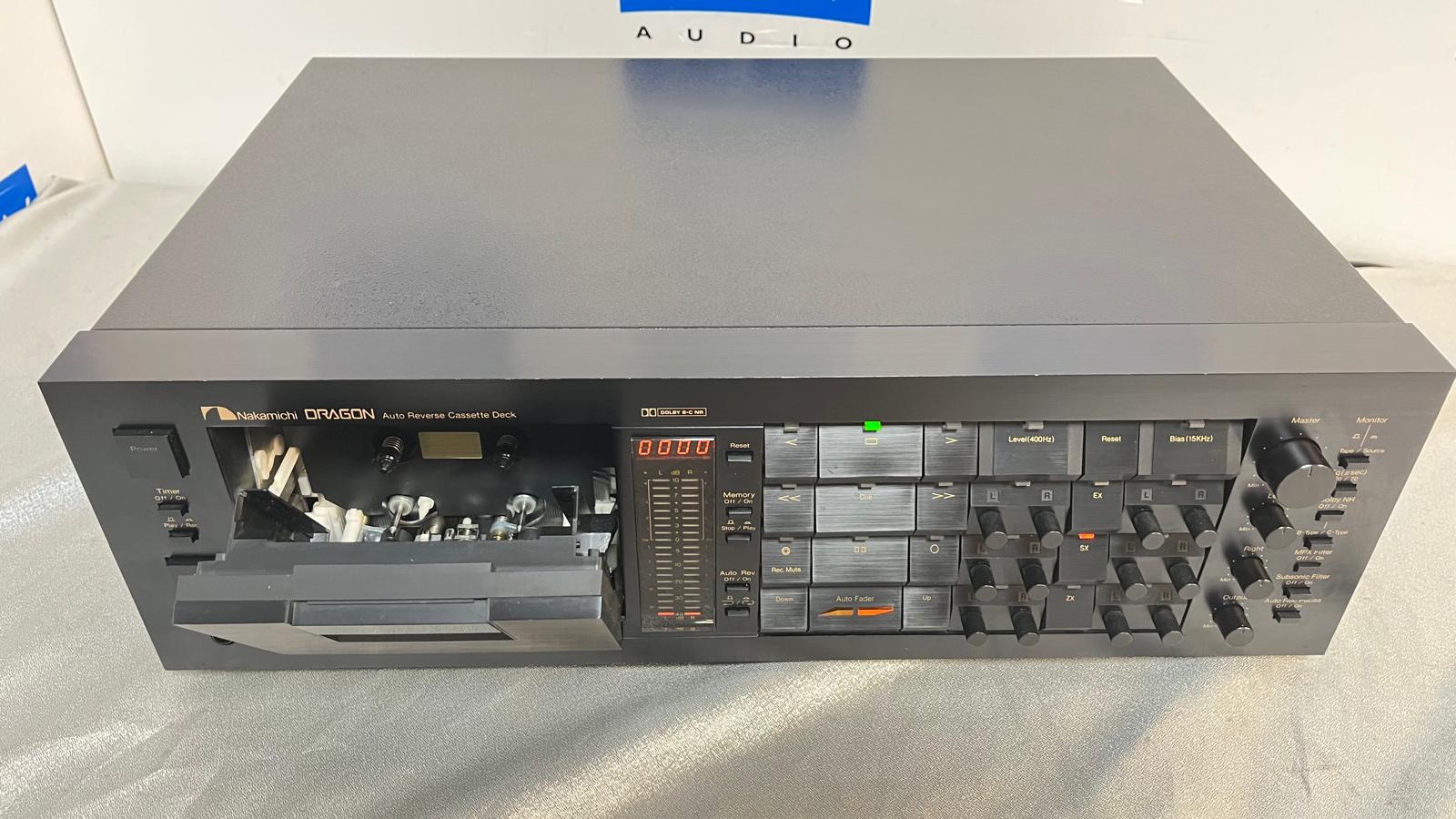

Nakamischi DRAGON

Three Head Auto Reverse Cassette Deck (1982-93).

The Nakamichi Dragon is a truly unique deck.

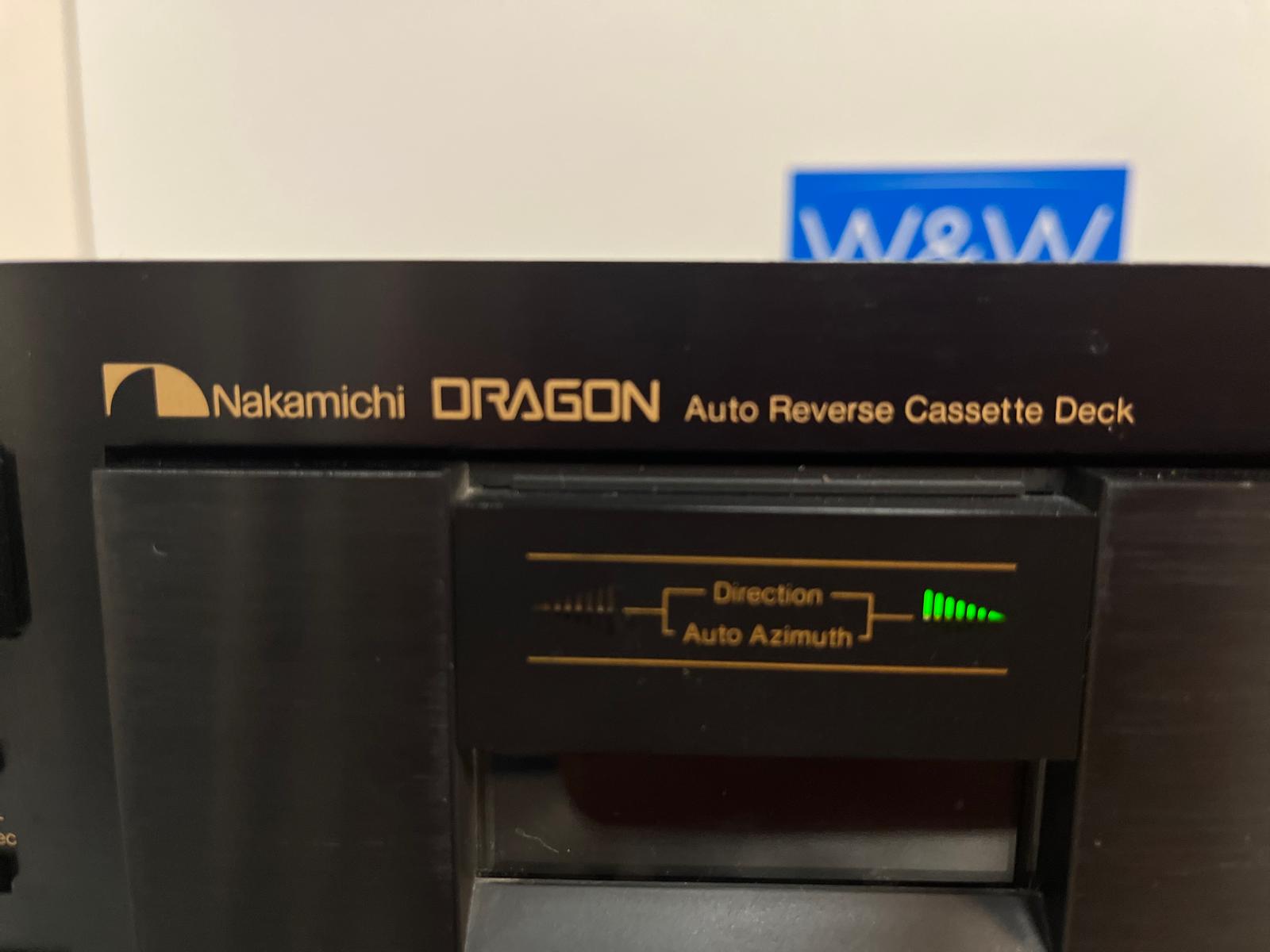

It is a direct drive, auto reverse cassette deck incorporating the epoch making NAAC system for automatic azimuth correction of the playback head.

Thanks to the NAAC system, sound quality differences between forward and reverse are completely eliminated and perfect playback is possible under all conditions.

Furthermore, manual calibration facilities for record sensitivity and bias permit high precision adjustment to suit the requirements of every tape.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Type: auto reverse, 3-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record, 1 x playback, 1 x erase
Motor: 2 x capstan, 1 x reel, 1 x auto azimuth, 1 x mechanism
Tape Type: type I, CrO2, Metal
Noise Reduction: B, C
Frequency Response: 20Hz to 22kHz (Metal tape)
Signal to Noise Ratio: 72dB (dolby C)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 0.8%
Input: 50mV (line)
Output: 1V (line)
Dimensions: 450 x 135 x 300mm
Weight: 9.5kg
