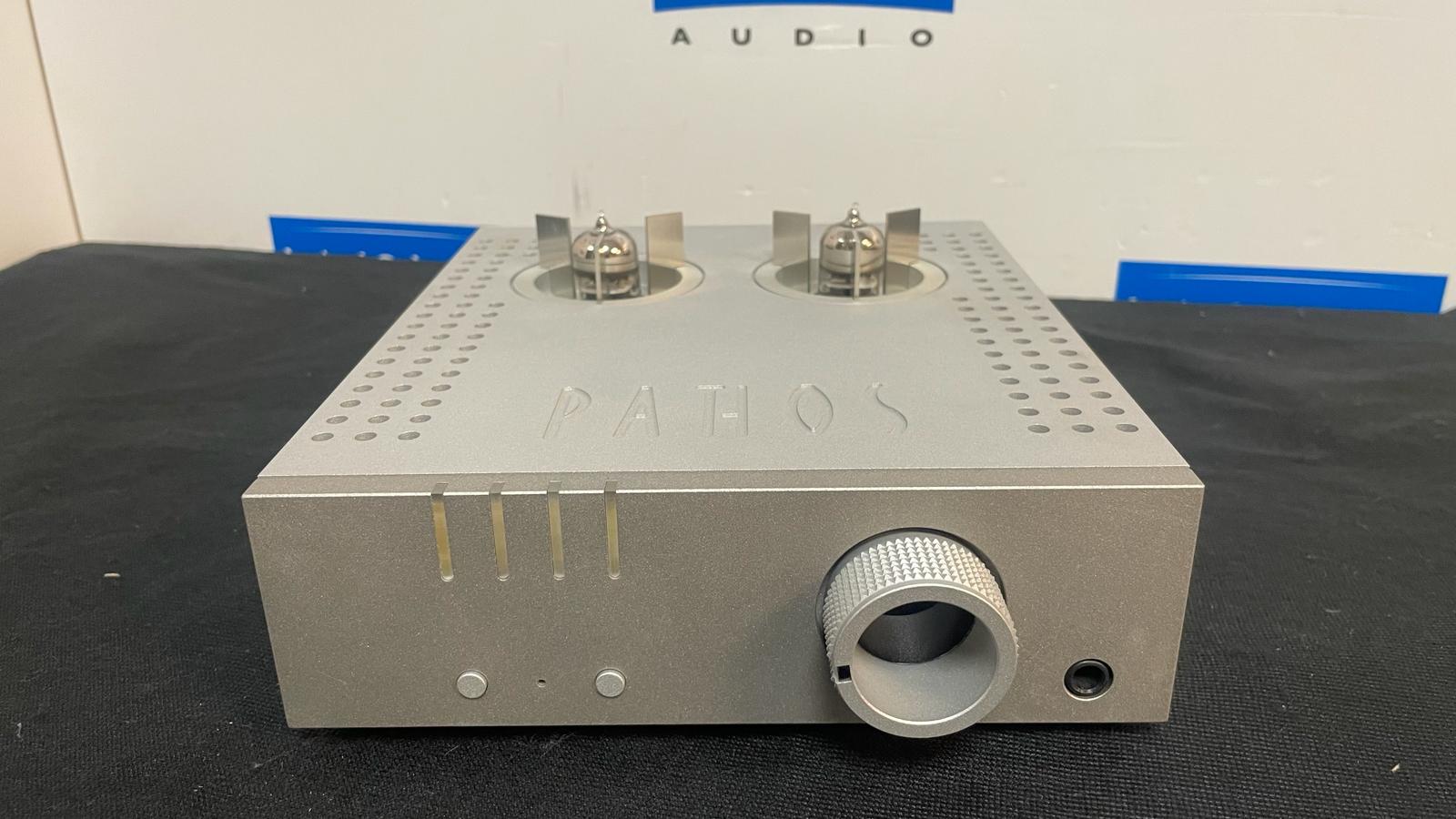

Pathos Aurium with Farad power supply

Pure class A, tube pre stage and MOS-FET power stage, zero feedback, the Aurium performs what audiophiles are used to from Pathos: exquisite musicality, transparency, dynamics and total lack of listening fatigue.

Flexibility is granted by the possibility to adjust output impedance from 16 to 1,000 Ohm, in order to provide a perfect interface with any kind of headphone.

The volume control - a critical component in every amp - is operated by means of a high precision Burr-Brown device.

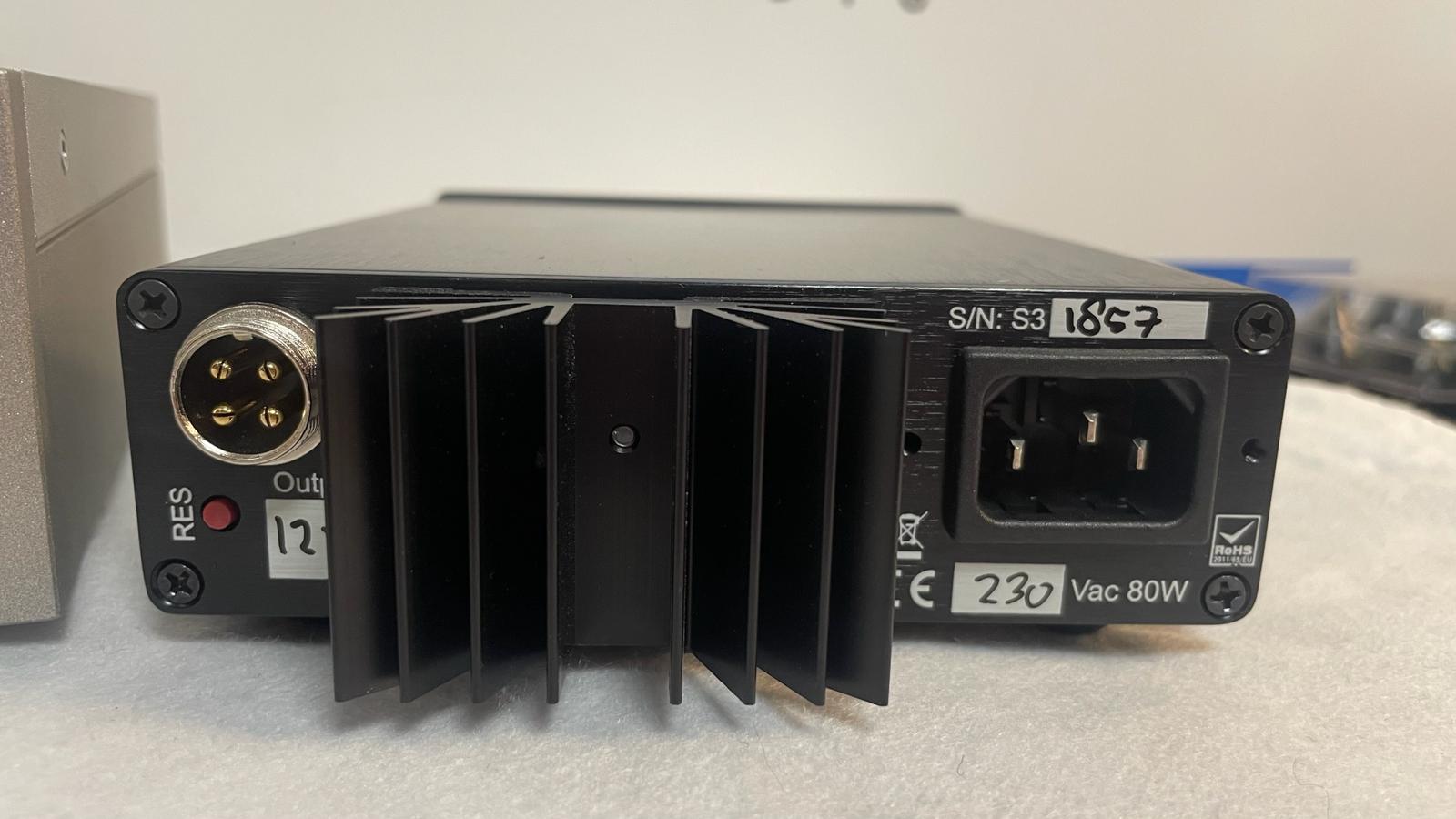

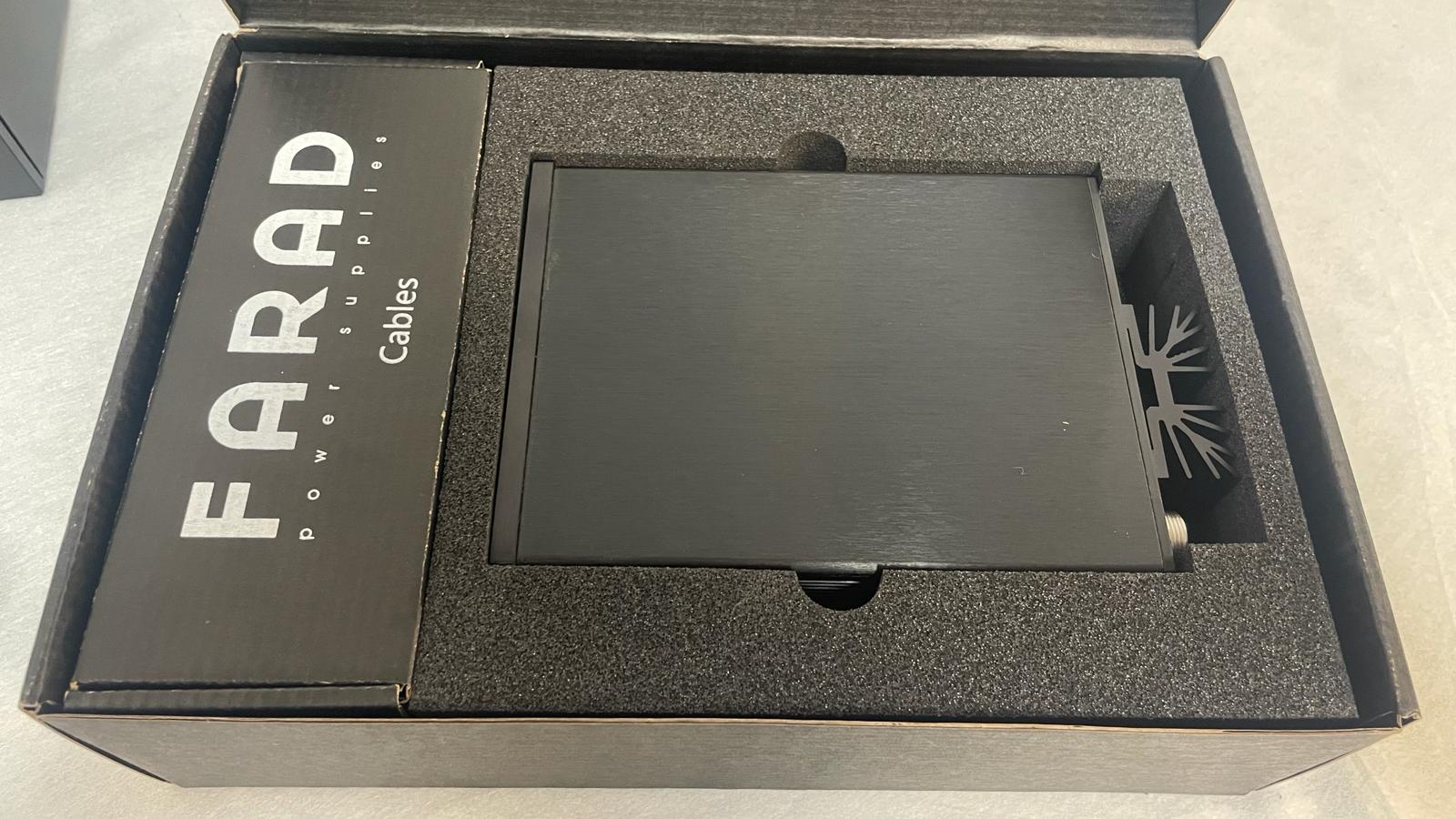

Complete with Farad Power Supply

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Output power 3,6W @ 16 Ohm, Class A zero feedback
Output Inpedance < 0,5 Ohm
Output level 7V RMS max
Frequency response 10Hz - 80KHz
THD < 0,1 %
Analog inputs 1 stereo balanced XLR, 3 stereo unbalanced RCA line
Analog outputs 1 - XRL TAPE , 1 - RCA line TAPE
Max inpult level 6,4 V RMS unbalance, 3,2+3,2 V RMS balance
Main voltage 90-250 V 50 / 60 Hz
Power consuption 30 W
Dimensions :
Size 20cm (D) x 23cm (W) x 6cm (H)
Weight 3Kg
