The SHHA line section technology is only part of the unique advances incorporated in DMC-30SL. New power supply topology and precision shunt regulators for all sections offer superior isolation and remarkable 8dB improvement in signal-to-noise over the excellent DMC-30. Power supply transformer capacity also doubles to accommodate massive shielding arrays for improved line isolation and field containment. Cost-no-object component technologies such as hand-trimmed bulk metal resistors and custom polystyrene film caps occupy sensitive signal locations such as gain setting and feedback. Improvements are not limited to performance advances alone. User convenience benefits also as the DMC-30SL incorporates surround sound input programming for home theatre integration.

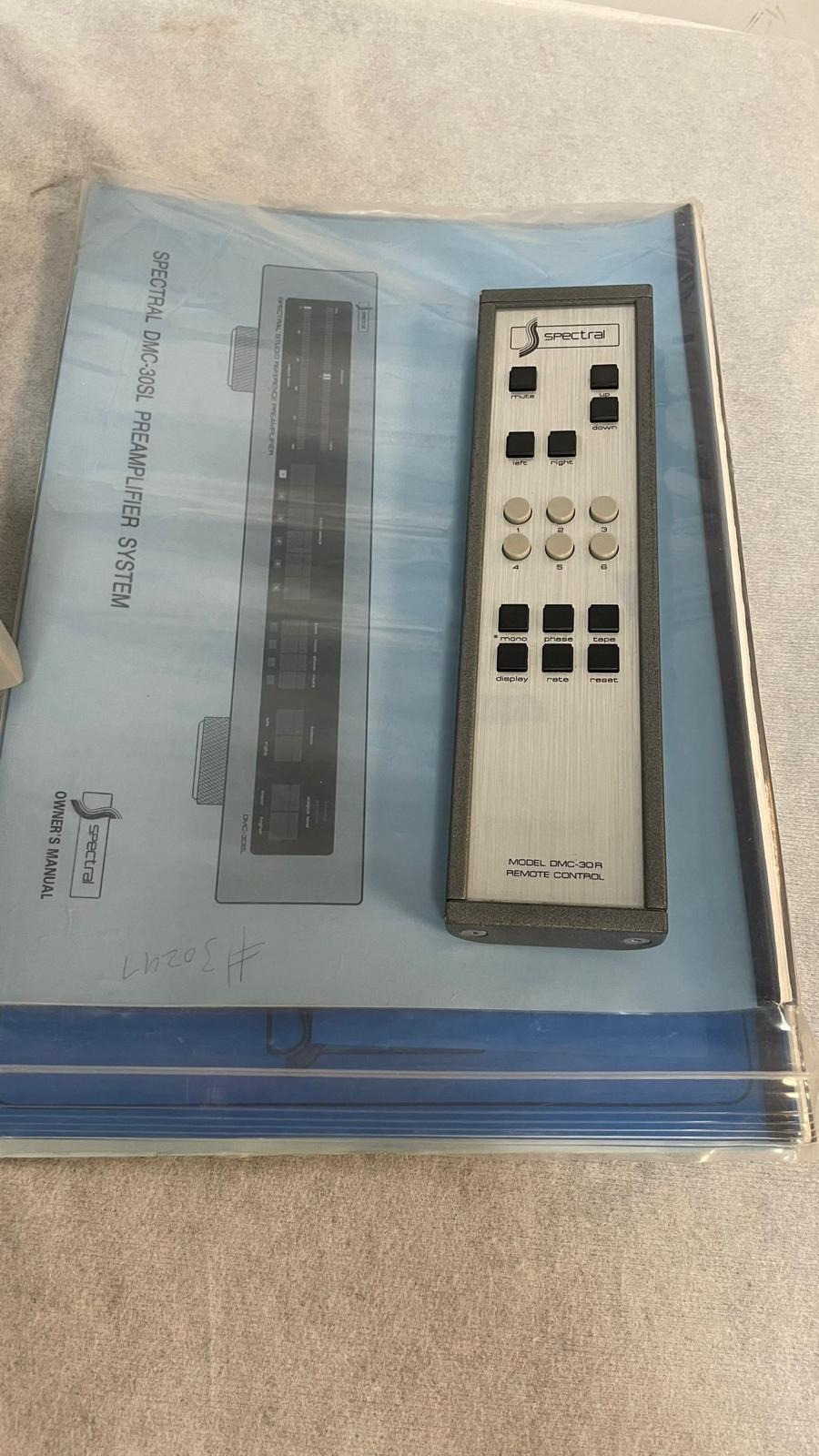

For music enthusiasts and audiophiles alike, the benefits of the DMC-30SL are invaluable. The DMC-30SL offers a unique level of dynamics, dimension, lifelike detail and transparency while offering a rare combination of remote control convenience and functionality. Superb low frequency detail and articulation exceed any previous Spectral design. Through improved circuit settling speed, resolution and transient decay are presented with the natural timbre of the event while providing more low level information than ever before. Staging and image holography are further improved over the DMC-30 and set a new standard. In summary, the DMC-30SL represents Spectral's twenty-five years with distinction, opening important new doors to the musical experience.

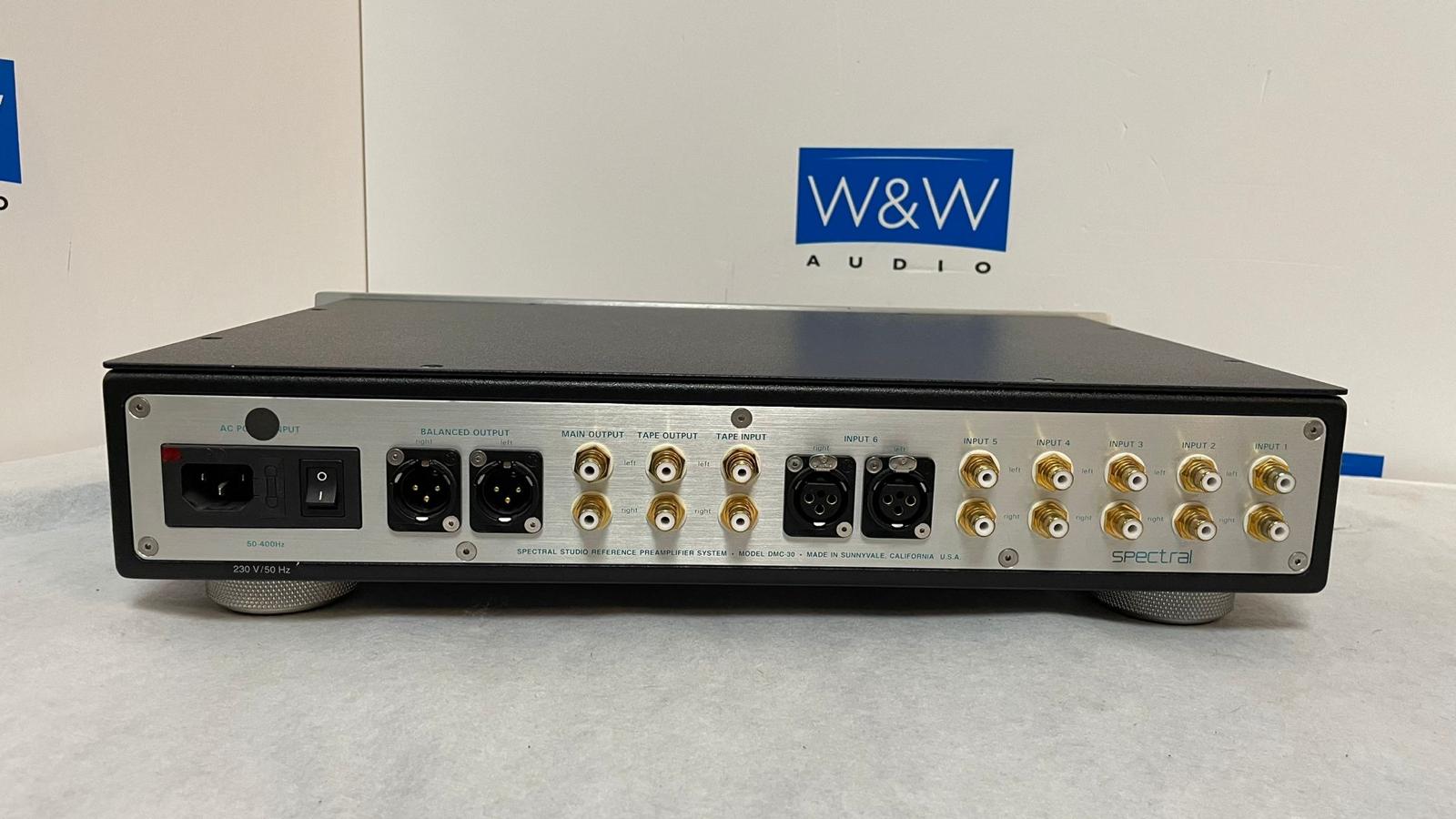

Input Compliment: 7 inputs
Output Compliment: 3 outputs - normal, balanced, tape
Input Impedance: 15k ohms
Input Attenuation: 0, -12 dB
Output Impedance: 100 ohms
Output Attenuation: Motorized fader conductive plastic, modified log taper
Output Balance: Relay attenuator system with center position bypass
Mute Switch: 0, -20 dB attenuation
Mode switches: Stereo/mono, absolute phase
Input Selections: 6 plus tape monitor
Chassis Temperature: Internal 40 deg. Celsius @ 25 deg. room temp
Weight: 26 lbs. (11.8 KG)
Dimensions: 4 1/10"H x 19"W x 12 1/4"D (10.4 cm x 48.3cm x 31.1cm)
