SPL Audio Director

Beschrijving / Description

Pre amplifier and DAC
The Director combines two units in one: a reference-class preamplifier with six inputs (2x analog and 4x digital) and both balanced and unbalanced outputs as well as a reference-class DA converter for PCM up to 384 kHz and up to Double Rate DSD (DSD128).

The technical basis of all Professional Fidelity units is our proprietory 120 V Rail Technology, which we also call VOLTAiR technology. The name makes reference to the unequalled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it.

The name Director describes its function pretty well. It is the heard of the stereo system to which all components are being connected: sources, amplifier, active speakers, headphone amps, phono preamplifier etc. It determines what, with what and how loud we hear.

Director is a full-fledged stereo preamplifier with an extraordinary DA converter. There is provision for connecting up to six stereo sources two in the analog domain offering RCA connectors for e.g. phono preamplifier like the Phonos and four in the digital domain with USB, AES, Coaxial and Optical connectors.

At the output side a power amplifier or active loudspeakers can be connected balanced (XLR) and unbalanced (RCA). We recommend the Performer s800 as power amplifier in order to maintain a 120V Rail audio chain from the DAC to the speakers for best audio performance.

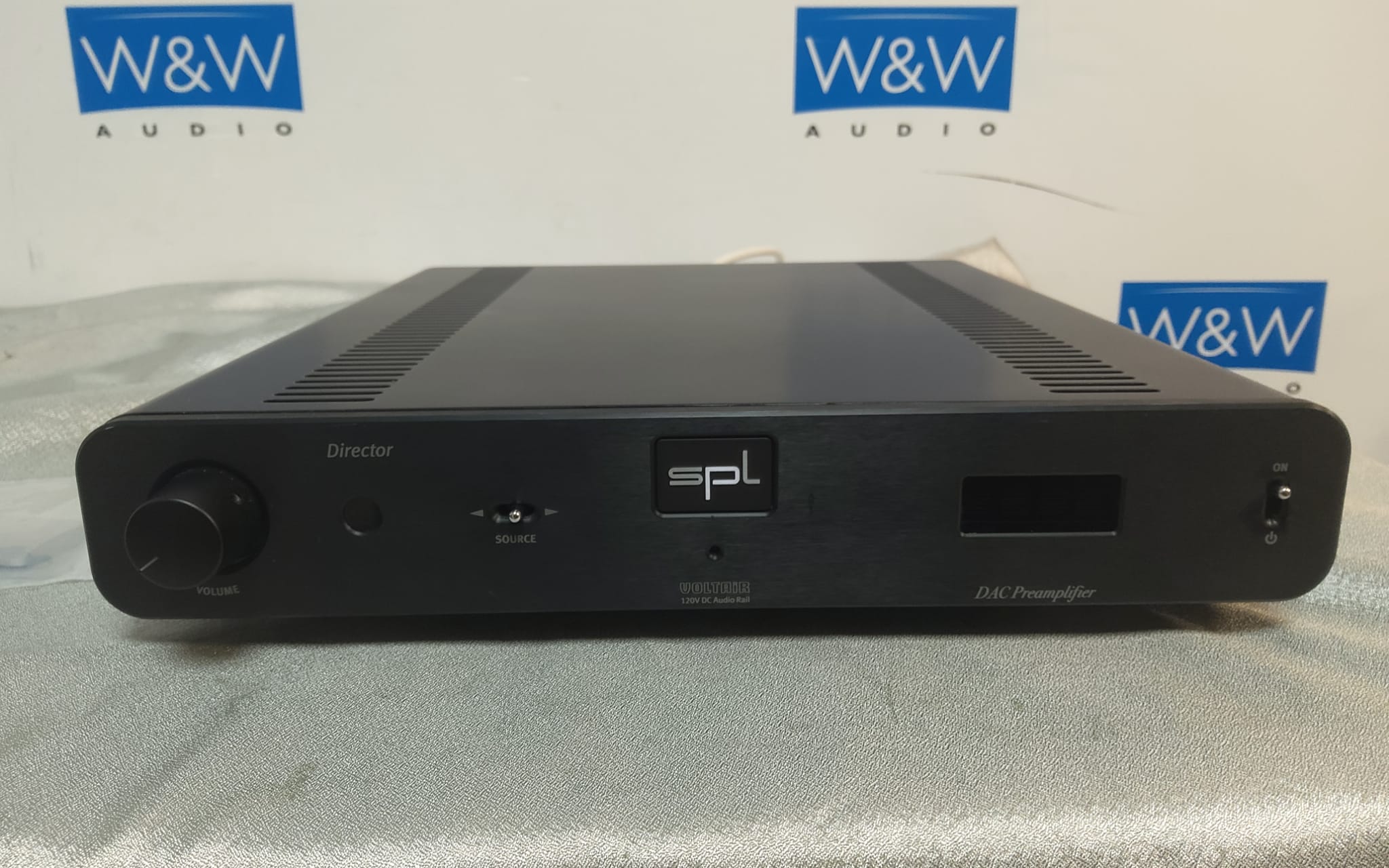

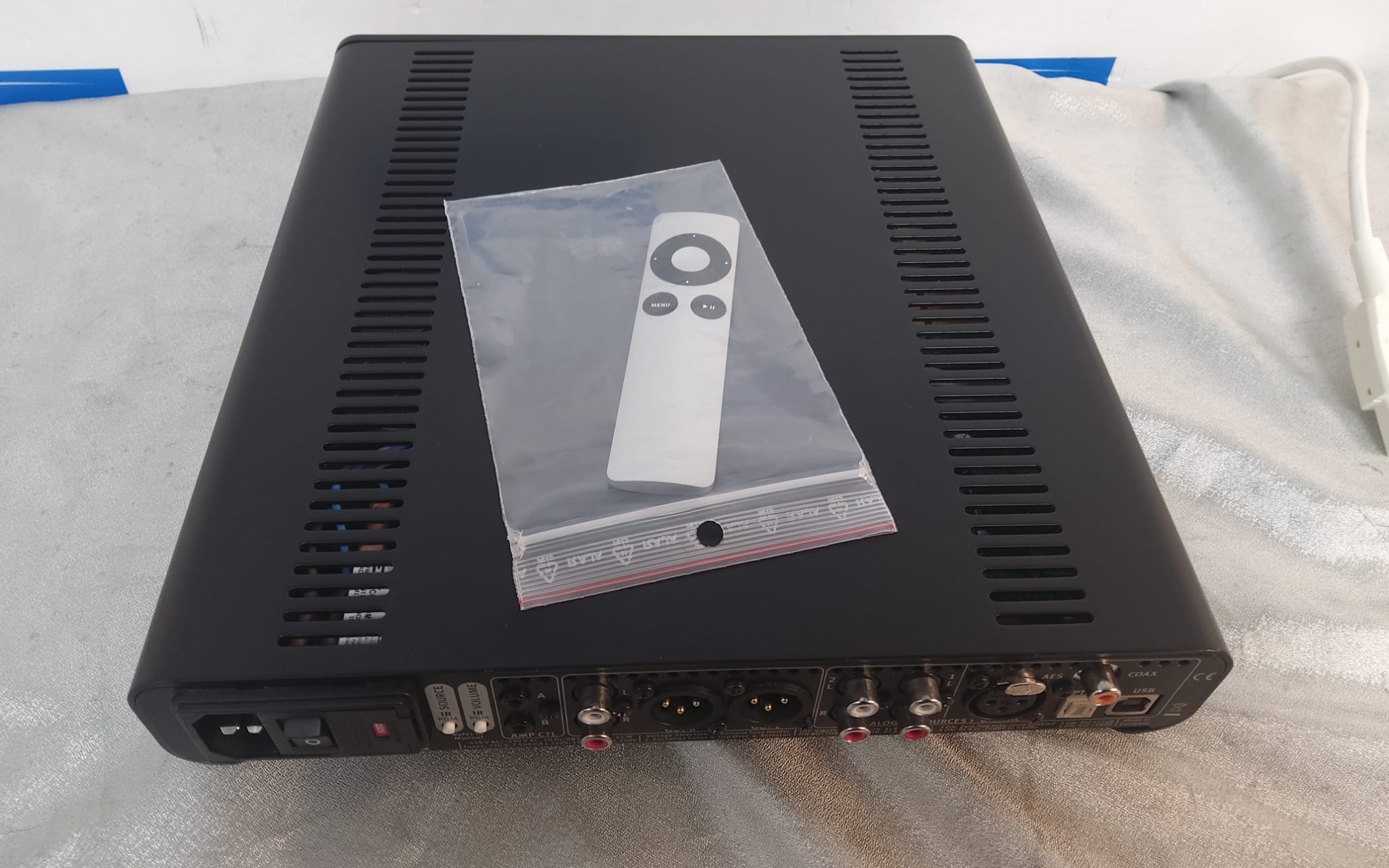

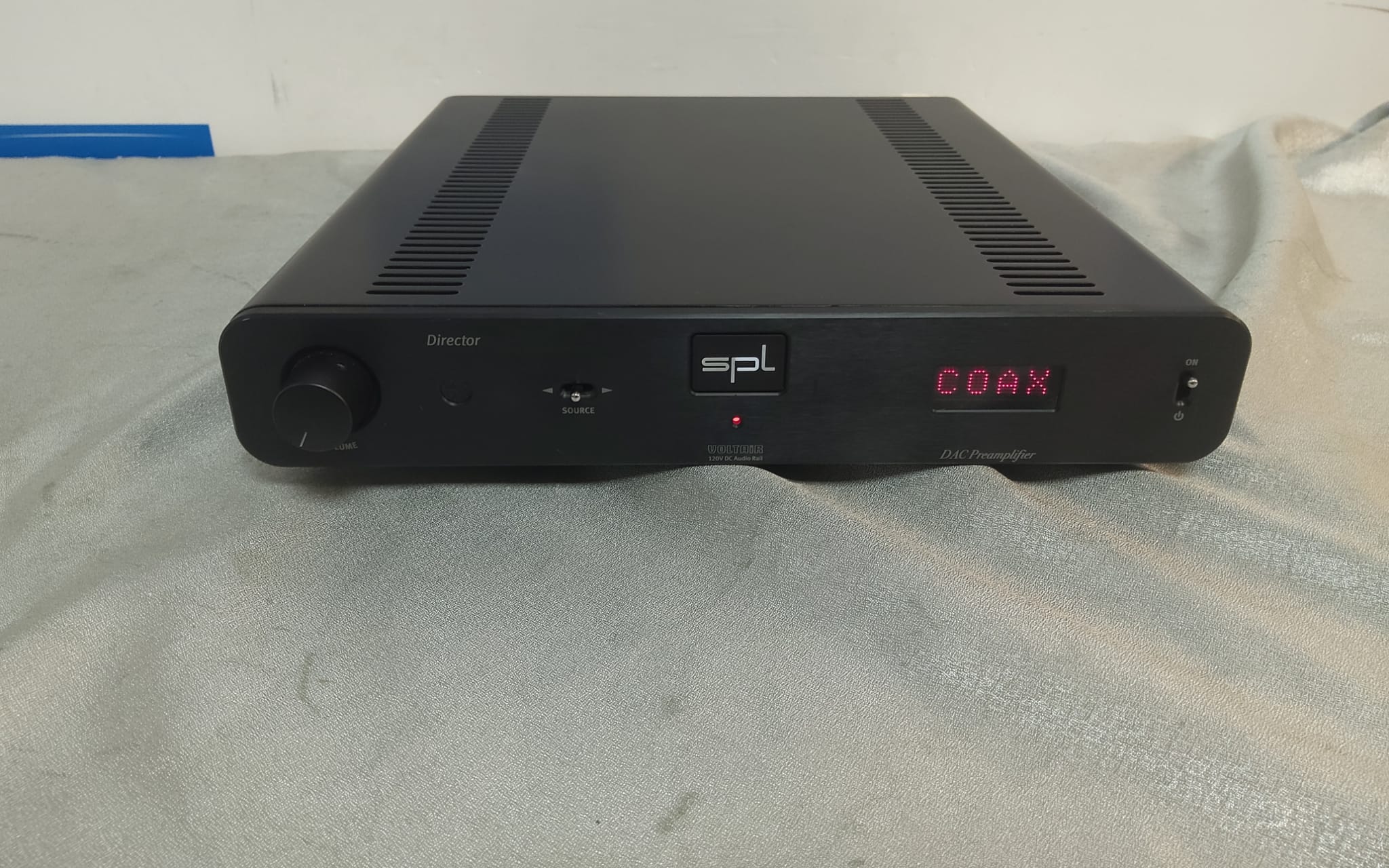

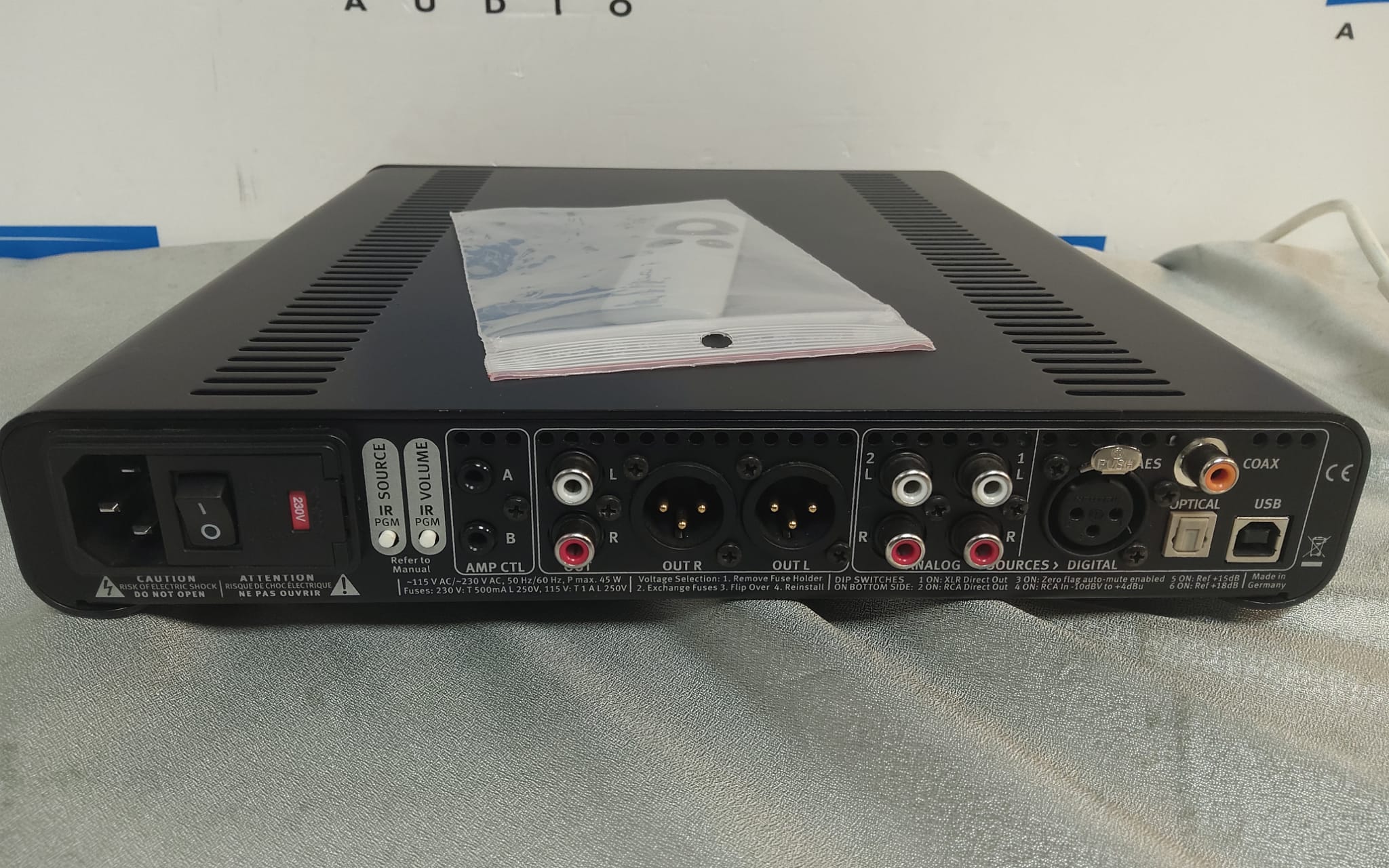

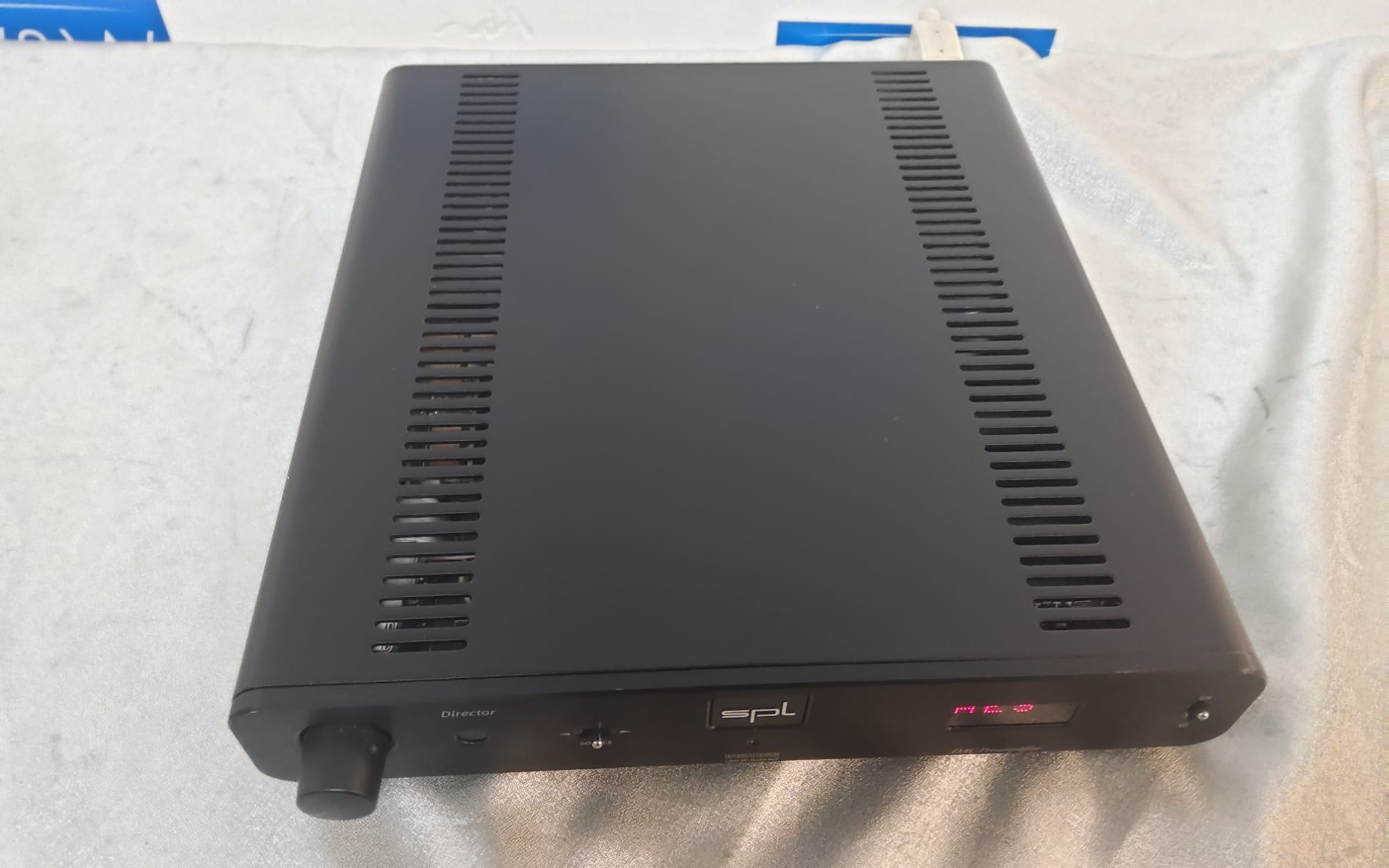

Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

20V rail preamplifier with integrated DA converter
Four digital inputs: USB, AES/EBU, coaxial, optical
DAC: up to 384 kHz (PCM) and DSD 2 (Double Rate DSD, DSD128)
Win driver; Apple class compliant
Two analog inputs (2x RCA)
Balanced and unbalanced outputs (XLR, RCA)
Analog volume control with motorized ALPS R K27 Big Blue potentiometer; remote controllable (learns any IR remote control)
Remote controllable source selection (learns any IR remote control)
Avago dot matrix display shows selected input and sample rate frequency for digital inputs
Frequency range (analog): 4 Hz to 300 kHz (-3 dB)
THD: 0,0008 %
(analog), 0,0004 % (digital)
Dynamic range: 137,6 dB (analog), 120,8 dB (digital)
AMP CTR connection to Performer power amplifier for coupled on/off switching
Windows driver, Apple class compliant
Stand-By/power on switch
Linear power supply with toroidal transformer

Staat van artikel

Dit artikel is mogelijk verkocht.
Zoek eventueel via het menu of via Ebay of Marktplaats!

Item possibly sold.
Search via menu or via Ebay or Marktplaats!
