Technics SL-1025

Beschrijving / Description

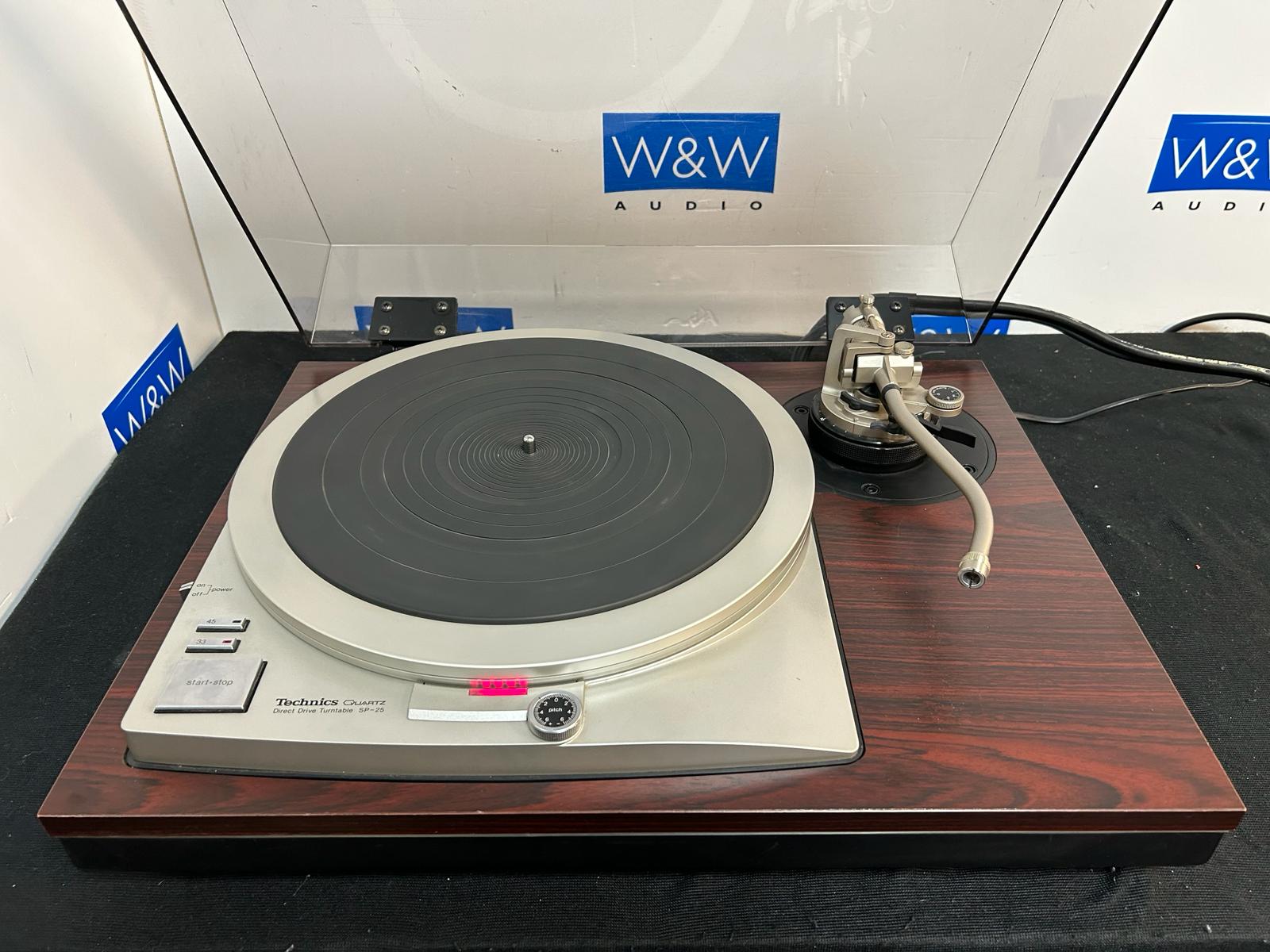

Technics SL-1025 Quarz Synthesizer Direct Drive High End Professional Turntable.
Quartz synthesizer direct drive turntable system with universal type system tone arm.

Universal type system tone arm EPA-250 is used for the pickup.
Uses dynamic damping system, gimbal suspension support structure, and precision helicoid arm height adjustment mechanism.

SP-25 is adopted for the turntable.
Continuous pitch control is possible within the range of rated speed 6% with the quartz lock on.

The motor is equipped with a high torque integrated structure D. D. motor.

SH-15B2 is used for the turntable base.
In addition to the use of an integrally molded cabinet made of special viscoelastic rubber, the turntable is also made into a three layer dead-end structure made of special rubber.




Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

Type Direct drive player system
Drive system Direct drive
Drive motor Brushless DC motor
Control system Quartz phase locked control
Turntable (Including Rubber Sheet) 33.9 cm Aluminum Die-cast, 1.85 kg (Including Rubber Sheet)
Number of revolutions 33 1/3, 45 rpm
Fine adjustment of rotational speed + / - 6 per cent
Rotational speed deviation Within +/- 0.002%
Wow flutter 0.025%W.R.M.S(JIS C5521)
Signal-to-noise ratio 78dB(IEC98A weighted)
Tone Arm Section
Format Dynamic damping system tone arm
Gimbal suspension system
Applicable Cartridge Weight 6g - 8g
10.5g - 12.5g (When Using Auxiliary Weight)
Applicable Cartridge Compliance
(dynamic, 100 Hz) 8-14x10-6cm/dyne
6-12x10-6Cm / dyne (with auxiliary weights)
External dimensions Width 526x Height 172x Depth 420 mm
Weight 16.1kg

Staat van artikel
Nieuw

Prijs
Dit artikel is mogelijk verkocht.
Zoek eventueel via het menu of via Ebay of Marktplaats!

Item possibly sold.
Search via menu or via Ebay or Marktplaats!
