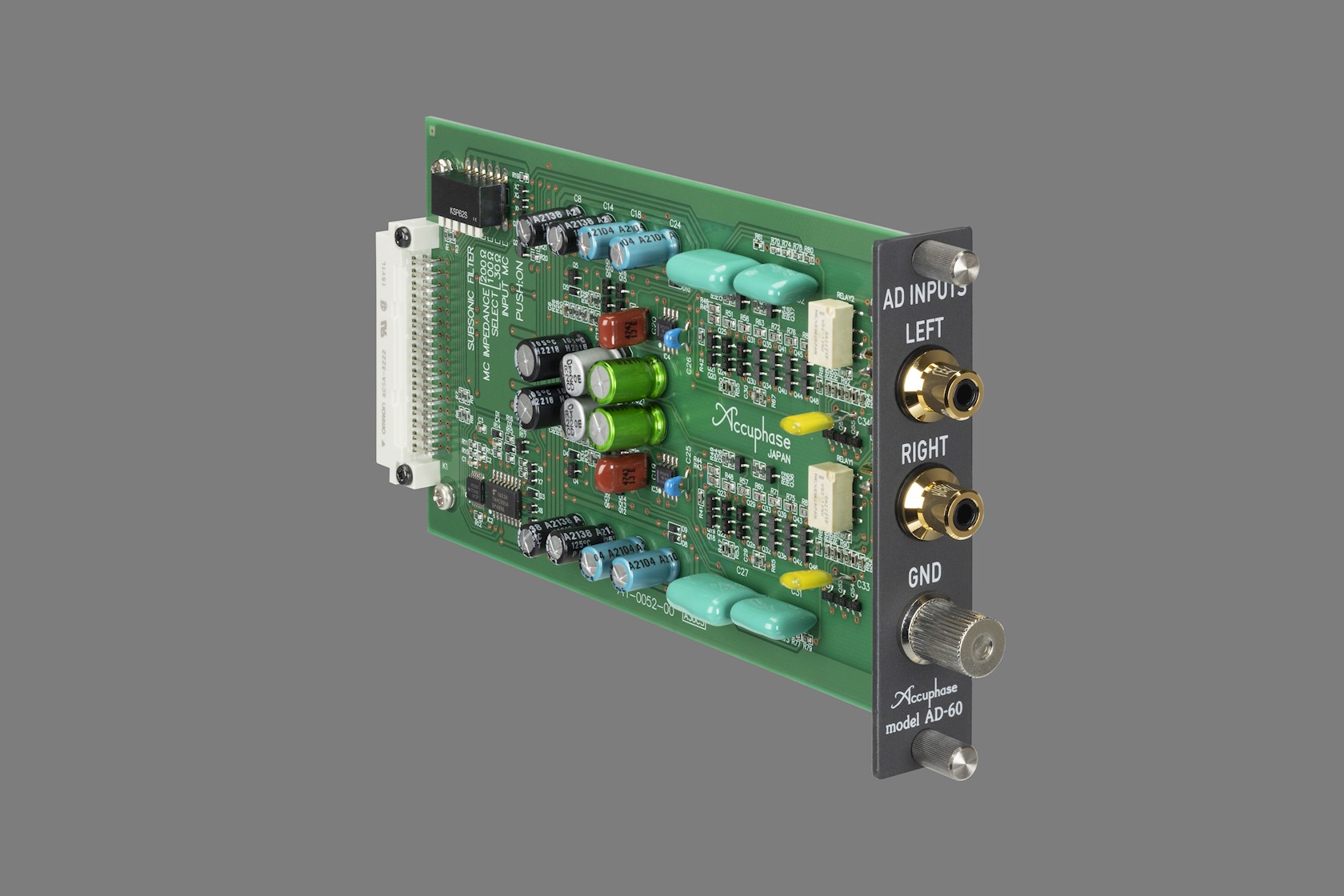

Accuphase AD-60

High- performance phono equalizer amp for playback of analog records.
MC/MM switching is possible on the front panel of the enabled device.
Internal DIP switches control MC input impedance and subsonic filter on/off.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

MC : Moving Coil type
Gain : 66 dB
Input Impedance : 30/100/200/300 ohms (selectable)
MM : Moving Magnet type
Gain : 40 dB
Input Impedance : 47 kilohms
Subsonic filter : 25Hz -12dB/octave
Support model:
E-800S
E-700
C-2300
E-4000
E-5000
E-280
E-800
E-380
C-2150
E-480
E-650
E-270
E-370
E-470
E-600
C-2120
E-260
E-360
E-560
E-460
E-250
C-2110
E-350
E-450
E-550
E-213
C-2000
E-308
E-408
E-530
C-245
CX-260
E-407
C-265
E-406V
E-307
E-306V
E-212
E-211
