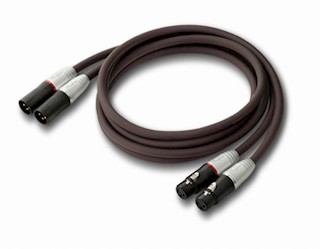

Accuphase ASLC-10B

Accuphase 8 Core XLR Cable (1.0m)

Includes XLR type connectors with goldplated terminals with low contact resistance and superior corrosion resistance.
By using an 8-core multi-hybrid construction with 2 sets of 4 different types of wires including class 7N high-grade copper wire the SR Series delivers extremely pure transmission with reduced loss at the range limits.
A high-density braid and double-layer structure with aluminum foil tape over the 192 / 0.1 mm annealed copper wires reduces capacitance and creates excellent shielding results.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Configuration 8-core multi-hybrid construction
Insulator Polyethylene
Exterior insulation material PVC Dark brown / 8.7
Central conductor Class 7N high-grade copper wire + 3 types of copper wire
Shielded conductor Annealed copper wire
Conductor resistance (mOhm/m) 9
Capacitance (pF/m) 187.5
Inductance (uH/m) 0.51
