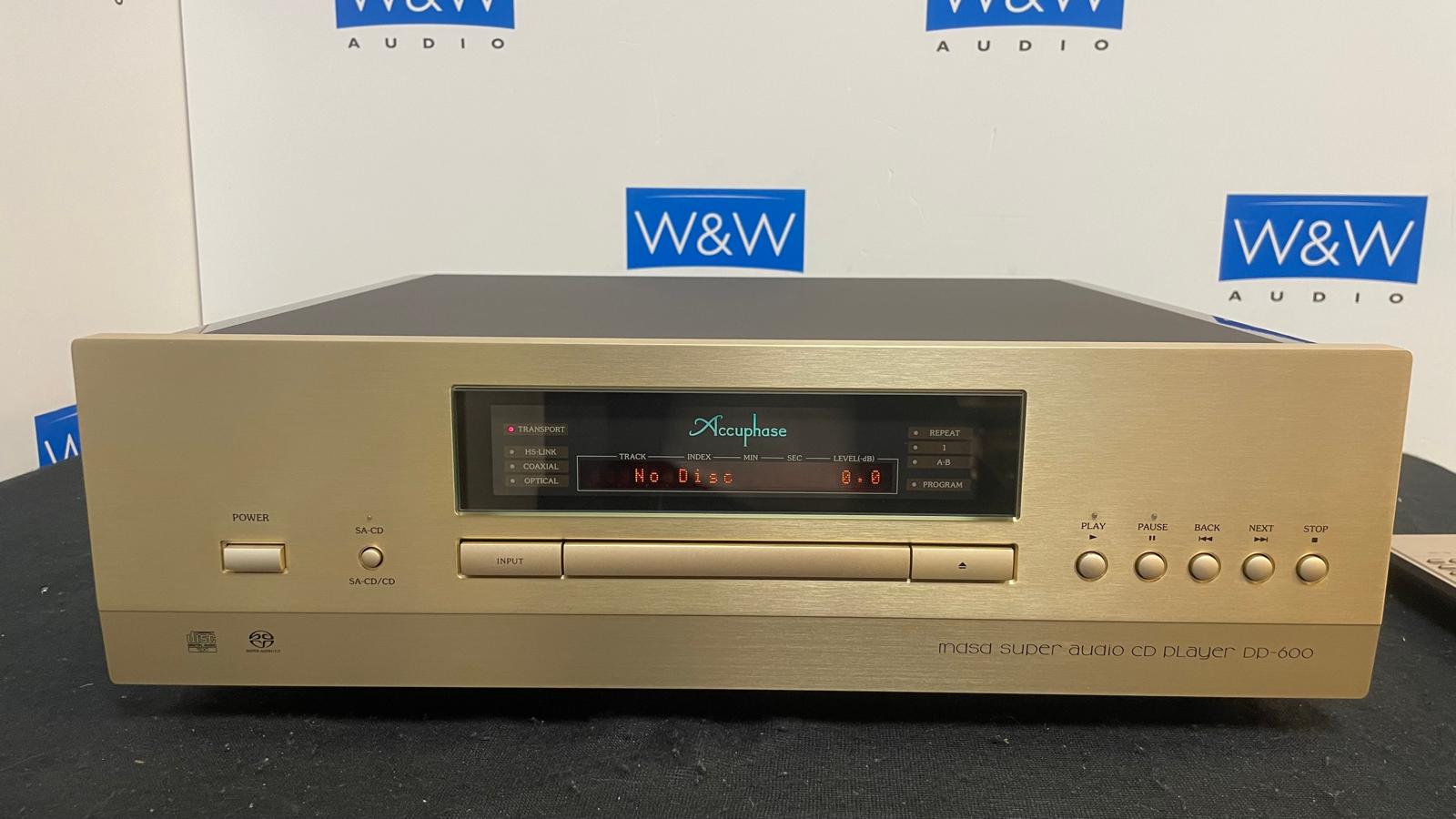

Accuphase DP-600

The reference-level separate-type combo DP-900/DC-901 and the integrated DP-720 with their exclusive mechanism developed in-house by Accuphase have garnered high praise and acclaim the world over. The new DP-600 is positioned as a companion model to the DP-720, benefi ting from its sophisticated know-how, but it is also a high-end integrated SA-CD player in its own right. Extensive listening tests were conducted to ensure optimum reproduction quality. As with all Accuphase players so far, a conscious decision was made not to support multi-channel formats but rather focus on obtaining the ultimate in musical fi delity from two-channel SA-CD music sources.
The high-grade SA-CD drive mechanism in the DP-600 is the ultimate tool for extracting the information on SA-CD discs one hundred percent. It not only keeps internal vibrations of rotating parts to a minimum, but is also highly impervious to external vibrations. This ensures that the digital signal remains in a highly pure and accurate state. A dedicated DSP chip controls the digital servo, allowing the digital signal encoded on the SA-CD in DSD (Direct Stream Digital) format to be processed with utmost accuracy. The high-speed access mechanism with its singlelens/ twin laser diode combines optimum precision with lightning-swift operation.

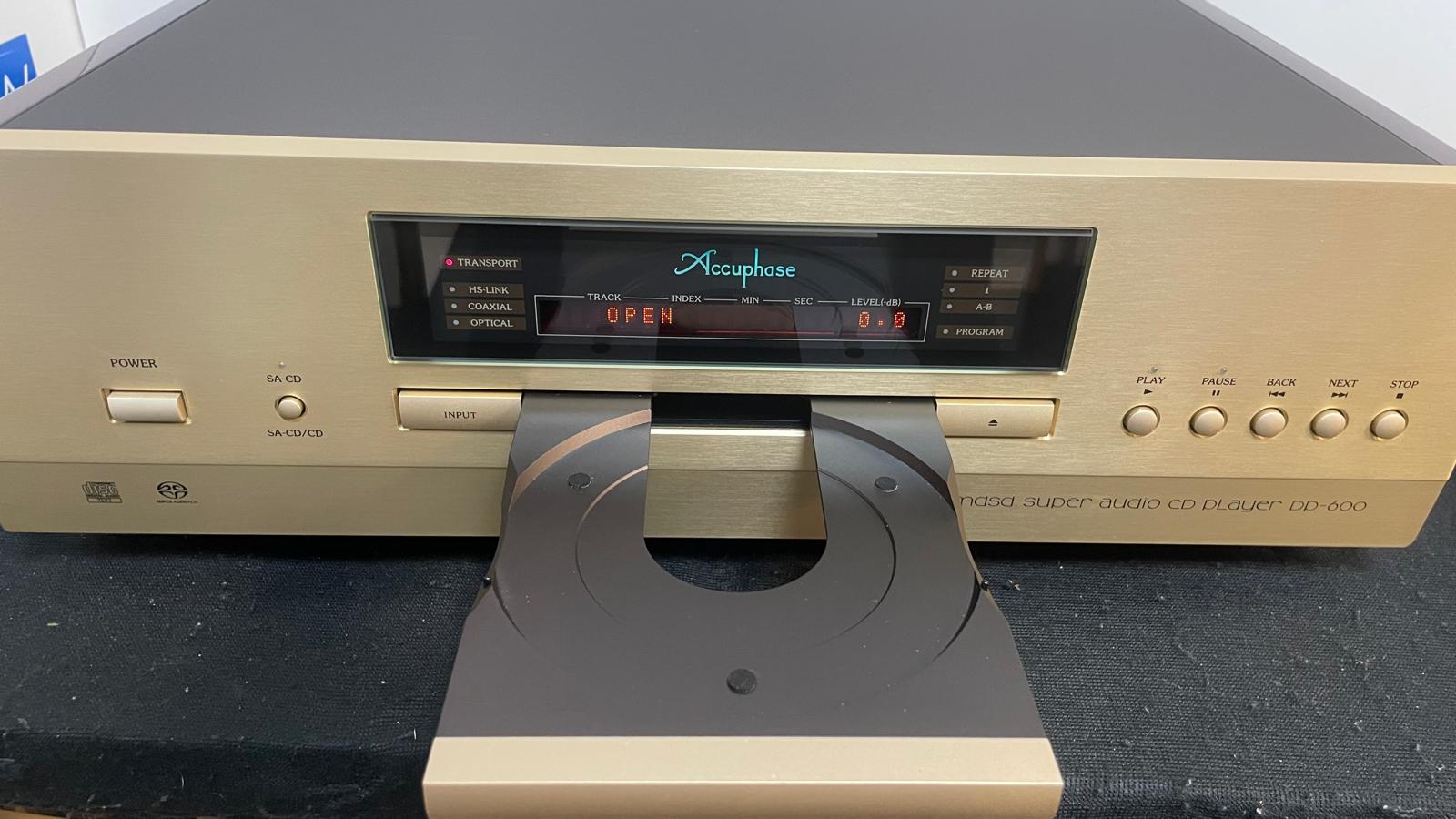

High-grade SA-CD/CD drive
Innovative MDSD digital signal processing
MDS++ type D/A converter using six parallel devices
"Direct Balanced Filter" with totally separate balanced and unbalanced signal paths
HS-Link digital interface
Transport outputs and digital inputs allow insertion of DG-58 into signal path for sound field correction

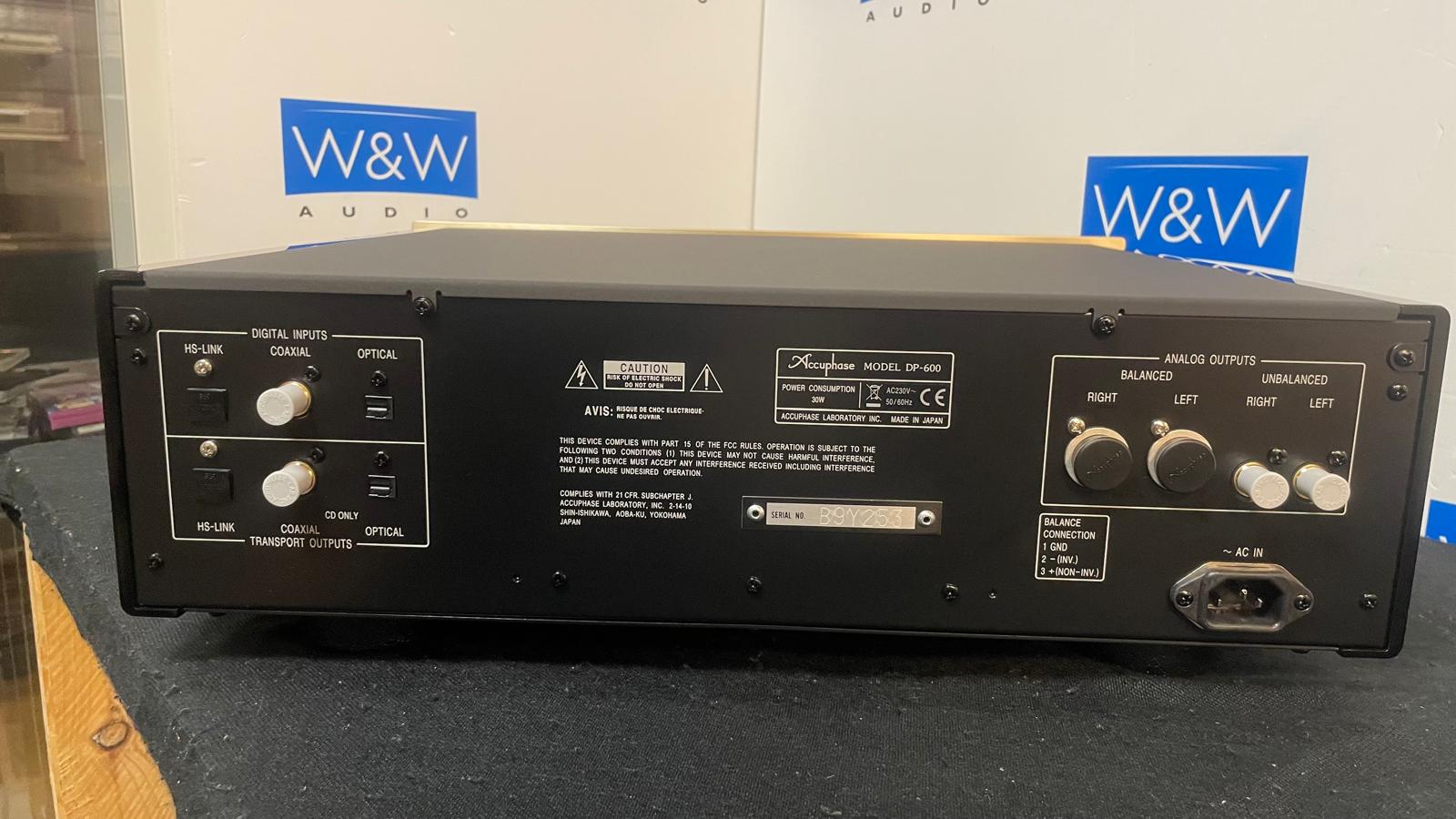

Balanced and unbalanced analog outputs

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Disc format: CD, SACD
Frequency response: 0.7Hz to 50kHz
Dynamic range: 110dB
Signal to Noise Ratio: 114dB
Channel separation: 108dB
Total harmonic distortion: 0.0008%
Line output: 2.5V (balanced)
Digital connections: coaxial, optical
Dimensions: 465 x 150 x 393mm
Weight: 18.5kg

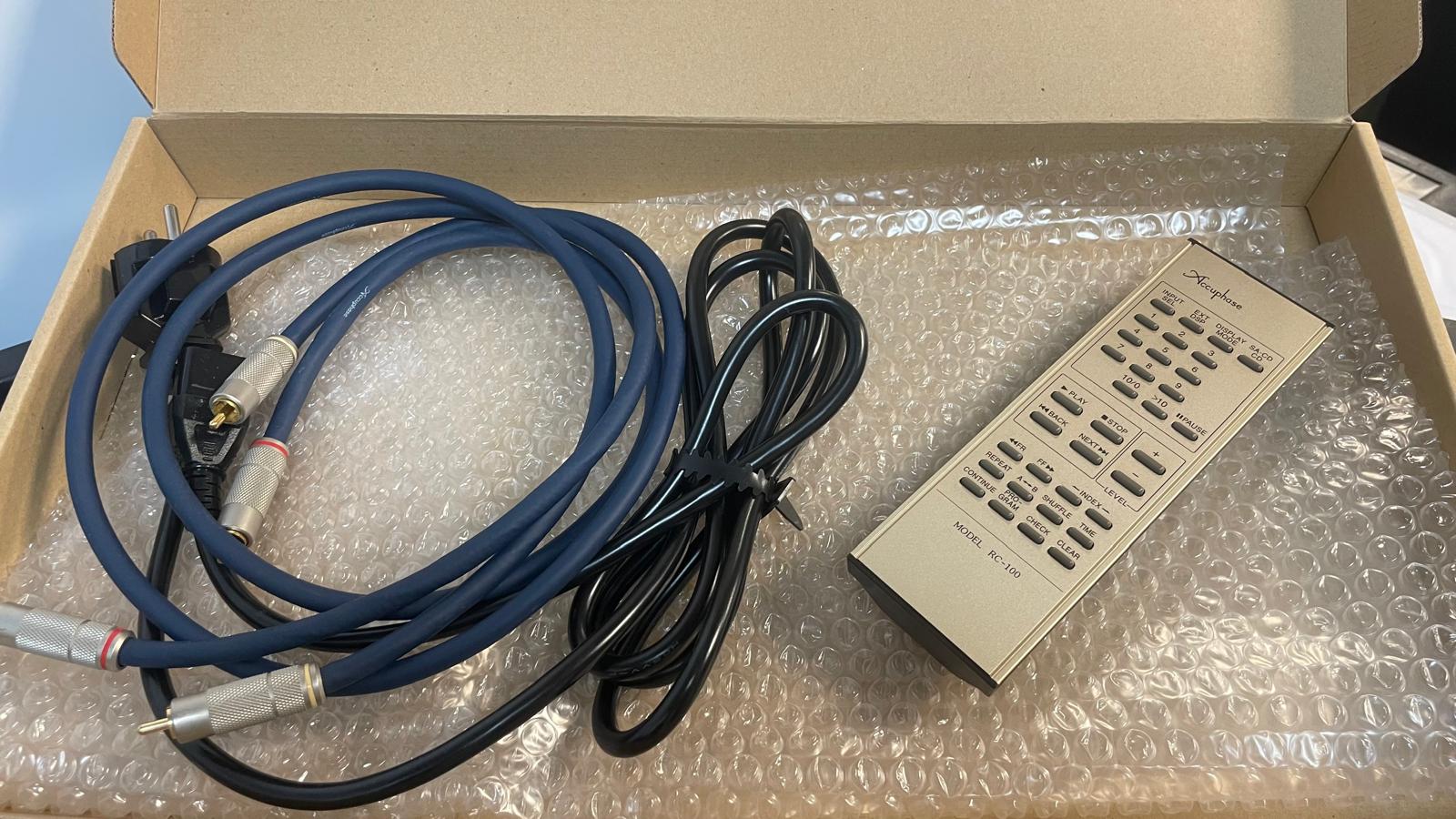

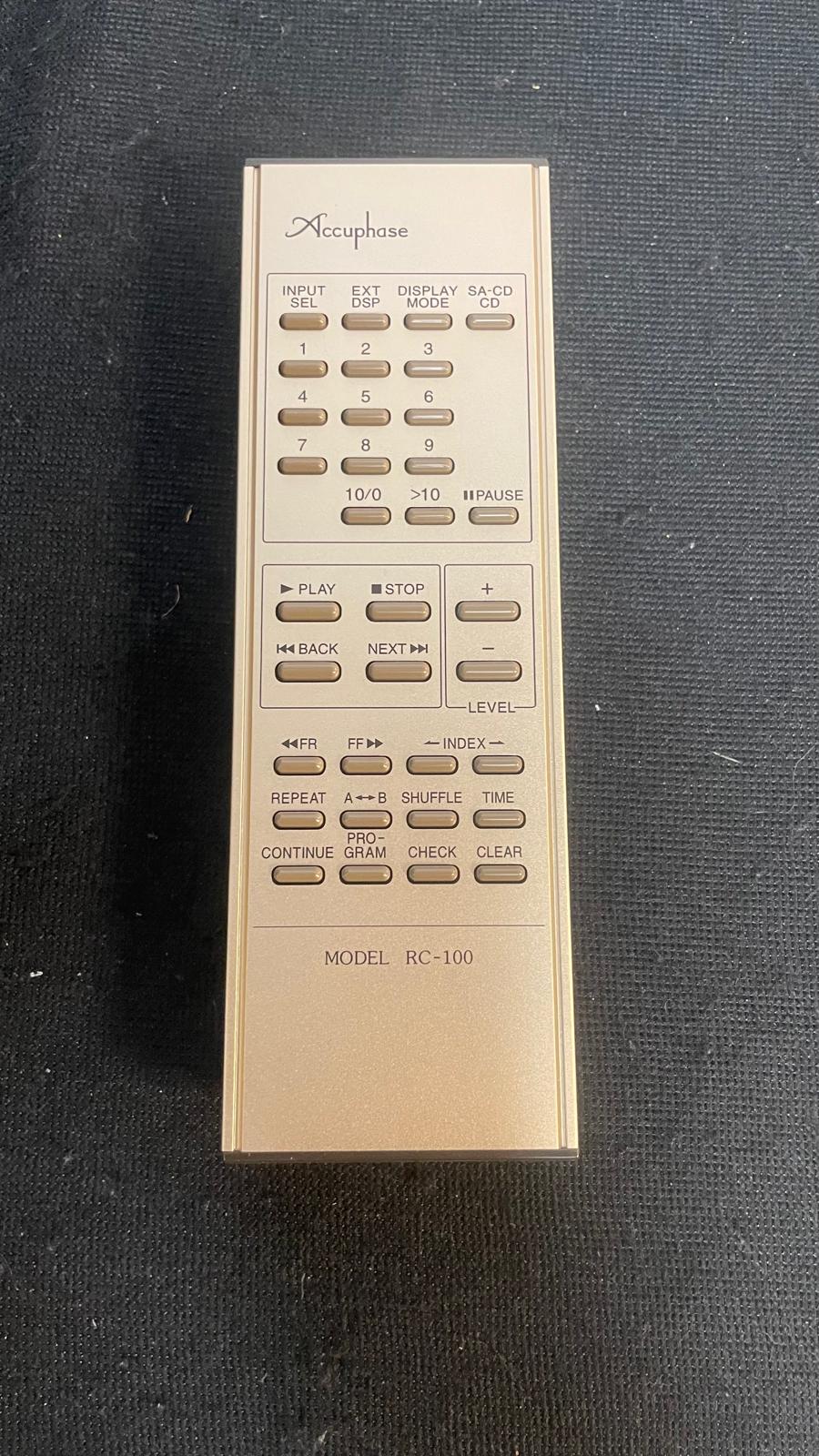

Accessories: RC-100 remote control
