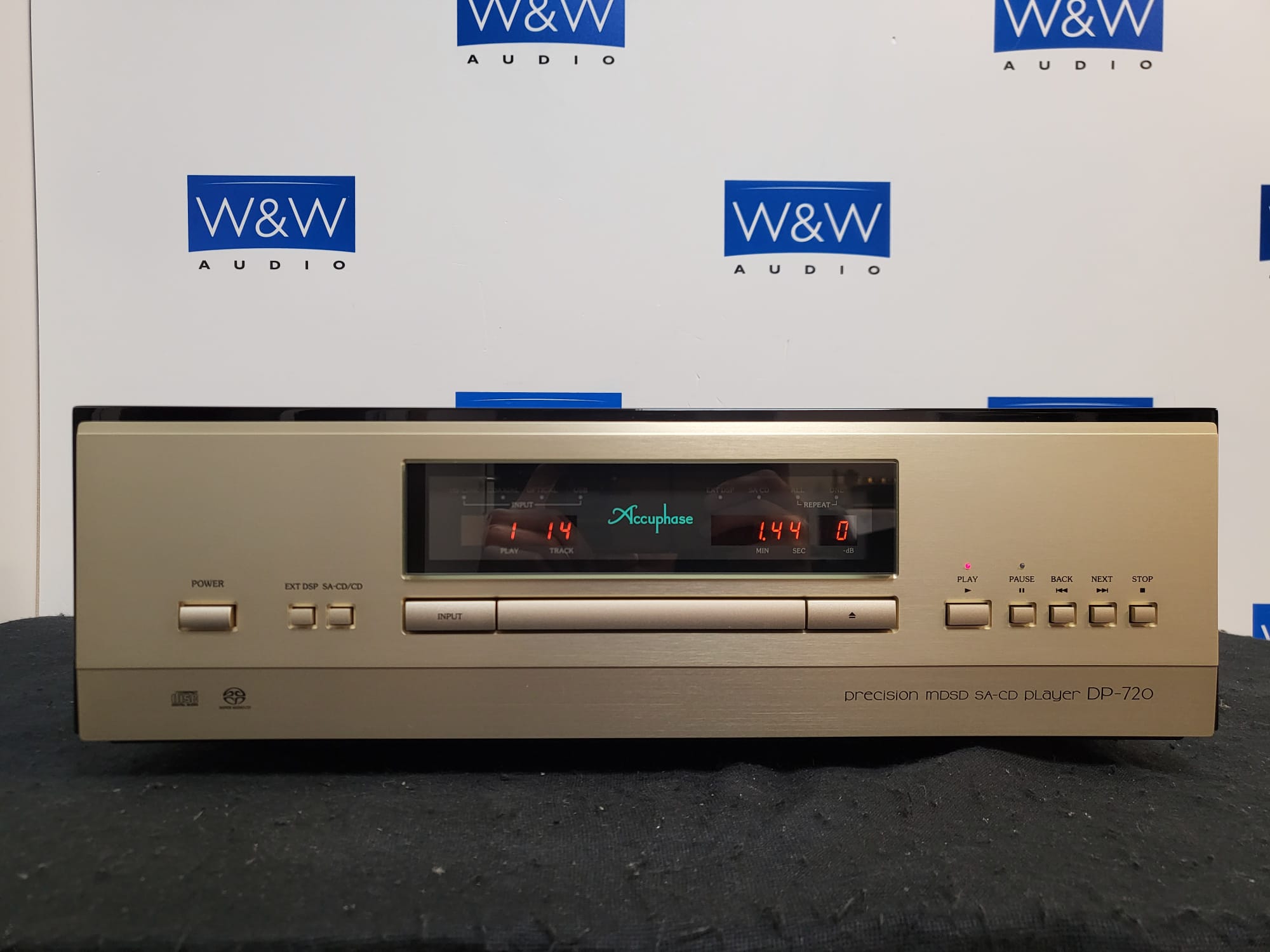

Accuphase DP-720

he DP-720 is an integrated SA-CD/CD player that reflects the superb know-how of the DP-900/DC-901 combo, aiming for top performance in the integrated category. As appropriate for a high-end player, the DP-720 features the latest versions of major Accuphase in-house developments: a high-precision SA-CD/CD drive and an advanced MDSD type D/A converter. The high-precision SA-CD/CD drive inherits vital know-how and technology from the DP-900, realizing the ideal transport design for bringing out the full potential of the SA-CD medium. The ultra-heavy, high-rigidity, high-precision mechanism has been finely honed to further perfection.
The digital processor section is optimally suited to handle the SA-CD format, using cutting-edge circuit topology and advanced digital technology to further enhance the innovative MDSD (Multiple Double Speed DSD) principle for direct D/A conversion of the DSD signal.

High-grade SA-CD/CD drive
MDSD type D/A converter using eight parallel devices
Support for playback of DSD discs with DSF file format
"Direct Balanced Filter" with separate balanced and unbalanced signal paths
HS-LINK and USB digital interfaces
EXT DSP inputs and outputs allow insertion of DG-58 into signal path for sound field correction
Phase selector for balanced outputs
Numeric indication of sampling frequency

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Disc format: CD, SACD
Frequency response: 0.5Hz to 50kHz (SACD)
Dynamic range: 116dB (SACD)
Signal to Noise Ratio: 119dB (SACD)
Channel separation: 117dB (SACD)
Total harmonic distortion: 0.0006% (SACD)
Line output: 2.5V (unbalanced), 2.5V (balanced)
Digital connections: HS-Link, coaxial
Dimensions: 477 x 156 x 394mm
Weight: 28kg

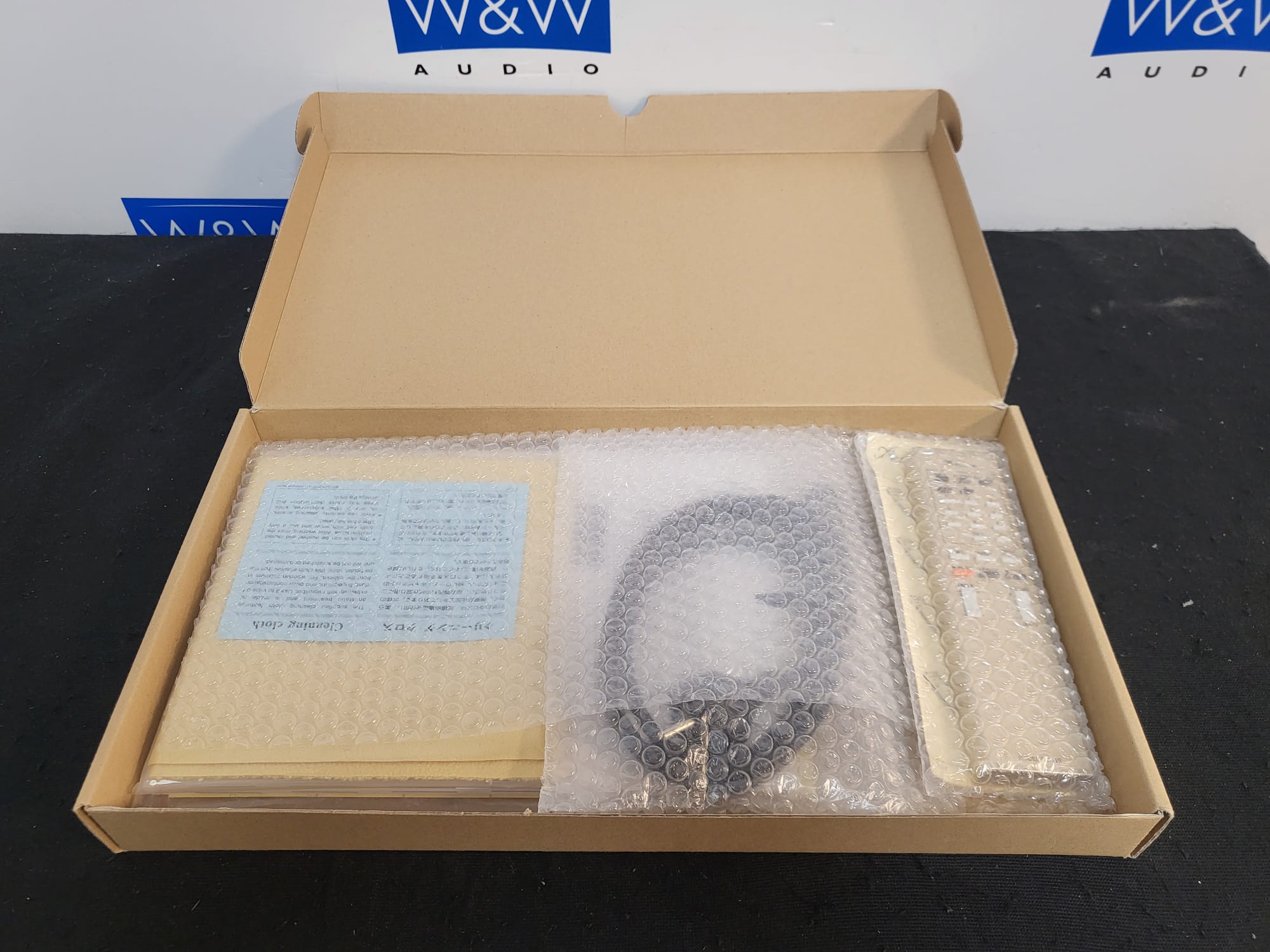

Accessories: RC-110 remote control
