Accuphase E-3000
Beschrijving / Description

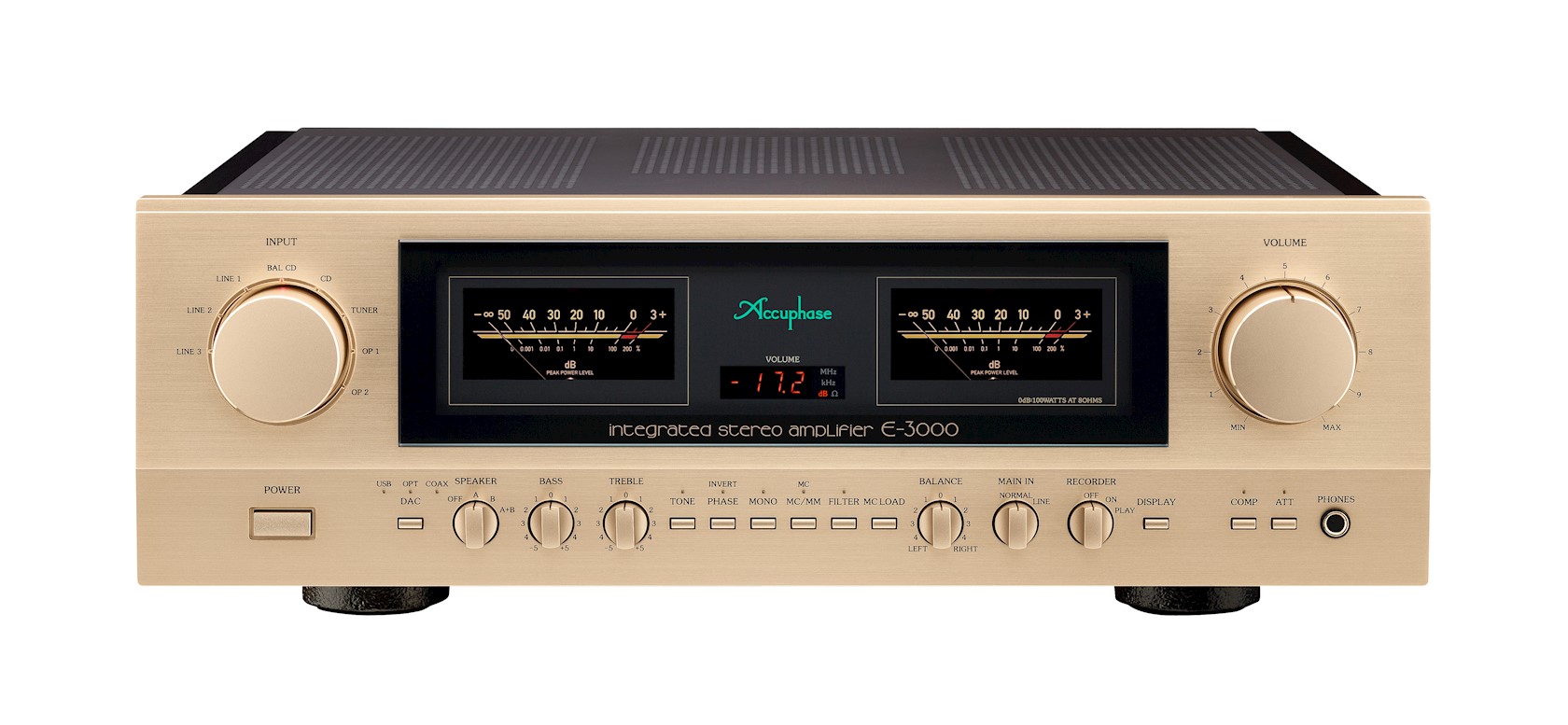

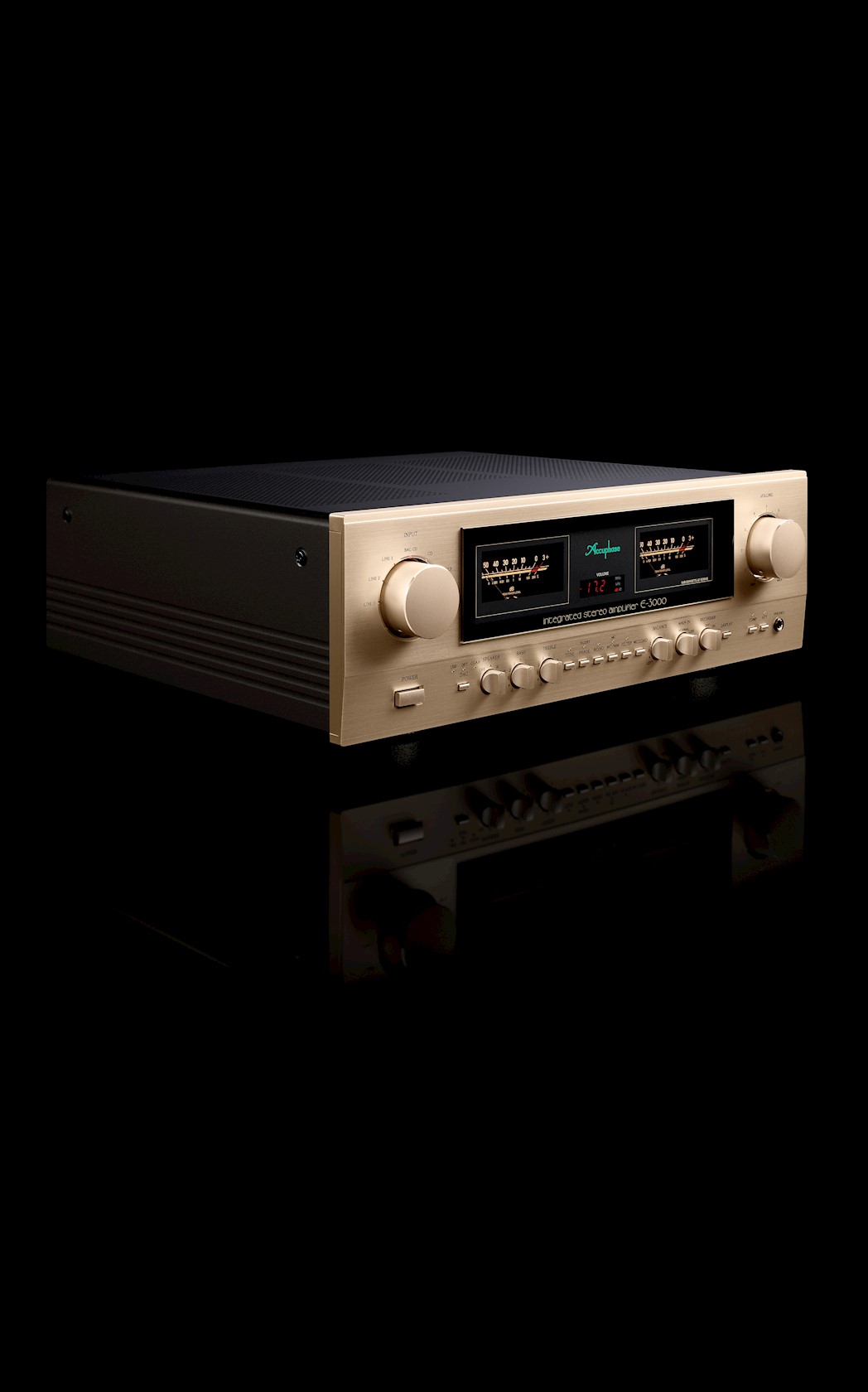

Accuphase Integrated Stereo Amplifier 100w
The E-3000 integrated amplifier emerged from the path forged by the technologies used in high-end equipment. Among this amplifier's constituent elements, the vitally important volume control circuits incorporate AAVA that employs the ANCC principle. The power amplifier section produces balanced signals relying on the instrumentation amplifier principle while simultaneously creating a robust output stage through three-fold parallel push-pull power transistors driven in class AB. Every moment spent immersed in the vibrant playback of the E-3000 is one to relish.
Specificaties / Specifications
AAVA volume control circuit
Powerful 100 watts into 8 ohms, 150 watts into 4 ohms
Three-fold parallel push-pull configuration using power transistors driven in Class AB
Power amplification stage configured as an instrumentation amplifier
High damping factor of 600
Balanced remote sensing to improve the damping factor
Current feedback amplification circuit topology assures excellent phase characteristics in the high range

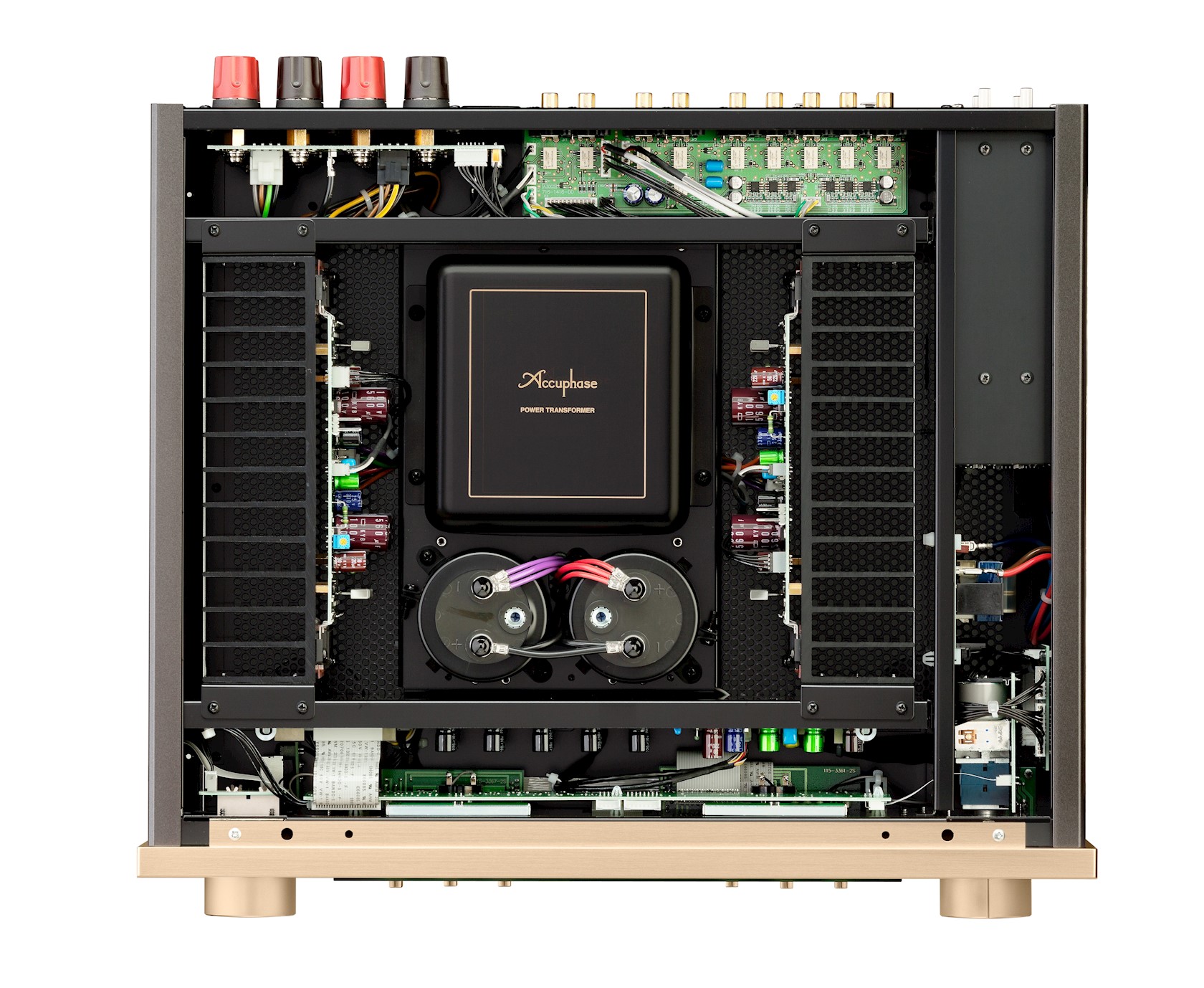

Strong power supply with massive transformer and high-voltage, large filtering capacitors
Protection circuitry using MOS-FET switches
Tone controls using summing active filters
High-carbon cast iron insulators for superior vibration damping
Two expansion slots for option boards
465 mm x 161 mm x 420 mm
23.1kg
