ASR Emitter I Basic
Beschrijving / Description
Weighing in at 51 kg, the Emitter I Basic is a sophisticated and fully-fledged high-end hi-fi amplifier that is constantly supplied with its required power via an external power supply. This ensures quiet operating conditions in the main unit, which has a very positive effect on performance and sound. The following applies to all Emitter models: When it comes to music reproduction, there is nothing but pure truth in its most beautiful form!
ASR Emitters stand for unfiltered, unvarnished, and effect-free sound. This is one of the reasons why virtually all musical styles are reproduced excellently and with complete honesty. Thanks to the deliberate abundance of power reserves, the Emitter I Basic is always capable of conjuring an extremely clean, unfussy, detailed, and energetic sound image into the listening room. Crisp, deep, and wobble-free bass, warm and colorful mids, and a smooth, realistic treble all work together seamlessly.
In summary, the Emitter I Basic produces a noticeably realistic stage that audibly anchors all performers and instruments firmly in their places. The speakers virtually disappear, and movements on the stage are reproduced in a localizable and fluid manner, and are immediately perceived as such.
Stability, and more stability, is another key criterion for us. If the soundstage distorts, even for a brief moment, performers and/or instruments suddenly no longer sound from the stage but from the speakers, the spatiality wavers, or the bass briefly gets out of control, a listening session quickly becomes an annoying and unsatisfying experience.
By the way: The Emitter I Basic isn't intended as an entry-level amplifier, even though it has five more powerful siblings in its portfolio. They also get significantly better as they go up, that's just the nature of things. Rather, with the Emitter I Basic, we want to offer you a sophisticated and extremely stable "music machine" that allows you to enjoy top-class, high-end music in your own home.
Entry-level amplifiers are not available because we are only just entering the market where many of our competitors have already reached the end of their rope.
Another innovation of our amplifiers is that although the emitters are delivered in the factory settings (found to be optimal according to our test environments), they offer the possibility of optimally adjusting the sound character to individual needs, the listening room environment, the respective loudspeaker characteristics, the cables used and the source devices via DIP switches inside the main unit.
Music lovers who prefer a bit more attack in the upper bass and midrange, who like more dominant voices and instruments - and who want everything to be a bit more lively - will get their money's worth, as will those with a more gentle taste.
Changing the factory settings does not affect the basic qualities of the emitter. The broadband spatiality is, of course, retained without any loss.
Thanks to the customization options, an Emitter always becomes a perfectly fitting tailor-made suit.
Like every one of our handcrafted amplifiers, even the smallest model in our range is designed for flawless operation for generations.

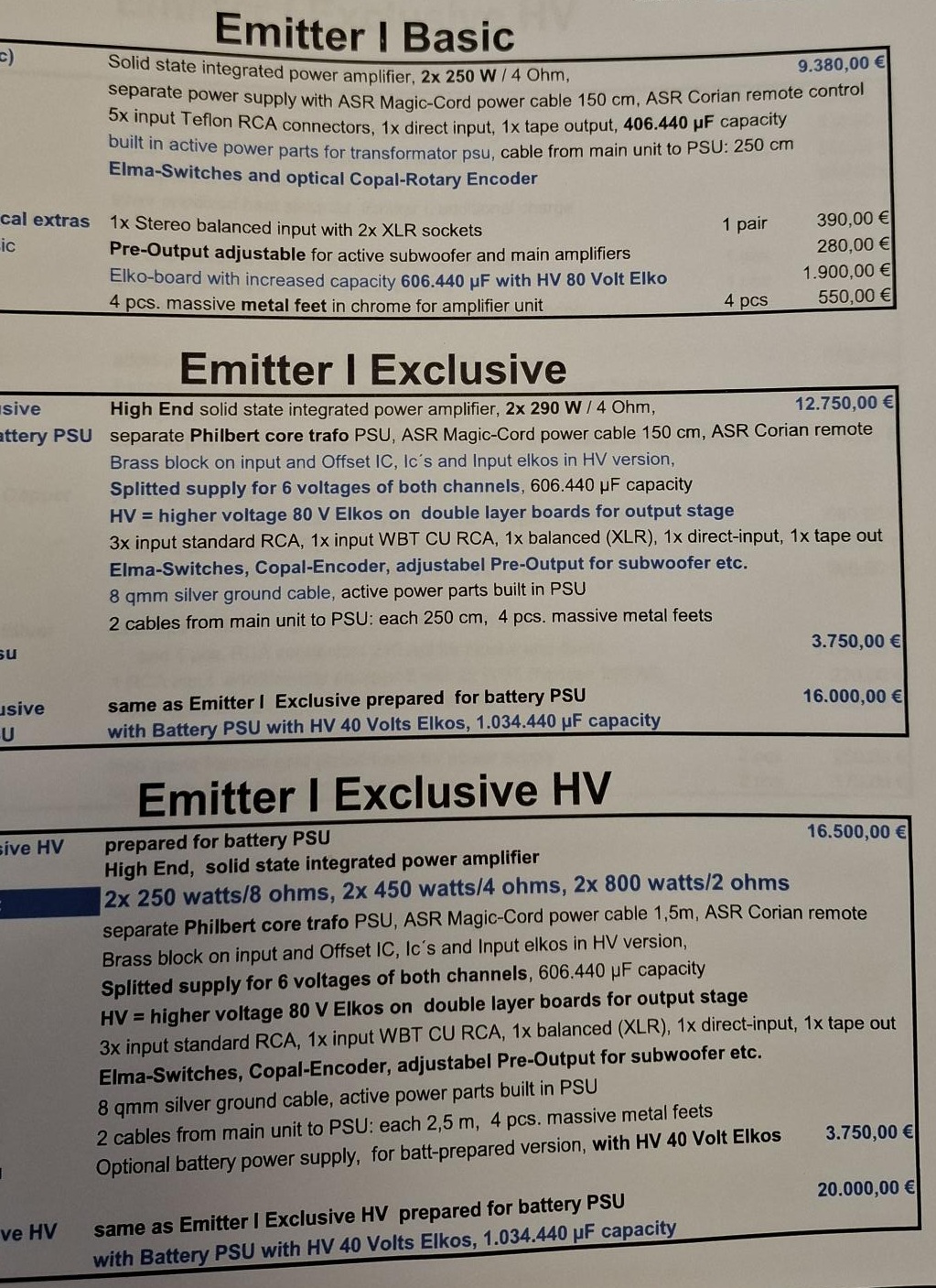

EXTRA OPTIONS:
1x stereo balanced input with 2 x XLR sockets 1 pair 390 euro.
Pre-Output adjustable for active subwoofer and main amplifiers 280 euro.
Elko-board with increased capacity 606440 uF with HV 80 Volt Elko 1.900 euro.
4 pcs. massive metal feet in chrome for amplifier unit 550 euro.
Specificaties / Specifications
Two-channel transistor integrated amplifier in an acrylic enclosure with input selector switch and level control.
2x 250 watts / 4 ohms - 2x 500 VA transformers.
Frequency response from 1 to 100,000 Hz with +/-1 dB, 20-20,000 Hz +/- 0.2 dB.
Signal-to-noise ratio at the high-level input: > 88 dB. Rise time: <1 uS.
Total harmonic distortion < 0.001%. Damping factor: greater than 600.
Power consumption in standby mode: 0.6 VA, power 50 VA, full load 120 VA.
Class A/B technology with 12 special audio MOSFETs with high impulse strength.
Mounting rails for the output transistors are made of solid brass for low resonance.
Volume adjustment via relay step switch in 1 dB steps with balance and level compensation.
25 mm LED display, available in yellow or blue, for function indication, with multiple settings.
5 relay-switched high-level inputs plus 1 direct input, 1 tape out.
Adjustable input impedance from 22 kOhm to 470 Ohm for the RCA inputs.
Gold-plated brass RCA jacks with Teflon insulation.
Solid silver wires in the speaker signal path.
Large 60 amp terminals for cable lugs and 4 mm banana plugs.

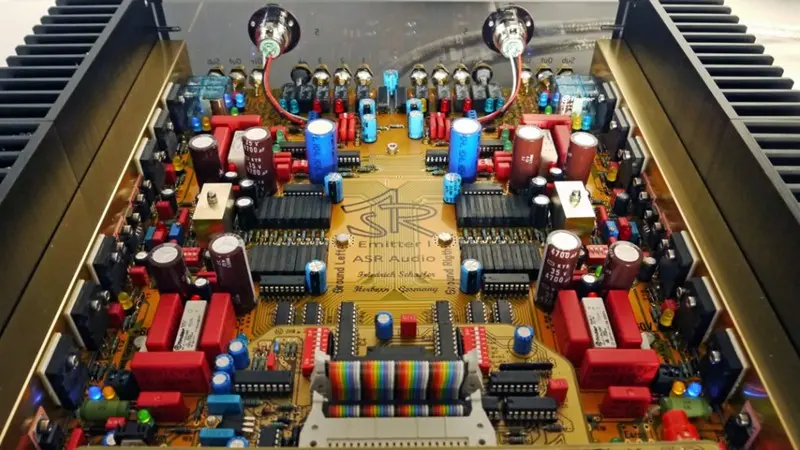

Protection circuits against overload, overload, short circuit, overheating, and DC voltage. The circuit
board features a thick material (2.5 mm) with an extra-thick copper plating, and components arranged in mirror symmetry.

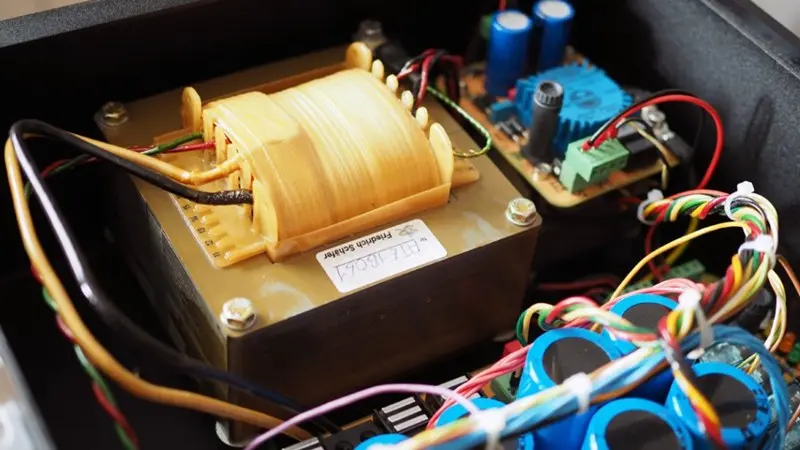

A separate power supply with 3 PM mains transformers and energy-saving circuitry.
Separate rectification for each of the 8 voltages with 32 Schottky diodes.
Filtering capacity - HV filter capacitors with a total of 404,440 uF filtering at 80 V.
Extremely robust power supply housing made of high-quality, heavy-walled sheet steel.
Low-loss Neozed high-load fuse in the power supply.
Robust industrial connector from Harting for the connection to the amplifier section.
Double-shielded connection cable to the amplifier section, 2 m long; other lengths are available upon request.
ASR Magic Cord power cable, 150 cm, with a low-loss 21 A mains connector on the power supply; other lengths are available upon request .
High-quality ASR design remote control made of Corian (artificial stone) with stainless steel buttons for all functions.
Performance data:
8 OHM sine wave 2x 140 watts
4 OHM sine wave 2x 250 watts,
2 OHM sine wave 2x 450 watts.
Transformers - 2x 500 VA,
1 separate power supply.
Filter capacity - 404,440 uF.
Dimensions and weight:
Dimensions and weight - amplifier
width x depth x height:
42 x 42 x 18 cm - 19 kg.
Dimensions and weight - power supply
width x depth x height - with plug in (clamps):
46 x 32(42) x 16 cm - 32 kg.
Total weight Emitter I Basic: 51 kg.
ASK FOR PRICES EXTRA OPTIONS !!
