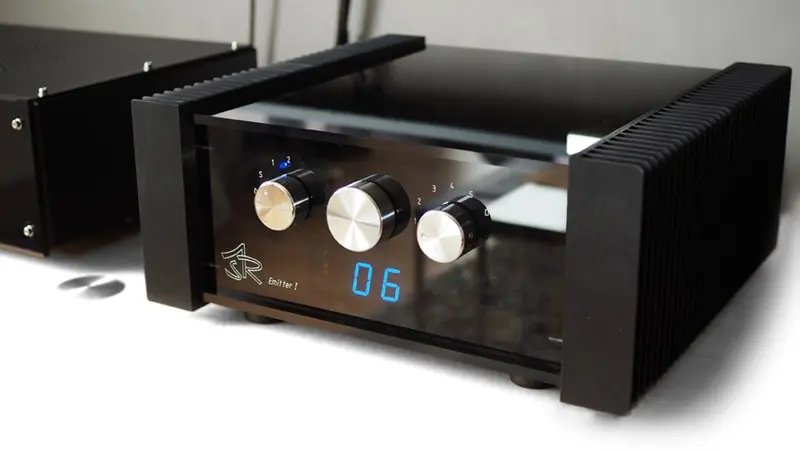

ASR Emitter I Exclusive

The Emitter I Exclusive is even more elaborately equipped in the main unit than the Basic - and also offers more power from the power supply.

The Emitter I Exclusive brings virtually all loudspeaker types to their full potential. For the discerning hi-fi connoisseur who wants to experience their music without compromise, just like sitting in the best seat in a concert hall, the Emitter I Exclusive is the perfect purchase.

The contours of musicians and instruments are rendered even more sharply and tangibly with the Emitter I Exclusive. Voices and instruments gain clarity, energy, and lightness. While the excellent fine dynamic capabilities remain unchanged compared to the Basic, the Exclusive adds a small but significant boost in terms of gross dynamics. Overall, the Exclusive delivers even more temperament in the midrange, without even remotely compromising the broadband serenity.

Like the Emitter I Basic, the Exclusive impresses with a fast, responsive, and lively soundstage with perfect resolution and harmonious details. Thanks to its high signal processing speed, the Emitter I Exclusive reproduces even more energy and three-dimensionality in the listening room with good recordings thanks to the additional power from the power supply.

EXTRA OPTIONS:
1x stereo balanced input with 2 x XLR sockets 1 pair 390 euro.
Pre-Output adjustable for active subwoofer and main amplifiers 280 euro.
Elko-board with increased capacity 606440 uF with HV 80 Volt Elko 1.900 euro.
4 pcs. massive metal feet in chrome for amplifier unit 550 euro.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

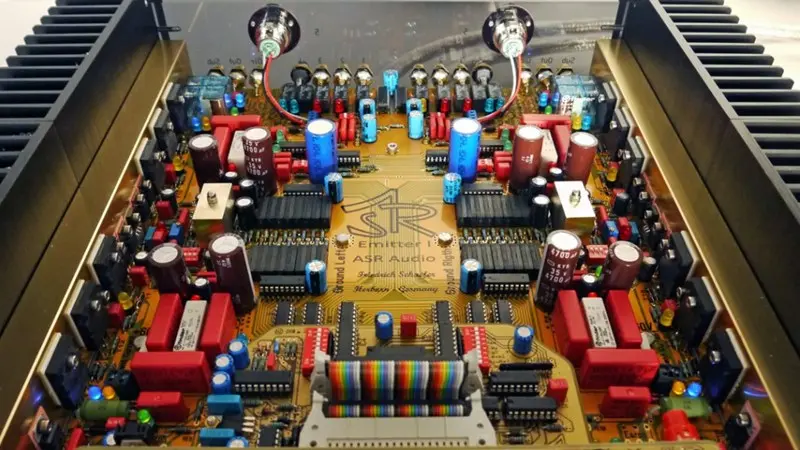

Additional equipment Emitter I Exclusive

2x 290 watts / 4 ohms - 2x 700 VA transformers.
HV filter capacitors with a total of 604,440 uF filtering at 80 V.
Symmetrical input (XLR) with switchable input impedance.
Solid brass feet in chrome or gold.
Elaborately constructed power supply for even higher performance.

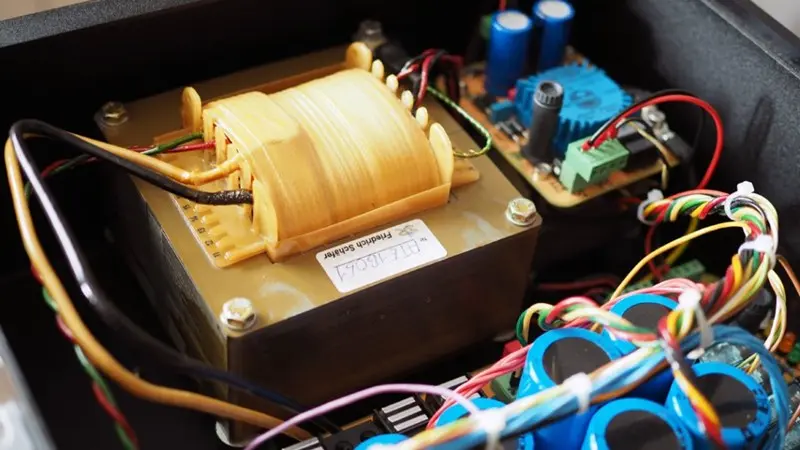

The three PM transformers feature highly magnetizable core sheets.
Separate rectification for each of the eight voltages with 56 Schottky diodes.
Ready for battery operation.

Performance data:
2x 160 Watt sine wave 8 ohms,
2x 290 Watt sine wave 2 ohms,
2x 520 Watt sine wave 2 ohms.

Transformers - 2x 700 VA,
1 separate power supply.
Filter capacity - 604,440 uF.

Dimensions and weight:
Dimensions and weight - amplifier
width x depth x height:
42 x 42 x 18 cm - 22 kg.

Dimensions and weight - power supply
width x depth x height - with plug in (clamps):
46 x 32(42) x 16 cm - 32 kg.

Total weight Emitter I Exclusive: 54 kg.
