ASR Emitter II Exclusive

The Emitter II Exclusive is even more technically sophisticated, offers more power, and is, in its design, one of the most sophisticated high-end amplifiers on the global market. When the Emitter II Exclusive is unleashed upon listeners at listening events or our popular Emitter Day (...), tears are often shed while listening to their favorite music. Many impressed visitors have ordered the Emitter experience immediately or let it sink in first, before settling on an exclusive Emitter after a few weeks and several amplifier comparisons.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

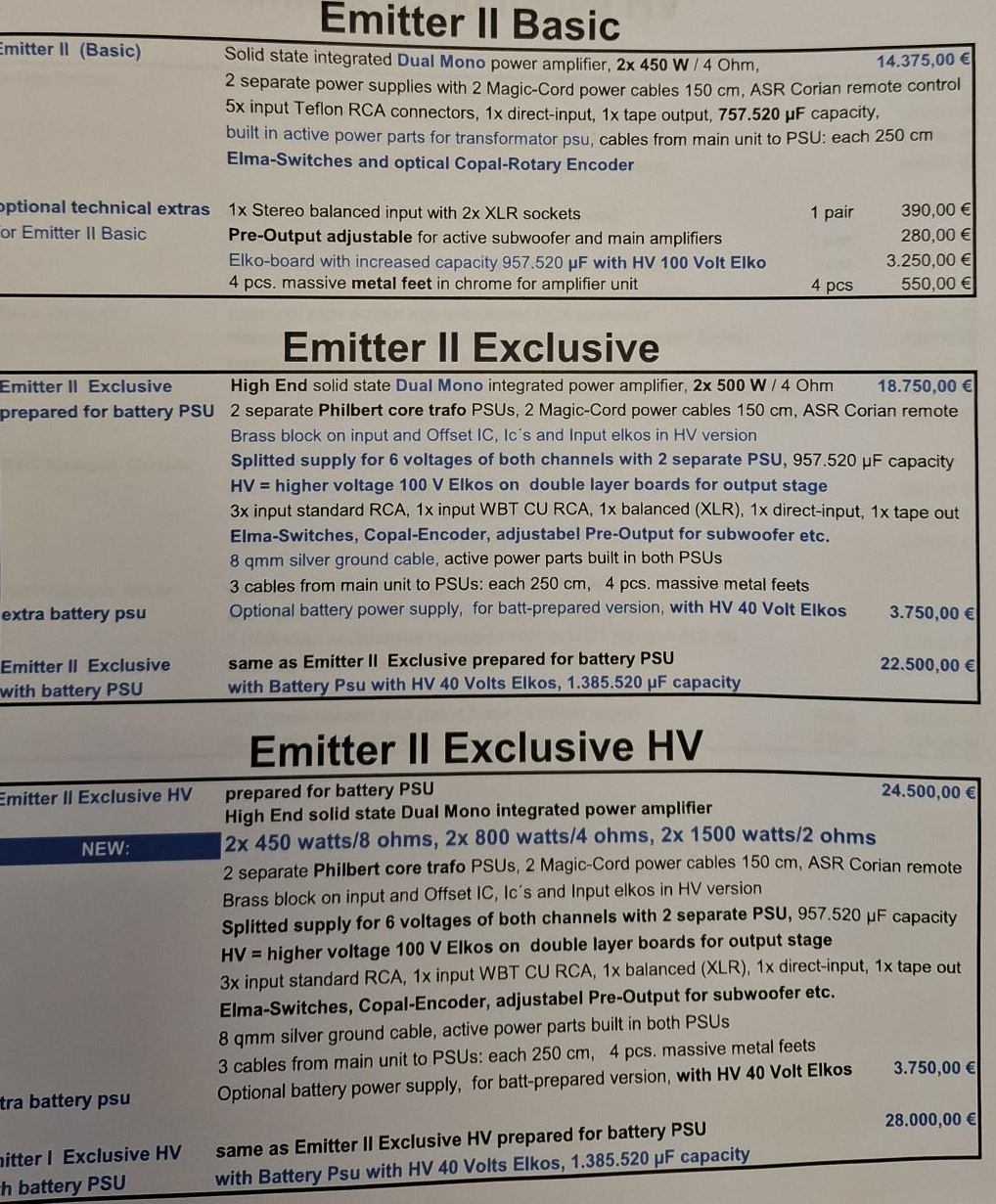

See Emitter II Basic + Additional equipment Emitter I Exclusive (includes Emitter II Basic)

2x 490 watts / 4 ohms - 4x 700 VA transformers.
HV filter capacitors with a total of 957,520 uF filtering at 100 V.

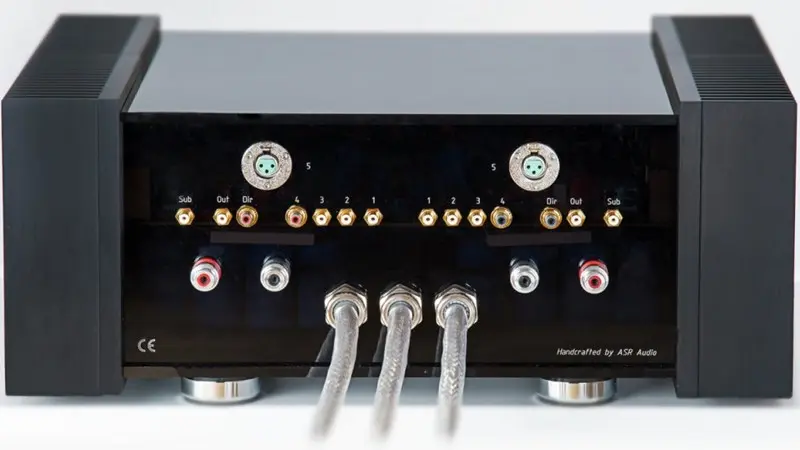

Symmetrical input (XLR) with switchable input impedance.
Solid chrome brass feet.
Elaborately constructed power supplies for even higher performance.
The 2x3 PM transformers feature highly magnetizable cores.
Separate rectification for each of the 8 voltages with 112 Schottky diodes.

Filtering in detail
Input 16V - 151,680 uF
Driver 96V - 58,280 uF
Output 78V - 603,880 uF
Control 12V - 143,680 uF
Total filter capacity: 957,520 uF

Power
Sinus 8 OHM 2x 280 Watts
Sinus 4 OHM 2x 490 Watts
Sinus 2 OHM 2x 900 Watts

Transformers - 4x 700 VA

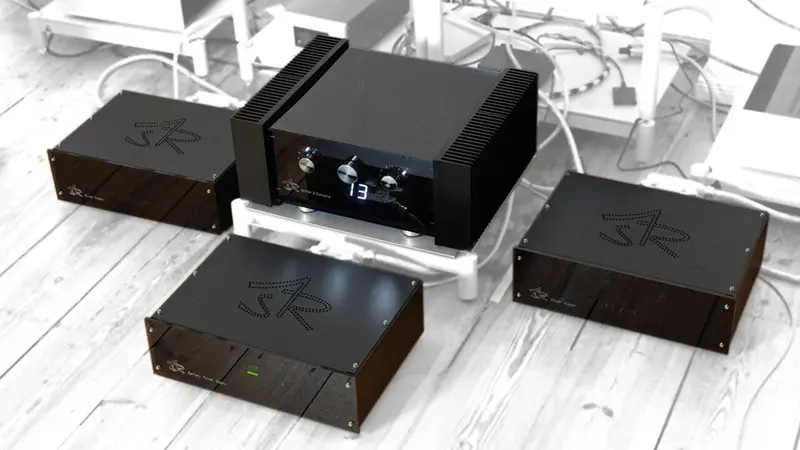

2 separate power supplies

Dimensions and weight:
Dimensions and weight - amplifier
width x depth x height:
57 x 47 x 23 cm, 47 kg

Dimensions and weight - power supplies
width x depth x height - with plug in (brackets).
2 power supplies 46 x 32(42) x 16 cm, 32 kg each.

Total weight Emitter II Exclusive: 111 kg.
