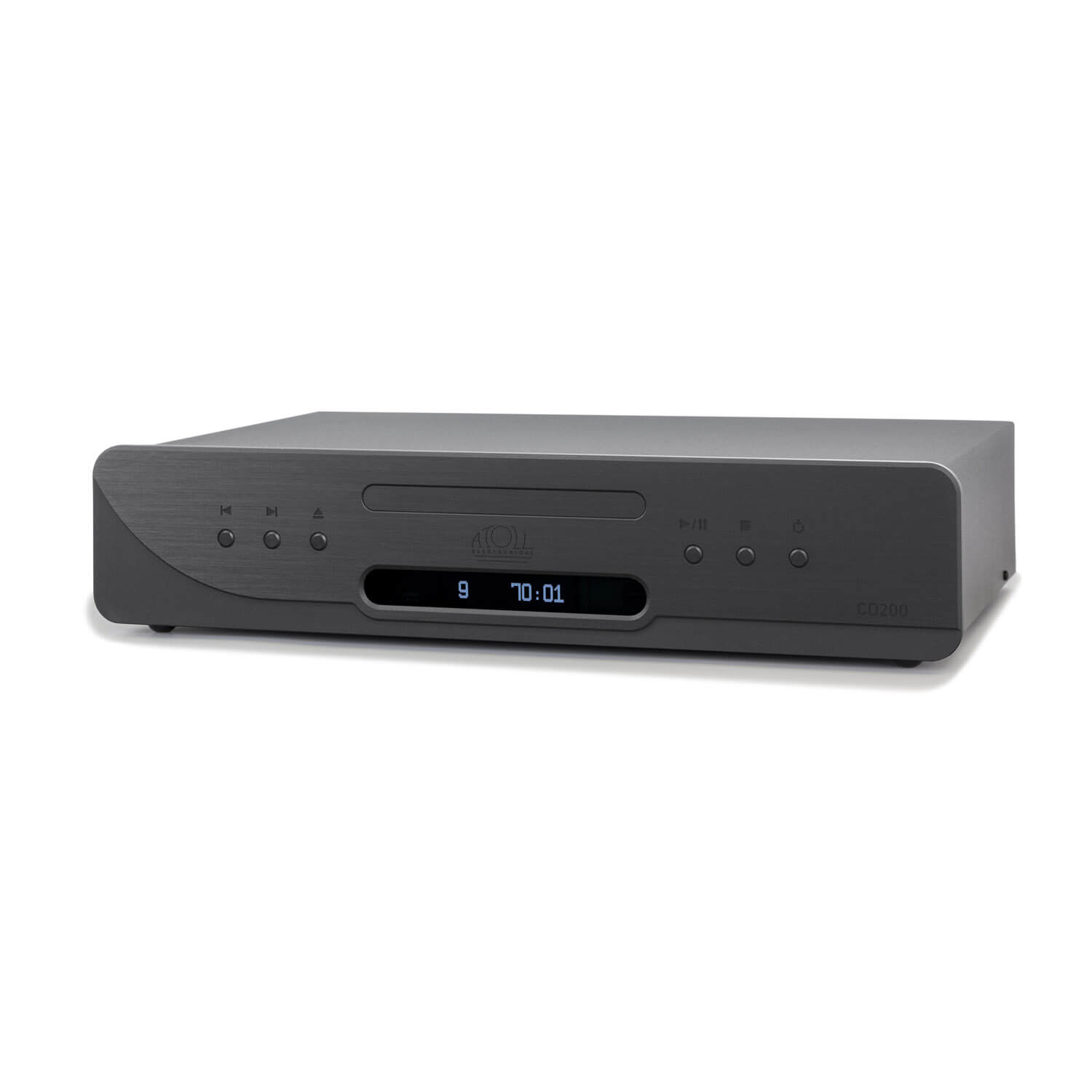

Atoll CD200 Signature

The Signature Series CD players have benefited from many innovations, whether in terms of power supplies or audio and conversion stages. In addition, all of these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player's internal converter. The USB input is asynchronous.

8 mm brushed aluminium front.
8 regulated power supplies including a specific low-noise one for the converter.
Separate 10 VA transformers for the audio stages.
Current-voltage conversion stages designed by Atoll using bipolar transistors.
BURR-BROWN PCM1792 converter:
24 bits/192 kHz.
Dynamic: 129 dB.
Signal/Noise ratio: 129 dB.
Original TEAC central CD mechanics.
Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.

Linear power supply for digital stages with a specific 30 VA transformer.
Separate linear power supply for the audio stages.
Double-sided circuit boards with nickel/gold finish.
Low consumption OLED display.
Reading the CD-Text.
Class A biased discrete component differential audio output stages.
Optional 24 bits/192 kHz digital board for all signature series CD players.
ATOLL global remote control.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

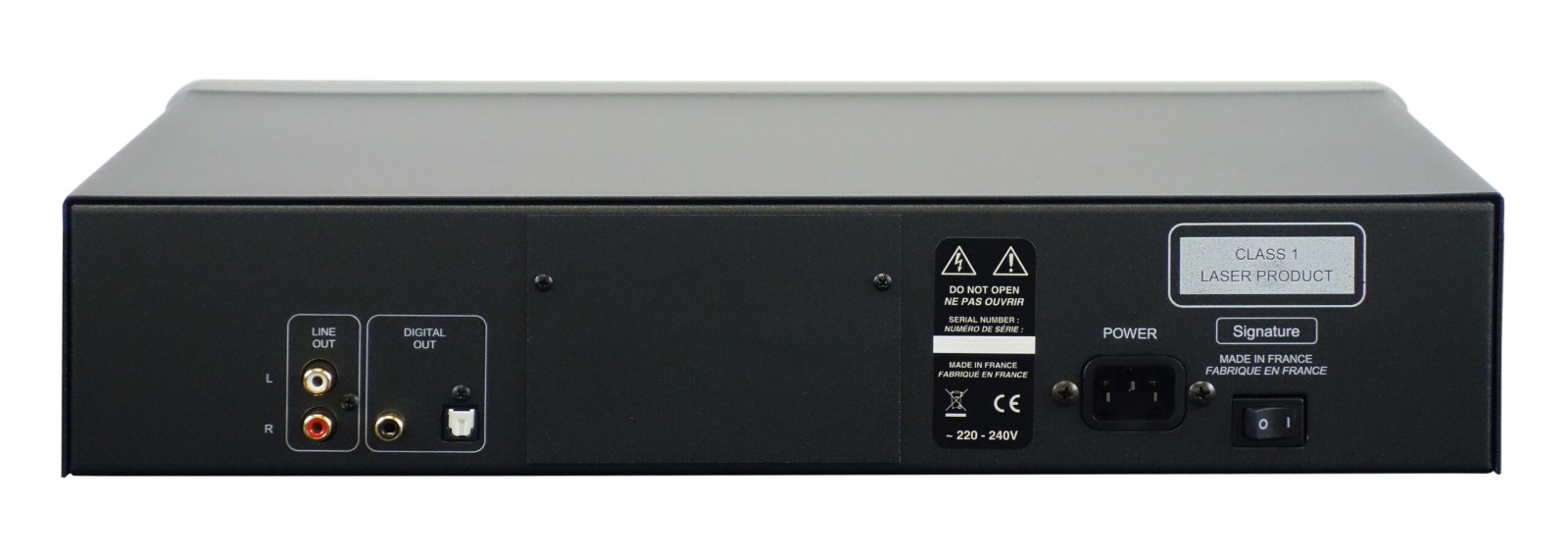

Outputs

1 Line output (right and left).
1 Coaxial digital output.
1 Optical digital output.

Power supply: 30+10 VA
Total of capacitors: 13 032 uF
Output level: 2,65 Vrms
Output impedance: 5,6 Ohm
Converter (D/A): PCM1792
Digital Output: Coaxial & Optical
Digital input: 24 bits/192 kHz
USB input: 24 bits/192 kHz
Signal/Noise ratio: 129 dB
Distortion at 1 kHz: 0,0004%
Bandwidth: 5 Hz - 20 kHz
Rising time: 2,0 us
Dimensions (mm): 440x284x95
Weight: 7 Kg
