Atoll SDA200 Signature

2x120Wrms / 8ohm.
8 mm brushed aluminium front.
2 toroidal transformers of 340 VA each.
Total of capacitors: 65 800 uF.
MOS-FET dual push-pull power stage.
High-quality, shielded MKP technology link capacitors.
Filtering capacitors: 8x6800 uF high quality, low ESR specific for ATOLL.
BURR-BROWN PCM1792 converter:
Dynamic: 129 dB.
Signal/Noise ratio: 129 dB.
5 inch TFT LED colour graphic display (800x480).
Discrete component preamp stages without negative feedback in pure Class A.
Analog volume management (switched resistors) that can be bypassed.
Specific power supply dedicated to the audio stages.
Specific power supply dedicated to the analogue digital audio converter.
Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or WiFi connection.
Display of names, tags, resolutions and album covers.
Gapless system (no cut between pieces).
Ability to create playlists.
USB-A file systems: FAT32, NTFS, EXT2/3/4.
ATOLL streamer remote control supplied as standard.
ATOLL Signature 2 App (Android and IOS).

You also have direct access from the application to these streaming services: Qobuz, Tidal, Tidal Connect, Deezer, Spotify, and HighResAudio.
During the first use, you will need to enter your username and password. Once your account is valid, you will be able to access all the services linked to your account.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

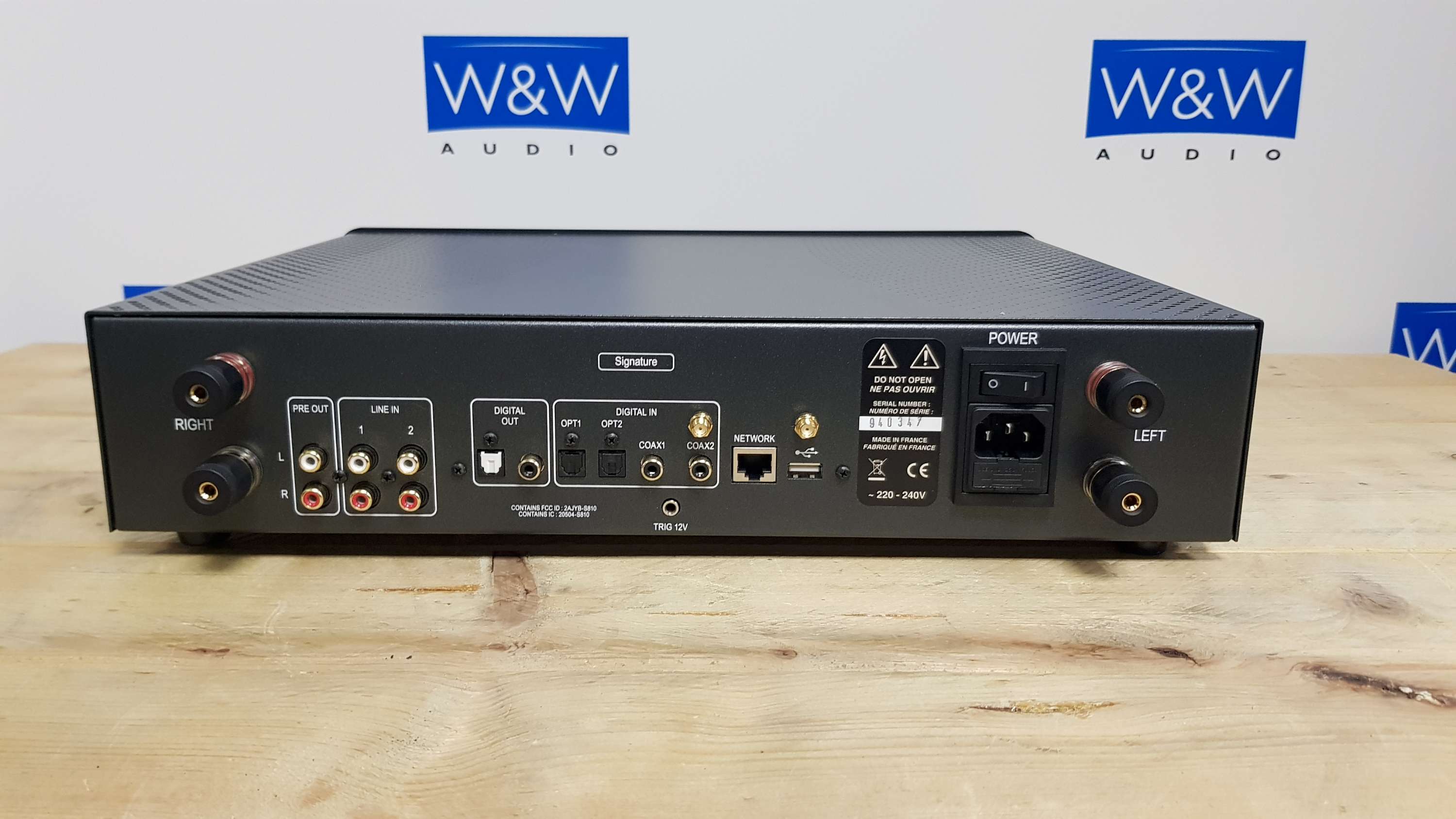

Inputs
2 Analog inputs , 2 coaxial S/PDIF (PCM1792 24 bits/192 kHz).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).
1 RJ45 network socket.
1 Bluetooth receiver (antenna).

Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 Toslink optical S/PDIF output.
1 Trigger output 12V.
1 Headphone output on the front panel (6,35 mm 1/4).
1 Wi-Fi antenna (802.11b/g/n).

Power supply: 689 VA
Wrms/channel/8ohm: 2x120 W
Wrms/channel/4ohm: 2x200 W
Total of capacitors: 65,800 uF
Dynamic: 129 dB
Input impedance: 220 kOhm
Maximum input level: 3,5 Vrms
Distortion at 1 kHz: 0,05% / 10 W
Bandwidth: 5 Hz - 100 kHz
Rising time: 2.0 us
Sensitivity: 350mV
Signal/Noise Ratio: 129 dB
D/A converter: BURR-BROWN PCM1792 24-bit/192 kHz
Dimensions: 440x365x95 mm
Weight: 13 kg
