Bowers And Wilkins 683 S2

Best floorstander Awards 2014. A very strong and versatile performance; another winner for B&W.

The 683 S2s are tremendously talented speakers, all things considered. We're impressed by their power, scale and delicacy they're wonderfully versatile performers.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Three-way, vented-box loudspeaker.

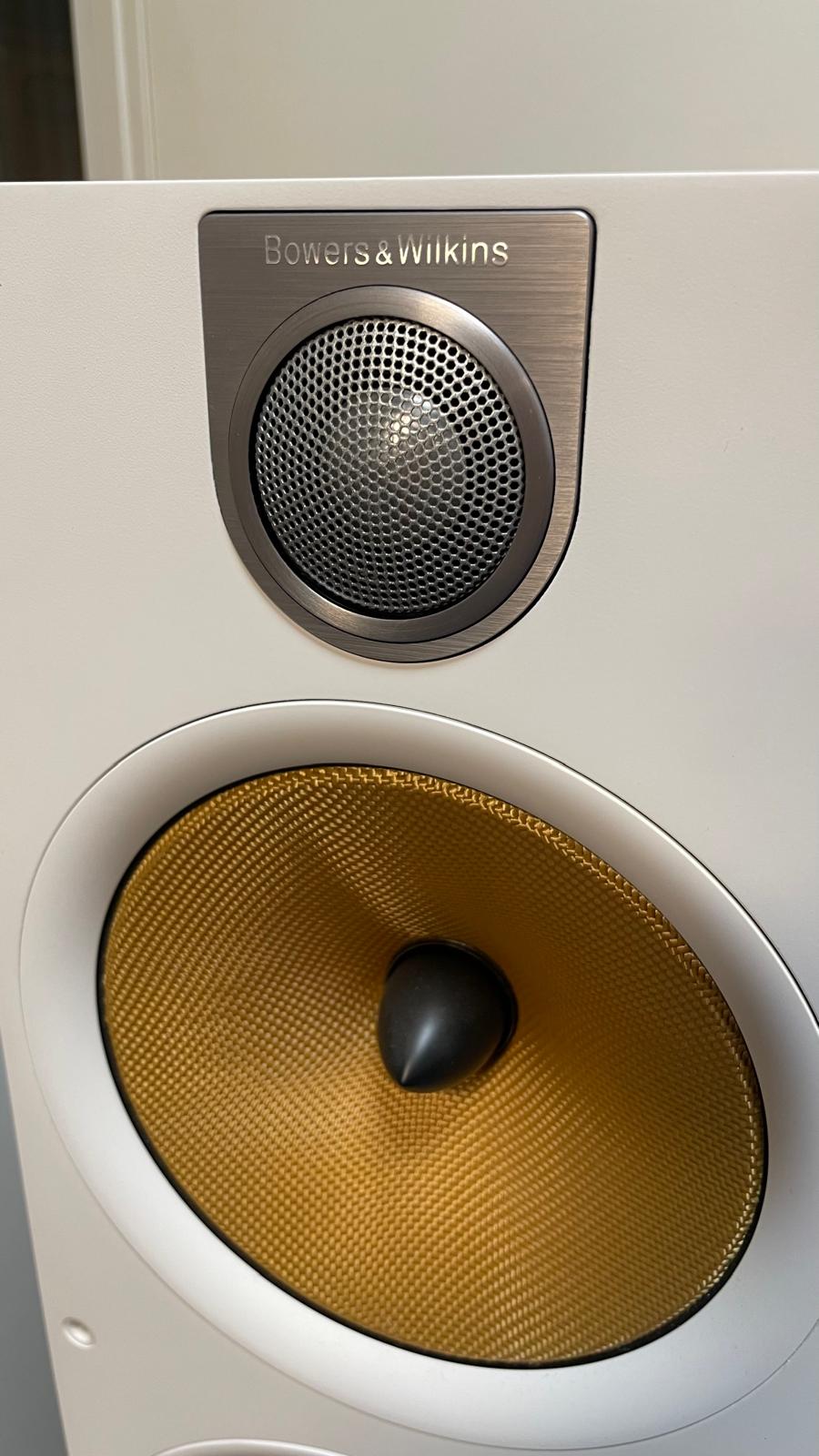

Drive-units: 1" (25mm) aluminum-dome tweeter, 6" (150mm) woven-Kevlar-cone FST midrange, two 6.5" (165mm) aluminum-cone woofers.
Crossover frequencies: 400Hz, 4kHz.
Frequency response: 52Hz-22kHz, +/-3dB on reference axis, -6dB at 30Hz and 50kHz.
Dispersion: within 2dB of on-axis response over 60" arc (horizontal) and 10" arc (vertical).
Sensitivity: 89dB/2.83V/m.
Harmonic distortion (second and third harmonics, 90dB, 1m): <1.0%, 95Hz-22kHz; <0.5%, 120Hz-20kHz.
Impedance: 8 ohms nominal, 3 ohms minimum.
Recommended amplification: 25-200W into 8 ohms on unclipped program. Maximum recommended cable impedance: 0.1 ohm.
Dimensions: 38.4" (985mm) H by 7.4" (190mm) W by 14.2" (364mm) D.
Weight: 59.8 lbs (27.2kg).
