Bowers and Wilkins 705 S2

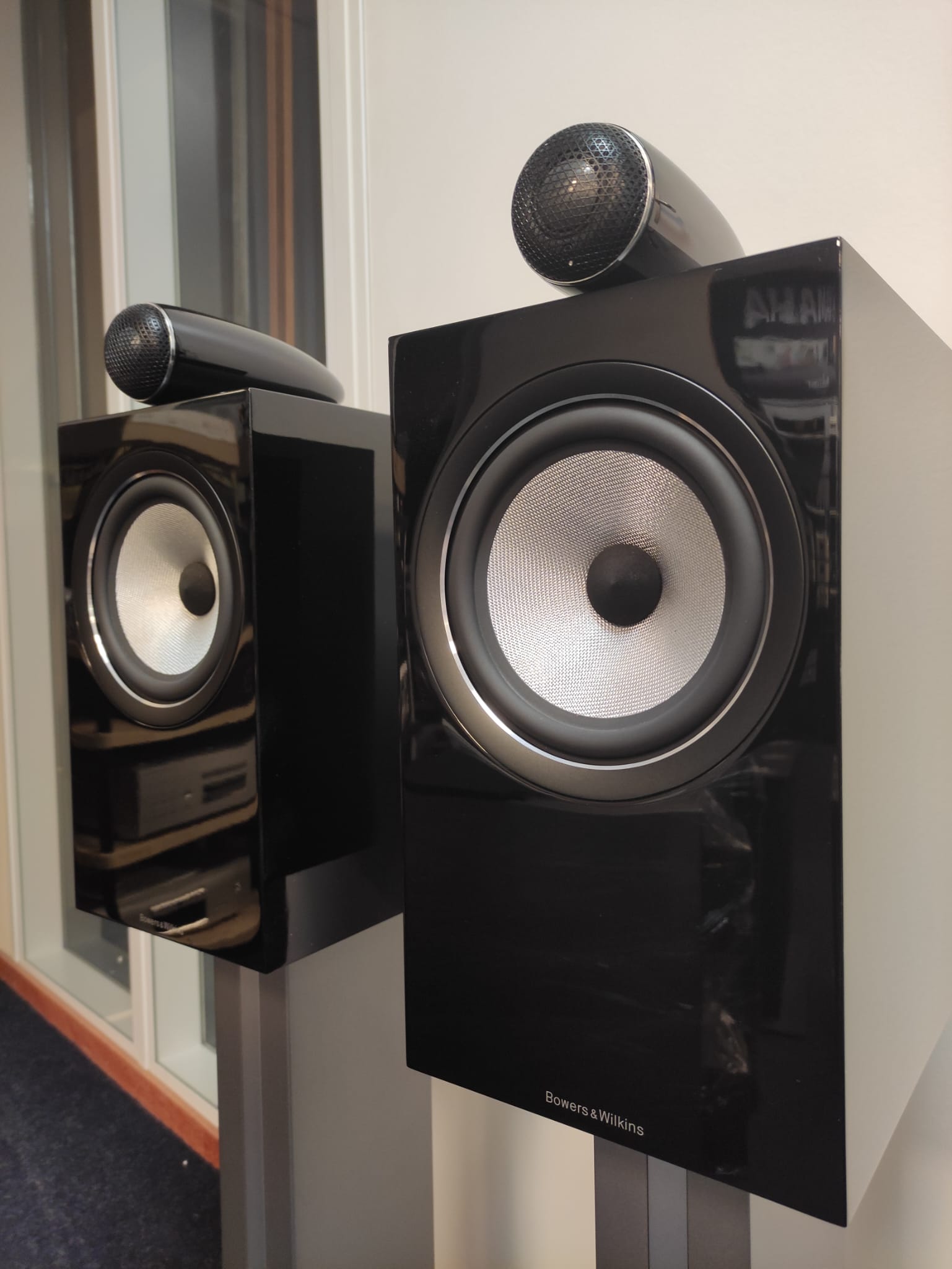

The 705 S2 is the top model of the three bookshelf speakers in the 700 Series 2, all two-way designs. It and the 706 S2 both measure 13.4H x 7.8W x 11.2D, and have the same 6.5 inch Continuum midrange-bass driver and 1 inch carbon-dome tweeter. The main difference between them is that the 705 S2 inch tweeter is isolated from the cabinet, housed atop it in its own pod of machined aluminum, in the distinctive tweeter on top arrangement used in B&W's 800 models for decades now.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Description 2-way vented-box system
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter on top
Continuum cone bass/midrange
Flowport
Drive units 1x 25mm (1 in) Decoupled Carbon
Dome high-frequency
1x 165mm (6.5 in) Continuum cone
bass/midrange
Frequency range (-6dB) -6dB at 45Hz and 33kHz
Frequency Response -3dB 50Hz - 28kHz +/-3dB
Sensitivity 88dB spl (2.83VRMS, 1m)
Nominal impedance 8 ohm (minimum 3.7 ohm)
Recommended amplifier 30W - 120W into 8 ohm on unclipped
power programme
Dimensions Height: 340mm (13.4 in) cabinet only
407mm (16 in) including tweeter
Width: 200mm (7.8 in)
Depth: 285mm (11.2 in) cabinet only
301mm (11.9 in) including grille
and terminals
Net weight 9.3kg (20.5 lb)
