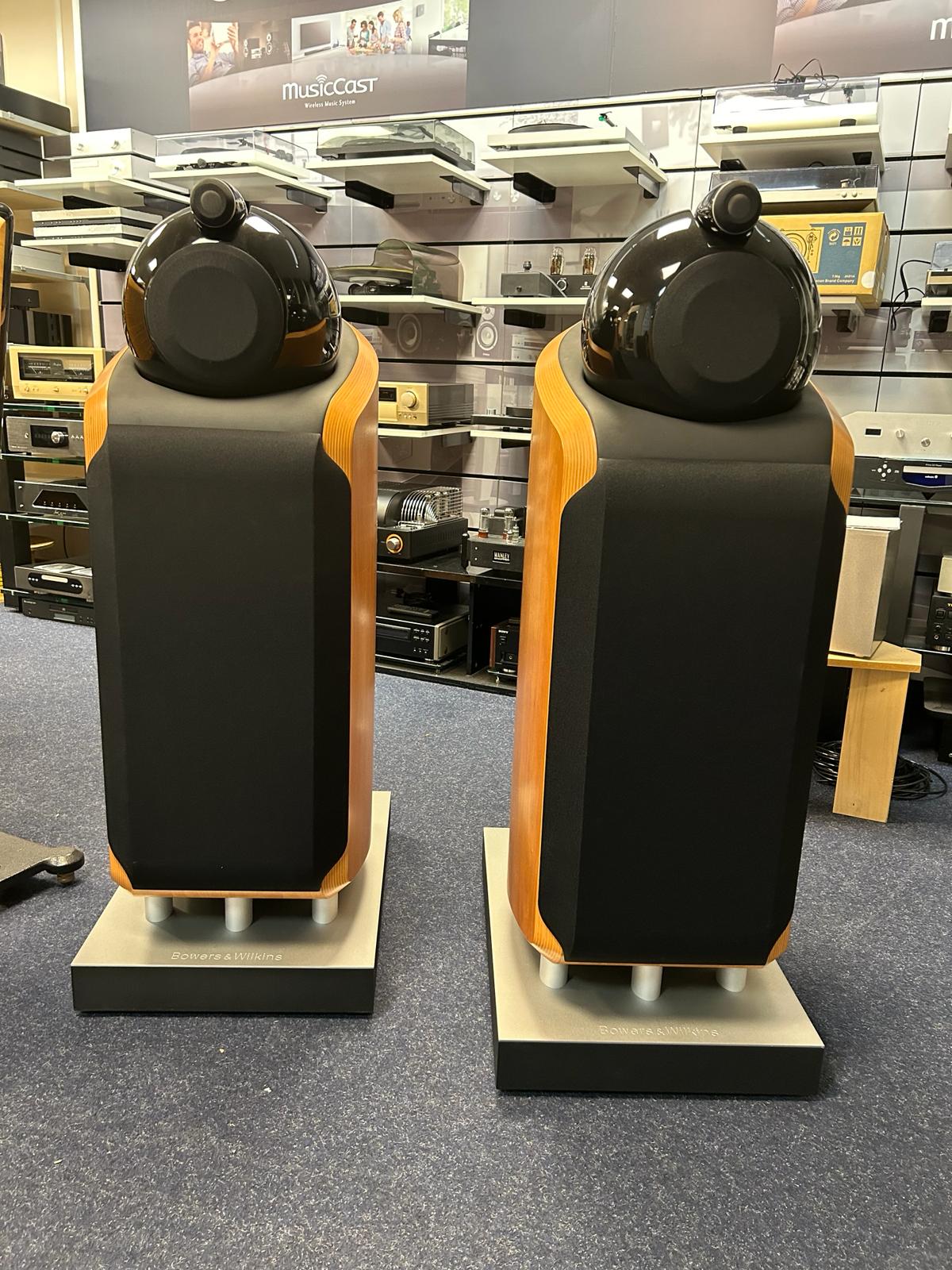

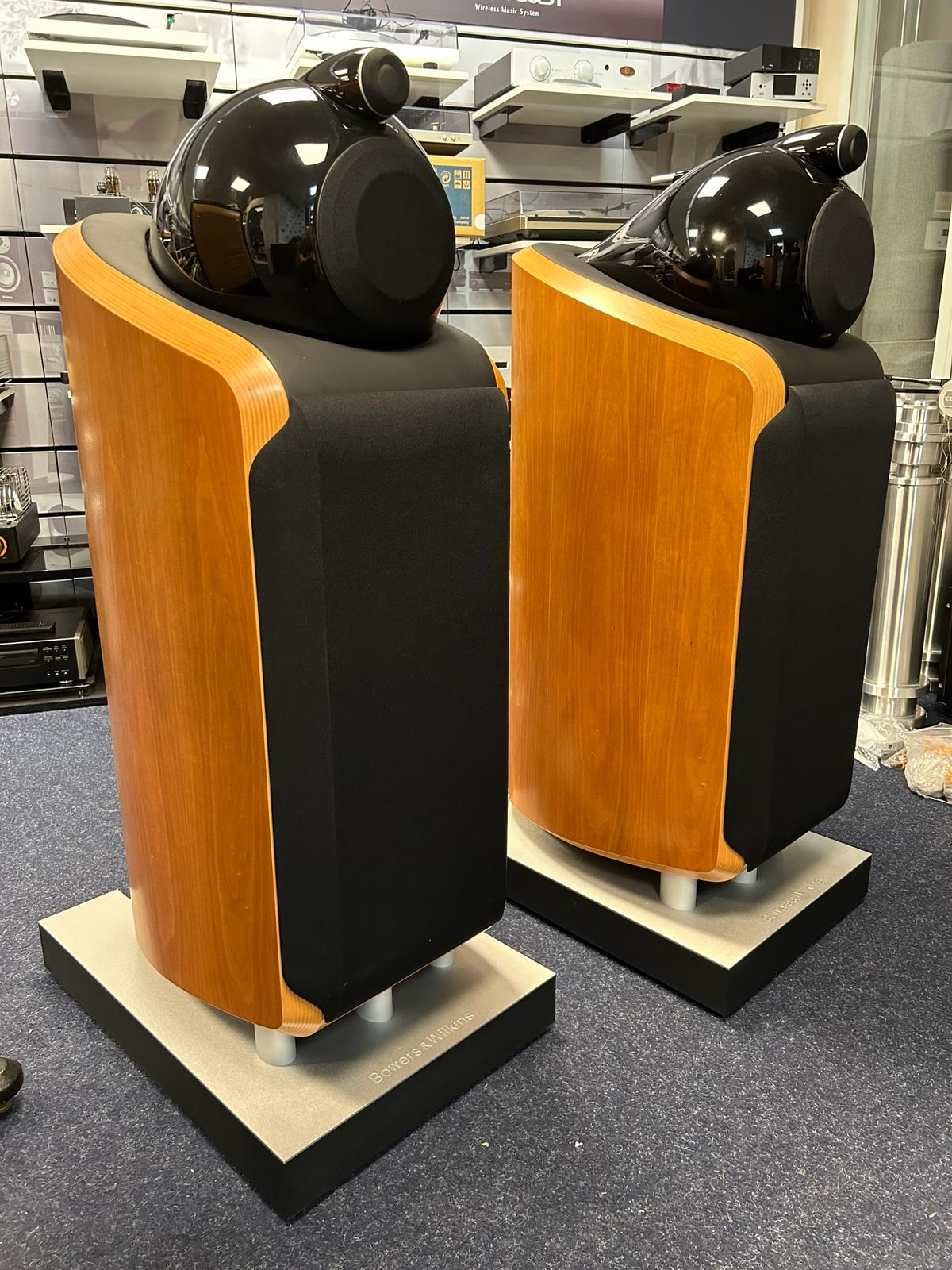

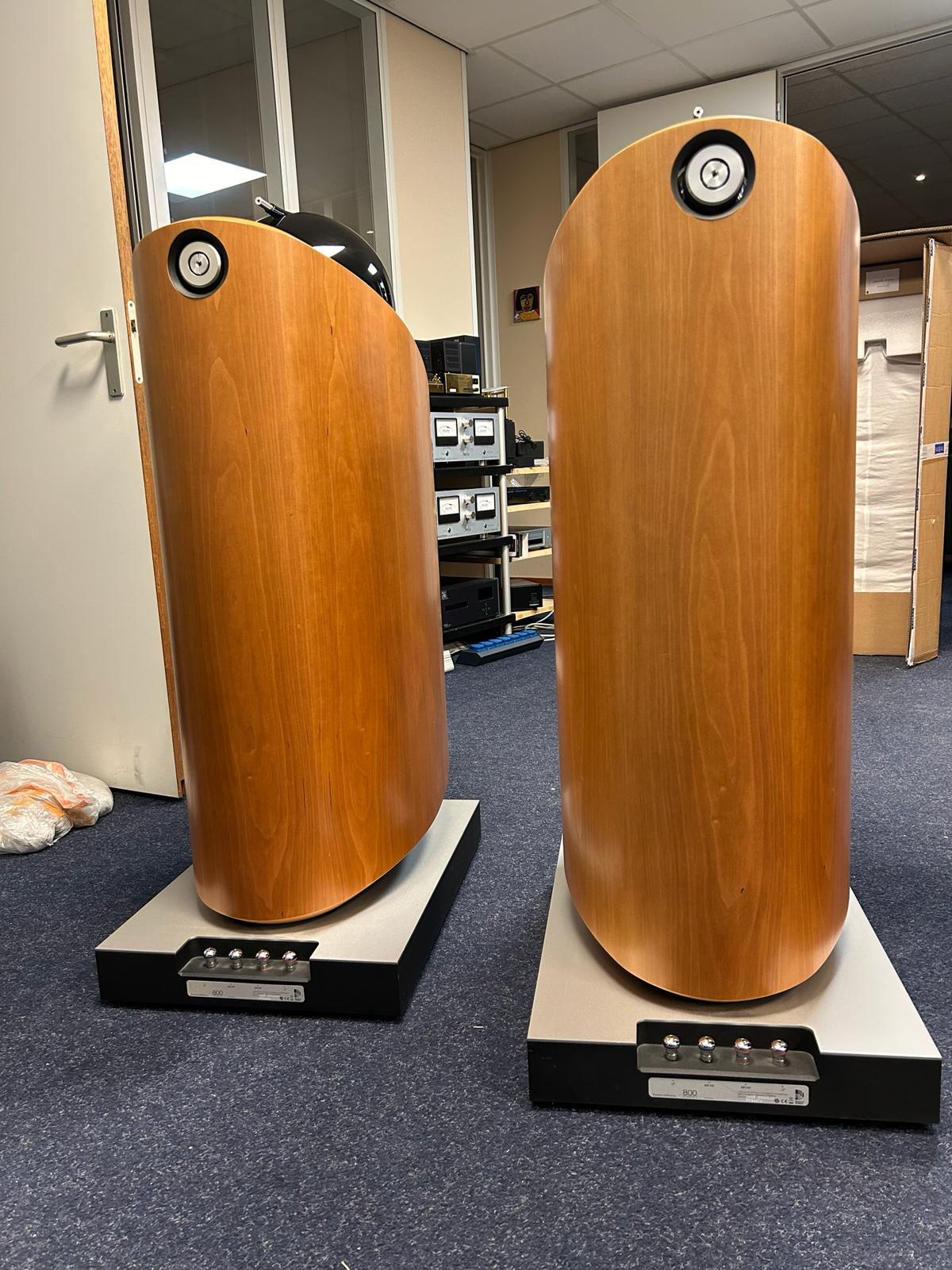

Bowers And Wilkins 800 D2 Diamond

This is not just another speaker range. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is our benchmark, our icon; the most advanced range of loudspeakers we know how to make. For us, the 800 Series Diamond is everything we know, and everything we are.

John Bowers wanted the original Model 801 to clearly be superior to anything he had done before: to be the best loudspeaker the world had ever heard. Over the decades that have followed, we've constantly evolved his original design, but his passion for perfection continues to inspire us to this day.

Other speakers merely replay recorded music. 800 Series Diamond makes it. The speaker of choice for recording industry professionals for decades, it has helped artists and studios the world over to create the music and film soundtracks that have shaped a generation.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Three-way, vented-box, floorstanding loudspeaker.
Drive-units: 1" (25mm) diamond-dome tweeter
6" (160mm) woven-Kevlar FST-cone midrange unit
two 10" (250mm) Rohacell-cone woofers.
Crossover frequencies: 350Hz, 4kHz.
Manufacturer's specifications: Frequency range: +/-6dB at 25Hz and 33kHz.
Frequency response: 32Hz-28kHz, +/-3dB on reference axis.
Dispersion: within 2dB of on-axis response over 60° (horizontal) and 10° (vertical) arcs.
Sensitivity: 90dB SPL (2.83V/m).
Harmonic distortion (second and third harmonics, 90dB, 1m): <1.0%, 45Hz-100kHz; <0.5%, 80Hz-100kHz.
Impedance: 8 ohms nominal, 3.1 ohms minimum.
Recommended amplification: 50-1000W into 8 ohms with unclipped program.
Maximum recommended cable impedance: 0.1 ohm.
Dimensions: 46.5" (1180mm) H by 17.7" (450mm) W by 25.4" (645mm) D.
Weight: 225 lbs (102kg).
