Bowers And Wilkins DM-7 mkII

The DM7 represented a significant milestone in B&W's history, since it was the first loudspeaker system to benefit from our in-house computer system. Following the extensive research programme completed for our professional monitor model 801, there were obvious advantages to be gained by applying this technology to the DM7 MK2

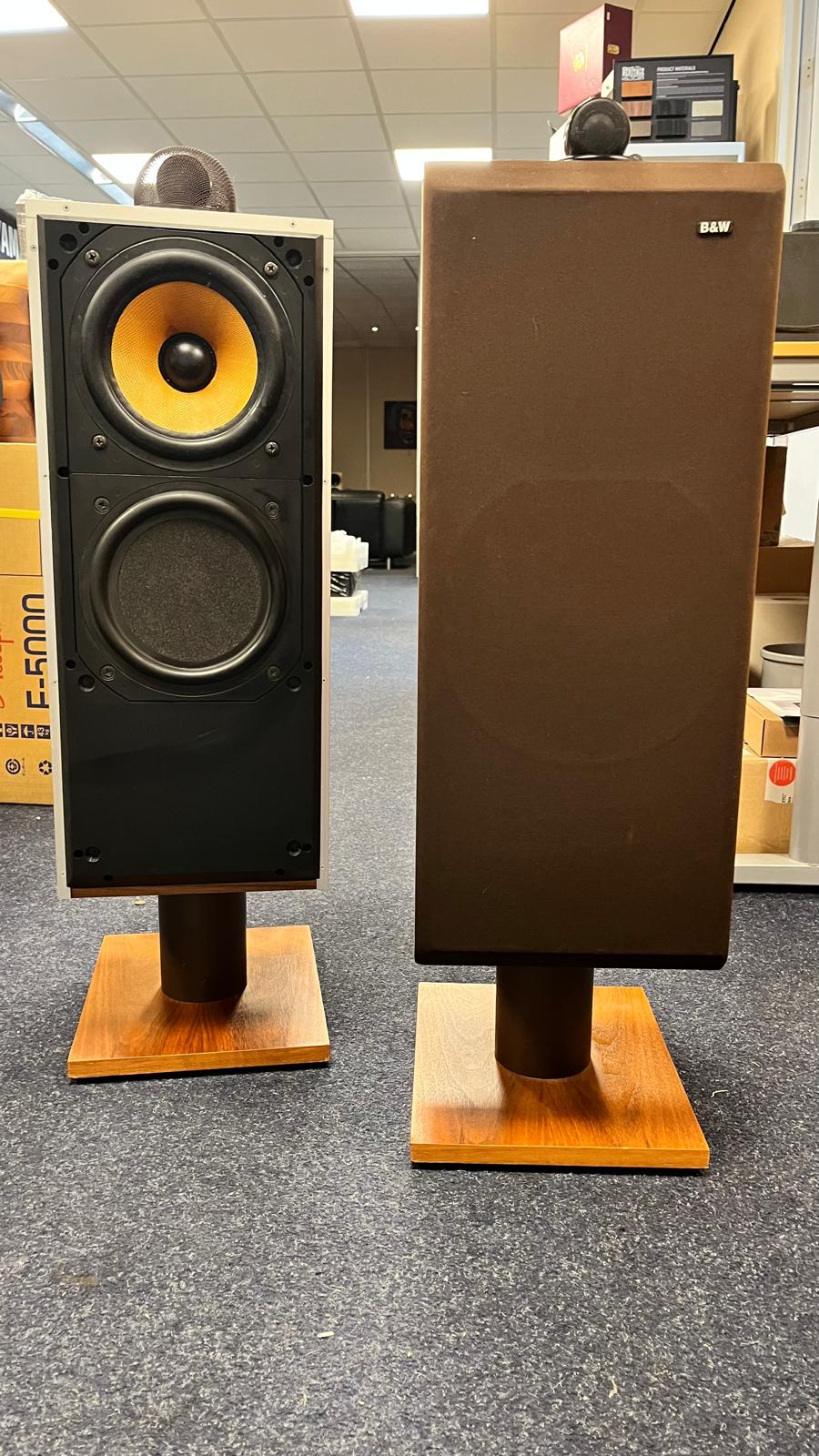

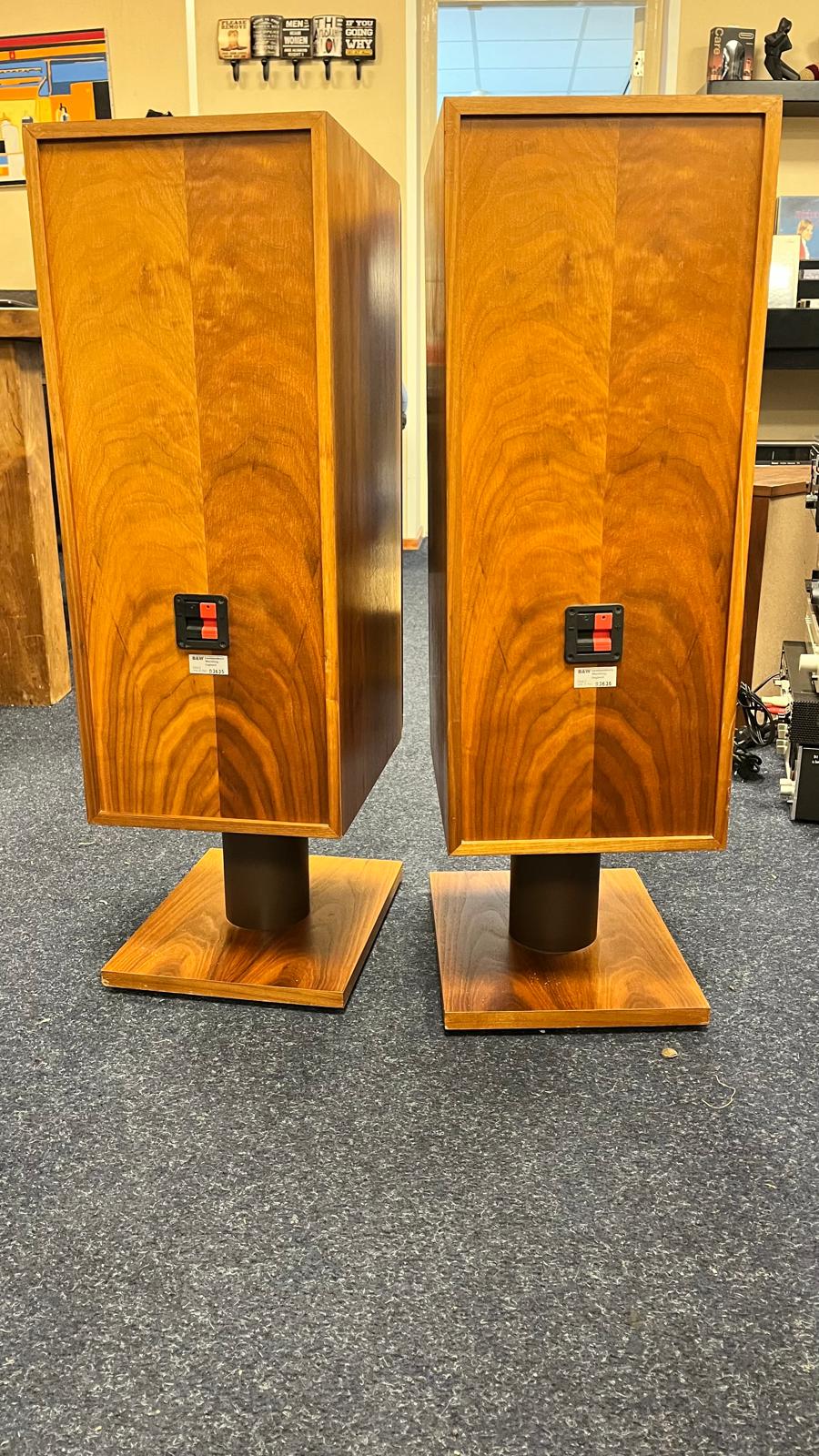

A Purpose-designed stand with matching wood veneered base is supplied with the DM7 MK2.This ensures that the centre of the listening window is at the correct height for listeners.

The crossover network was re-designed using B&W computer optimisation programme to achieve fourth order Butterworth squared characteristic.

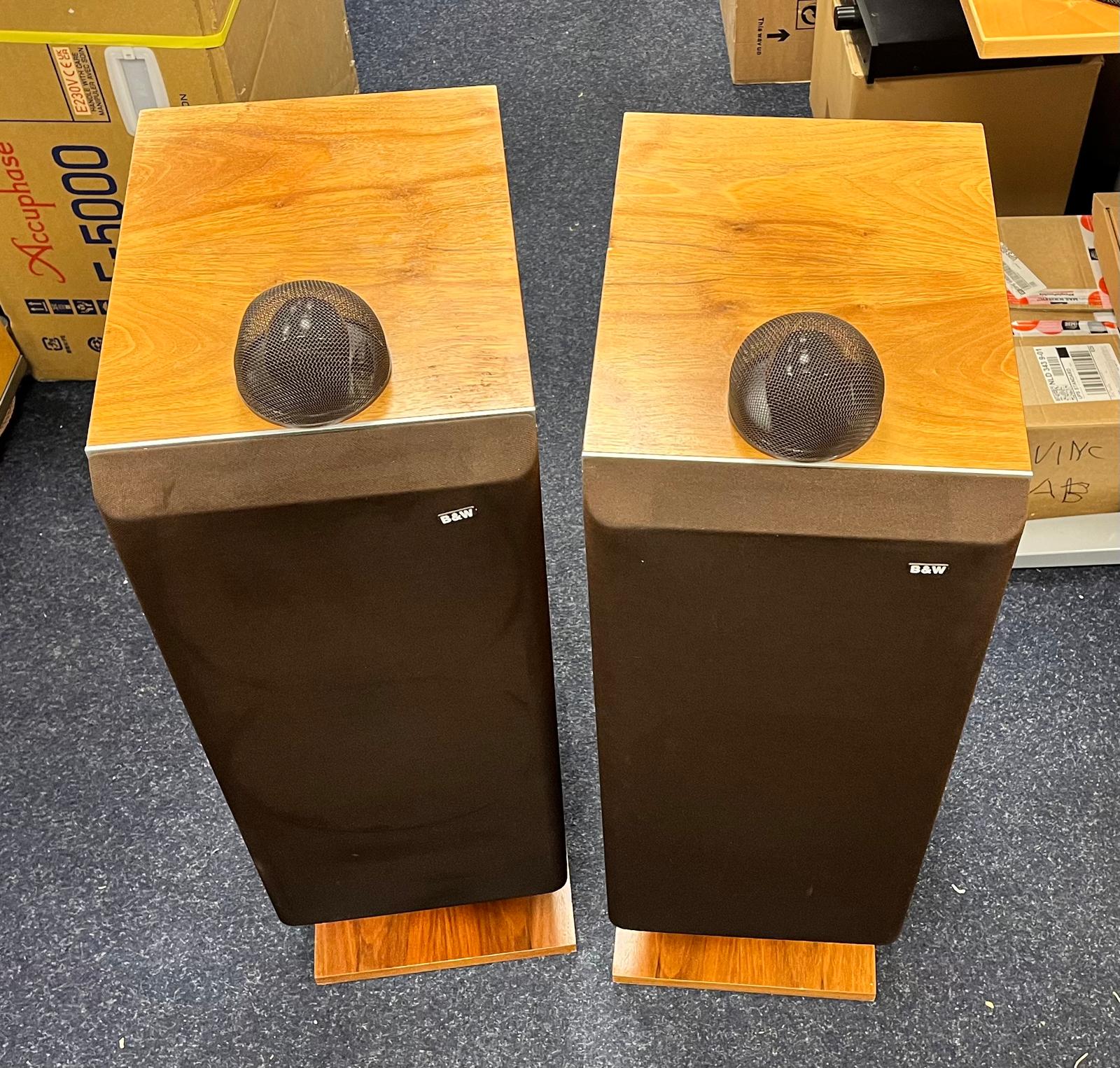

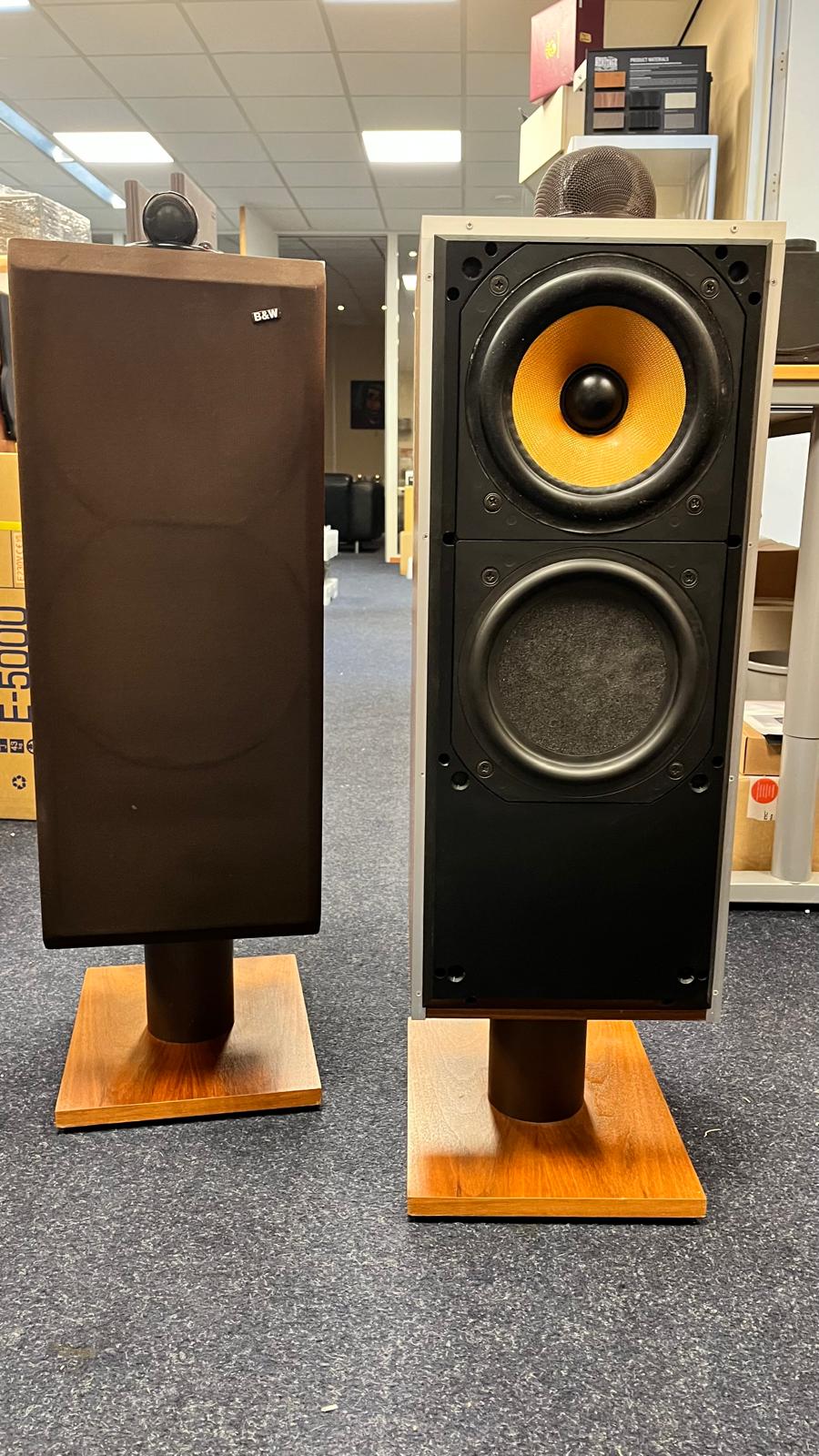

The bass midrange driver is a 160mm diameter piston formed from Matrix polyamide fibres. The high-end frequencies are catered for with a TS26 high frequency transducer. Spheroidal in shape and mounted on top of the speaker in a woven wire dome, it has excellent transient response and high power-handling capability. Frequency response extends almost completely linearly to beyond audibility. To minimise time delay distortion, the DM7 MK2 drive units are stepped and arranged vertically in line.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Drive Units
1 x 26mm multi-filament polyester
weave dome
2 x 160mm aromatic polymide fibre
matrix cone.

Frequency Response
80Hz - 20kHz +/- 2dB free-field

Sensitivity
1 watt into 8ohms for a s.p.l. of 86dB
at 1m sineware input at 1kHz

Nominal Impedance
8 ohms nominal

Power Handling
40W or greater. No upper limit because of electronic overload protection device

Dimensions
Height: 900mm Width: 270mm
Depth: 382mm
