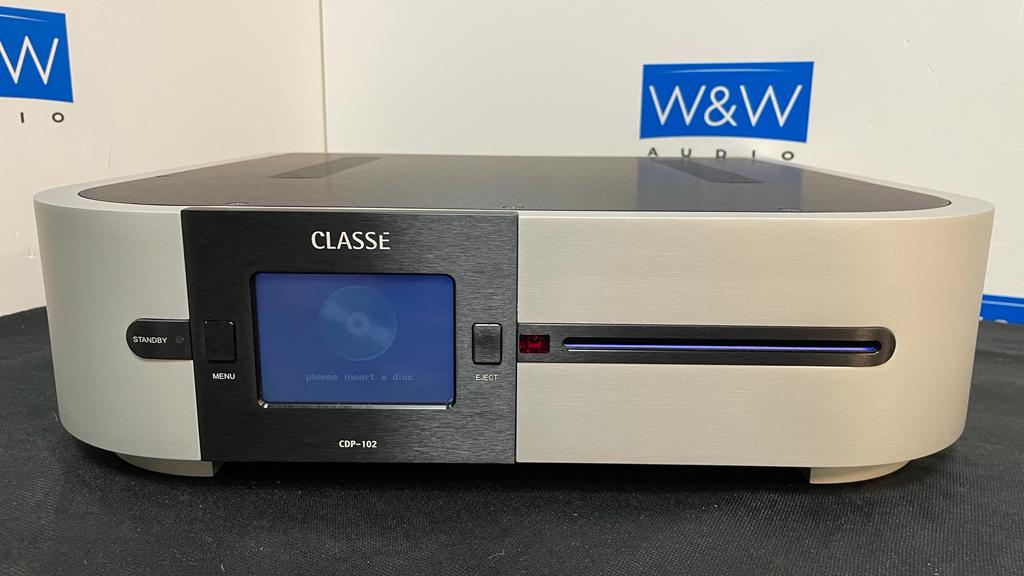

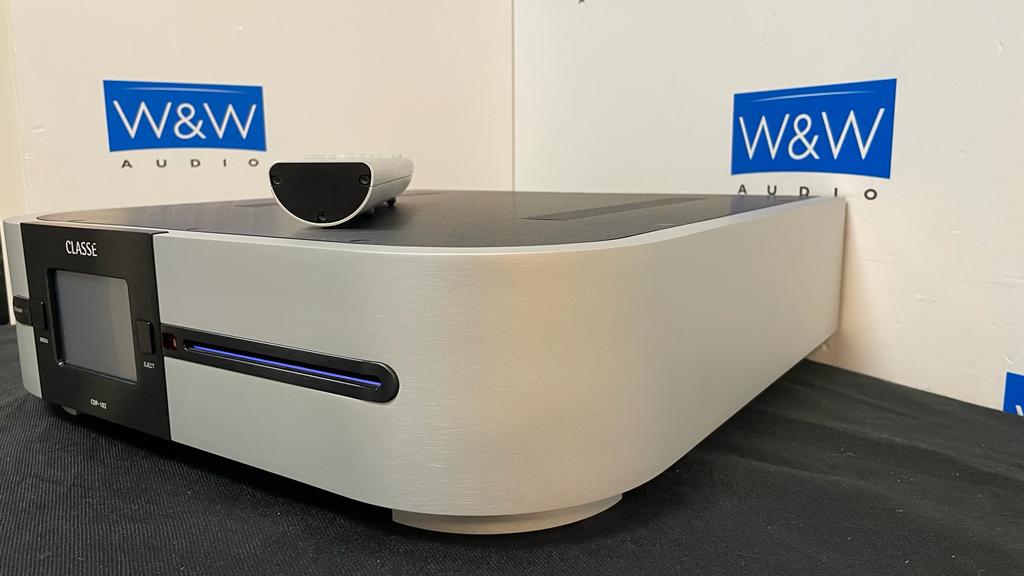

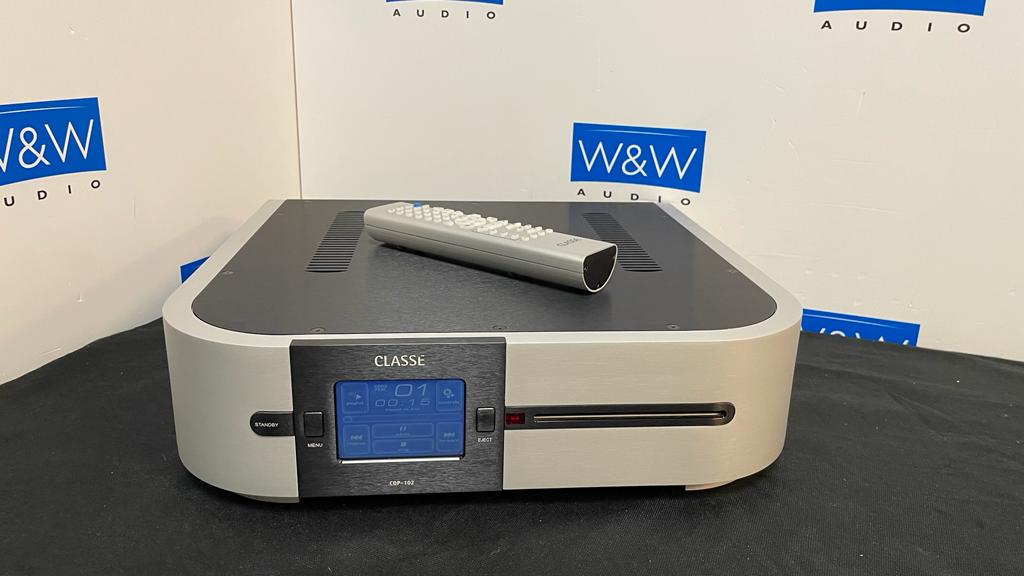

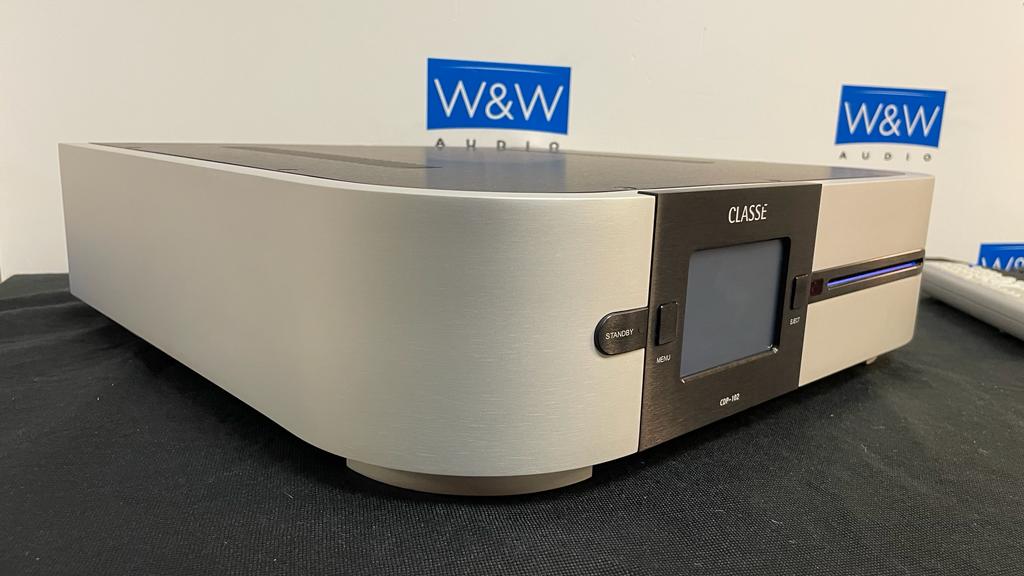

Classe Audio CDP-102

The CDP-102 is a single-disc CD player that features both balanced and single-ended analog outputs and 24-bit/352.8kHz digital to analog conversion.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

frequency response
8Hz - 20kHz balanced +0dB/-0.1dB
8Hz - 20kHz single ended +0dB/-0.7dB

THD + Noise 0.001% ref 1kHz
0.001% ref 10Hz - 20kHz
Signal to Noise ratio >107dB (unweighted)
Channel Separation 124dB @ 1kHz
112dB 16Hz - 20kHz
D/A converter 1 x Cirrus Logic CS4398
Audio Sample rate 192 KHz
Output level balanced 4 Vrms
Output level single ended 2 Vrms
Power consumption 55w
formats supported CD, CD-R, CD-RW
DVD Audio & Video, VCD, SVCD, MP3,
WMA, DVD-R, DVD+R, DVDRW,
DVD+RW


outputs 2 x RCA
2 x XLR
Coax S/PDIF 1 x RCA
AES/EBU 1 x XLR
Optical 1 x Toslink
S Video Composite
W 17.5 inch (445mm)
D 16.5 inch (419mm)
H 4.75 inch (121mm)
26 lbs (12 kg)
