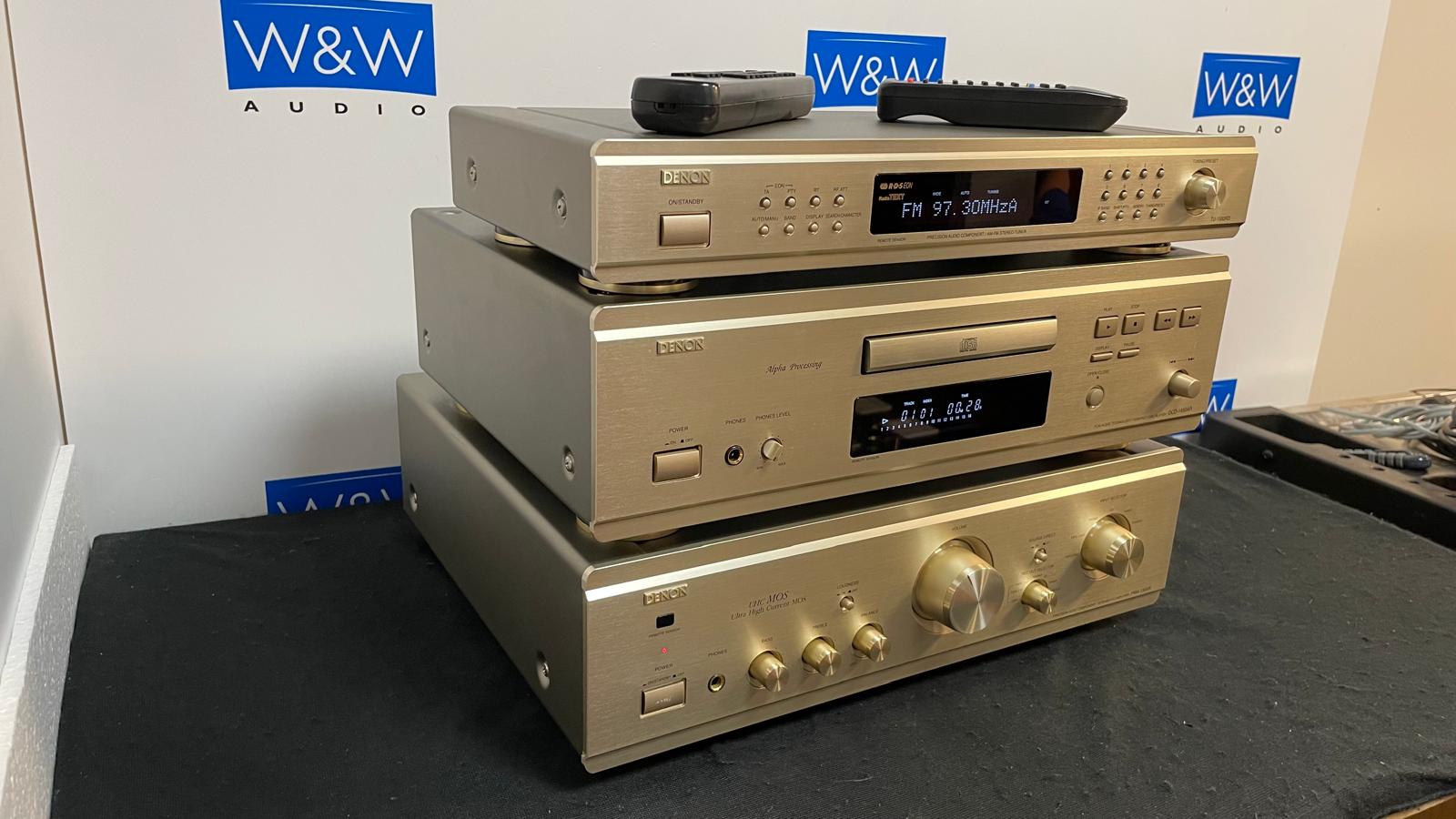

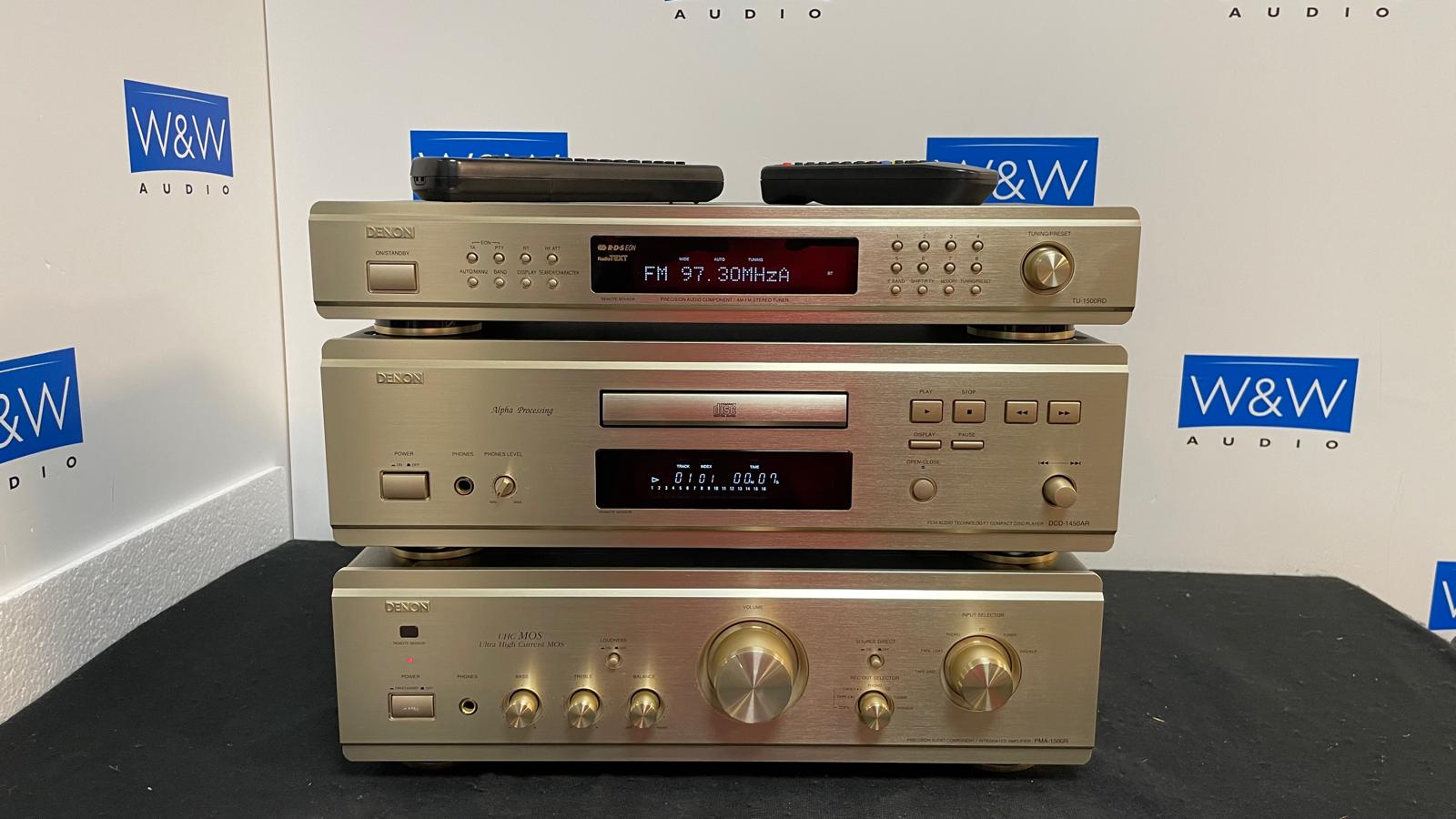

Denon PMA-1500 DCD-1450 TU-1500

Denon PMA-1500R
Stereo Integrated Amplifier (1999-04), 439 Euro

Denon DCD-1450AR
Stereo Compact Disc Player (1999-05), 239 Euro

Denon TU-1500RD
AM/FM Stereo Tuner (1999-06), 139 Euro

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Denon PMA-1500R
Power output: 70 watts per channel into 8 ohm (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.01%
Input sensitivity: 0.2mV (MC), 2.5mV (MM), 150mV (line)
Signal to noise ratio: 76dB (MC), 91dB (MM), 110dB (line)
Output: 150mV (line)
Speaker load impedance: 4 ohm (minimum)
Dimensions: 434 x 134 x 407mm
Weight: 14kg

Denon DCD-1450AR
Disc format: CD
Digital converter: 2 x PCM1702-L, 20 bit
CD Mechanism: H8147AF
Frequency response: 2Hz to 20kHz
Dynamic range: 100dB
Signal to Noise Ratio: 112dB
Channel separation: 105dB
Total harmonic distortion: 0.0025%
Line output: 2V
Digital connections: coaxial, optical
Dimensions: 434 x 134 x 340mm
Weight: 7kg

Denon TU-1500RD
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Digital
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 522 to 1611 kHz
Sensitivity: 0.9uV (FM), 18uV (MW)
Signal to Noise Ratio: 74dB (FM), 53dB (MW)
Distortion: 0.12% (FM)
Selectivity: 50dB (FM)
Frequency response: 20Hz to 15kHz (FM)
Dimensions: 435 x 75 x 242mm
Weight: 2.5kg
