Duevel Galaxy

The GALAXY is designed for demanding music lovers who place the highest demands on sound quality and aesthetics. With its omnidirectional radiation behavior, it guarantees optimum sound distribution across the entire frequency range and throughout the entire room.

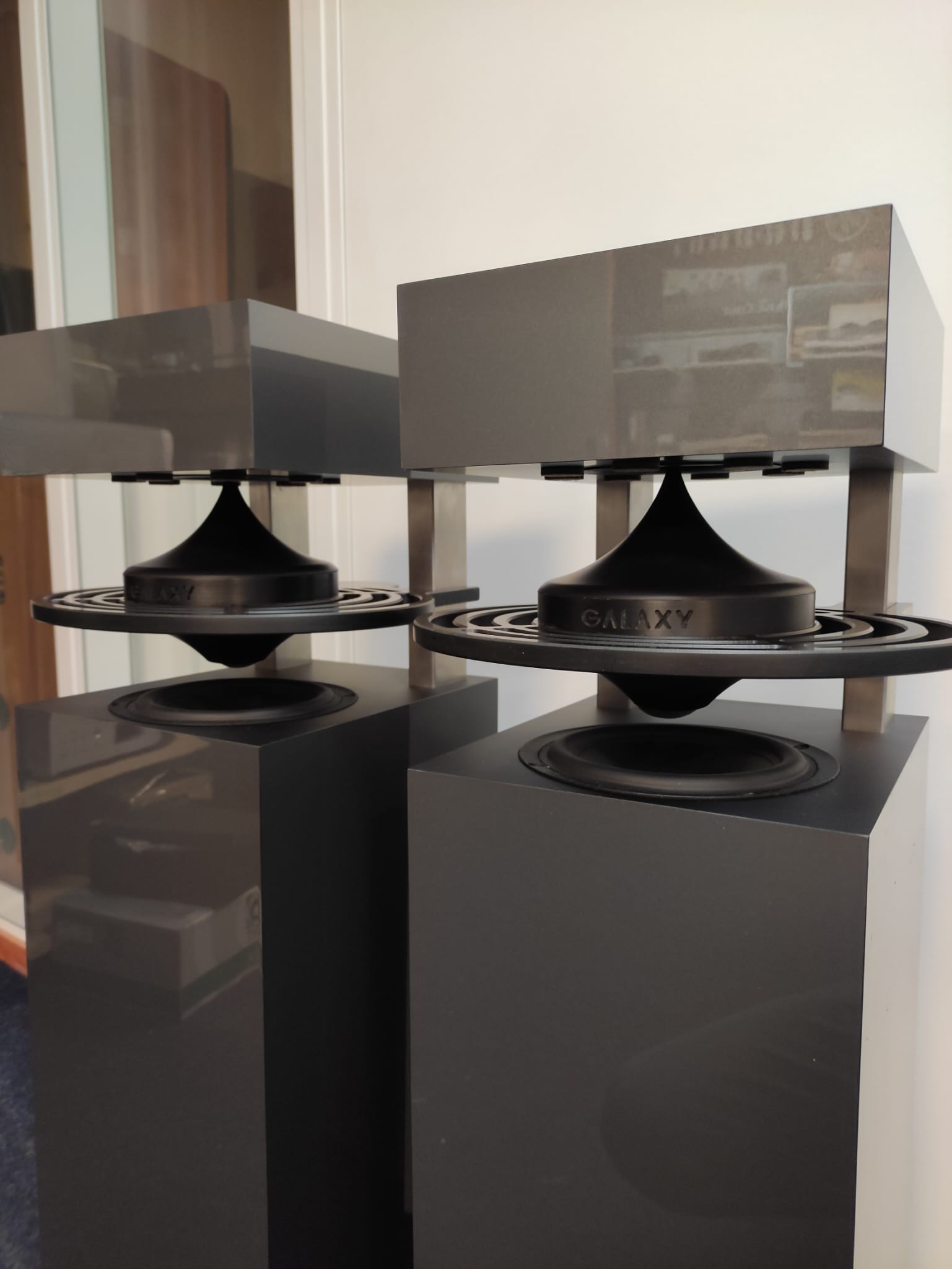

The technical highlights of the GALAXY include a 17 cm woofer with rubber surround and die-cast basket, as well as a 1 inch horn tweeter with titanium diaphragm and phase linear crossover. The impedance is 4 ohms, the sensitivity is 87 dB and the power is a whopping 60 W RMS. The frequency response extends from 40 to 20,000 Hz.

The GALAXY measures 95.5 x 31 x 30 cm (H x W x D) and weighs only 19 kg. The design is refined with an optional acoustic acrylic lens, in black or illuminated.

The GALAXY is not only a sound experience, but also an eye-catcher in every living room. With its elegant appearance and the possibility to integrate mood lighting via the sound lenses, it creates a pleasant atmosphere.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Speaker system:

Woofer:

Rubber edge
Cast basket
Diameter: 170 mm
Ferrite magnet: 100mm
Horn tweeter:

Titanium diaphragm: 25 mm
Ferrite magnet: 80mm
Phase-linear switch:

Impedance: 4 ohms
Sensitivity: 87dB
Charging power: 60W RMS
Frequency response +/-3dB: 40...20 kHz
Dimensions:

Width: 225 (300) mm
Depth: 280 (310) mm
Height: 955 mm
Weight: 19 kg
