Luxman CL-38uC
Beschrijving / Description
An attractive custom vacuum tube control amplifier

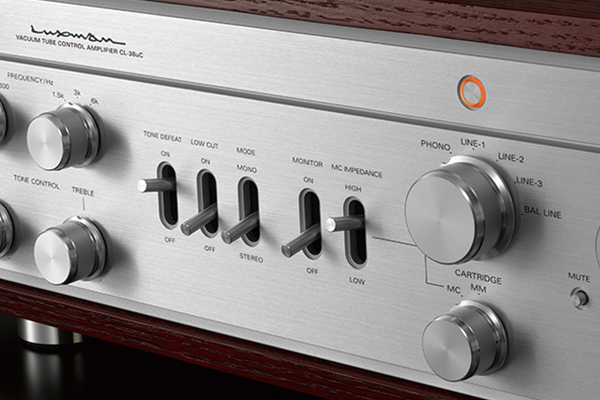

The CL-38uC uses SRPP (Shunt Regulated Push Pull) circuitry for all stages to achieve the highest sound quality possible.A genuine phono equalizer is included, the MC-low and MC-high impedance (gain) inputs each have independent MC transformers and are selectable using the MC impedance lever switch.Tone controls enable the listener to fine tune the sound quality.Refined exterior design and newly added balanced inputs make this vacuum tube control amp a new standard for its generation.
Reviving designs from the golden era of vacuum tube amplifiers

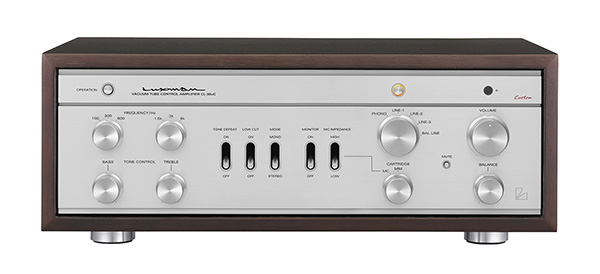

The CL-38uC control amplifier and the MQ-88uC power amplifier are based on the latest technology and design, but the exterior styling evokes a classic image from the heyday of vacuum tube audio products. The CL-38uC is modeled on the CL-35, released in 1970, and the MQ-88uC is modeled on the MQ-60, released in 1969. A classic front panel design should be functional, but also beautiful, achieved by careful selection of knobs and lever switches. Listeners can appreciate such traditional design features, with their nostalgic flavor, whilst enjoying these contemporary, high performance audio products.
Download link.
Specificaties / Specifications

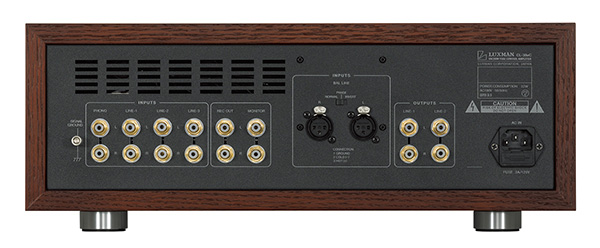

Input sensitivity/ input impedance
PHONO (MM): 2.0mV/47kOhm
PHONO (MC high): 0.3mV/100Ohm
PHONO (MC low): 0.08mV/30Ohm
LINE: 190mV/50kOhm

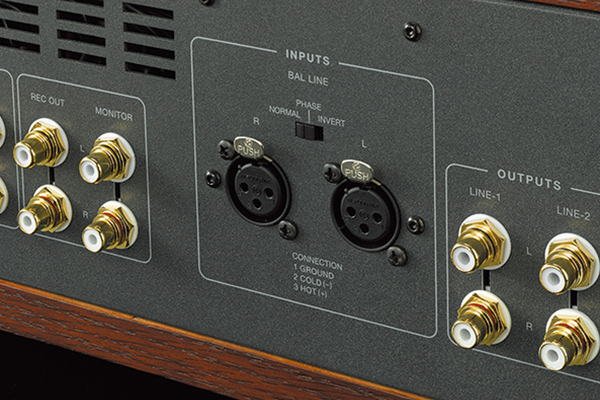

BAL.LINE: 190mV/20kOhm
Output/output impedance Rated 1V/300Ohm
Frequency response
PHONO: 20Hz to 20kHz (+/-0.5dB)
LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
Total harmonic distortion 0.006% or less (1kHz)
0.06% or less (20Hz to 20kHz)
S/N ratio (IHF-A)
PHONO (MM): 68dB or more
PHONO (MC high): 63dB or more
PHONO (MC low): 60dB or more
LINE/BAL.LINE: 100dB or more
Tone control +/-8dB, selectable frequency range
BASS: 150/300/600Hz,
TREBLE: 1.5k/3k/6kHz
Low cut 30Hz(-6dB/oct.)
Circuit SRPP

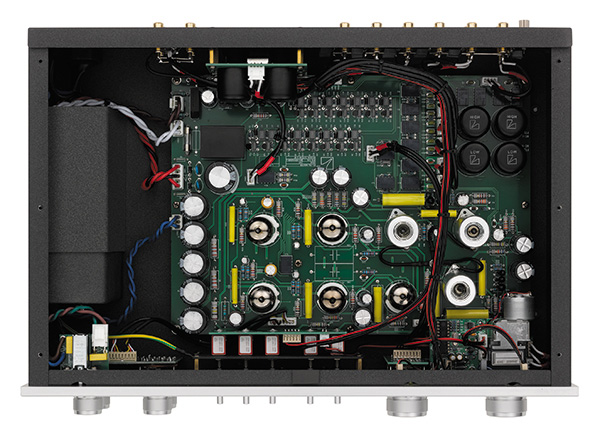

Vacuum tubes ECC83Sx3, ECC82x5
Power supply 230V-(50Hz)/115V-(60Hz)
Power consumption 35W
External dimensions 440(W) x 169(H) x 307(D) mm
19mm front panel knob of and 12mm rear panel
terminals are included in the depth measurement
Net weight 13.3kg (main unit)

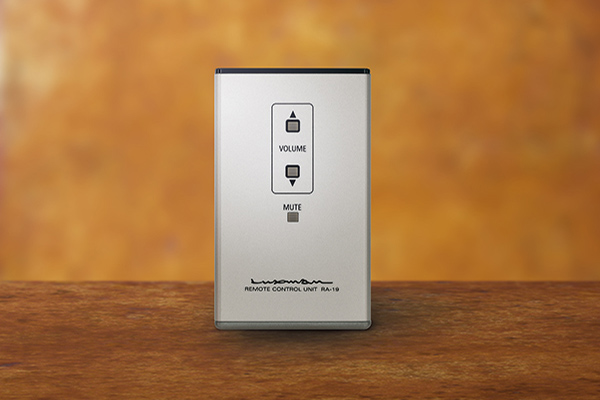

Accessories Remote control (RA-19), Power cable
