Luxman D-03R
Beschrijving / Description
A Companion for a Lifetime of Music and Audio Appreciation A Standard Player Radiating Normcore Appeal
Even more than 40 years after its debut, the CD remains a dominant format in the world of audio, with a vast legacy as a physical medium.
At the same time, new high-resolution digital formats continue to emerge.
For true audiophiles, the desire is to enjoy both, now and into the future, with even greater sound quality.
The D-03R is LUXMAN's new standard player for a new era, designed to fulfill that enduring passion.
By incorporating advanced features and technologies, and re-designing various elements of its predecessor, the D-03X, the D-03R represents a refined evolution that caters to discerning listeners.
Dedicated CD Player and D/A Converter Featuring State of the Art Digital Circuitry

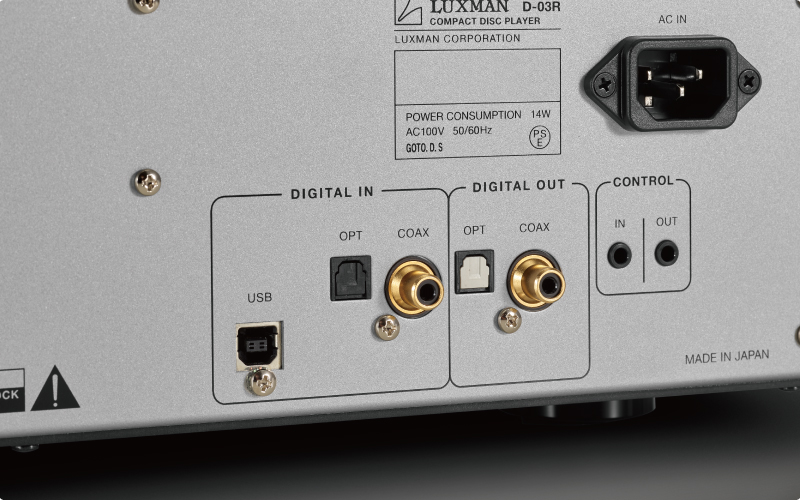

To let audiophiles rediscover their extensive CD libraries in even higher fidelity, the D-03R converts the discs 44.1 kHz/16bit data into analog through a modern high resolution processing engine and a low noise audio buffer that far exceed original CD specifications. At its core are two ROHM BD34352EKV DAC chips configured in dual-mono mode, complemented by user selectable digital filters. For absolute timing accuracy, each input is served by its own low jitter circuitry, while an ultra low phase noise master clock module further refines signal integrity. The D-03R also functions as a stand alone D/A converter. Via the USB input, ideal for connection to LUXMAN's NT-07 network transport, Windows PCs, or Macs, it accepts PCM signals up to 384 kHz/32 bit and DSD data up to 22.5 MHz. Through its S/PDIF (coaxial/optical) inputs, perfect for legacy CD players, AV systems and more, the unit can handle up to 192 kHz/24 bit PCM data. Across all inputs, the player offers full decoding of MQA (including MQA-CD and MQA files), with a newly added bypass mode when MQA decoding is not desired.

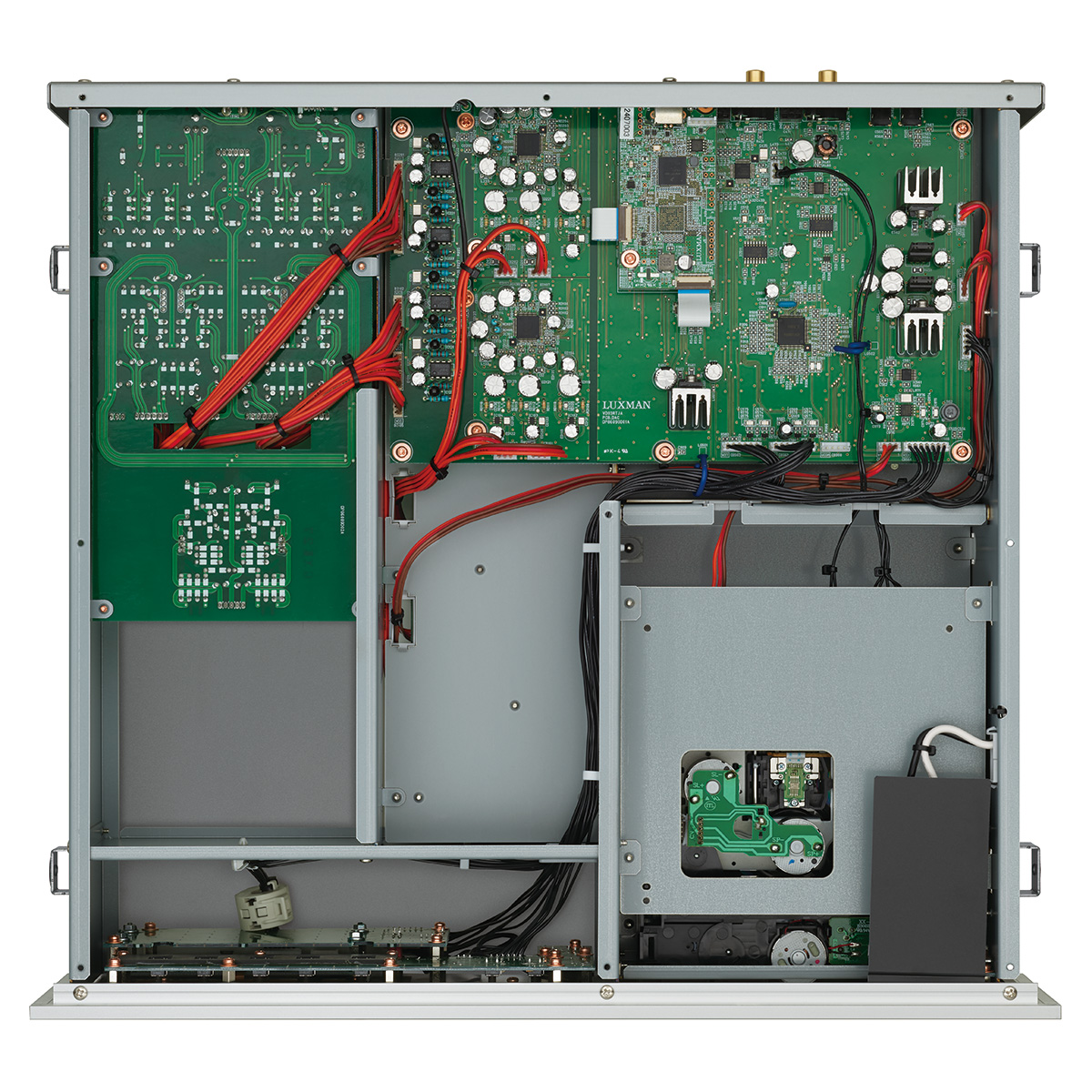

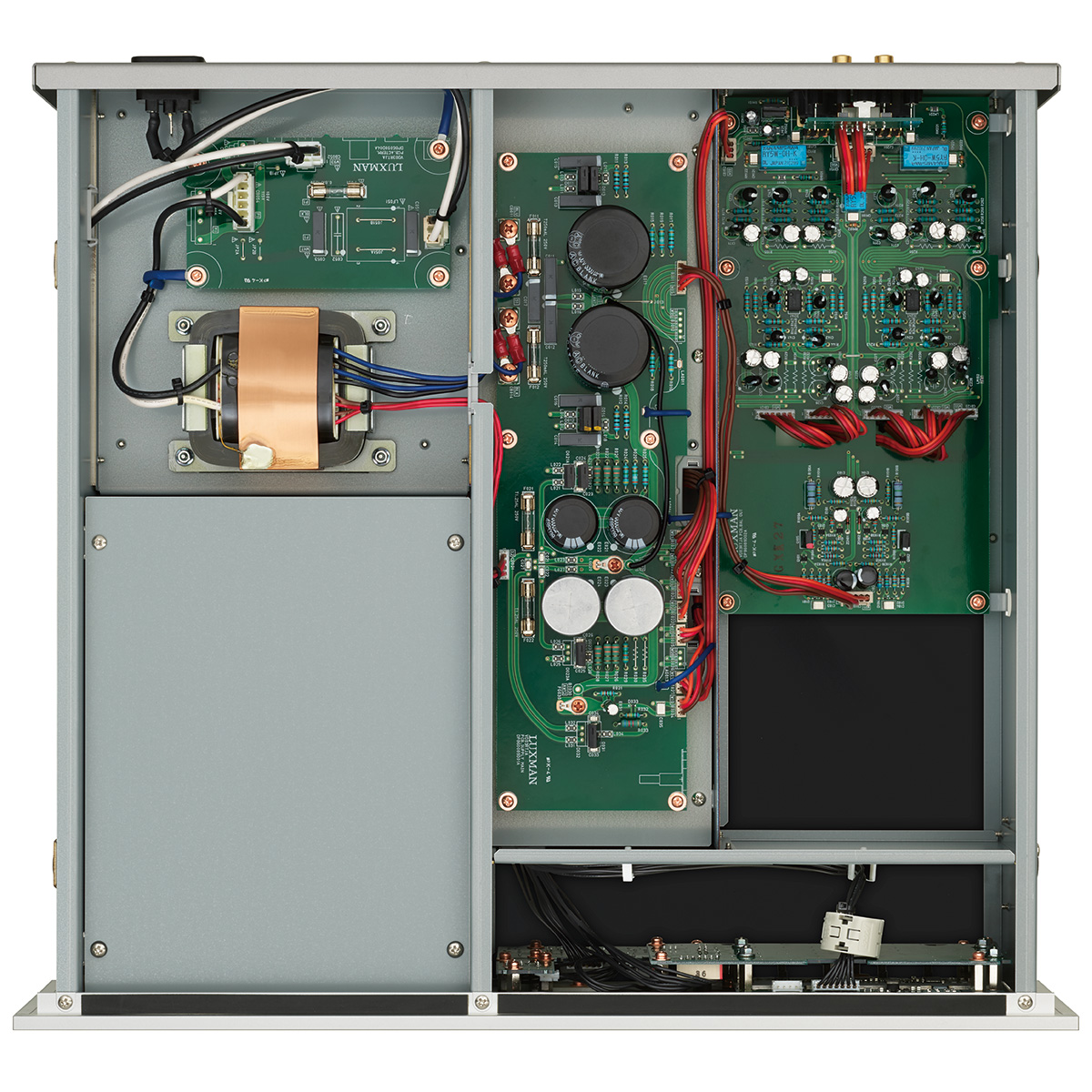

A Unified Trinity of Drive Mechanism, Digital Processing, and Analog Output
The D-03R is equipped with a dedicated single laser CD drive mechanism, purpose built for CD playback. This simple, highly reliable transport offers swift operational response and is housed in a firmly rigid structure. A thick 3.2 mm steel mounting base and a steel top plate enclose the mechanism, effectively shielding it from external vibrations and ensuring precise, stable digital signal reading. In the analog stage, the differential outputs from the dual-mono D/A converters are transferred through LUXMAN-s custom components, smooth-flow non-angled circuit board traces and custom-made OFC internal wiring. These signals are fed into a fully balanced I/V conversion stage and high-quality buffer circuitry, both optimized for low impedance to drive downstream components with authority and finesse. The D-03R's three core elements, the robust CD transport, cutting-edge digital processing block, and meticulously engineered analog output stage are arranged in an asymmetrical left-side mechanical layout. This unique internal structure optimizes signal flow, vibration avoiding pathways and weight distribution. Together, they form an integrated trinity that elevates the D-03R's sonic performance and musical expressiveness.

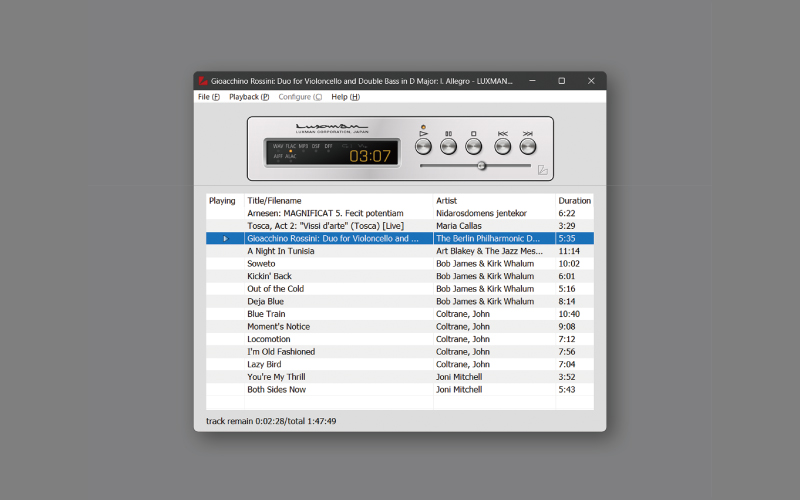

High-Fidelity Playback Software
For USB audio playback via PC or Mac, LUXMAN provides our proprietary high-resolution playback software, LUXMAN Audio Player, compatible with both Windows and macOS. Supported file formats include FLAC, ALAC, WAV, AIFF, MP3, DSF, and DSDIFF. Designed with a focus on file playback, the software offers a simple, user-friendly interface and is available as a free download from LUXMAN's official website.
Download link.
Specificaties / Specifications
Supported discs CD, MQA-CD
Supported sampling frequencies
USB input (PCM) : 44.1 kHz, 48 Hz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit), 2.8 MHz (DoP)
Analog output voltage / impedance
Unbalanced : 2.4 V / 300 Ohm, Balanced : 2.4 V / 600 Ohm
Frequency response
CD : 5 Hz to 20 kHz (+0, -1.0 dB)
COAX / OPT : 5 Hz to 47 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion CD : 0.002 %, COAX / OPT : 0.001 %, USB : 0.001 %
S/N ratio (IHF-A) CD : 110 dB, COAX / OPT :118 dB, USB : 118 dB
D/A converter ROHM BD34352EKV (monaural mode) x 2
Power supply 230 V - (50 Hz) / 115 V - (60 Hz)
Power consumption 16 W
Dimensions 440 (W) x 133 (H) x 410 (D) mm
front side knob of 2 mm and rear side terminal of 8 mm included in depth
Net weight 13.2 kg

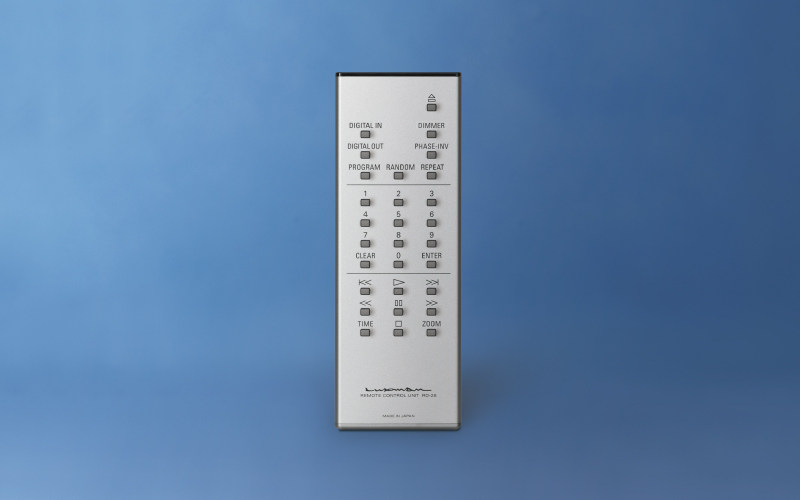

Accessories Remote control (RD-28), Power cable
