Luxman D-10X with NT-07

Beschrijving / Description

Luxman D-10X and streamer NT-07 as a setprice.

D-10X Accuracy, sensitivity, musicality

Welcome to the ultimate expression of musicality. Our flagship SACD/CD player, the D-10X builds on the brilliant heritage of our acclaimed D-08u, adding more playback capabilities, the latest conversion technology, a robustly reinforced mechanism and a refined analog output stage. Introducing LxDTM-i the LUXMAN original Disc Transport Mechanism (improved). Here is the world premiere of the ROHM Semiconductor MUS-IC BD34301EKV digital-to-analog converter (as of May 2020).
Introducing ODNF-u Only Distortion Negative Feedback (ultimate) in a fully balanced output amplifier. Well-grounded in fundamental principles and endowed with the most advanced mechanical, digital and analog technology, the LUXMAN D-10X opens the curtain on the ultimate soundstage.

Latest LxDTM-i transport
To minimize even the slightest distortions triggered by vibration and resonance, we upgraded the disc drive, creating the LxDTM-i LUXMAN original Disc Transport Mechanism (improved). We enclose the drive in 8 mm thick aluminum sides that extend to the front and rear panels, plus a 5 mm thick steel top plate. For added protection, the physical mounting system forms an integrated structure that supports the side frame. Together with an improved disc reading mechanism, the result is playback of an altogether higher order.

Advanced digital processing
The D-10X marks the debut of the world's finest D/A converter, the MUS-IC BD34301EKV from ROHM Semiconductor. Used in dual mono configuration, these converters combine top-flight specs with an impressive suite of silicon-level refinements.MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording.The player includes MQA technology, which enables you to play back MQA-CDs as well as MQA audio files up to 24-bit transferred via USB, optical and coaxial inputs.

ODNF-u balanced analog circuit
Our years of ODNF amplifier development have resulted in ODNF-u. Only Distortion Negative Feedback (ultimate) which debuts on the D-10X. This fully balanced configuration maximizes error detection accuracy, minimizing distortion. You'll hear far greater expressive power with enhanced microdynamics across the audio spectrum, especially in the higher frequencies. The stage also achieves a natural and smooth waveform without the conventional output filters. The secret is the tailored, gradual 1st order filter x 3 band processing inside the circuitry. Superb circuitry deserves a strong chassis. To protect the analog signal from changes in ground impedance and magnetic fields, the D-10X incorporates a composite, loop-less chassis. Well shielded, the chassis is also effective at blocking digital noise.

LUXMAN's original playback software
For playing back music from a PC, we recommend our LUXMAN Audio Player application. This software supports FLAC, ALAC, WAV, AIFF, MP3, DSF and DSDIFF files. You can download the software for Windows and macOS from the official LUXMAN website.

NT-07
Cutting edge, multiple source music streaming
Sophisticated and versatile network transport

LUXMAN's first network transport NT-07. Combining the latest digital audio technology with LUXMAN's know-how, the NT-07 uses a thoroughly audio-focused approach to curate a wide variety of available sources with superb sound quality and a sophisticated yet comforting operational environment. In addition to USB digital audio and HDMI connectivity, streaming data from NAS and other popular music streaming services provide a variety of options for the listener to experience a new dimension of breathtaking audio quality. The NT-07, which has been rigorously fine tuned for supreme audio playback quality, offers all listeners a new musical experience for the future in combination with existing D/A converters.

See link.

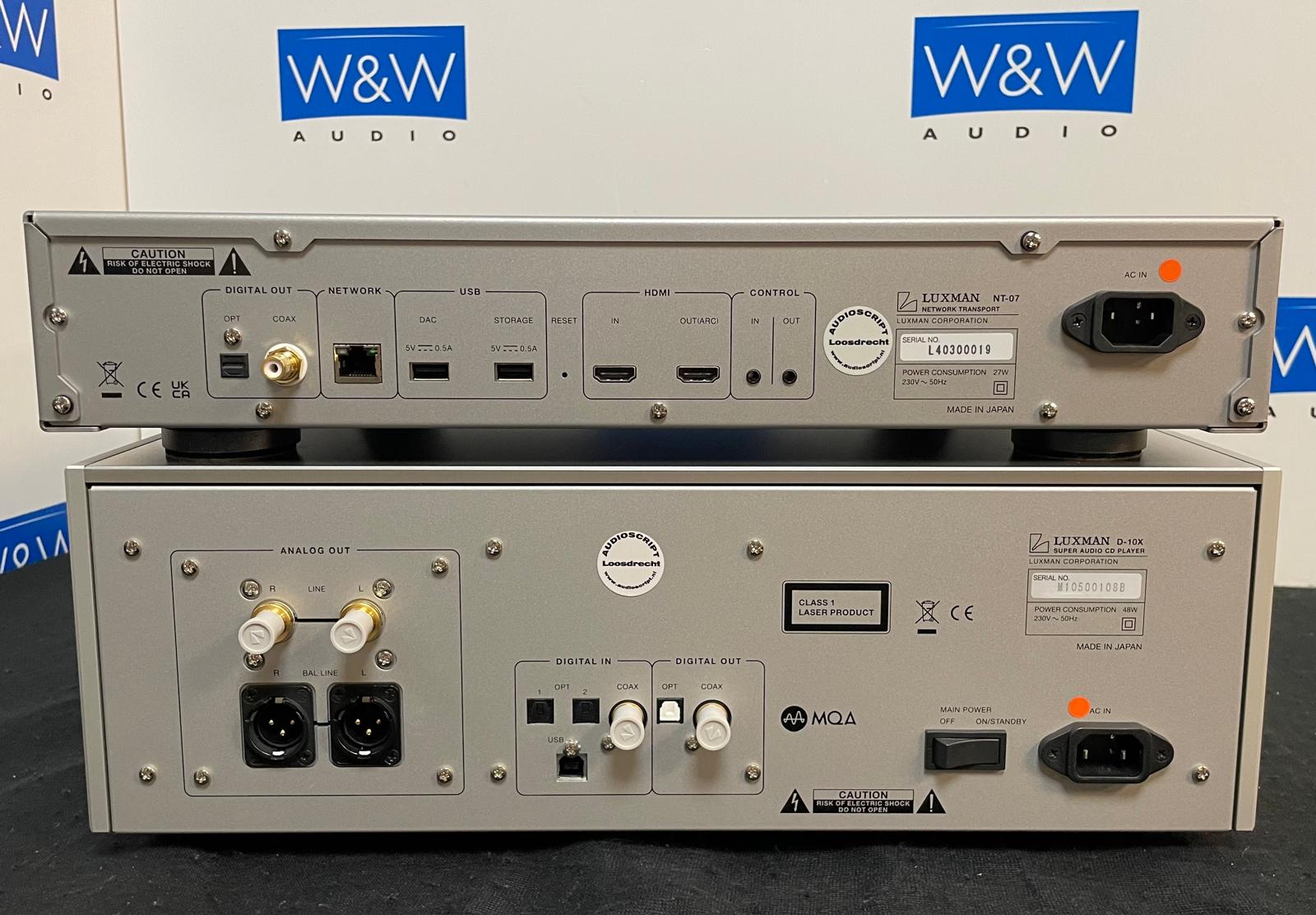

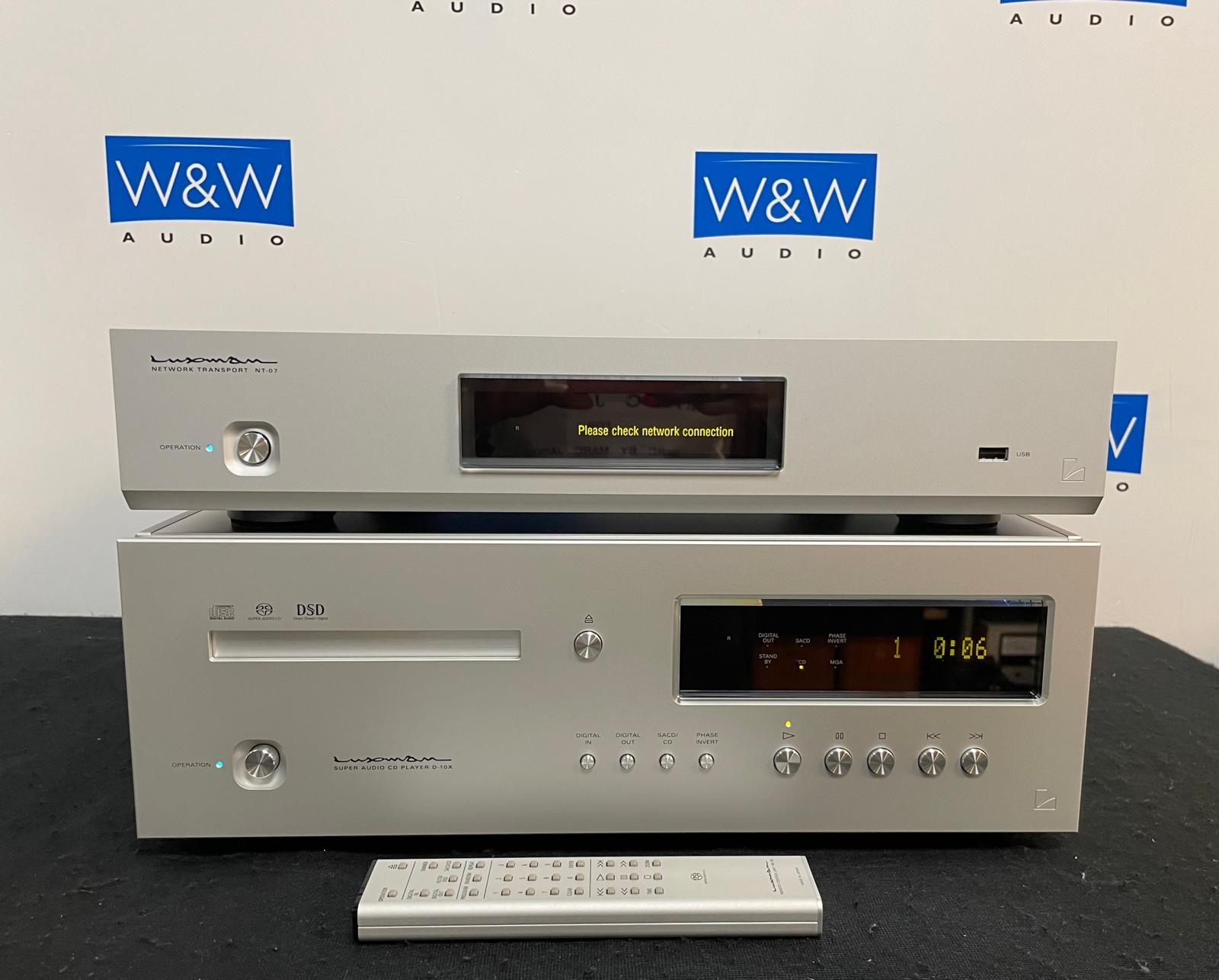

Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

D-10X
Supported discs SACD, CD (CD-R, CD-RW, MQA-CD)
Supported sampling
frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz,
705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog output
voltage / impedance Unbalanced : 2.4 V / 300 Ohm, Balanced : 2.4 V / 600 Ohm
For SACD / DSD : 1.3 V
Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion CD : 0.0018 %, SACD : 0.001 %, USB : 0.0015 %
S/N ratio (IHF-A) CD : 125 dB, SACD : 121 dB, USB : 125 dB
D/A converter ROHM BD34301EKV (monaural mode) x 2
Power supply 230 V (50 Hz) / 115 V (60 Hz)
Power consumption 48W
Dimensions 440(W) x 154(H) x 418(D) mm
front side knob of 2 mm and rear side terminal of 13 mm included in depth
Net weight 22.4 kg
Accessories Remote control (RD-29), Power cable

NT-07
See link.

Staat van artikel
Tweedehands in nieuwstaat

Prijs
€ 25.000,00       € 17.000,00
1 year guarantee on CD-spayer!
