Luxman L-595ASE

Beschrijving / Description

The L-595A SPECIAL EDITION operates in pure class A mode, eliminating crossover distortion during amplification. A rated output of 30W + 30W (8 Ohm) is generated by the power amplifier circuits. It's 3 stage Darlington equipped, triple paralleled push-pull configuration greatly improves S/N ratio and high-frequency distortion characteristics, bestowing a textural clarity and the drivability of a pre and power amplifier combination. The power supply section features a large, highly regulated power transformer with independent left and right channel high-capacity filter capacitors which combine to supply instantaneous power with great stability. And unique, vibration damped constructions are employed throughout. Large speaker relays with very low resistance achieve low impedance at the speaker terminals. All of these technologies contribute to achieve the finest level of musical expression expected from a pure class A product.

The inside has been completely redesigned and features some of Luxman's latest technology, including a three-stage, triple-paralleled push-pull amp set-up, and a brand new feedback circuit.

There's also a new LECUA1000 electronically controlled attenuator with 88-step amplifier circuitry for smooth volume control. Short paths for audio input signals to travel to the speaker outputs have been used, as has copper-plated steel, to reduce the effects of external noise. High-density feet have been fitted to help to minimise vibrations.

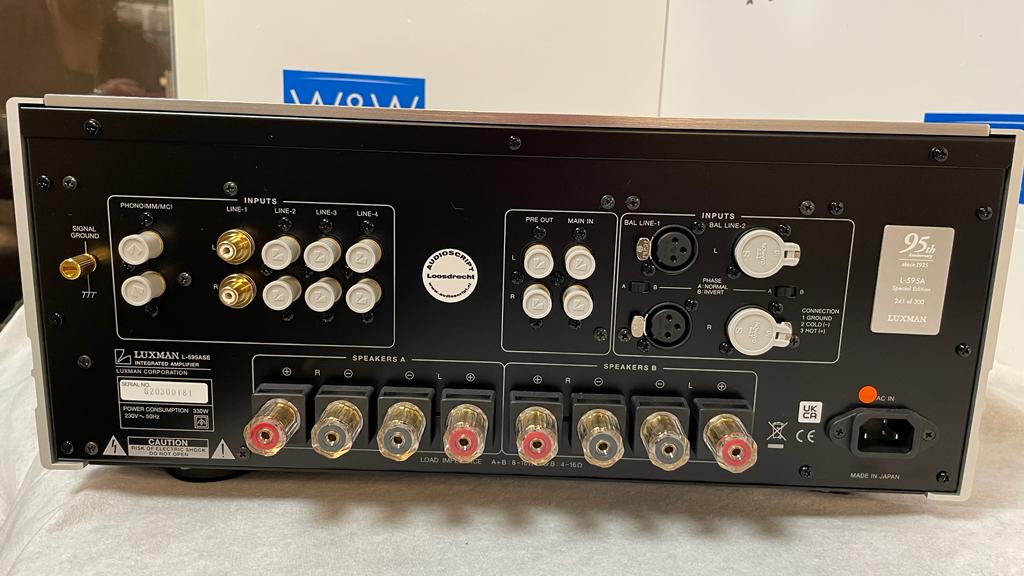

The L-595A SE is rated at 30 watts-per channel (into eight ohms) and includes a selection of line-level and balanced inputs, plus a built-in MM/MC phono amplifier circuit so you can connect a suitable record player.

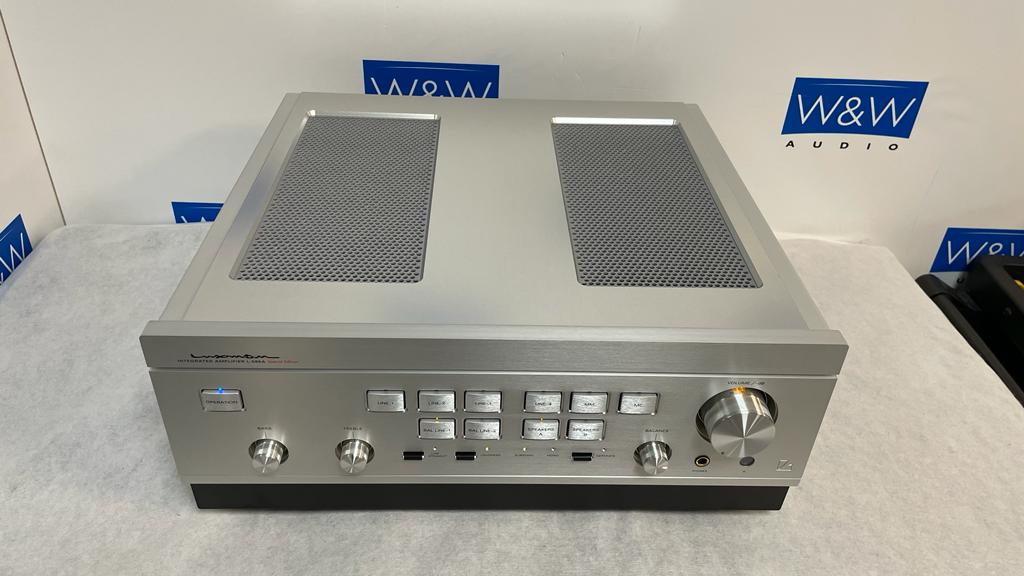

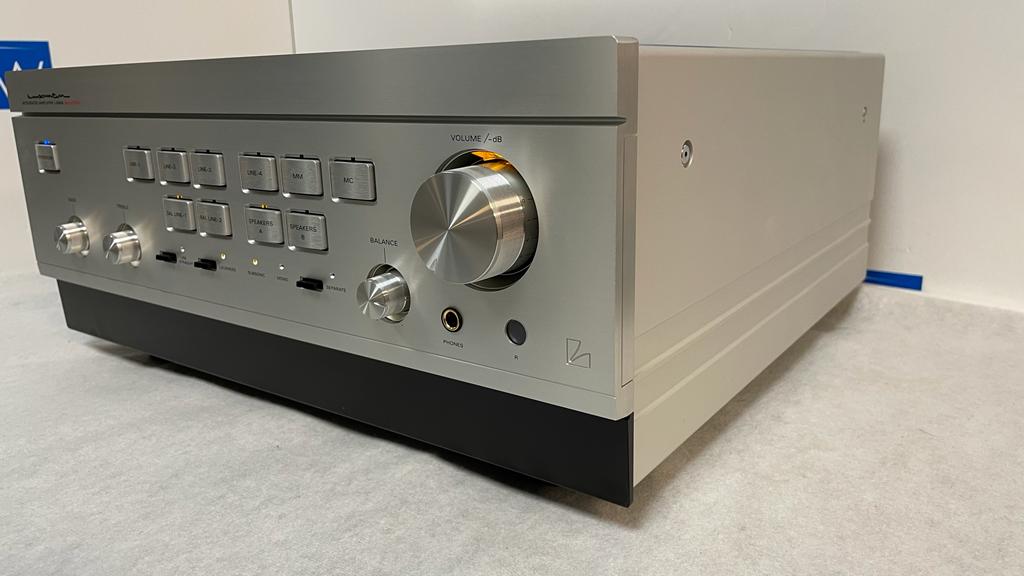

Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

Rated output 30W + 30W (8 Ohm), 60W + 60W (4 Ohm)
Input sensitivity / input impedance PHONO (MM) : 2.5mV / 47kOhm
PHONO (MC) : 0.3mV / 100 Ohm
LINE : 180mV / 47kOhm
BAL.LINE : 180mV / 55kOhm
MAIN IN : 550mV / 47kOhm
Output voltage / output impedance PRE OUT: 1V / 600kOhm
Frequency response
PHONO: 20Hz to 20kHz (+/-0.5dB)
LINE: 20Hz to 100kHz (within -3.0dB)
Total harmonic distortion 0.007% or less (8 Ohm, 1kHz) 0.06% or less (8 Ohm, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM) : 91dB or more
PHONO (MC) : 75dB or more
LINE : 105dB or more
Volume adjustment New LECUA1000
Amplification circuit ODNF-u
Output configuration Bipolar 3-parallel push-pull
Damping factor 370
Max. amount of tone control
BASS: +/-8dB at 100Hz
TREBLE: +/-8dB at 10kHz
Power consumption 330W, 230W (under no signal), 0.4W (at standby)
External dimensions 440 (W) x 193 (H) x 462 (D) mm
Net weight 29.0kg (main unit)

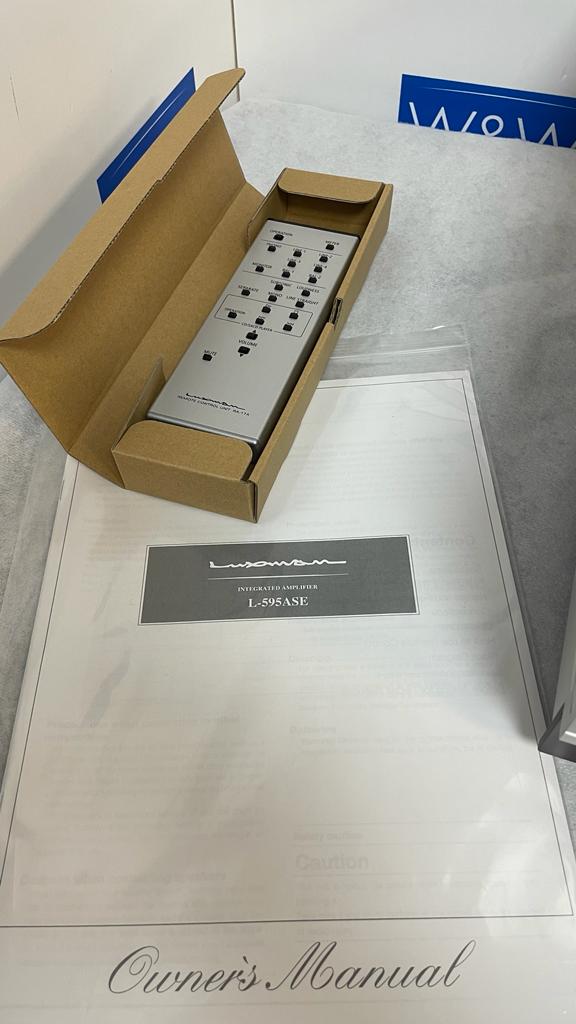

Accessories Remote control (RA-17A)

Staat van artikel          Nieuw
Prijs            € 10.000,00
