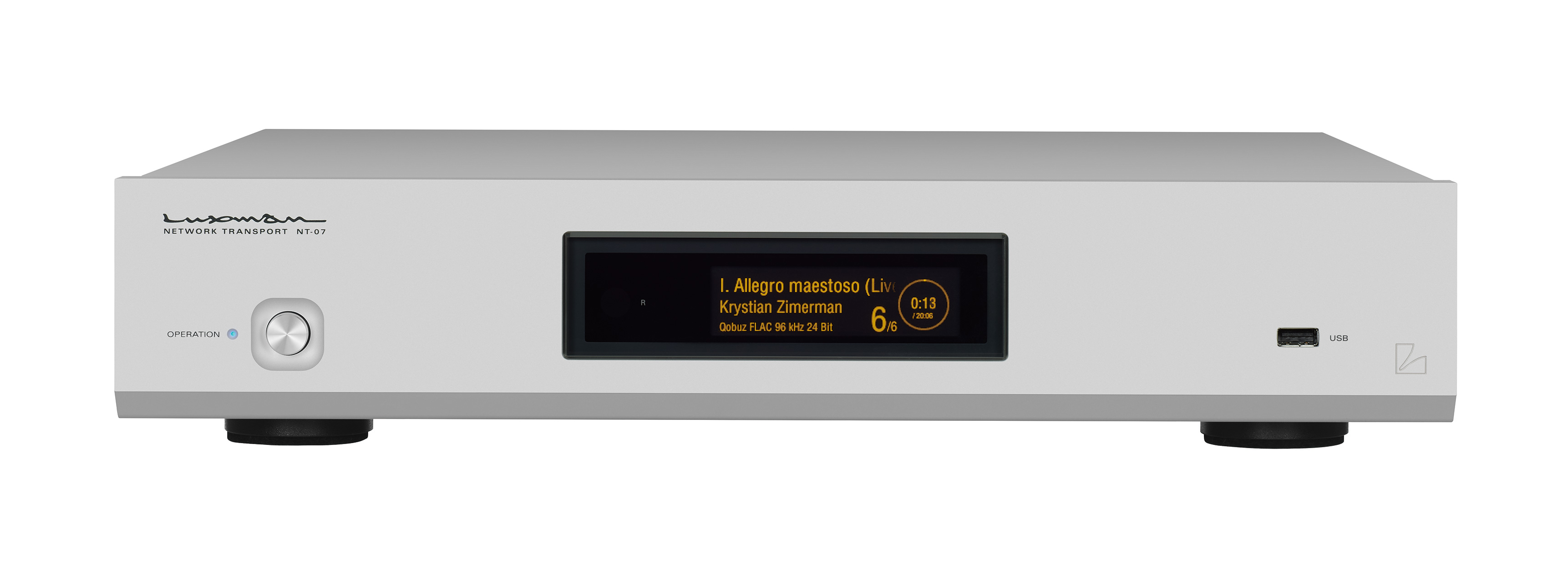

Luxman NT-07
Beschrijving / Description
Cutting edge, multiple source music streaming
Sophisticated and versatile network transport
LUXMAN's first network transport NT-07. Combining the latest digital audio technology with LUXMAN's know-how, the NT-07 uses a thoroughly audio-focused approach to curate a wide variety of available sources with superb sound quality and a sophisticated yet comforting operational environment. In addition to USB digital audio and HDMI connectivity, streaming data from NAS and other popular music streaming services provide a variety of options for the listener to experience a new dimension of breathtaking audio quality. The NT-07, which has been rigorously fine tuned for supreme audio playback quality, offers all listeners a new musical experience for the future in combination with existing D/A converters.

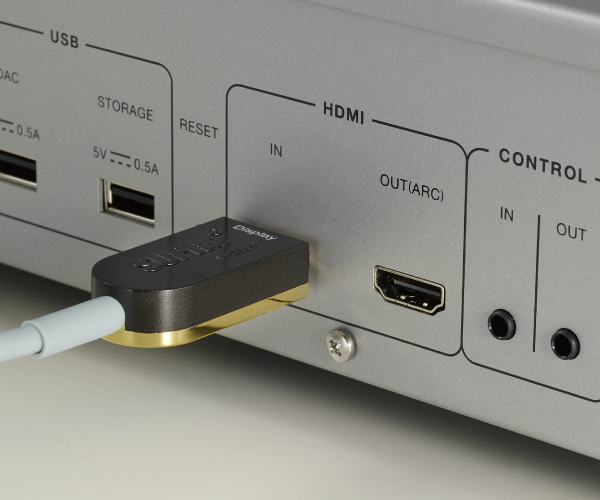

HDMI input/output terminals also enable digital audio import from video sources
The NT-07 has an HDMI input for digital audio signals from Blu-ray players, game consoles, etc. as a means of importing audio from video sources into a 2-channel audio environment with ARC support that can also play audio from a connected TV. The HDMI output terminal provides 2-channel playback with 192kHz/24bit PCM encoding. By adding the NT-07, you can easily create a high-quality living audio system that can be used with any source, from network-based sound sources to live video and movie viewing, without disrupting your established listening style or existing system configuration.
Supports multiple network playback options including Roon and resampling functions

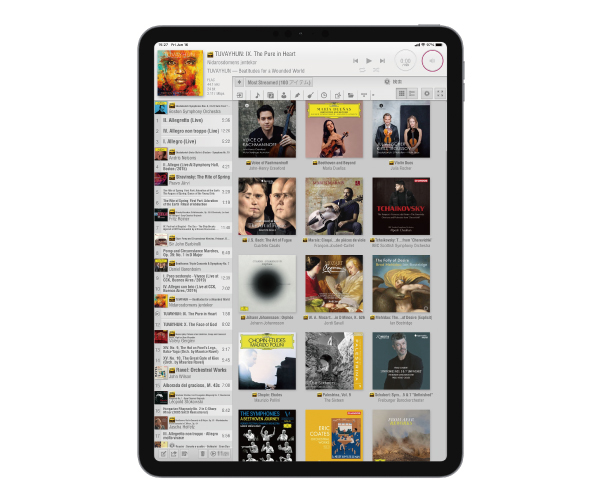

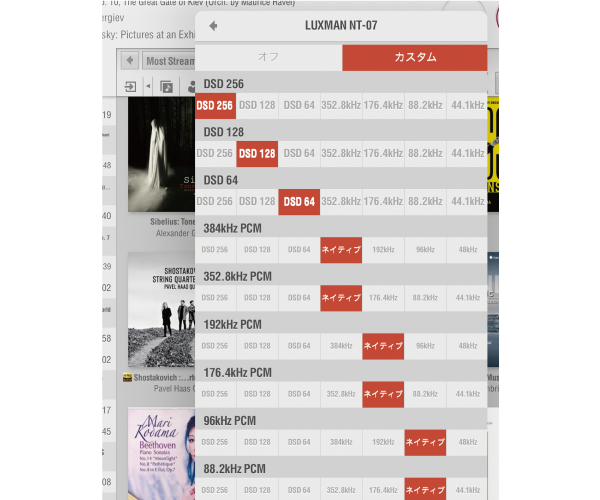

The NT-07 is scheduled to be compatible as an output device (Roon Ready) for the popular comprehensive music playback software Roon (certification underway as of March 2024). By specifying the NT-07 as the output destination, cast playback is also possible using Apple devices (iPhone/iPad/Mac) or Windows PCs. In addition, our intelligent resampling function matches the sampling frequency and bit depth supported by your connected D/A converter and supports each format from 44.1kHz to 384kHz for PCM data. Individual up/down sampling settings are now possible.
Download link.
Specificaties / Specifications

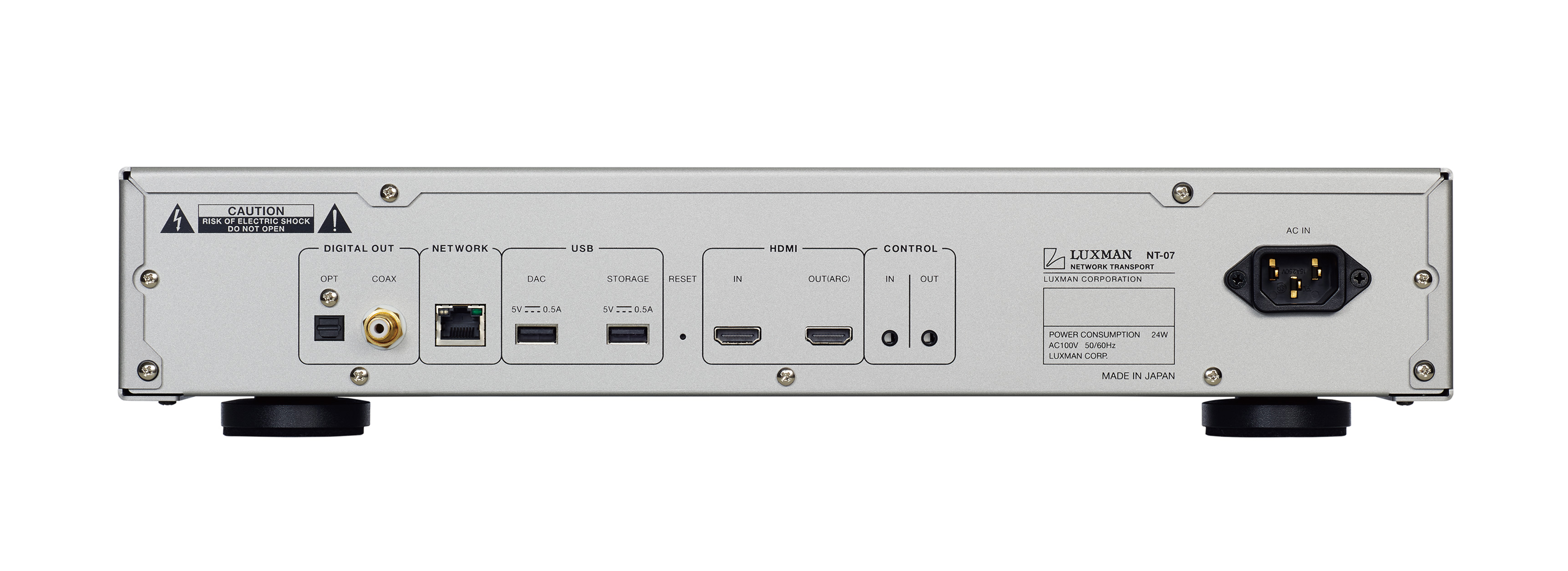

Digital input Network : 1000 Base-T (gigabit · ethernet)
HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
Digital output USB (USB2.0), OPT, COAX
HDMI : PCM 2 channel, 4K pass-through ARC (Audio Return Channel) supported
Storage connection USB x 2 terminals (USB2.0, single partition, FAT32, exFAT, NTFS)
Supported sampling
frequencies USB : PCM 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
DSD : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
COAX / OPT / HDMI (ARC) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 24-bit)
Corresponding format formats WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)
Streaming protocols UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready
Power supply 230 V-(50 Hz) / 115 V- (60 Hz)
Power consumption 27 W (HDMI in/output when connected to USB storage)
5.9 W (HDMI in/output when USB storage is disconnected)
Dimensions 440(W) x 92(H) x 398(D) mm
front side display of 3 mm and rear side terminal of 13 mm included in depth
Net weight 10.3 kg (main unit)
Accessories Remote control (RC-30), Power cable
