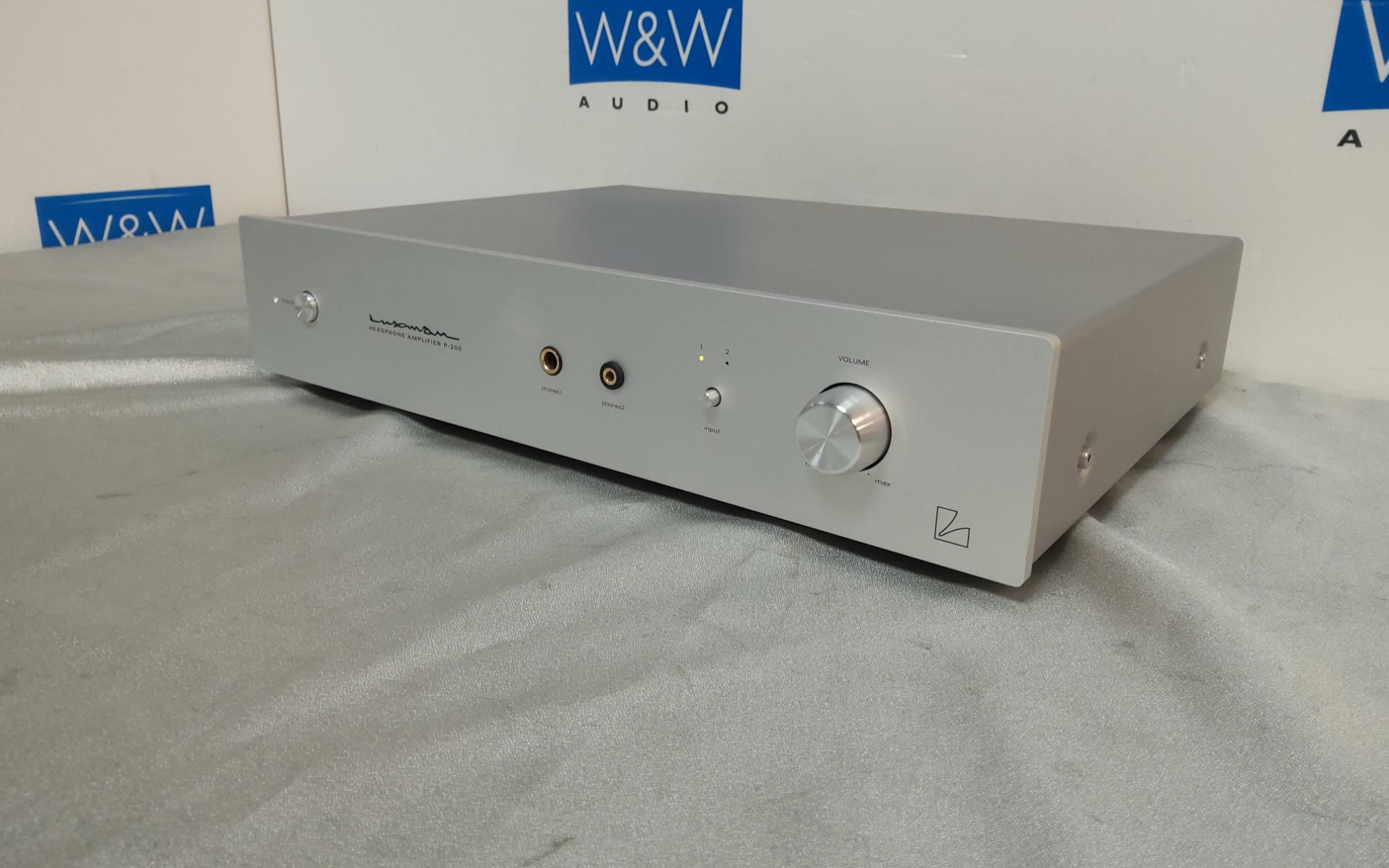

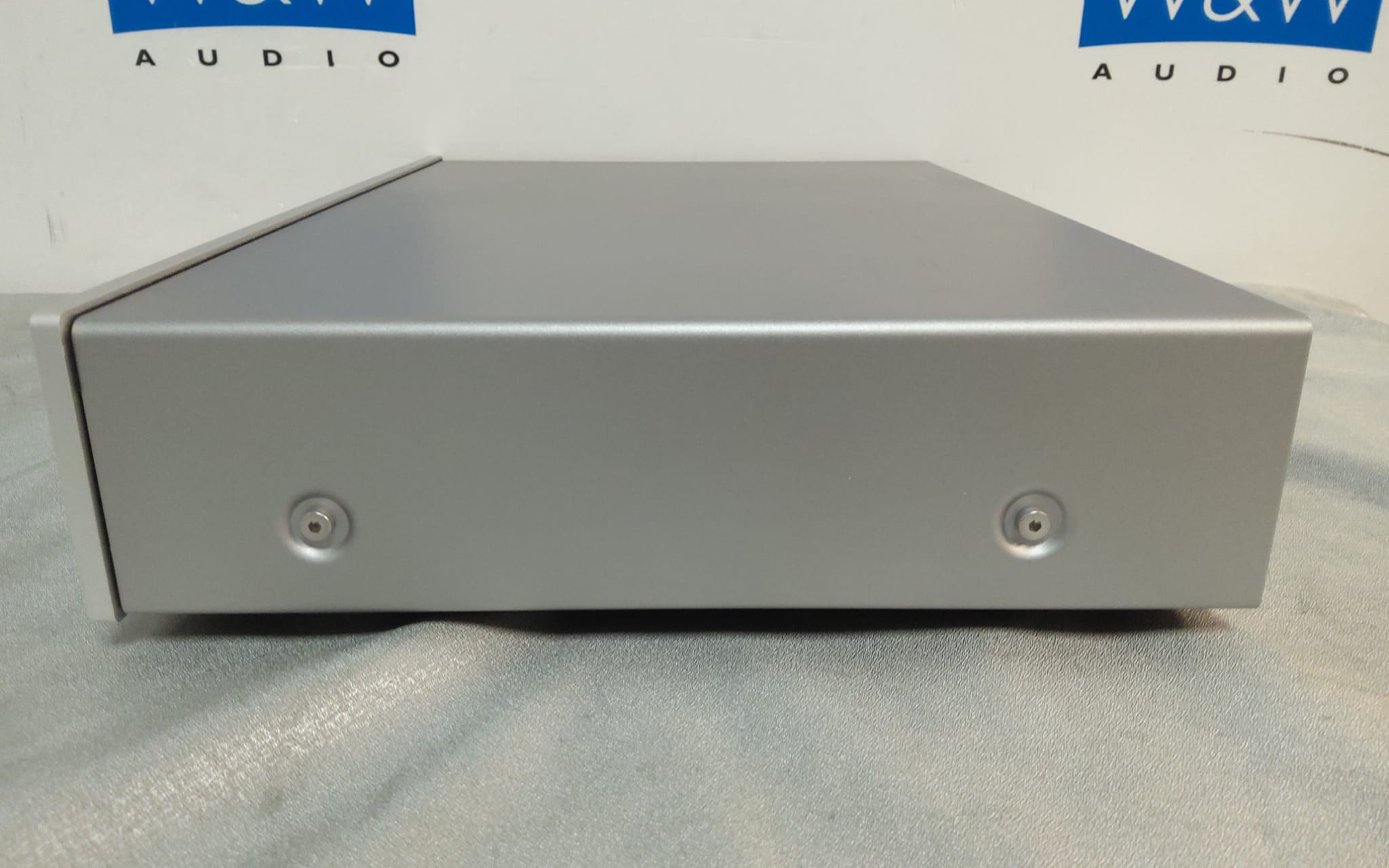

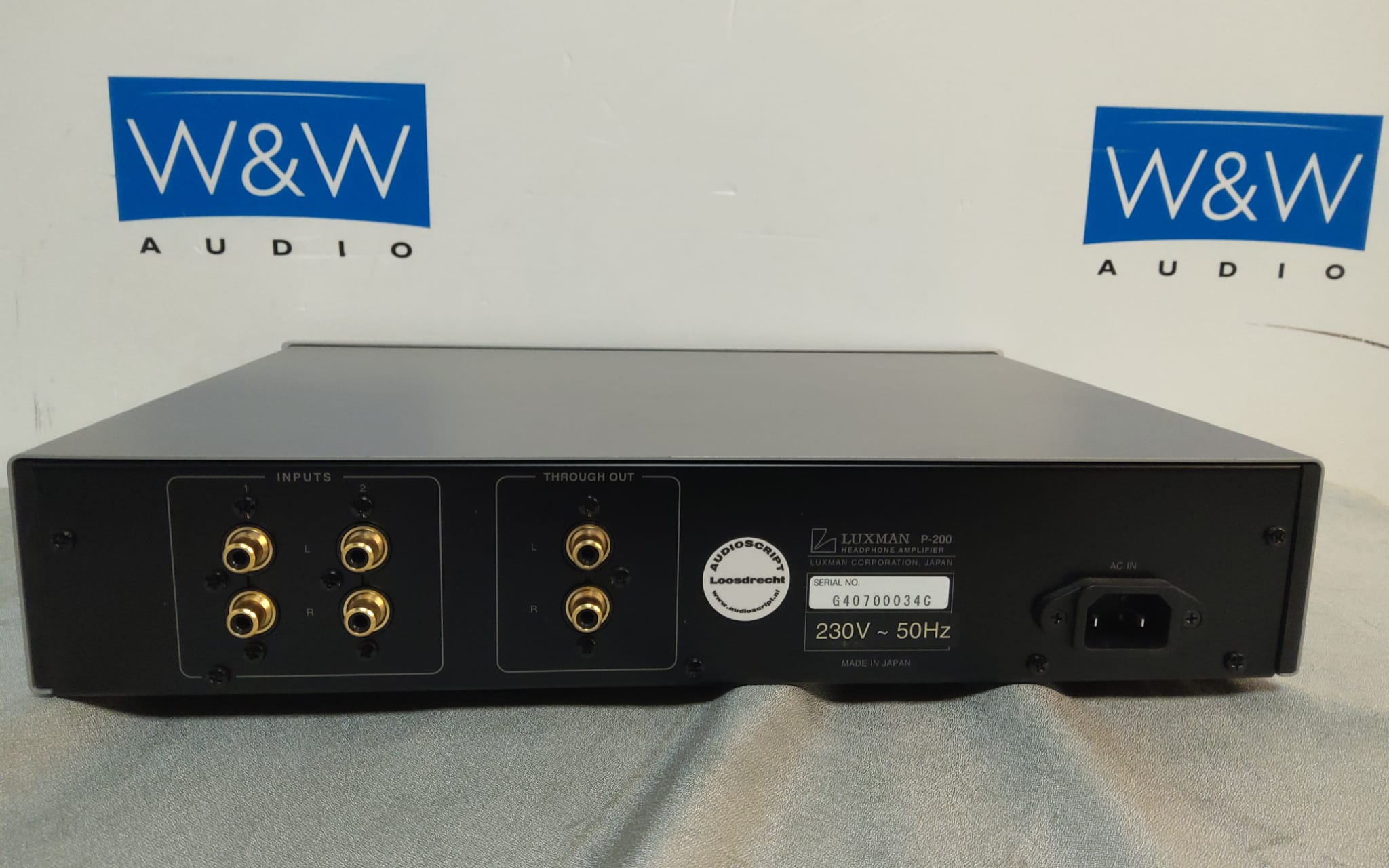

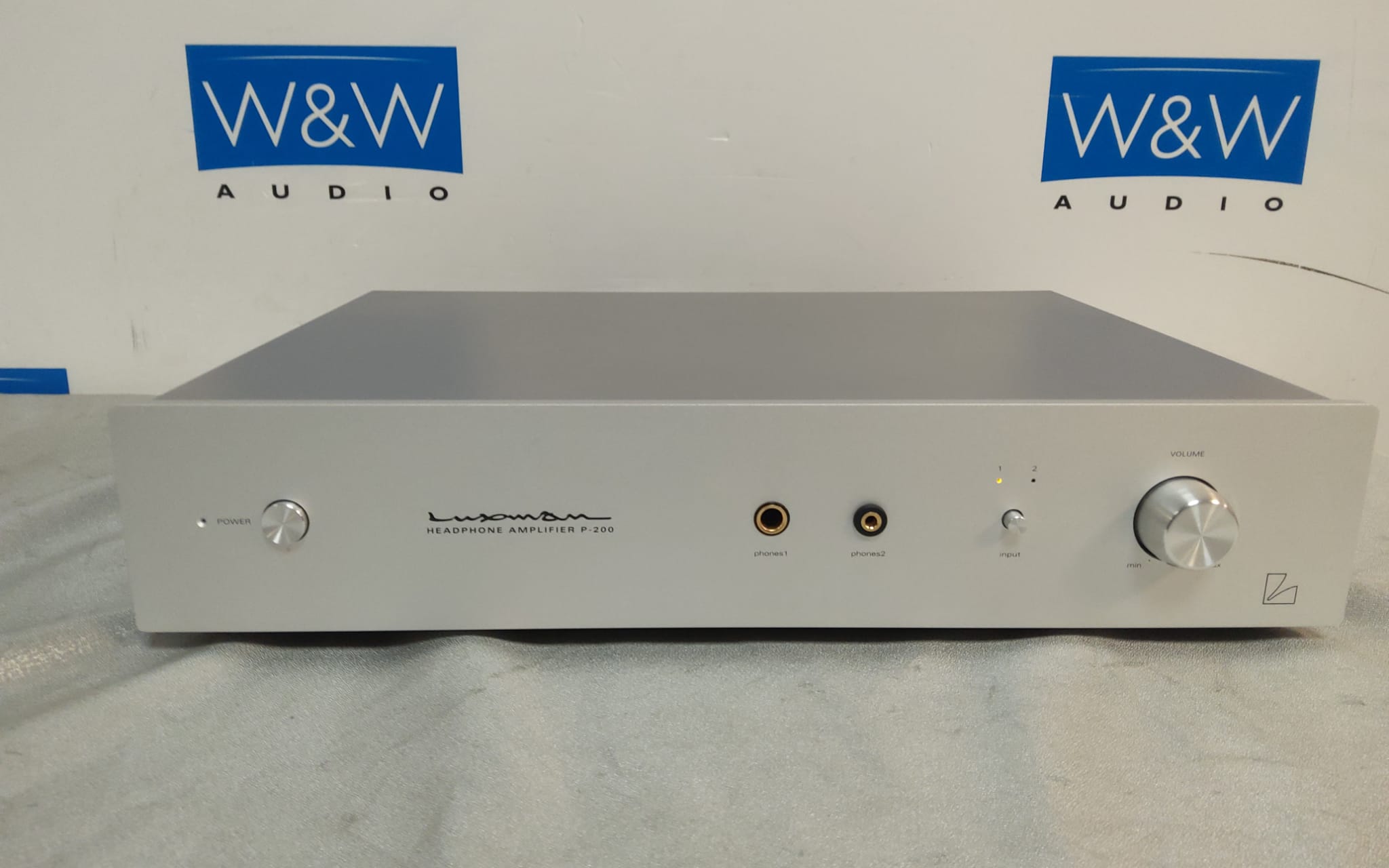

Luxman P-200

Compact Class A headphone amplifier.

Compact high quality, high power pure A class amplifier, pumping out 2 watts per channel into 8 0hm. Parallel Push-Pull structure.

Connect a CD player or portable music player to the P-200 and enjoy listening to music with a 2 input switchable system.

CD player's output can be passed through the P-200's output to another preamplifier.

P-200 is equipped with both a stereo mini plug socket and a 1/4 in. high quality headphone socket.

Beautiful aluminum front panel same as Luxman high-end series.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Continuous power output 2W+2W (8 ohm)/1 W+1 W (16 ohm)/500 mW+500 mW (32 ohm)
Input sensitivity 1 V
Input impedance 47k ohm
Total harmonic distortion rate 0.015% (1kHz)
Frequency response 10Hz-100kHz (+0, -0.3dB)
Power consumption 16W (Electrical Appliance and Material Safety Law)
Outside dimensions 64 (W) x 84 (H) x 257 (D) mm (terminals and knobs excluded)
Weight 4.4kg
