Luxman PD-151 Mark II
Beschrijving / Description
The charm of timeless vinyl playback deepens thanks to our LUXMAN PD-151 MARKII, A new standard in the pursuit of functional beauty.
The PD-151 was developed for the music listener to fully enjoy the luxurious audio experience unique to analog, with vinyl phonograph records continuing popularity as an attractive music playback medium. Inheriting that model's excellent performance and functional beauty while featuring a new, highly sensitive original specification tonearm, is our highly anticipated new model. The PD-151 MARKII has arrived as a new benchmark for belt-drive integrated analog players. We deliver genuine analog vinyl playback excellence, inviting the listener into a world different from digital audio.

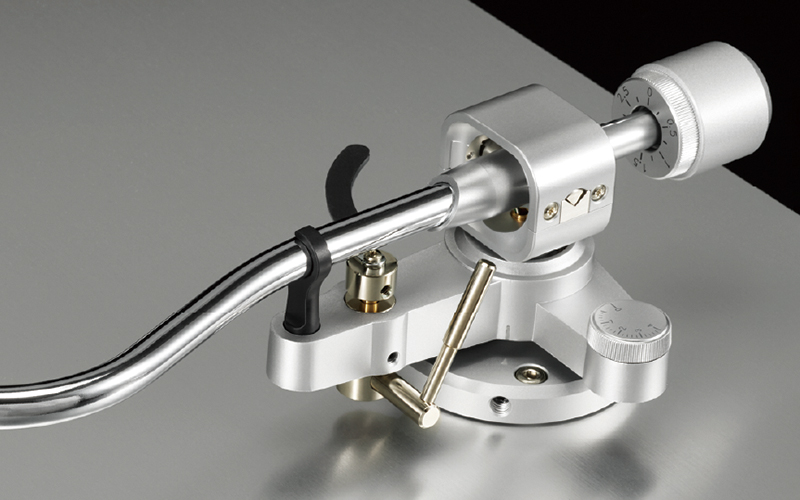

New tonearm with knife edge bearing
The PD-151 MARK II has been newly equipped with LUXMAN's original static balance type tone arm, the LTA-309, featuring knife edge bearing technology developed by the Japanese brand SAEC, with over 40 years of experience. The arm base is machined aluminum, which minimizes the contact area, mounted to suppress unwanted vibration while ensuring rigidity. In addition to basic adjustment mechanisms, such as stylus pressure and anti-skating, LTA-309 also supports fine settings to optimize playback quality, such as arm height adjustment, according to the mounted cartridge. This S-shaped tonearm employs an H4 bayonet mount headshell, allowing easy install of phono cartridges, such as the LUXMAN LMC-5.
New High precision/ High torque proprietary DC motor
The purity of musical pitch depends entirely on the stability of platter rotation. That's why LUXMAN engineers went to extraordinary lengths. We start with our unique sine wave/Pulse Width Modulation power supply, which provides ultra-stable direct current to our proprietary DC brushless motor. Years in development, this low-speed high-torque motor incorporates low-acoustic noise bearings and internal construction. The drive system monitors and maintains speed with our Proportional-Integral-Differential (PID) feedback control loop. Proportional means quick achievement of target speed. Integral means fast correction of minor errors. And differential means control over rapid fluctuations. For added precision, the motor drives the outside flange of the platter through an uncommonly wide belt for stabile 33 , 45 and 78RPM playback speeds with +/-6% manual pitch control adjustment available.

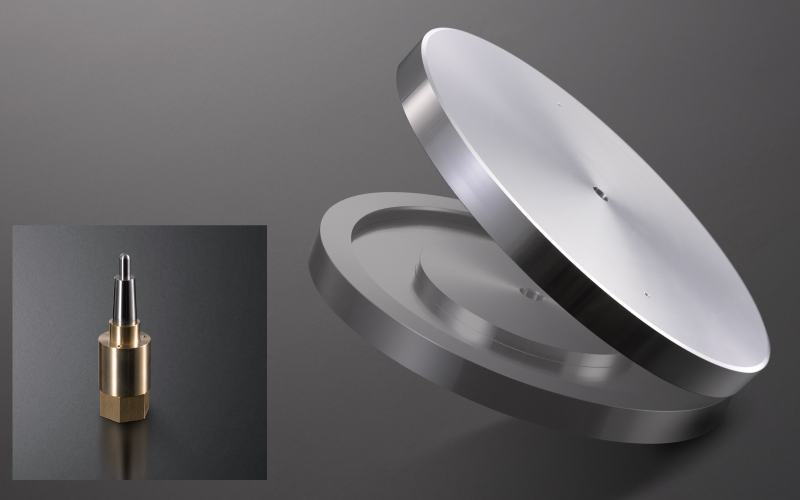

High-Mass platter and highly rigid stainless-steel spindle
LUXMAN engineers were determined to optimize the final guarantor of stable speed; the platter assembly itself. PD-151 MARK II has a 4.0kg platter precision machined from a thick aluminum billet then diamond-cut finished to exact surfaces. The platter acts as a flywheel, with a large moment of inertia (0.219t·cm2 ) to insure smooth and stable rotation. The spindle supporting the platter is a highly rigid, 16mm diameter, hard stainless-steel shaft with bearings at the lower end. It comfortably supports the platter weight with a bearing structure that combines a thrust bearing lubricated with PEEK* material, with excellent heat and wear resistance, and a brass radial bearing filled with organic molybdenum oil that maintains excellent lubricity under high load. A turntable mat of special vibration-absorbing rubber material is included to support vinyl records during playback.
Download link.
Specificaties / Specifications
Turntable Platter
Drive system Belt drive system
Motor Brushless DC motor with PID control
Material Machined aluminum, Surface finish: Diamond cut
Revolution 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)

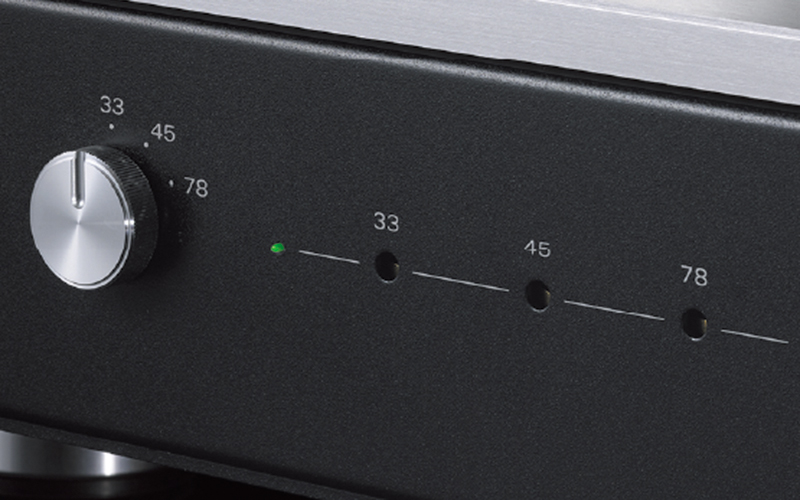

Revolution adjustment range +/-6% (each rotation speed adjustable independently)
Wow and flutter 0.04% or less (W.R.M.S.)
Weight 4.0kg (Platter)
Tone arm section
Type Static balanced, S shaped, universal type
Bearing Concealed knife edge
Effective length 222.5mm
Overhang 18mm
Tracking error angle +/-3" or less
Applicable cartridge weight 4 to 10g (including headshell 17 to 23g)
Adjustable height range 15mm
Anti-skating 0 to 4g
Main unit
Power source 230V-50Hz / 115V-60Hz
Power consumption 6W
Dimensions 465(W) x 133(to the upper surface of the platter) (H)x 393(D) mm

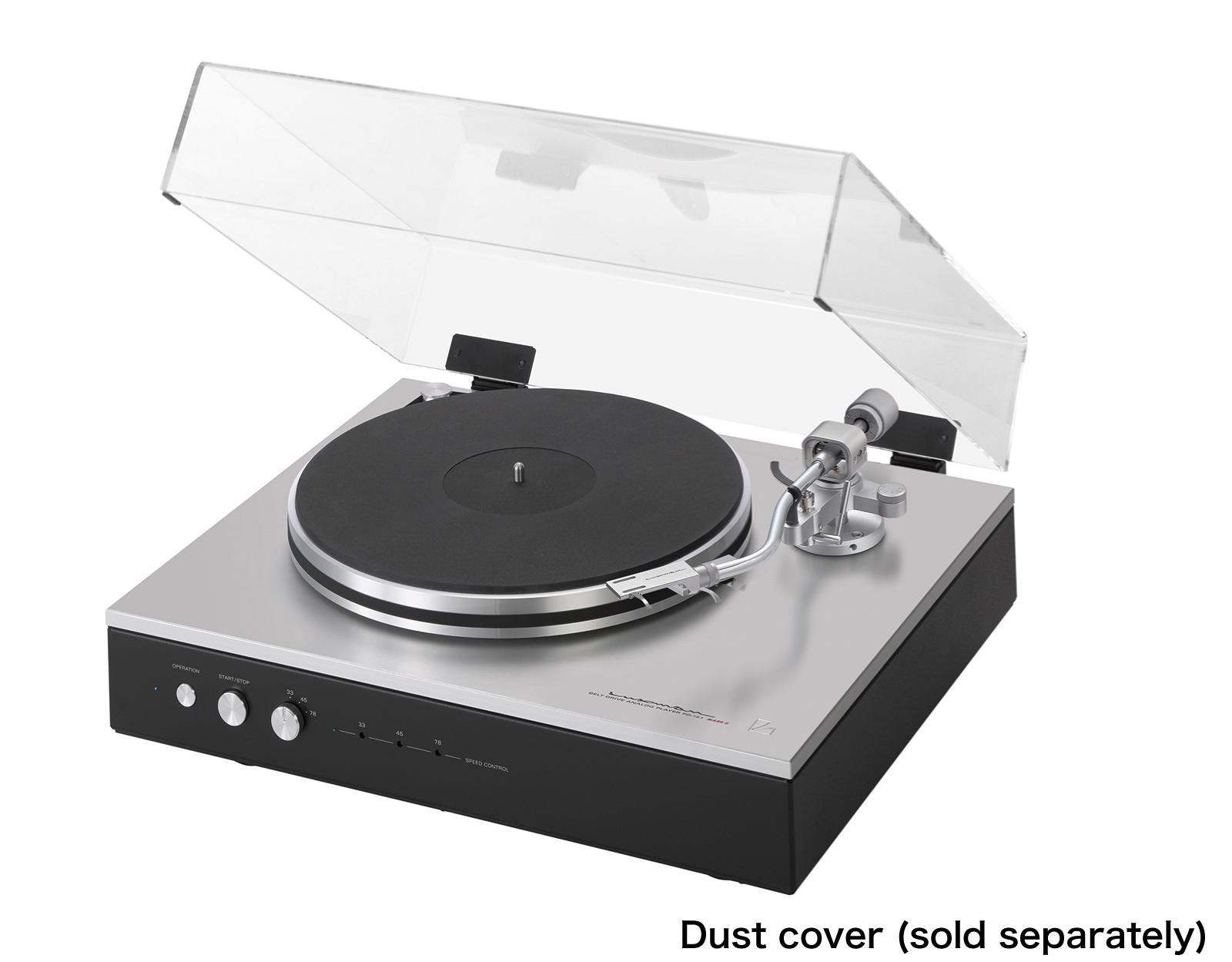

Net weight 15.8kg (main unit), 17.2kg (with dust cover)
Accessories Platter, Headshell, Rubber mat Rubber belt,
Platter mount handle (2 pieces) EP adaptor, Counterweight
Arm adjustment hex wrench set (2 types)
Flathead screwdriver for rotation speed adjustment
phono cable (DIN-RCA : already installed in the unit), Power cable
