FM/FM-MPX Tuner (1975-79)

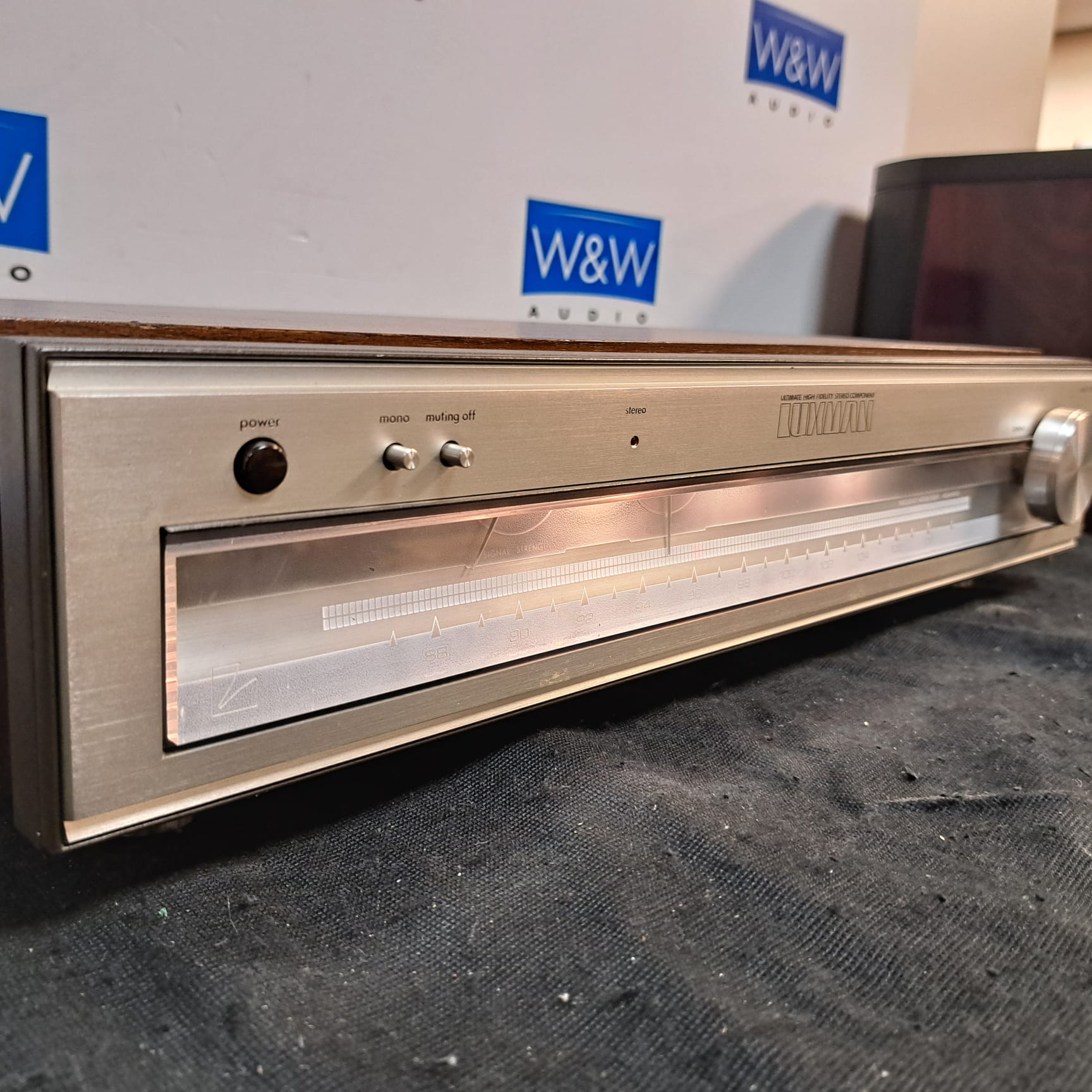

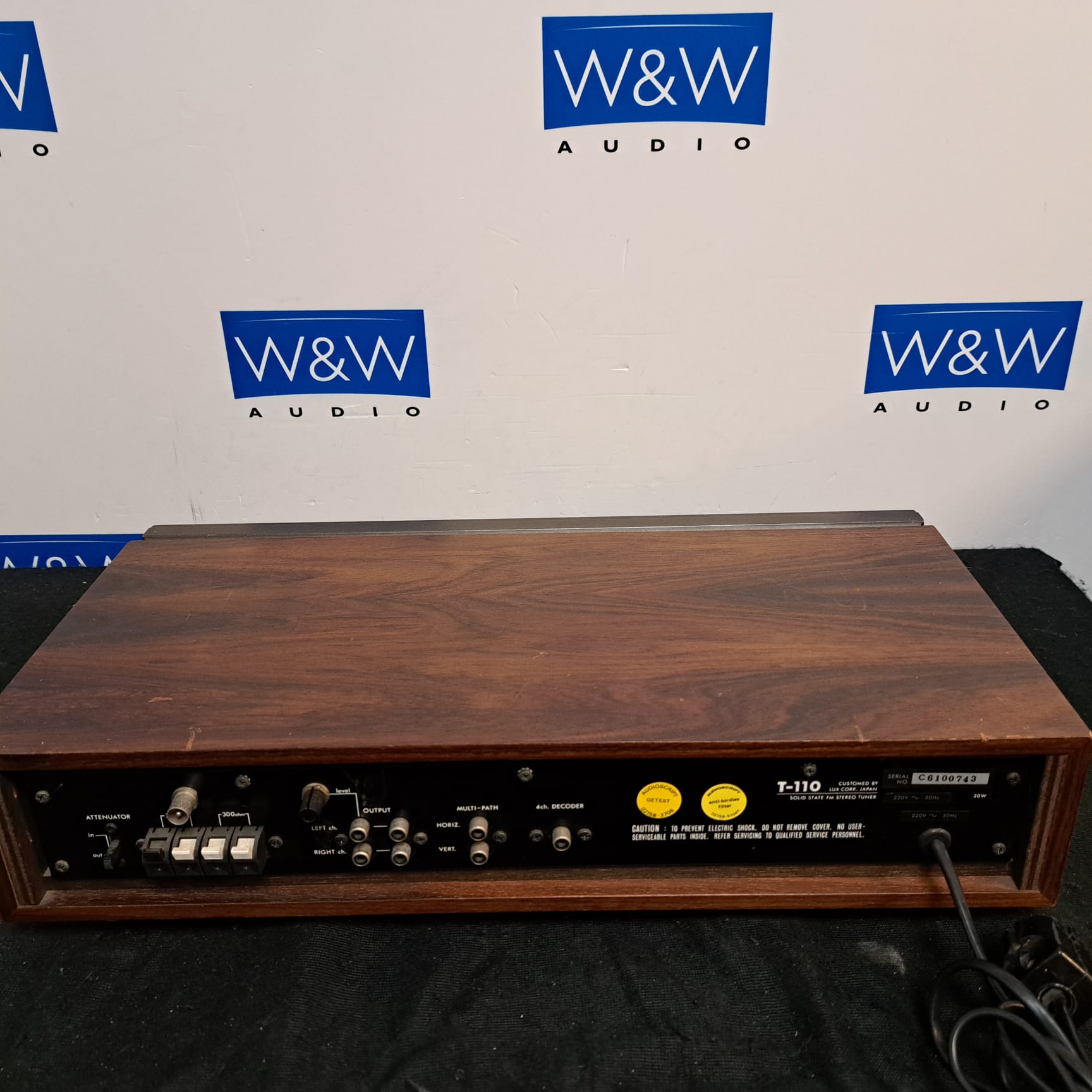

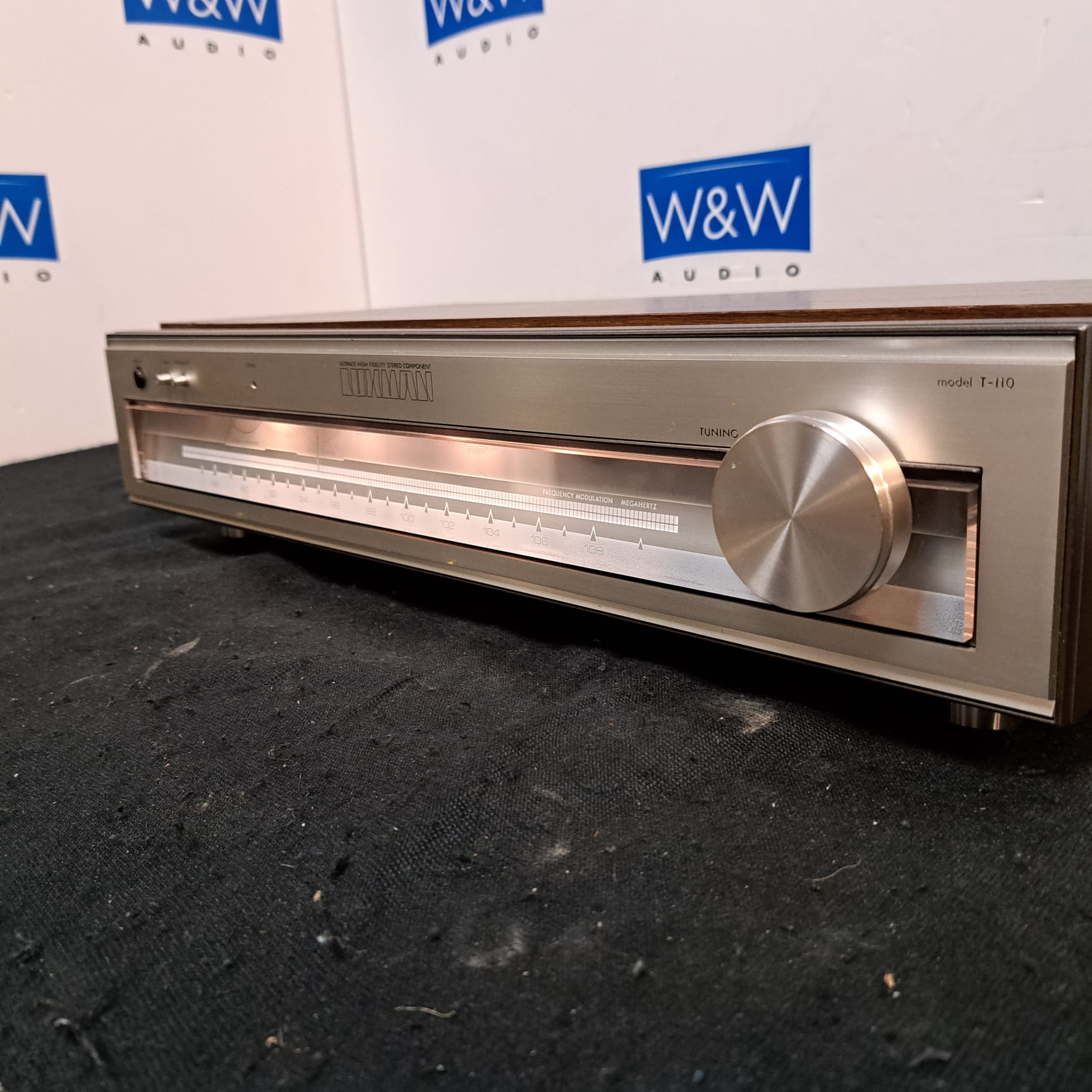

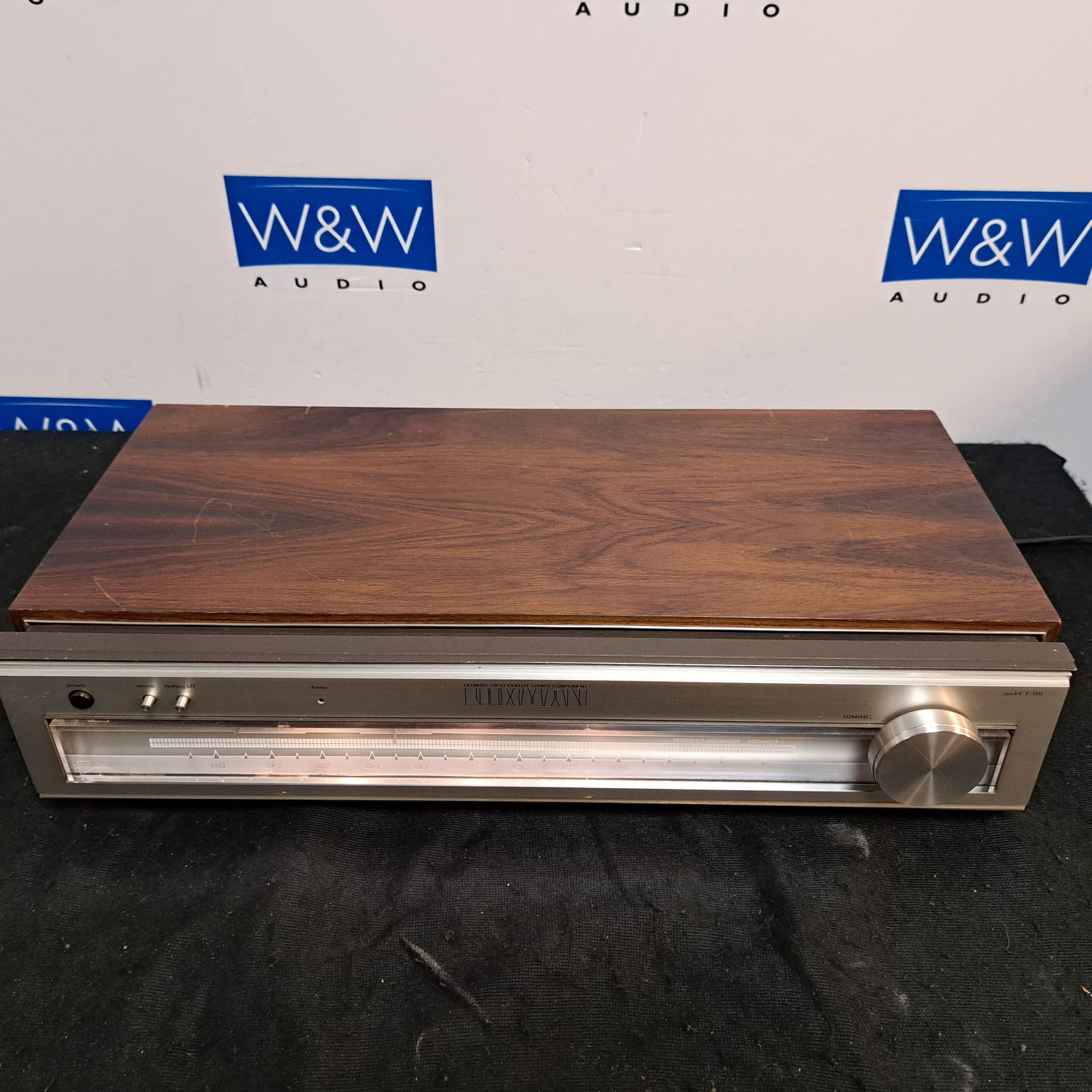

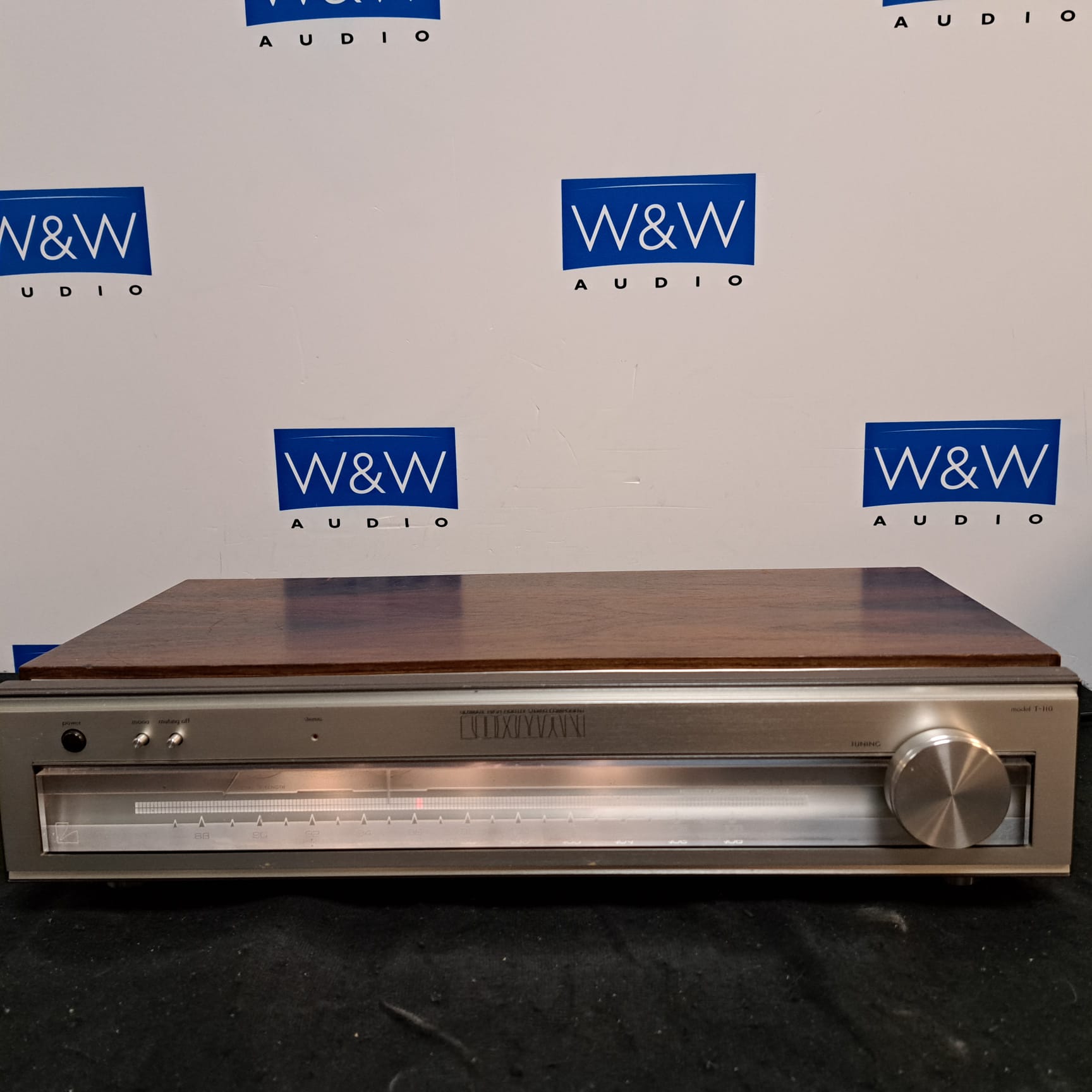

The Luxman T-110 is a new compact tuner for FM only reception.
An epoch making new approach to styling departs from the conventional concept of tuners which have normally treated product dimensions to equal those of the matching amplifier.
Klik op de afbeelding voor een vergroting
Click picture for magnification
Type: Mono/Stereo Tuner
Tuning Bands: FM
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
Sensitivity: 1.6uV (FM)
Signal to Noise Ratio: 72dB (FM)
Distortion: 0.3% (FM)
Selectivity: 70dB (FM)
Frequency response: 20Hz to 15kHz (FM)
Output: 1500mV
Dimensions: 483 x 243 x 114mm
Weight: 7.6kg
