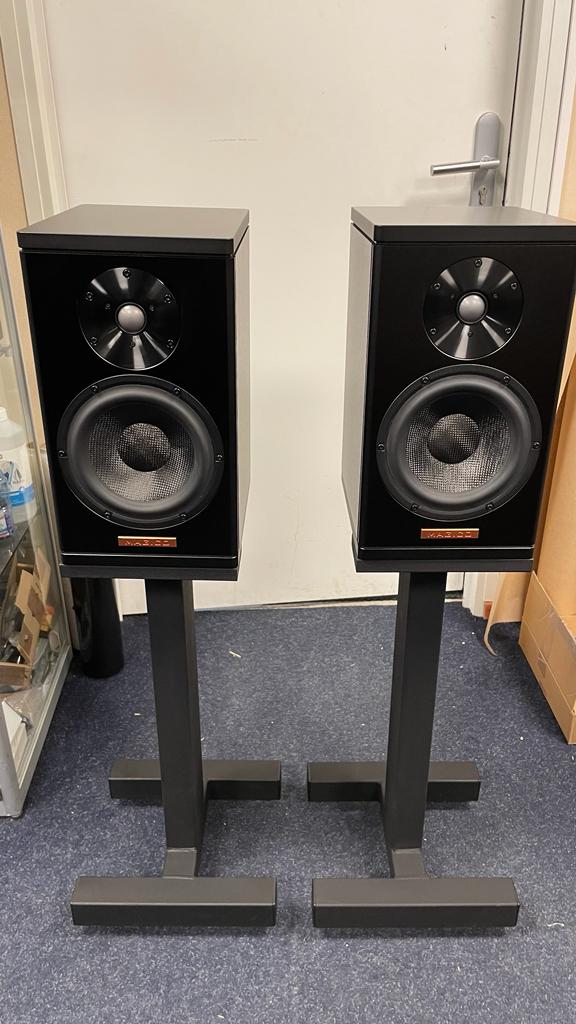

Magico A-1

The A1 bookshelf loudspeaker features a fully braced aluminum enclosure, beryllium dome tweeter, carbon Nanographene cone, and our renowned elliptical crossover.

The A1 enclosure is constructed using 3/8 inch thick 6061 T6 aircraft grade aluminum, similar to the enclosure developed for the Q1 and is available in an elegant brushed-aluminum, black anodized finish. An innovative internal bracing technique along with the most advanced damping materials makes the sealed enclosure incredibly rigid and free of unwanted mechanical resonances. The complete enclosure design of the A1 is evaluated in simulation using the latest FEA software along with physical testing to meet the uncompromising requirements of Magico for optimized enclosure rigidity, stability and to ensure benchmark acoustical standards.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Driver Complement
1 X 1.1 inch (2.79cm) Beryllium Dome Tweeter
1 X 6.5 inch (16.51cm) Graphene Nano-Tec Midbass
Sensitivity: 84dB
Impedance: 4 Ohms
Frequency Response 35 Hz - 50 KHz
Dimensions: 15.6 inch H x 12 inch D x 8.5 inch W (39.62cm x 30.48cm x 21.59cm)
Weight: 48 lbs. (22 kg)
