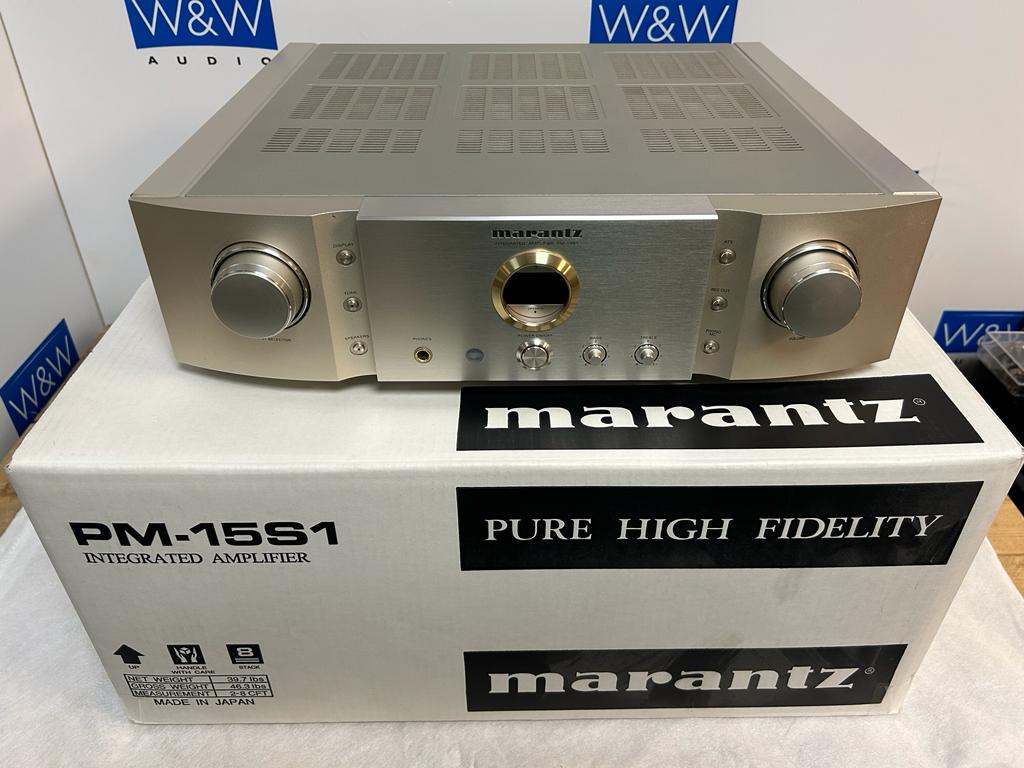

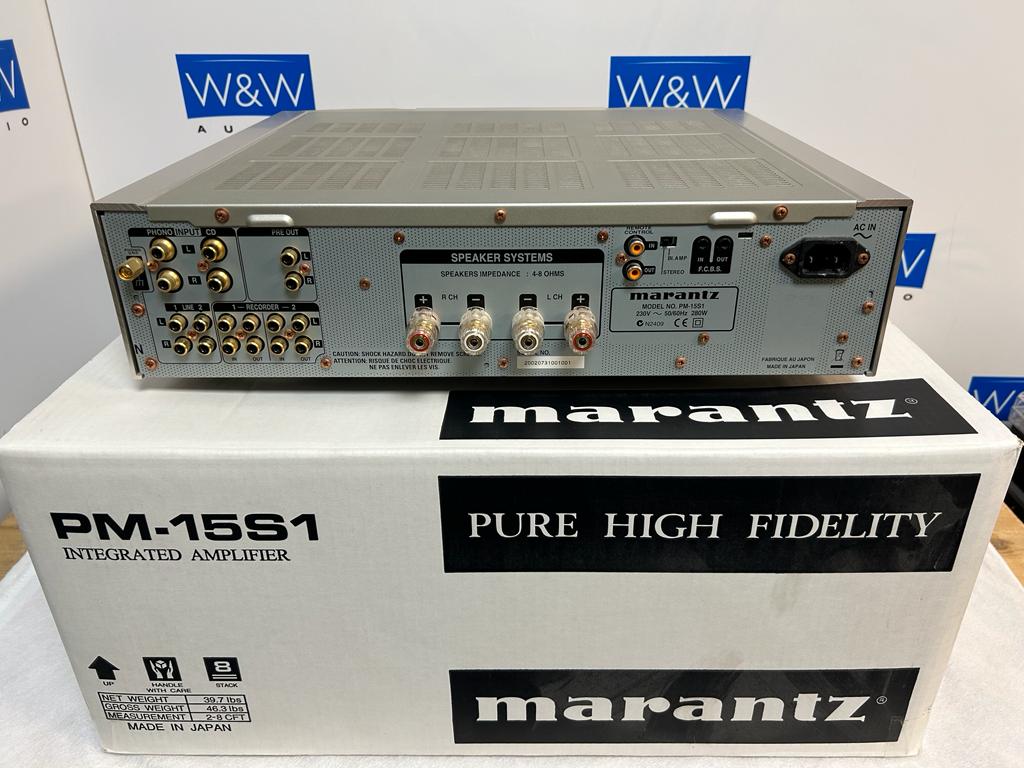

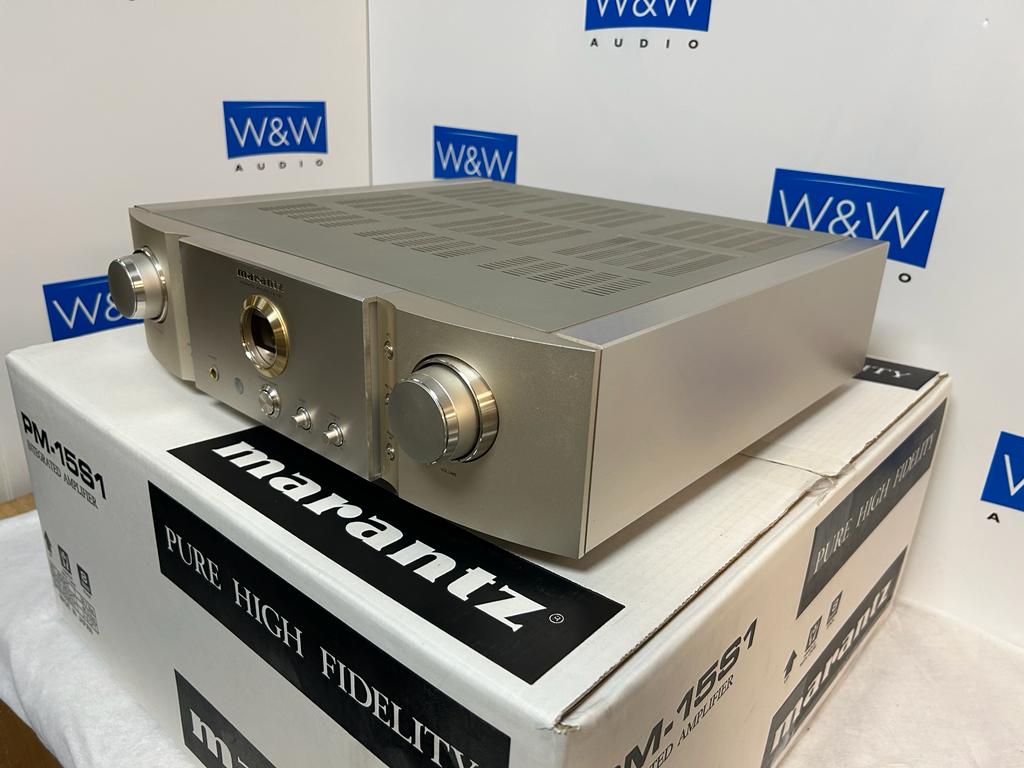

Marantz PM-15S1

This 2-channel amplifier, recognized by EISA in 2005-2006, adheres to the Premium Range's stringent design standards. It features a 3-stage construction for signal integrity, full Current Feedback, and HDAMs for dynamic sound and accurate stereo imaging. Emphasizing fidelity, it uses the shortest signal paths and top-quality components. Independent cooling elements reduce channel interference, while its robust chassis and extra bottom plate limit external noise. The amplifier includes a precision Wolfson WM8816 volume control and an integrated high-quality Current Feedback MM/MC phono preamplifier. The PM-15S1 excels in stereo performance and can be linked with up to four units for an enhanced multi-channel experience.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Output power: 90 watts per channel into 8 ohm (stereo)
Frequency response: 5 Hz to 100 kHz ohm
Total harmonic distortion: 0.05%-
Damping factor: 100
Input sensitivity: 0.3 mV (MC), 3.2 mV (MM), 240 mV (line)
Signal to noise ratio: 77 dB (MC), 85 dB (MM), 90 dB (line)
Output: 1.7V (Pre-out)
Speaker Load Impedance: 4 Ohm (minimum)
Dimensions: 440 x 123 x 444 mm
Weight: 18 kg
Accessories: remote control
