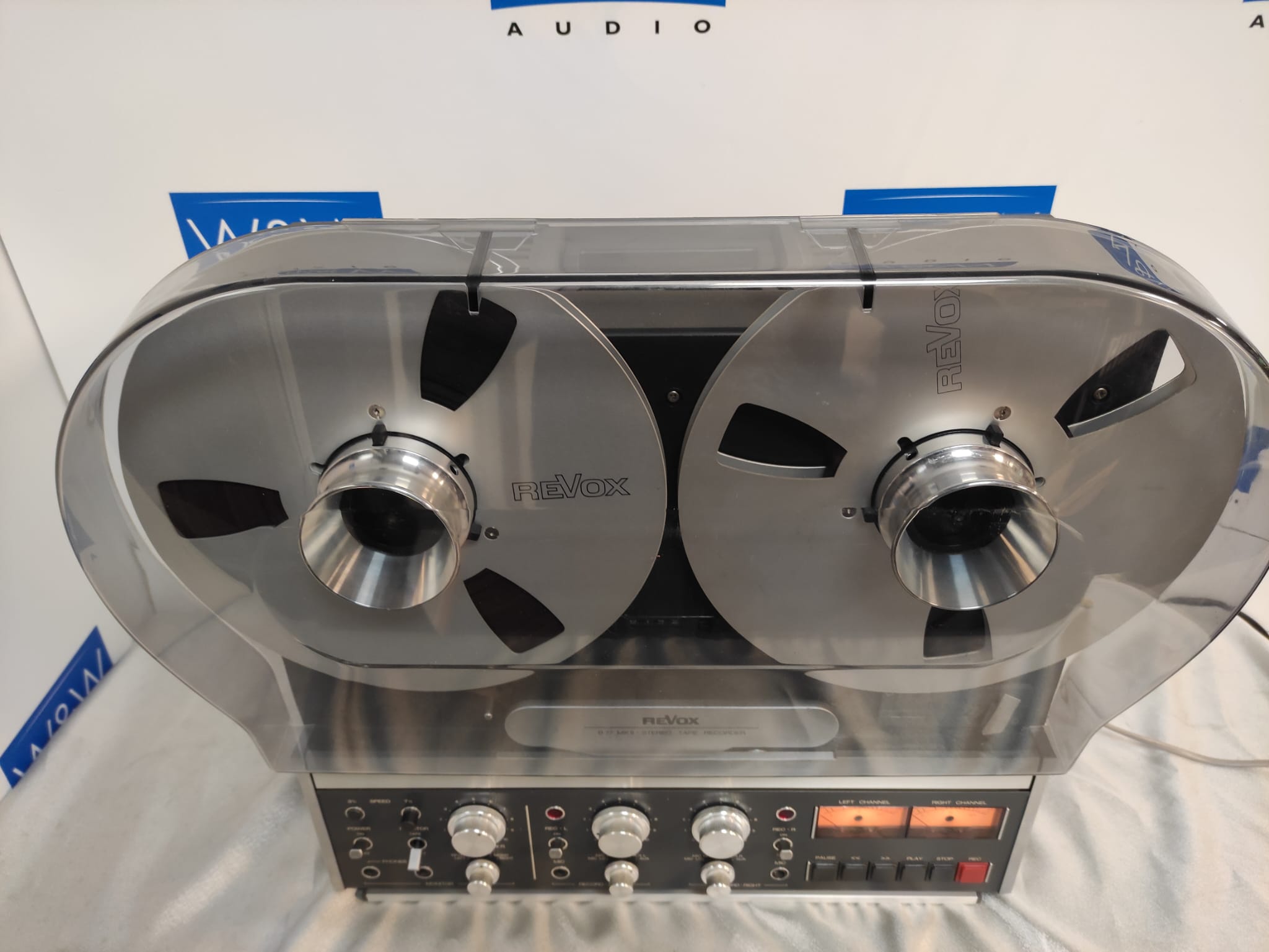

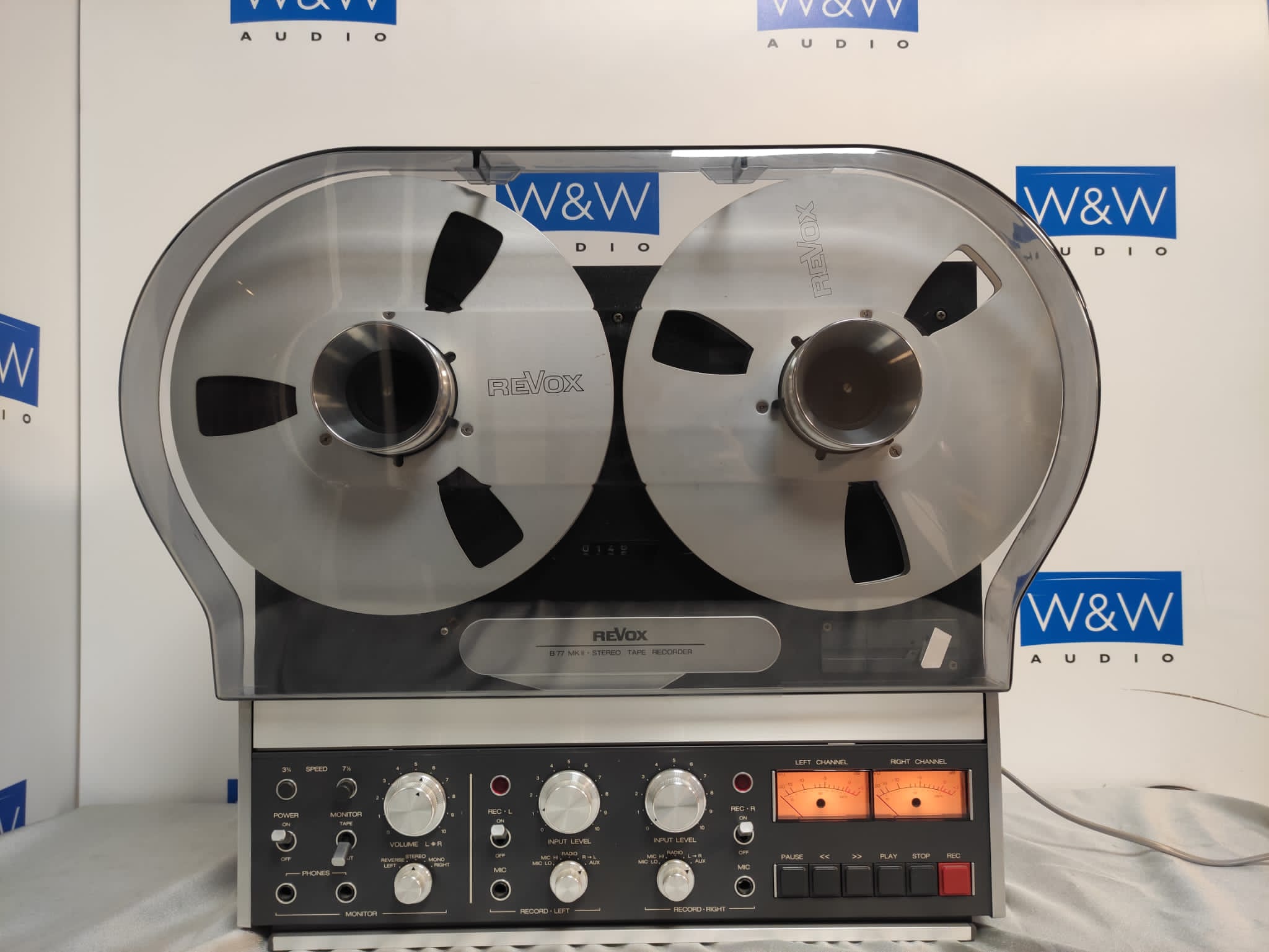

Revox B77 MKII
Beschrijving / Description
2 spur machine.
3 Motor 2 Speed Stereo Reel to Reel Tape Recorder (1978-85)
Specificaties / Specifications
Track system: stereo system
Motor: 2 x reel, 1 x capstan
Reel size: up to 10.5 inch reel
Tape speeds: 3 3/4 7 1/2 ips
Wow and flutter: 0.08% (7 1/2 ips)
Frequency response: 30Hz to 20kHz (7 1/2 ips)
Signal to Noise Ratio: 67dB
Total harmonic distortion: 0.5%
Input: 40mV (line), 0.15mV (mic)
Output: 1.55V (line)
Semiconductors: 11 x IC, 1 x opto-coupler, 4 x triacs, 60 x transistors, 33 x diodes, 5 x LED, 2 x full wave rectifi
Dimensions: 563 x 475.5 x 233mm
Weight: 17kg
Staat van product / State
Tweedehands / Occasion
Mogelijk verkocht / Might be sold
Controleer onderstaande links met onze honderden occasions of het item nog te koop is.
Please check the links with our hundreds of occasions below if this occasion is still for sale.
