Revox G36

Beschrijving / Description

The Revox G36 was the crowning achievement in the development of tape recorders in tube technology.
For the first time, coils with a diameter of 26.5 cm could be placed. The Revox F36 and predecessor could be operated with a maximum coil diameter of 25 cm. For the first time, a synchronous motor was used as tone motor in the Revox G36.
The Revox G36 had mechanical band end switches in two versions. Until device number 36,500 a microswitch was used. From device number 36.501 to 58.000 a feeler operated gold-plated wire contacts.
From serial number 58.001, the tape end was scanned optoelectrically. A light guide through the right pulley and the photoresistor in the stationary bolt was a strange design - more on that later!
The construction of the Revox G36 is already awesome. Ultra-long rods for the pots and rotary switches provide for short signal paths, the tubes in rank and file, the associated resistors and capacitors as well. The machine is not only fun in operation, the revision is thanks to the well thought-out design pure joy. And all that in 1963 - what a vintage !




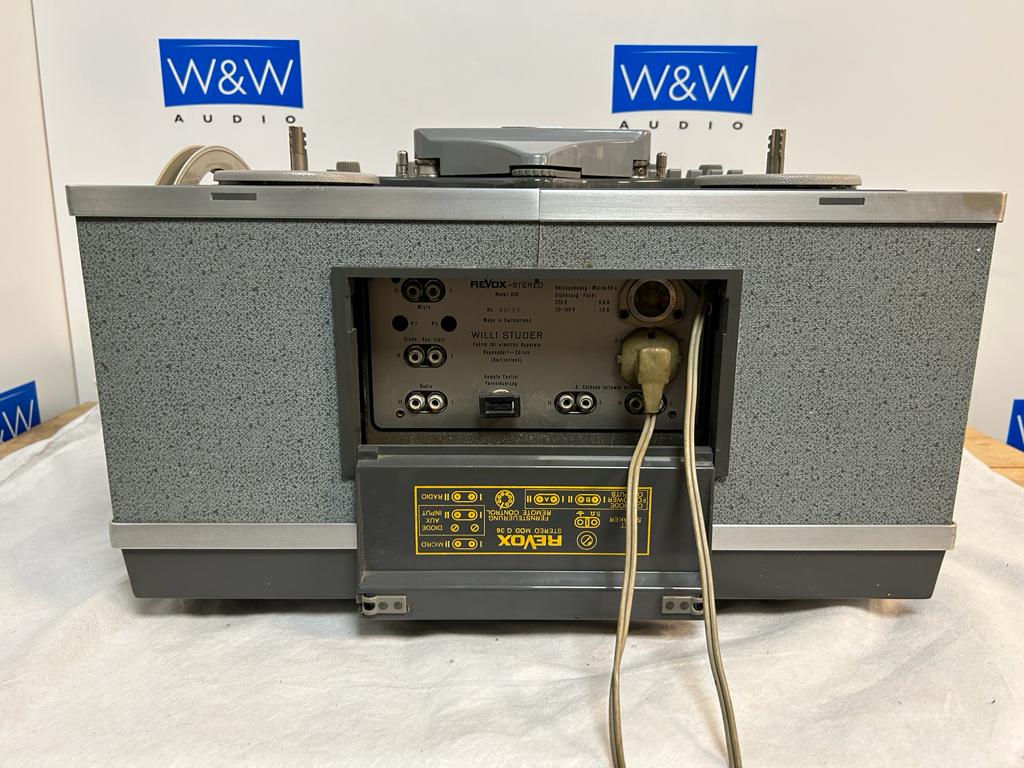

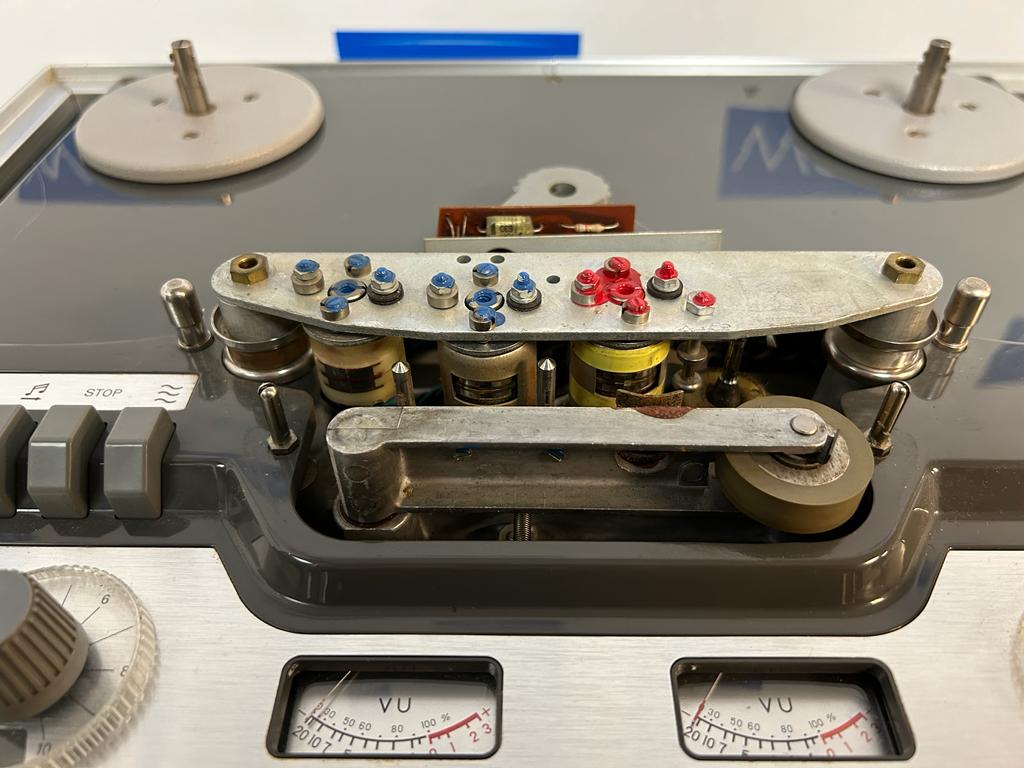

Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

Belt speeds:
9.5 cm/ s and 19 cm / s Syncron capstan engine

Flutter:
at 19 cm / s better +/- 0.1%,
at 9.5 cm / s better +/ - 0.15% hardly worse than a Revox A77 or B77

Frequency response over band:
40 Hz to 18 kHz + 2 dB to - 3 dB at 19 cm / s
40 Hz to 12 kHz + 2 dB to -3 dB at 9.5 cm / s, okay, the 12 kHz will hurt from today's perspective!

Max. Coil diameter:
26.5 cm (10.5 ")

Lead and rewind time:
120 sec. for 1000 m band
equalization:according to IEC
70 us / 3180 us at 19 cm / s
140 us / 3180 us at 9.5 cm / s

Signal to noise ratio:
2-track (k = 3%) 55 dB
4-track (k = 3%) 52 dB
distortion:
Max. 3% at full scale

Dynamics over band: (k = 3%)
2-track: 55 dB at 19 cm / s
53 dB at 9.5 cm / s
4-track: 52 dB at 19 cm / s
50 dB at 9.5 cm / s

Inputs per channel:
1. Microphone 3 mV Ri = 500 kO (max 600 mV)
2. Radio 50 mV Ri = 1 MO (max 10 V)
3. Diode 3 mV to 50 mV Ri = 47 kO (adjustable)

outputs:
2 cathode followers 2-track Ua = 0.7V
4-track Ua = 0.5V
1 speaker 5 O, 6 W

Built-in speaker:
21 cm diameter, can be switched off

tubes :
4 x ECC81, 1 x ECC 82, 5 x ECC83, 2 x ECL86

Semiconductor insertion:
2 transistors, 5 silicon diodes, 3 selector rectifiers

Power supply:
110, 125, 145, 220 and 240V, 50Hz

power consumption:
about 120 VA

Mass:
20kg

Dimensions:
Suitcase: 47.7 x 34.1 x 29.5 cm
Chassis: 54.5 x 39.5 x 27.0 cm with 26.5 cm coils

Staat van artikel
Tweedehands

Prijs
€ 790,00
