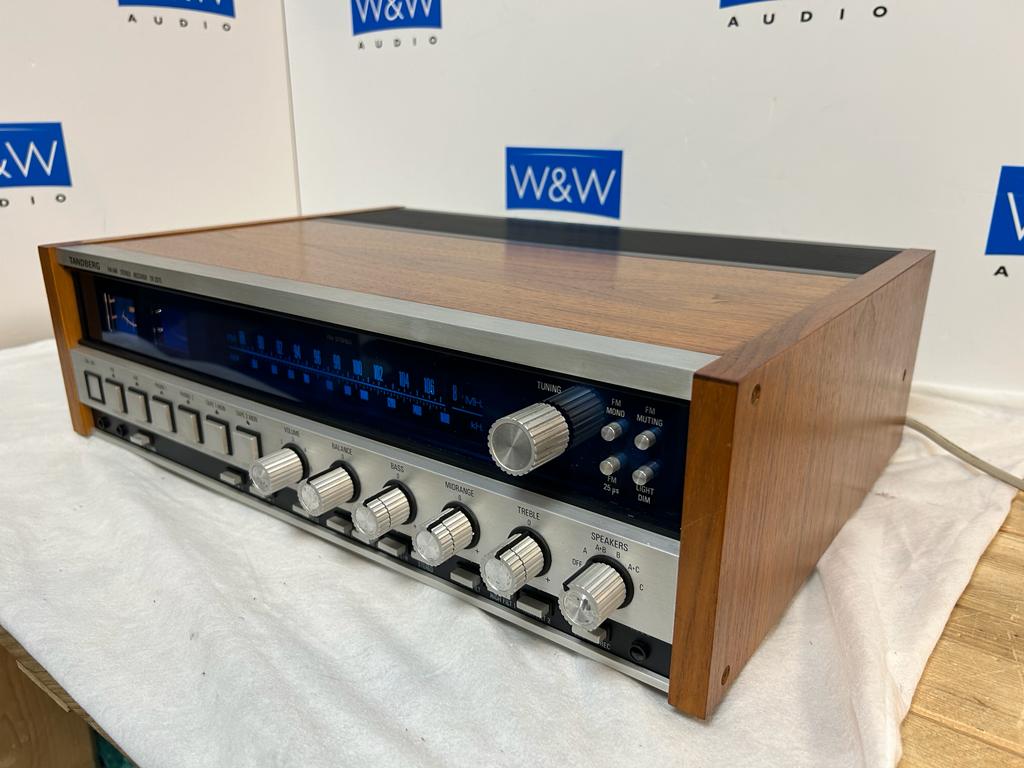

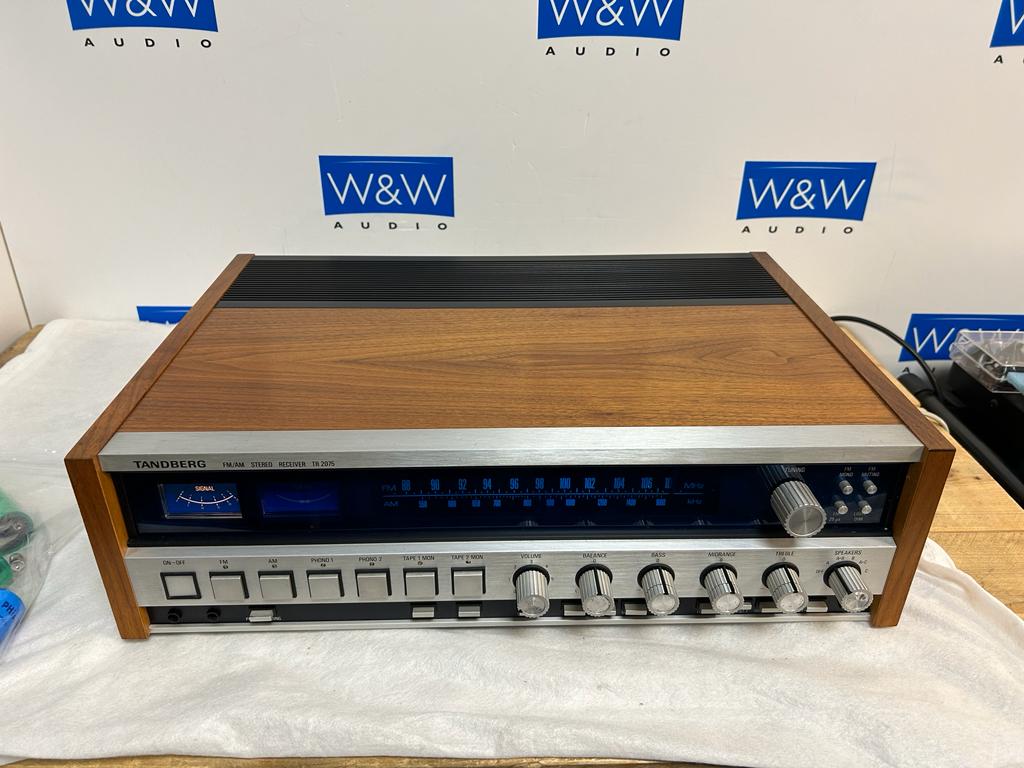

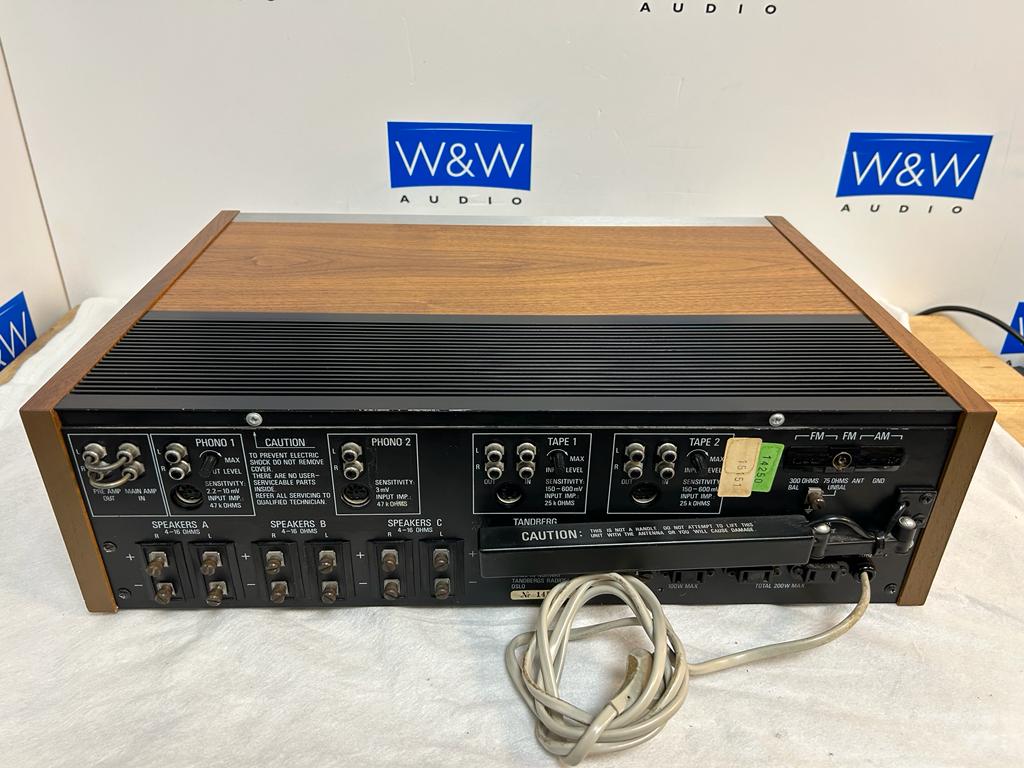

AM/FM Stereo Receiver (1975-77)

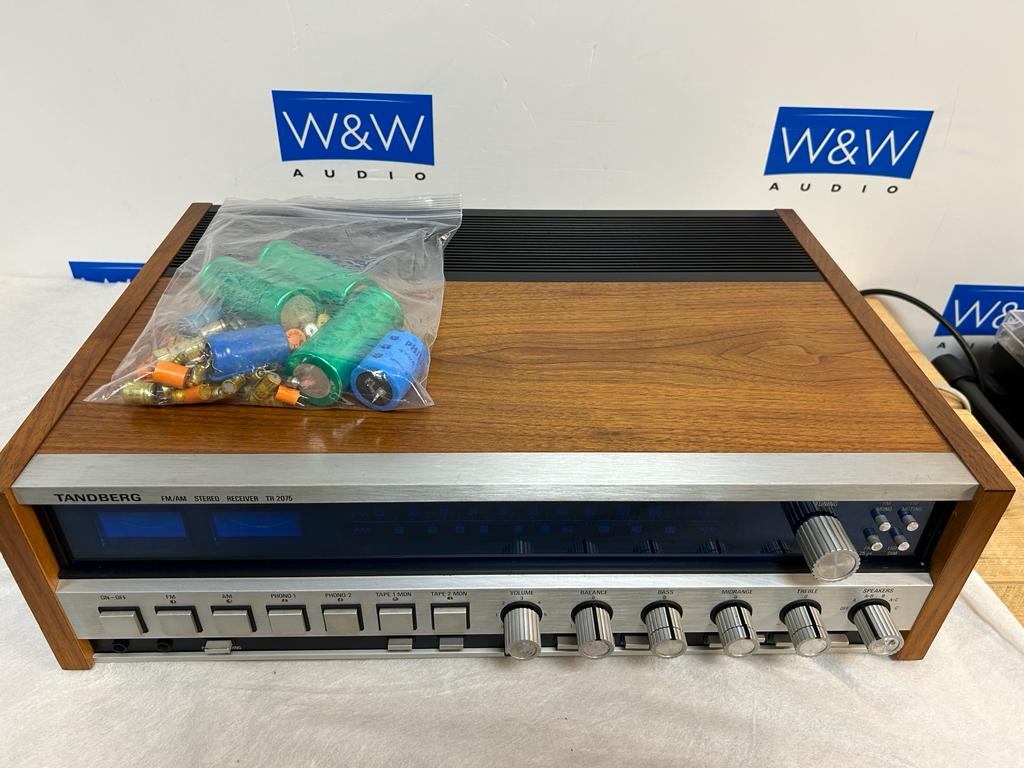

Had revision, see changed parts bag.
Klik op de afbeelding voor een vergroting
Click picture for magnification
Tuning range: FM, MW
Power output: 75 watts per channel into 8 ohm (stereo)
Frequency response: 6Hz to 80kHz
Total harmonic distortion: 0.15%
Damping factor: 60
Input sensitivity: 2.2mV (MM), 150mV (line)
Signal to noise ratio: 78dB (MM), 94dB (line)
Channel separation: 60dB (MM), 60dB (line)
Dimensions: 515 x 155 x 353mm
Weight: 12.5kg
Finish: rosewood veneer cabinet
