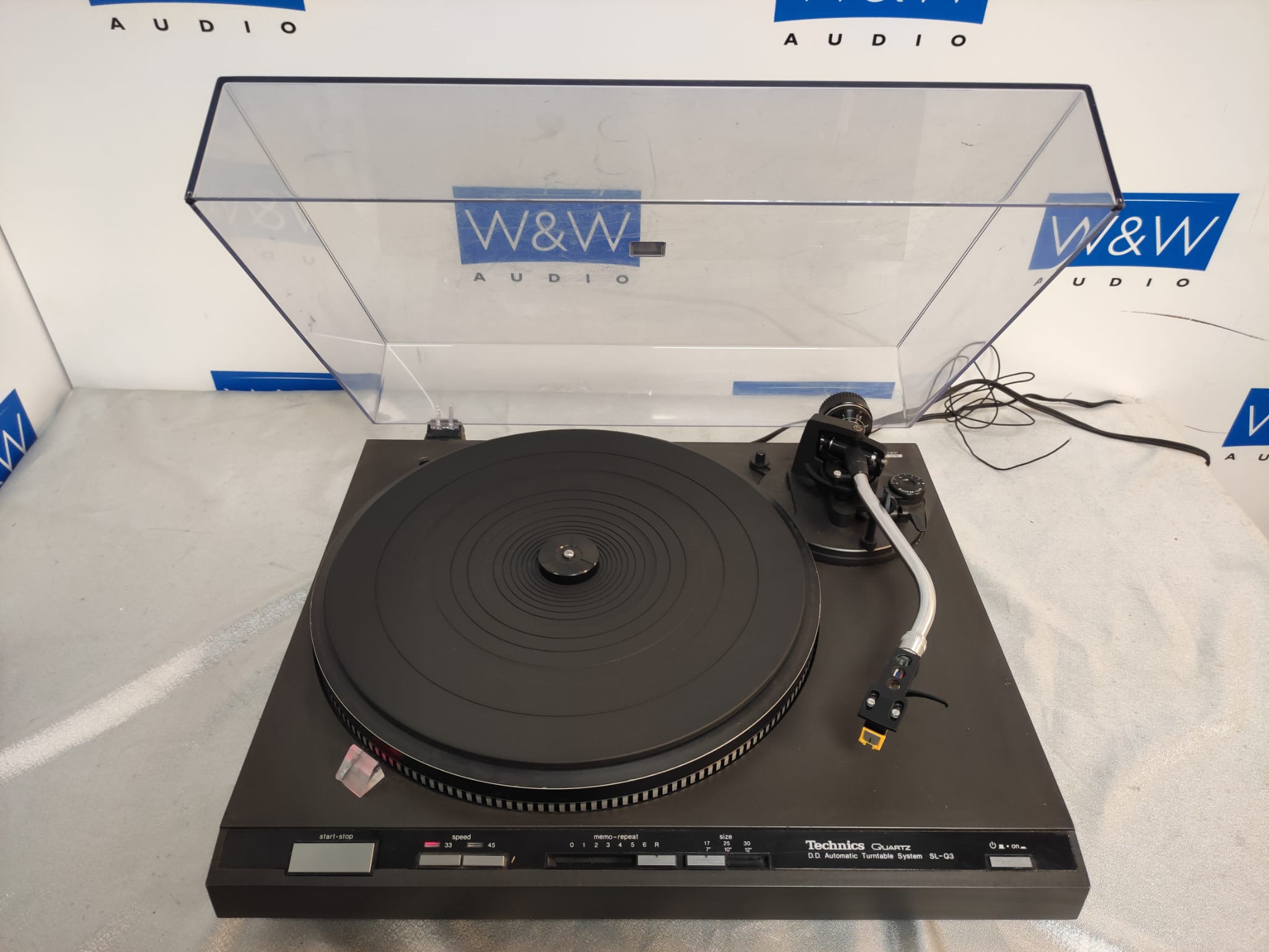

Technics SL-Q3

A direct drive full auto player with quartz phase locked control.

Equipped with a full auto mechanism capable of auto start, Oatley turn and auto stop.

The cabinet is made of precision aluminum die-cast, and the bottom base and upper part of the cabinet are made of a two layer structure made of TNRC, an acoustic material with high anti-vibration effect. In addition, a large insulator made of spring and viscoelastic material is directly connected to the cabinet to take thorough measures against howling.

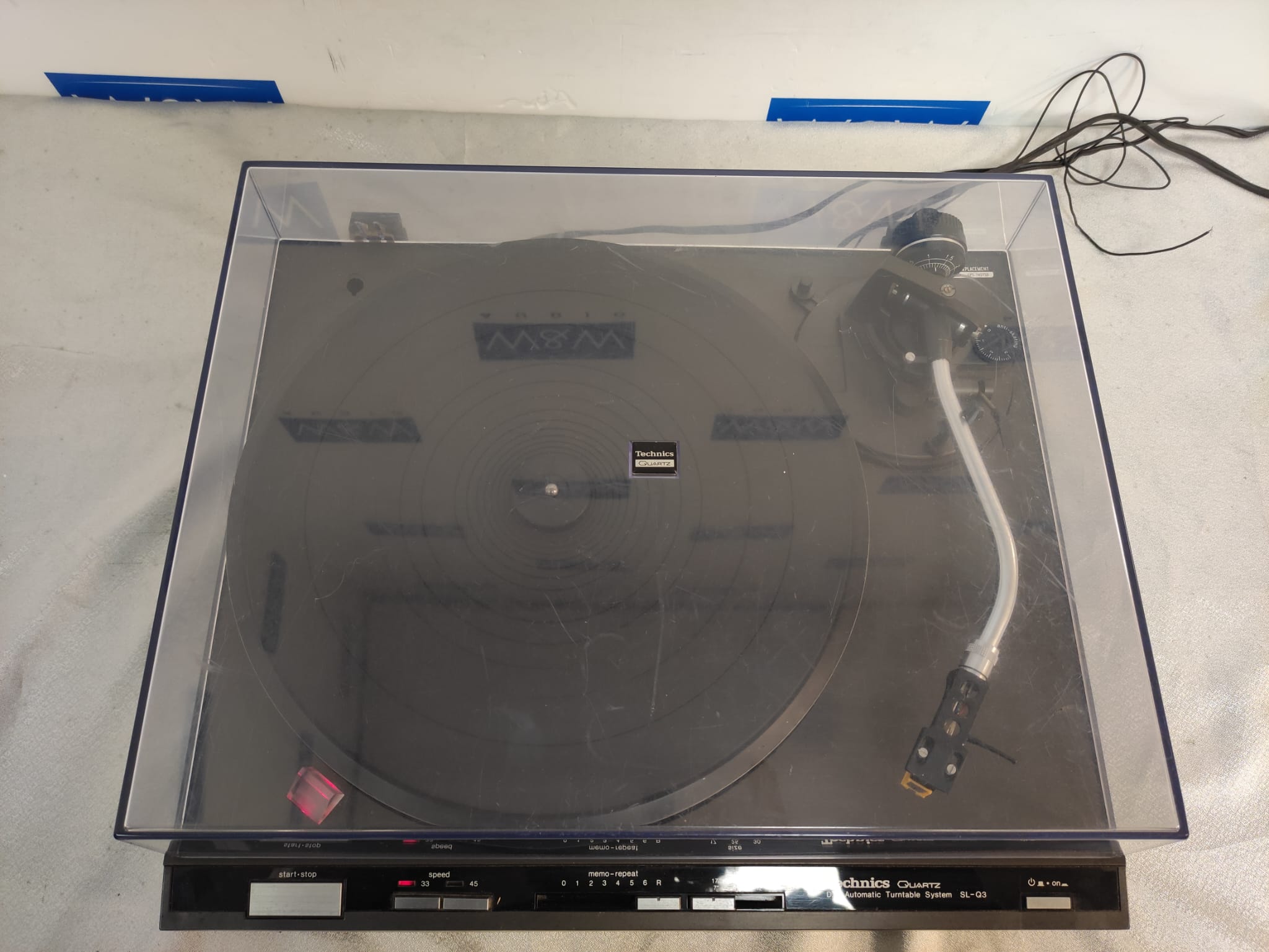

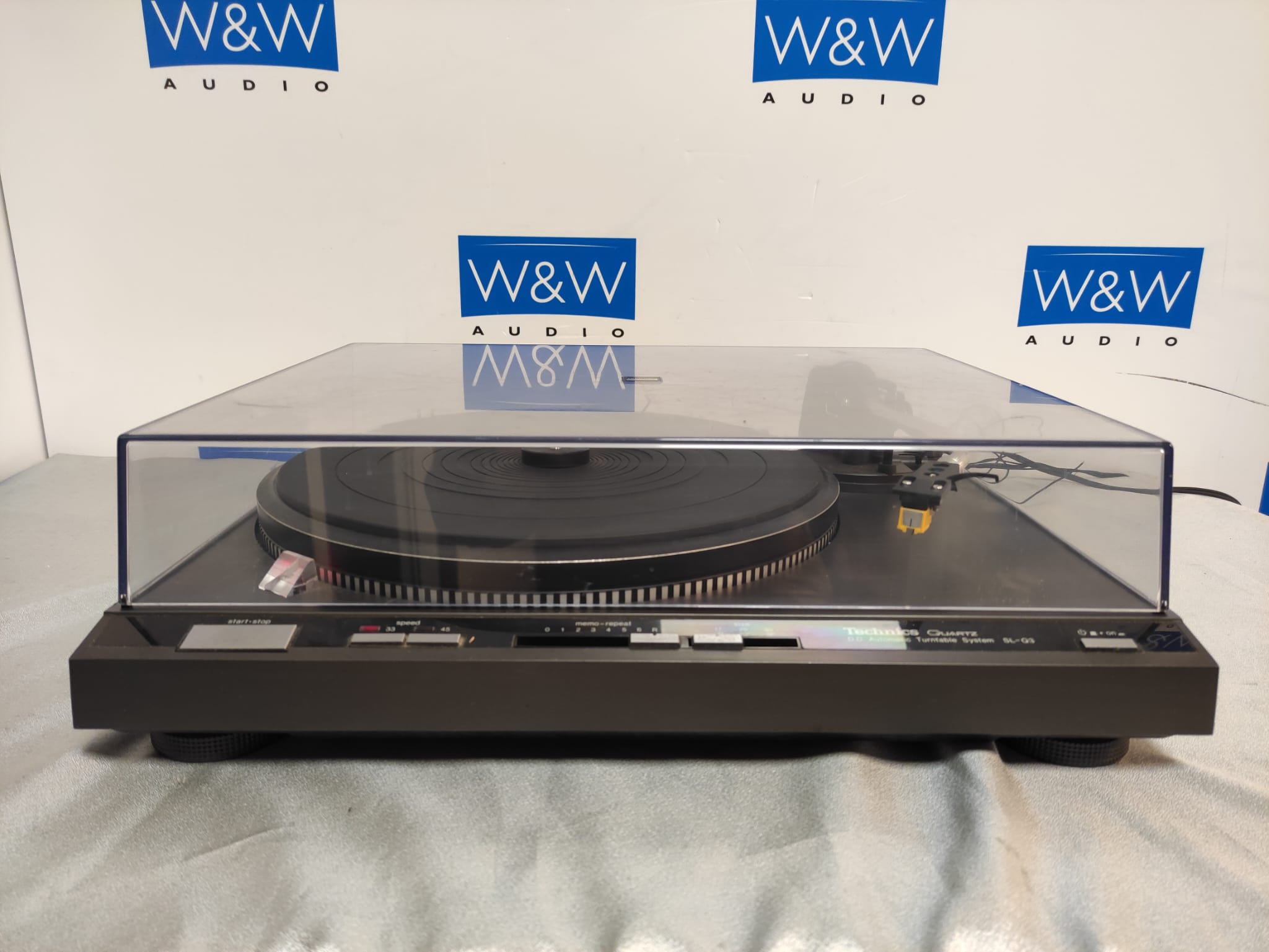

Uses a front operation method that allows all control switches to be operated while the dust cover is closed.

A rotational speed deviation of ± 0.002% is achieved by phase control based on the oscillation of a high-precision crystal oscillator.
In addition, a unique all-around detection F / G is used for rotation speed detection to obtain a more accurate detection signal.

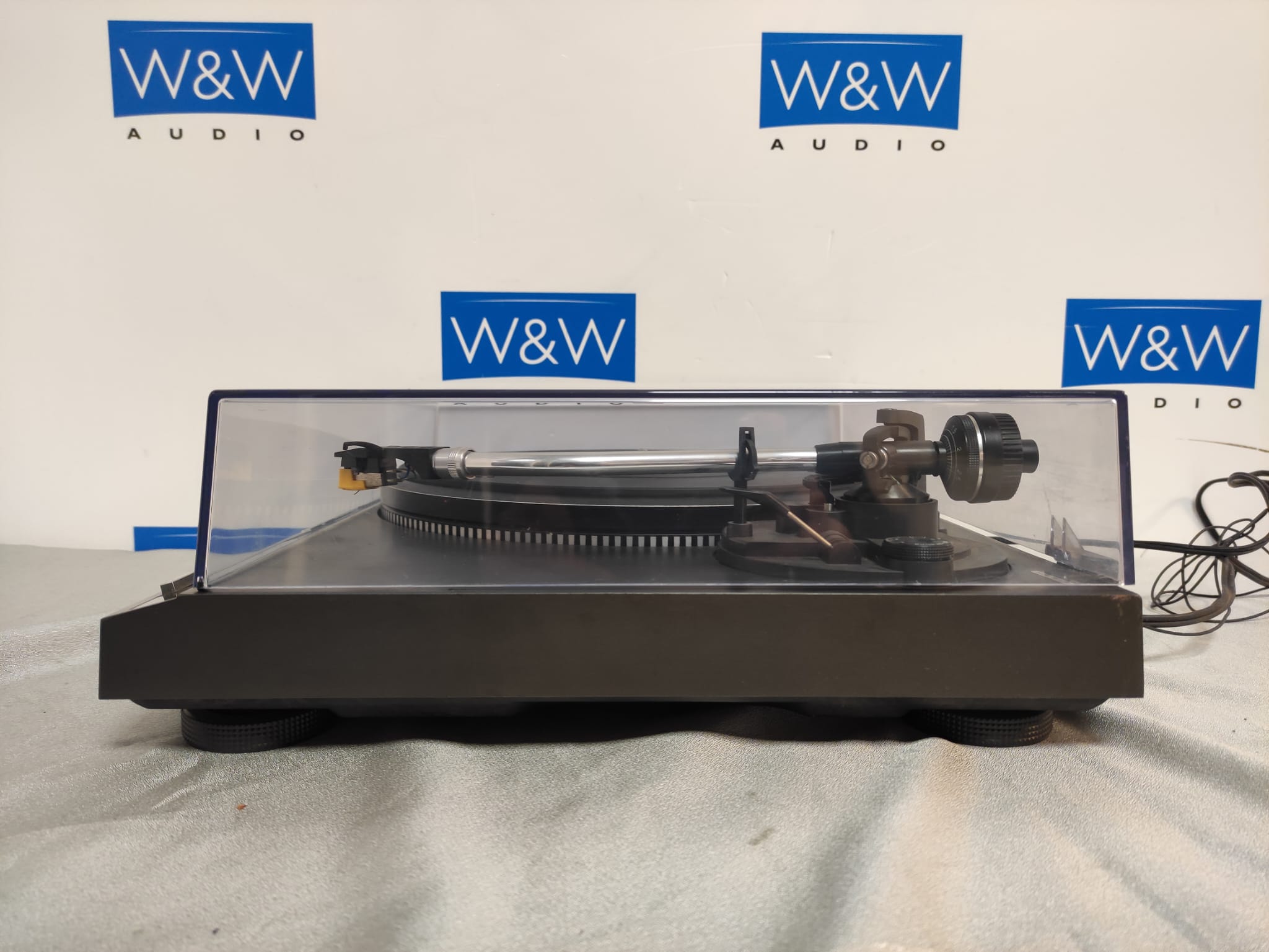

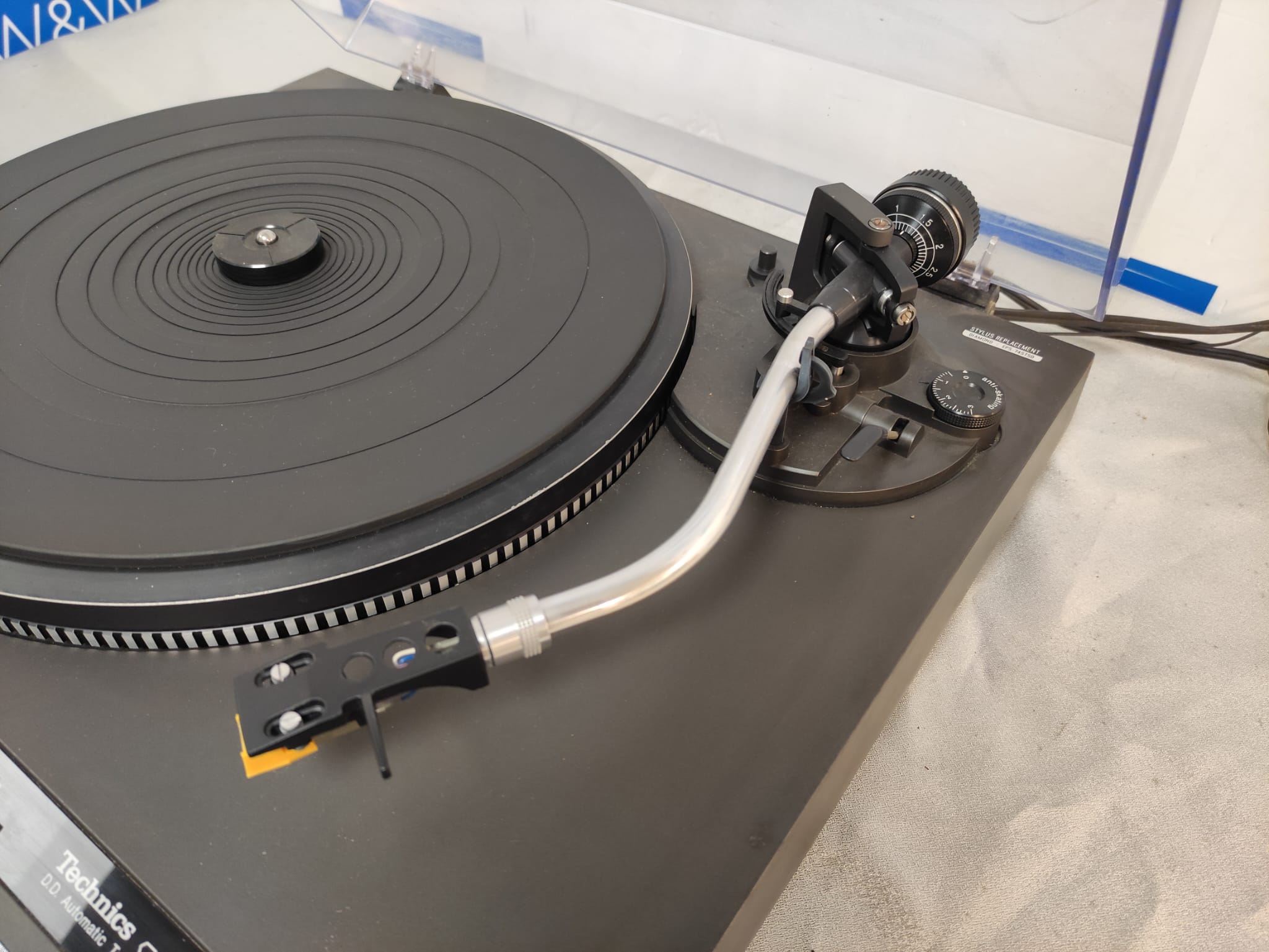

Equipped with a high-sensitivity tone arm with gimbal suspension system that realizes 7 mg of initial motion sensitivity for both horizontal and vertical motion.
Arm part is equipped with anti-skating force control function.

Equipped with an oil dump type queuing mechanism.

Equipped with an LED strobe illuminator synchronized with a crystal oscillator, enabling high-precision rotation adjustment.

The motor is an integrated D. D. motor unique to Technics.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Type Quartz phase locked control
Direct drive full-automatic player system
Drive system Direct drive
Drive motor Brushless DC motor
Control system Quartz phase locked control
Turntable 31.2 cm Aluminum Die-cast
Number of revolutions 33 1/3, 45 rpm
Starting torque 1.0 kg / cm
Start-up characteristic Constant speed at 0.9 seconds (33 1/3rpm)
Load variation 0.7 kg / cm or Less, 0%
Rotational speed deviation Within +/- 0.002%
Wow and flutter 0.025%W.R.M.S(JIS C5521)
0.012% W. R. M. S (Rotating Part Only)
Signal-to-noise ratio 78dB(IEC98A weighted)
Tone Arm Section
Format Universal S-shaped
Static balance
Gimbal suspension system
Rotational axis sensitivity 7 mg (horizontal and vertical initial motion sensitivity)
Needle pressure adjustment range 0 - 2.5g
Shell Weight 7.5g
Applicable Cartridge Weight 6g - 9.5g
3g - 6.5g (When Using Shell Weight)

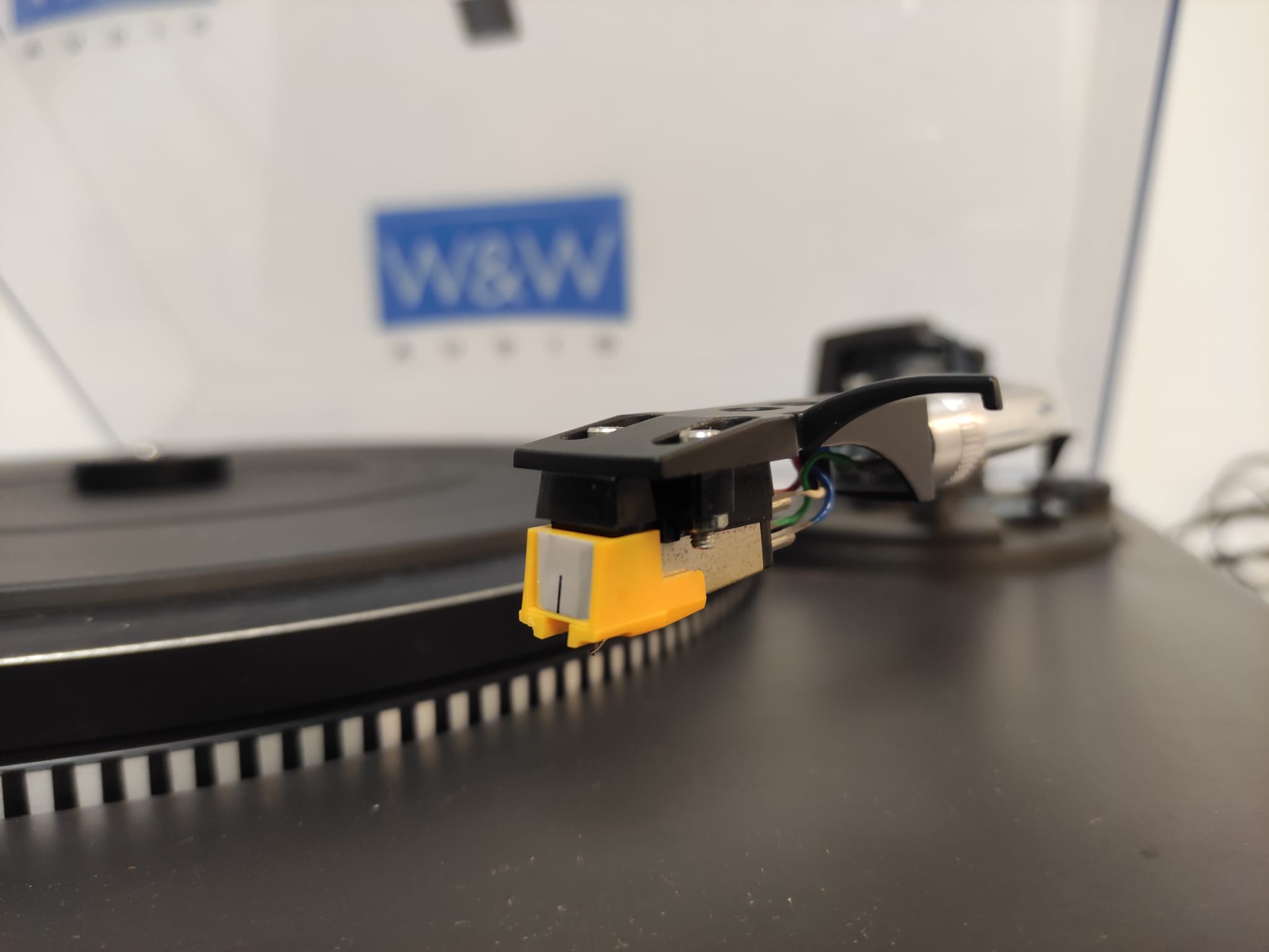

Cartridge Section
Type MM Type Stereo Cartridge
Dead weight 5.6g
Exchange needle EPS-207ED (Elliptical Needle, 6,000)
Pwer 100 VAC, 50Hz/60Hz
Power consumption 6W
External dimensions Width 430x Height 130x Depth 375 mm
Weight 7.2kg
