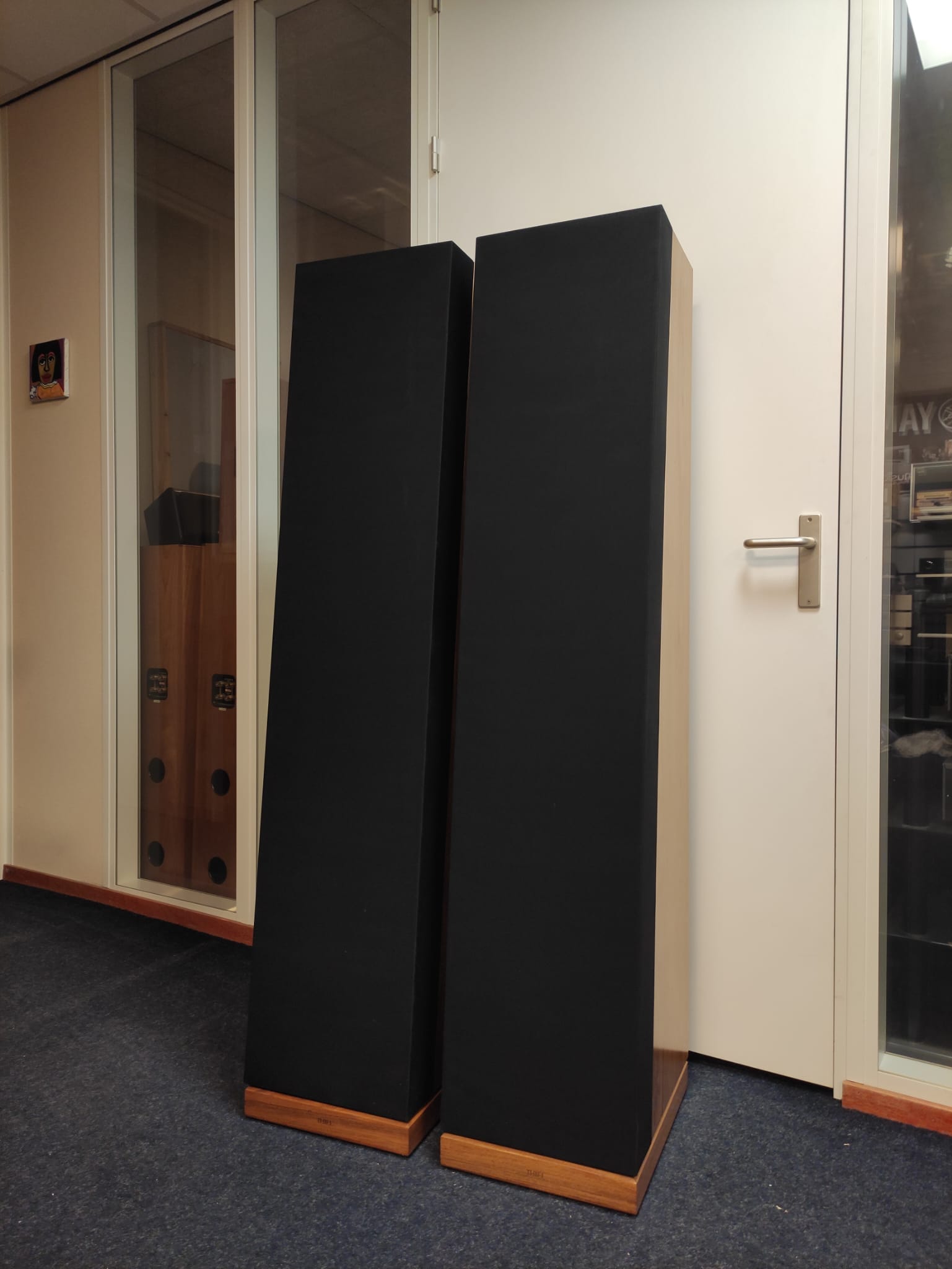

Thiel CS5

These are extremely elegant looking speakers and take up little floor space. One of the most accurate speakers ever built. You will hear more of your music than you ever knew was on the recording with these. Note the specifications below.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Floor-standing, five-way, six--drive-unit, "Coherent Source," moving-coil loudspeaker.

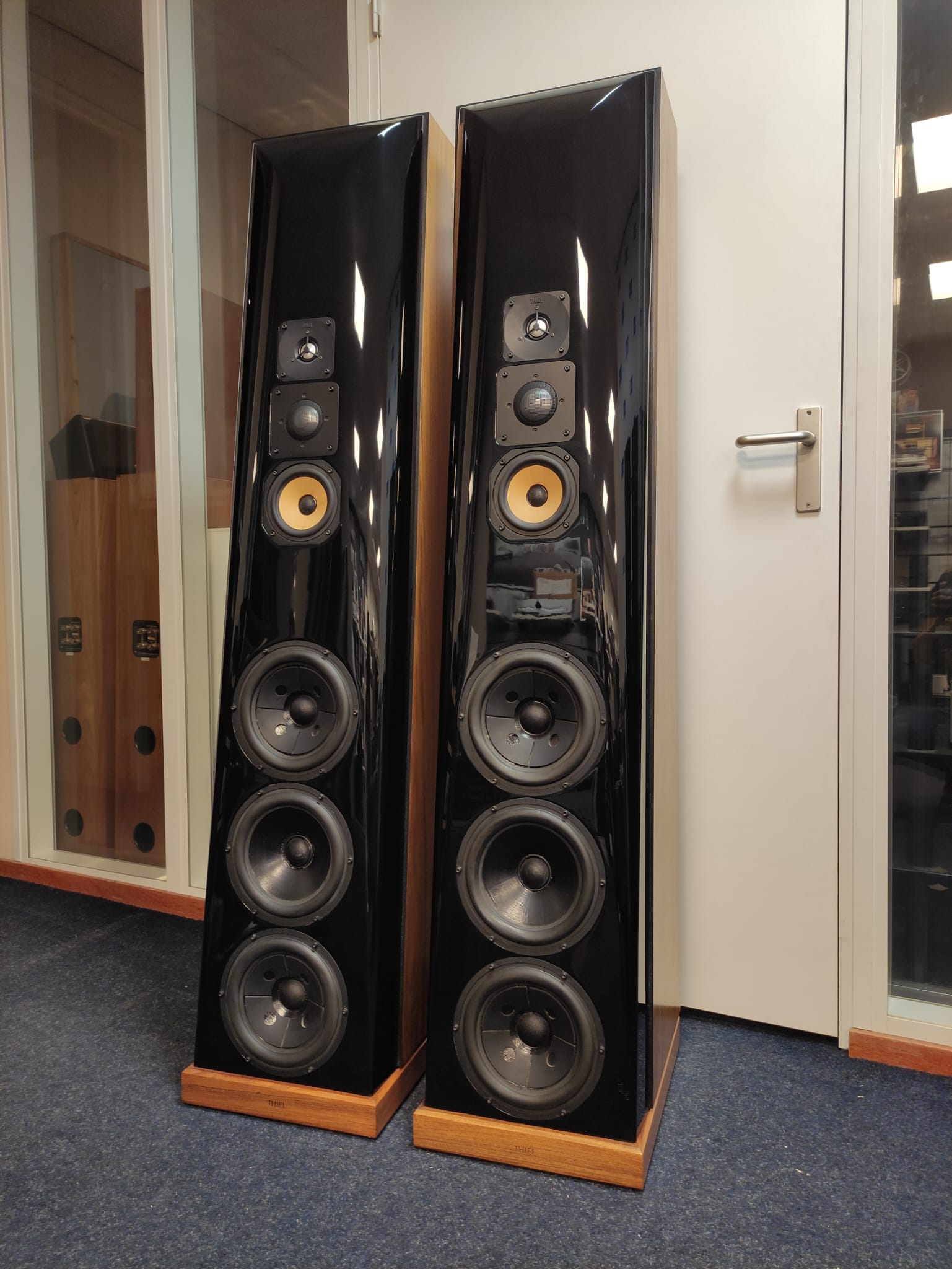

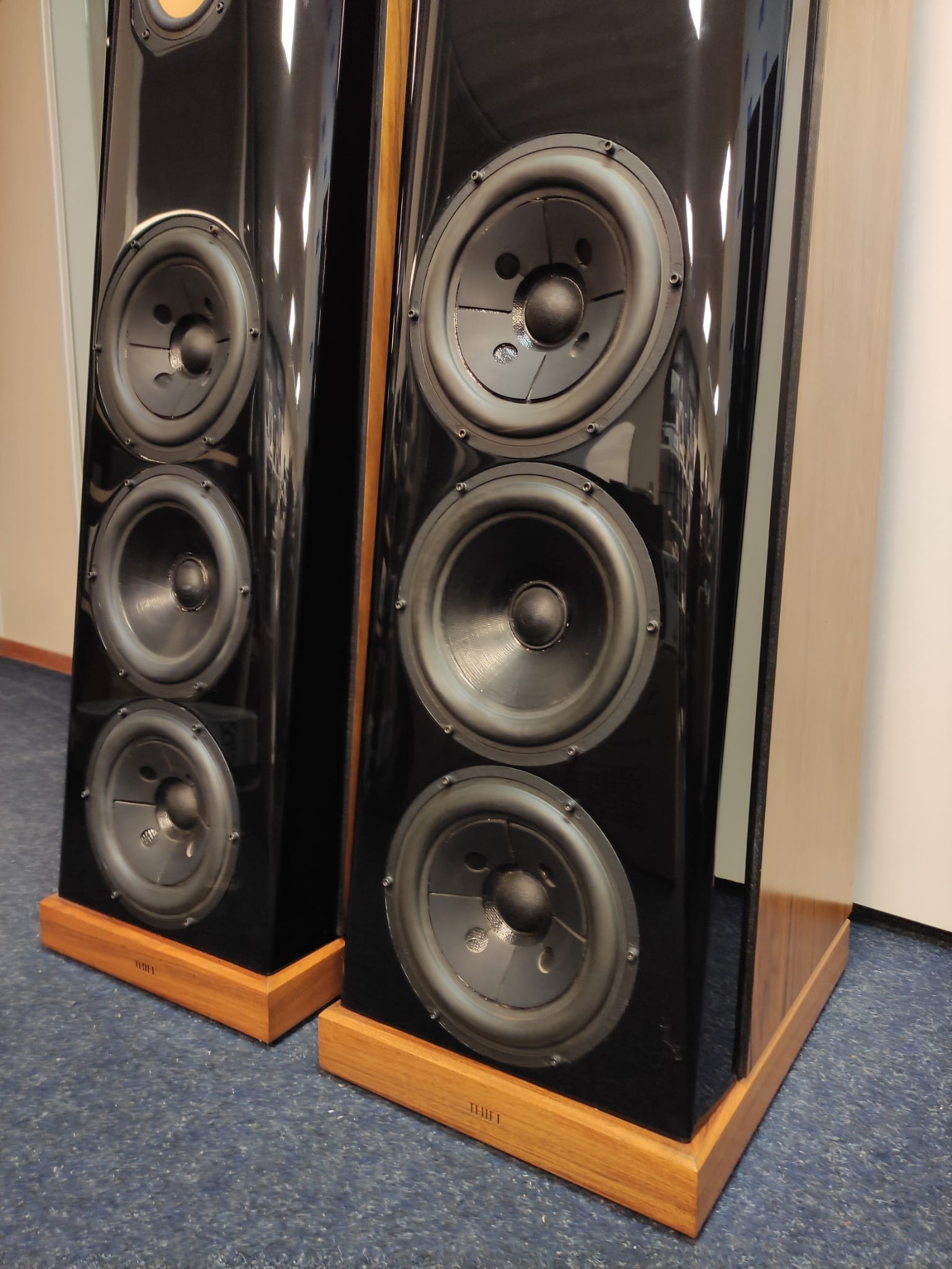

Drive-units: two 8" Kevlar-cone subwoofers, 8" Kevlar-cone woofer,5" Kevlar/foam-cone lower-midrange unit, 2" metal-dome upper midrange unit, 1" metal-dome tweeter.
Crossover frequencies: 50Hz, 400Hz, 1kHz, 3kHz.
Crossover slopes: first-order, 6dB/octave.
Frequency response: 23Hz--20kHz +/-1dB.
Phase response: minimum +/-5°.
Sensitivity: 87dB/2.83V/1m (equivalent to around 82dB/W/m, given the low impedance).
Impedance: 3 ohms (2 ohms minimum).
Recommended power: 100--400W.
Dimensions: 64" H by 13" W by 17" D.
Weight: 180 lbsea

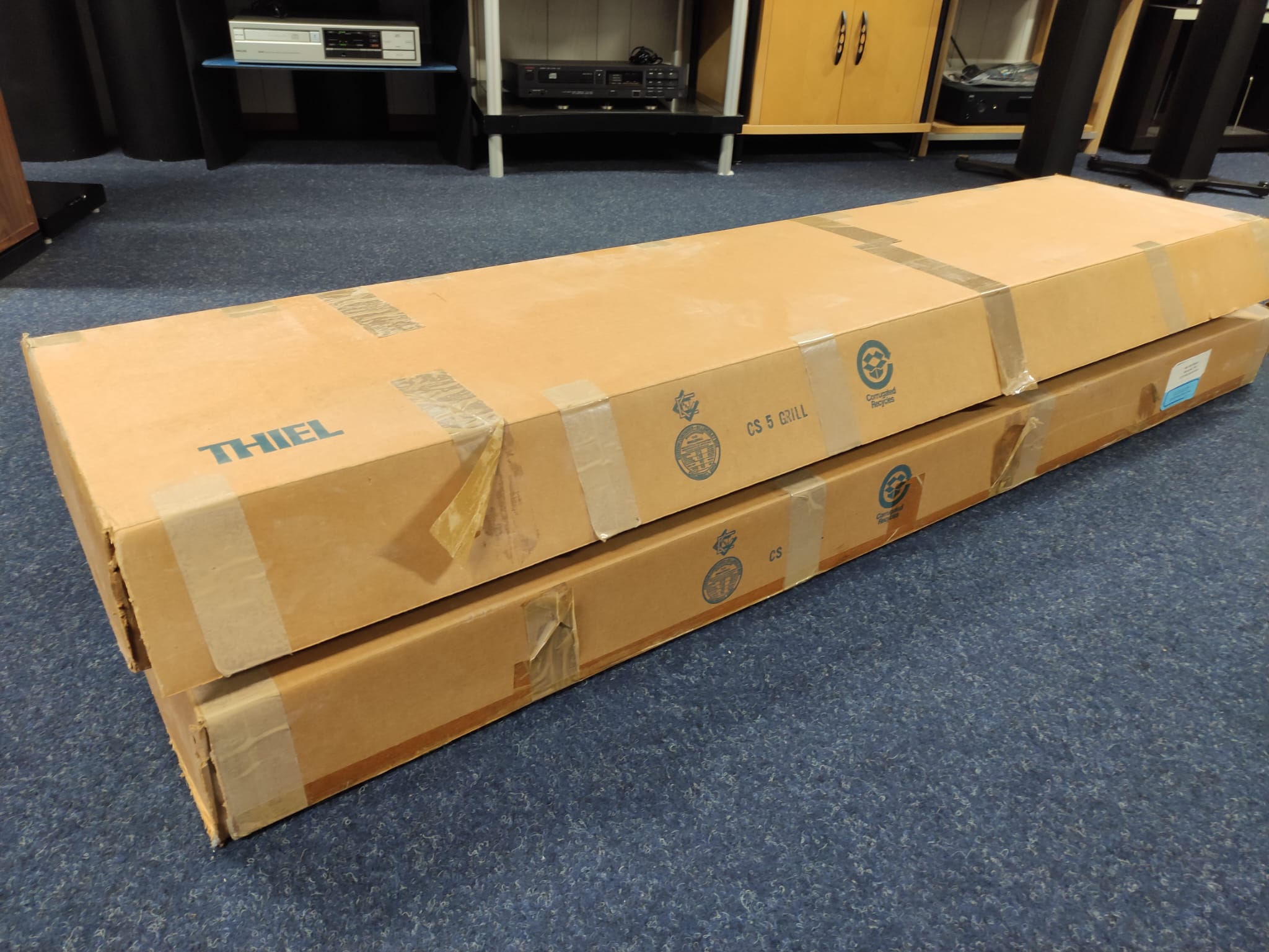

Shipping Weight: 220 lbs. each
