VTL MB-300

The amplifier features a large capacitor bank in the power supply, suggesting a need for a variac for safe startup.
The MB-300 has test points and a trimmer for bias adjustment, with some models potentially offering internal biasing procedures.

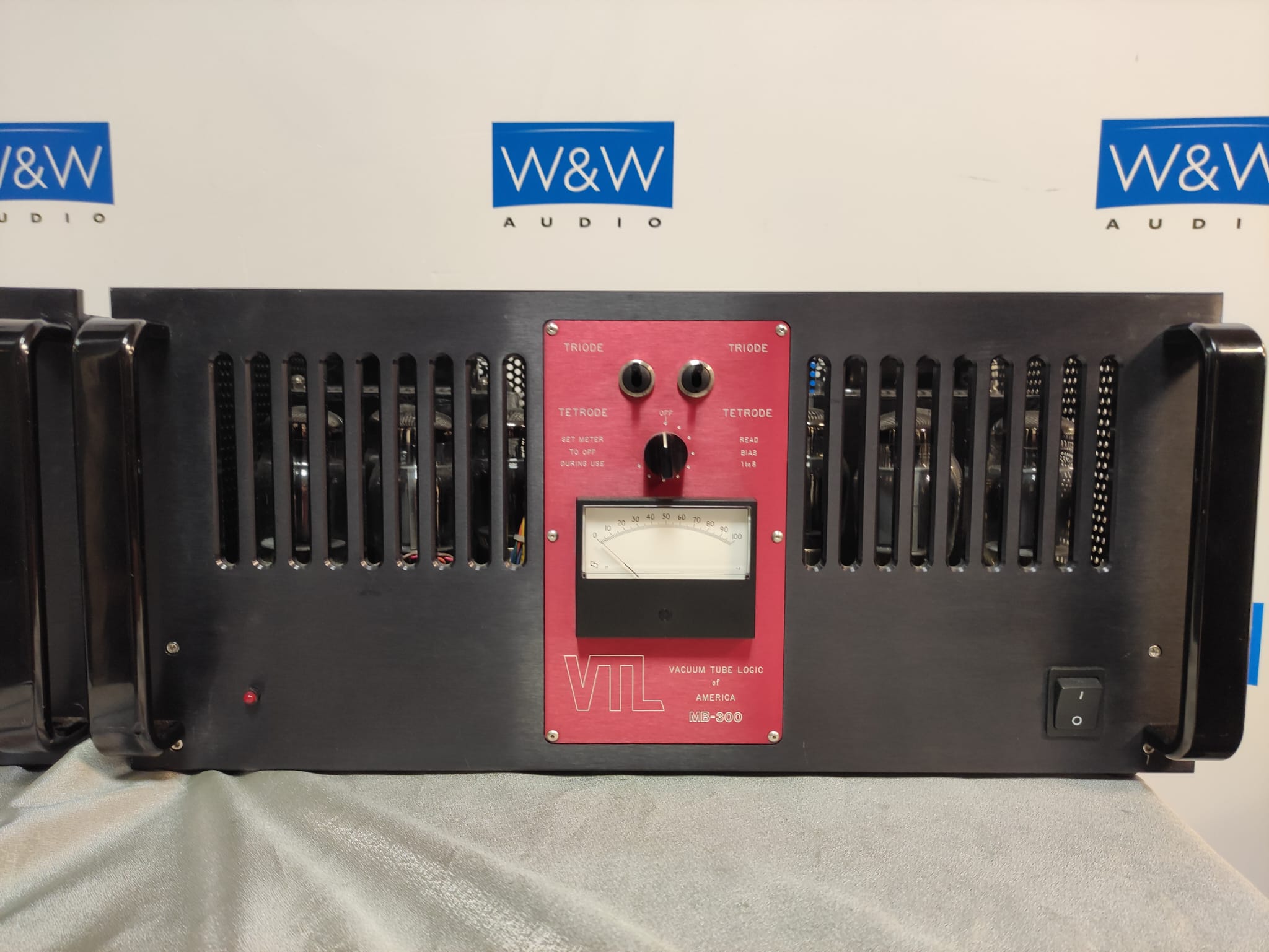

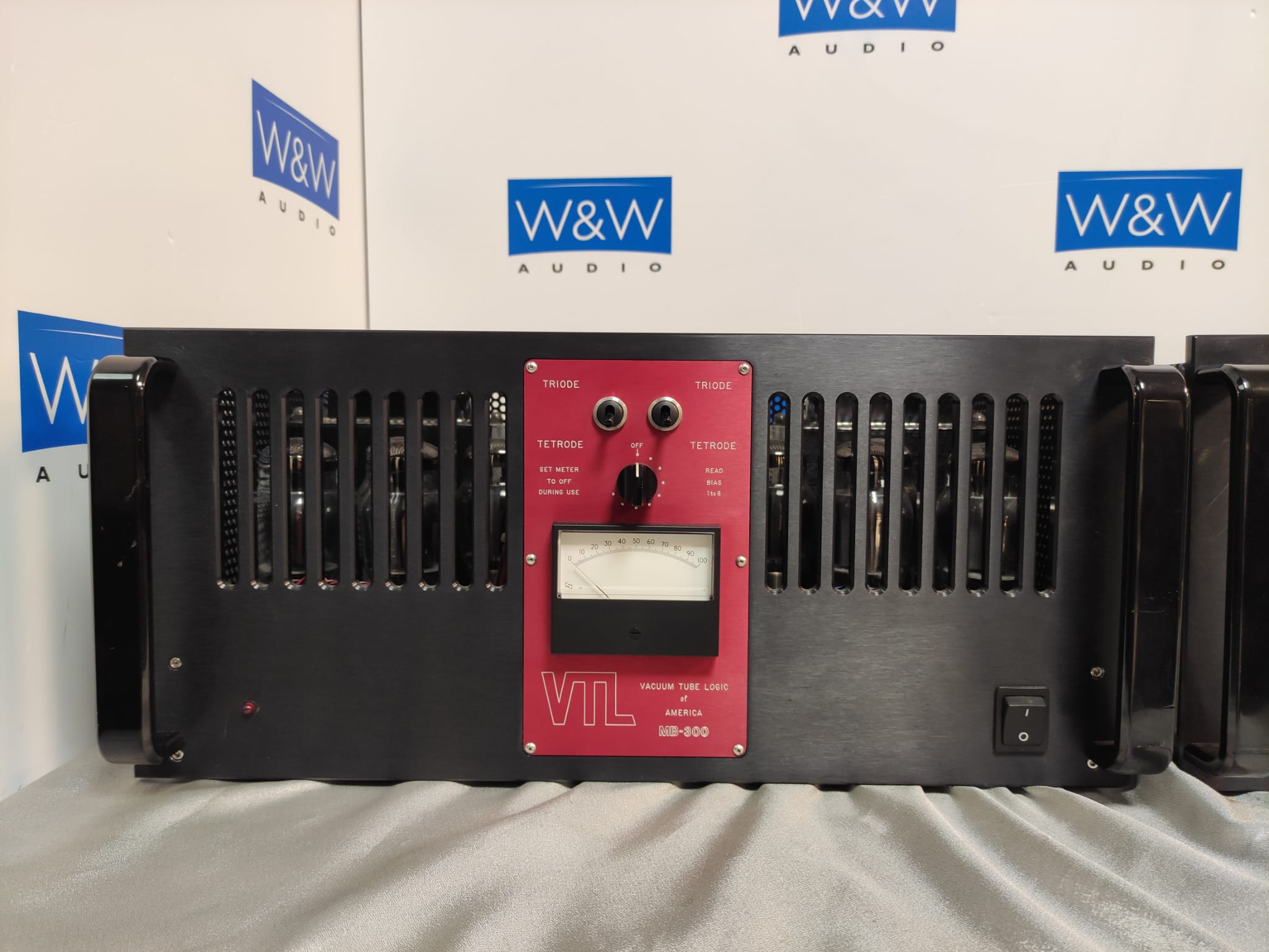

Early versions of the MB-300 had a switch and meter on the front panel for bias adjustment, while later Signature models might have an internal adjustment.
The MB-300 was later updated to the MB-450 Signature model, with cosmetic changes and an additional power supply for the driver stage, while maintaining the same power output.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

ype: Tube Monoblock Power Amplifier
Power Output: 300W (no load specified)
Tube Complement: 12AT7, 12BH7, and 6550 (x8)
Bias: Fixed-biased at class-A1
Power Supply: 550V with 1650uF of storage capacitance
Input Sensitivity: 775mV RMS
Source Impedance: 0.1 ohm
Dimensions: 19" W x 10" H x 22" D (estimated from similar models)
Weight: 75 lbs each
