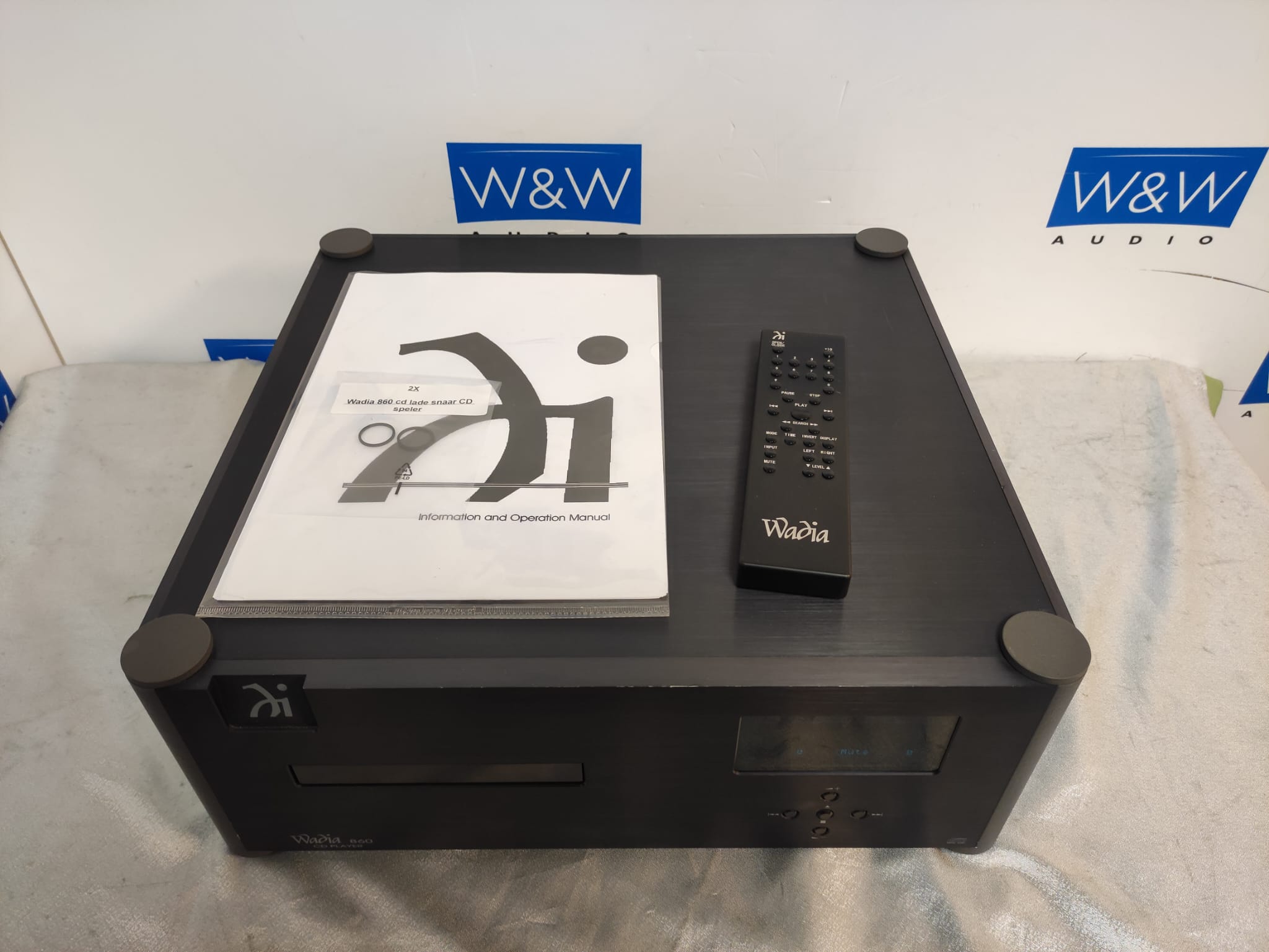

Wadia 860

Remote-controlled integrated CD player with multiple, user-selectable digital inputs and volume control.

See link.

Previous Next

Klik op de afbeelding voor een vergroting
Click picture for magnification

Inputs: 4 digital, S/PDIF (BNC), TosLink, ST-glass and AES/EBU (XLR).
Outputs: 2 analog, single-ended (RCA) and balanced (XLR); 4 digital, S/PDIF (BNC), TosLink, ST-glass, and AES/EBU (XLR). Output impedance: 51 ohms.
D/A conversion: 32x upsampling, using 4 Burr-Brown PCM-1704 24-bit DACs (2 per channel) and 3 user-selectable interpolation algorithms.
Digital resolution: 21 bits.
Power consumption: 25W.
Dimensions: 17" (430mm) W by 7" (180mm) H by 16" (410mm) D.
Weight: 48 lbs (22kg) net, 55 lbs (25kg) shipping.
