Yamaha MX-A5000

Beschrijving / Description

Absolute Quality, Massive Power.11-channel Power Amplifier delivers top-grade AVENTAGE Series performance. Incredibly clean, transparent output at all power levels. High rigidity chassis, high sound quality parts and reliable balanced connection for optimum performance, with flexible system building.

11-channel overwhelming power amplification
--- 150 W per channel (8 ohms, 20 Hz-20 kHz, 0.06 % THD, 2 ch driven)
--- 170 W per channel (8 ohms, 1 kHz, 0.9 % THD, 2 ch driven)
--- 290 W per channel (4 ohms, 1 kHz, 0.9 % THD, 1 ch driven [European Model])
--- 280 W per channel (6 ohms, 1 kHz, 10 % THD, 1 ch driven, JEITA)
Custom-made large-size toroidal transformer
Current feedback power amp with Three-stage Darlington circuit
27,000uF custom block capacitors
Specially designed high rigidity chassis and highest quality parts
Noise resistant XLR balanced connections
Biamping capability with channel selector
High quality gold-plated speaker terminals
Auto Power Standby
Handy trigger control (trigger in / out and through out )
Detachable high quality thick AC cable
The MX-A5000 discrete structured 11-channel Power Amplifier delivers powerful driving force that provides superb quality and performance for all channels. Combined with the CX-A5000 11.2-channel Pre-amplifier, it achieves overwhelming silence and sound filled with dynamic feeling, the goal to which Yamaha constantly aspires. With all types of sound sources, you will enjoy a deep resonance that immerses you in music with the full scale presence of 11.2 channels.

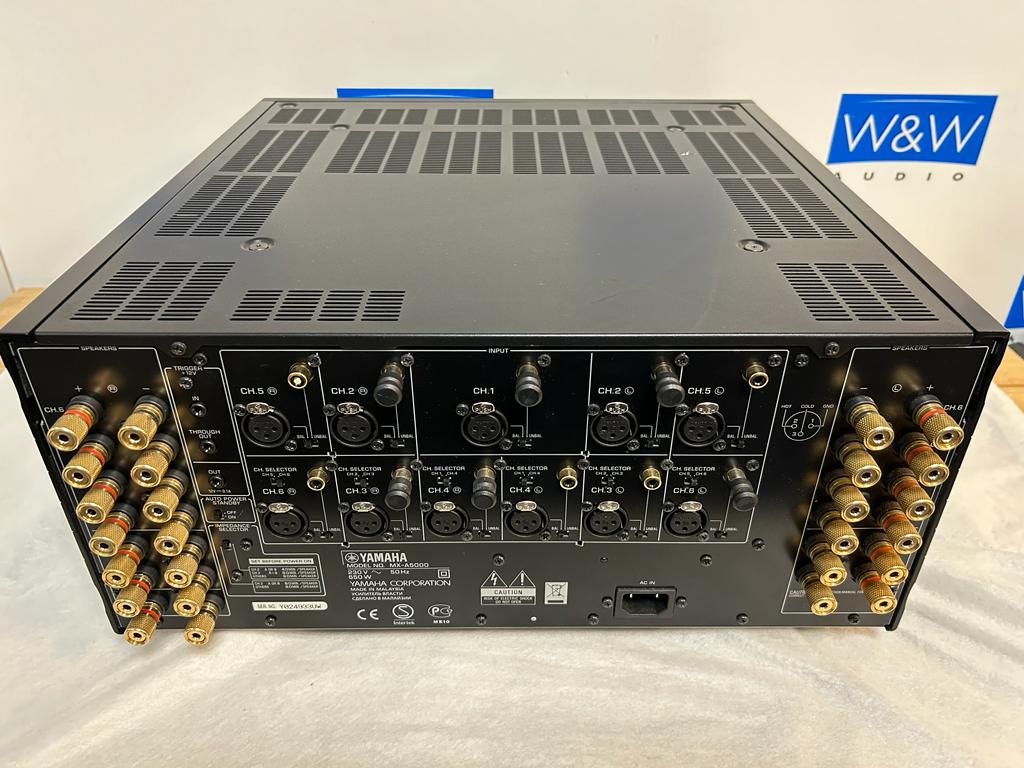

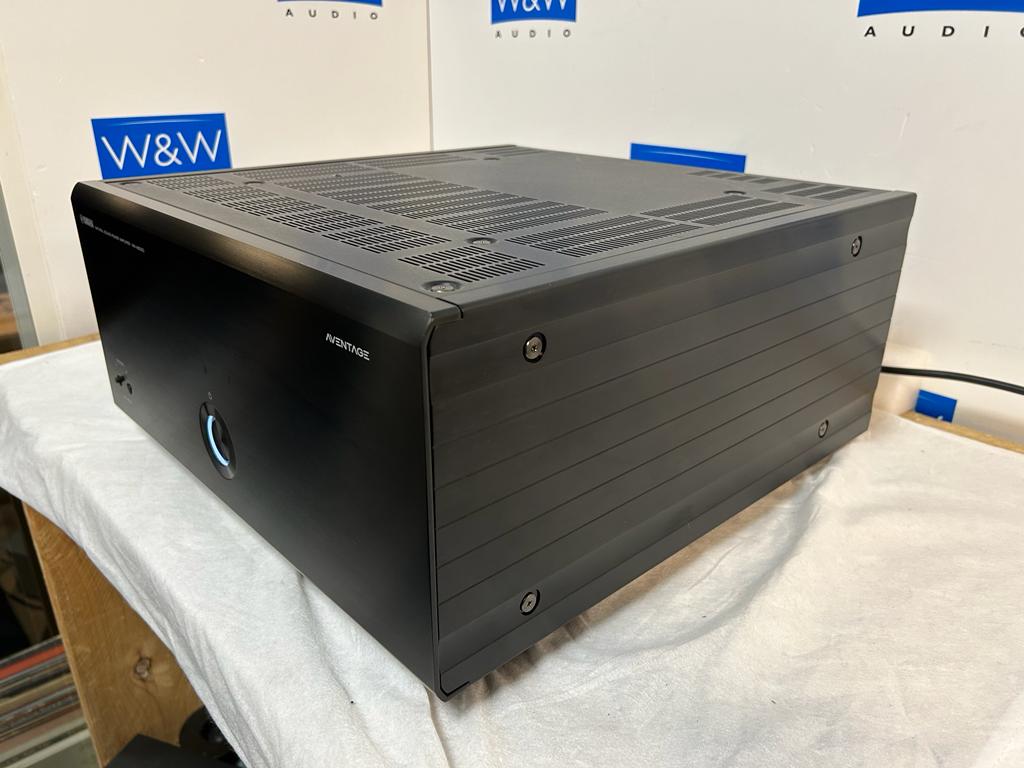

Klik op de afbeelding voor een vergroting
Click picture for magnification

Specificaties / Specifications

Amplifier Section Channel 11
Rated Output Power (1kHz, 1ch driven) 290 W (4 ohms, 0.9% THD [European Model]), 230 W (6 ohm, 0.9% THD), 190 W (8 ohm, 0.9% THD)
Rated Output Power (1kHz, 2ch driven) 170 W (8 ohm, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 170 W (6 ohm, 0.06% THD), 150 W (8 ohm, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 280 W (6 ohm, 10% THD), 230 W (8 ohm, 10% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 190 / 250 / 350 / 500 W
Current Feedback Amplifier Circuit Yes
Connectivity Analog Audio Input/Output XLR Balance: 11 / 0, RCA Unbalance: 11 / 0
Zone Control +12V Trigger Output Out:1, Trigger in / Through: 1 / 1
General Auto Power Standby Yes (ON / OFF switch)
Power Consumption 650 W
Dimensions (W x H x D) 435 x 210 x 463.5 mm
Weight 25.4 kg; 56 lbs.

Staat van product
Tweedehands

Prijs
Dit product is mogelijk verkocht.
Zoek eventueel via het menu of via Ebay of Marktplaats!

Item possibly sold.
Search via menu or via Ebay or Marktplaats!
